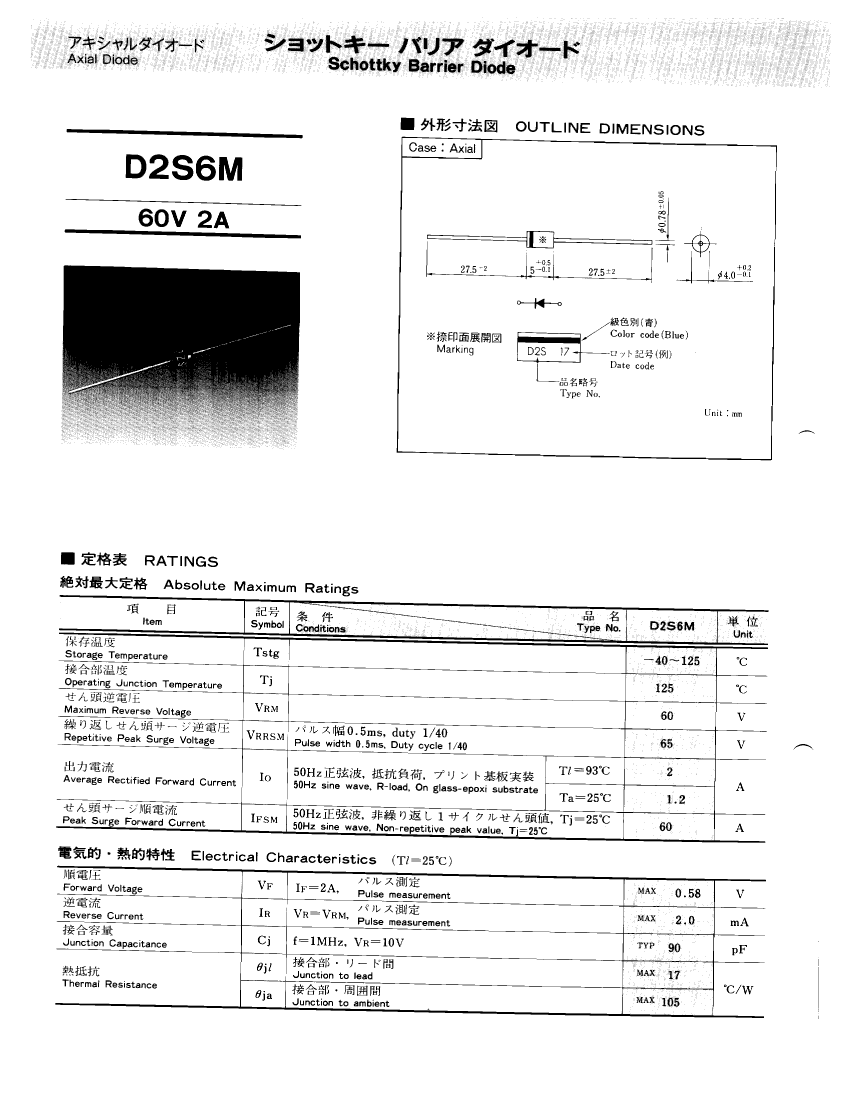

Preview

D2S6M4001P10: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 1.2A, Silicon,; CategoryDiscrete semiconductor diode; File Size213KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

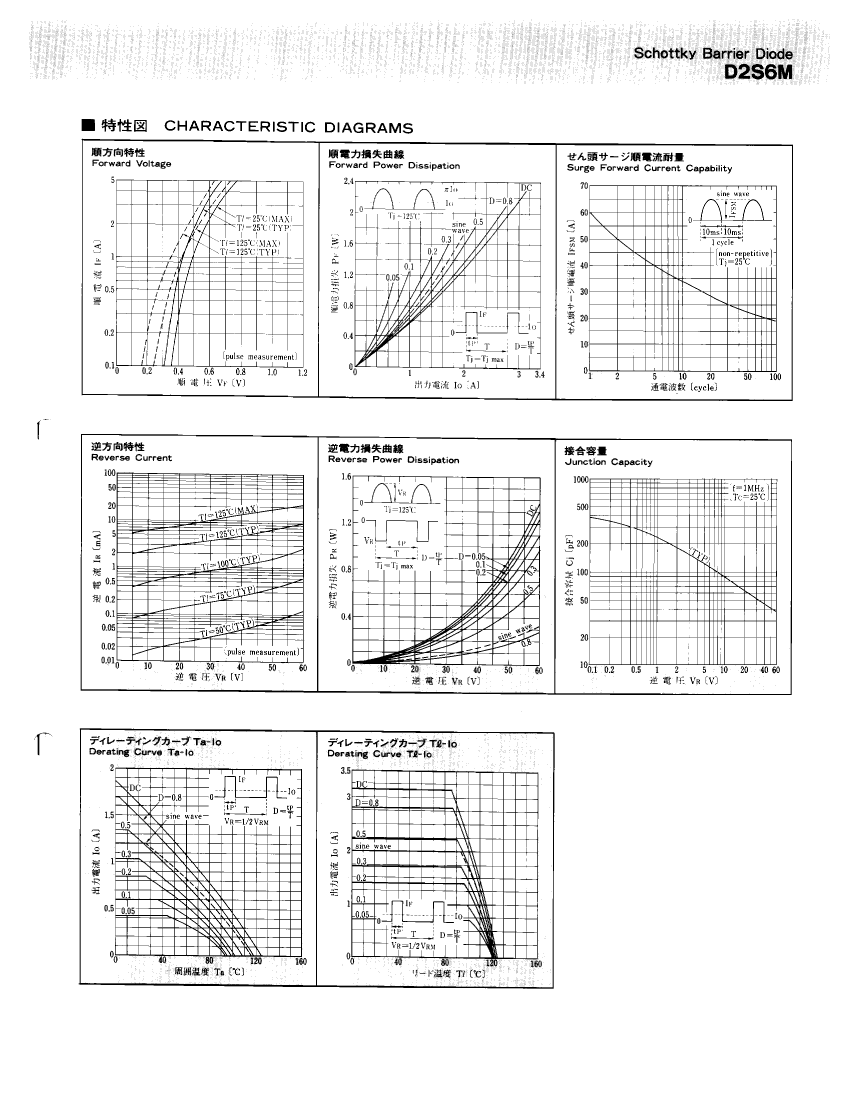

D2S6M4001P10 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 1.2A, Silicon,

D2S6M4001P10 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.58 V
JESD-30 code	O-XALF-W2
Maximum non-repetitive peak forward current	60 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	1.2 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum reverse current	2000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL
