Datasheet> All Categories > Discrete semiconductor> diode> D2SBA20-4001

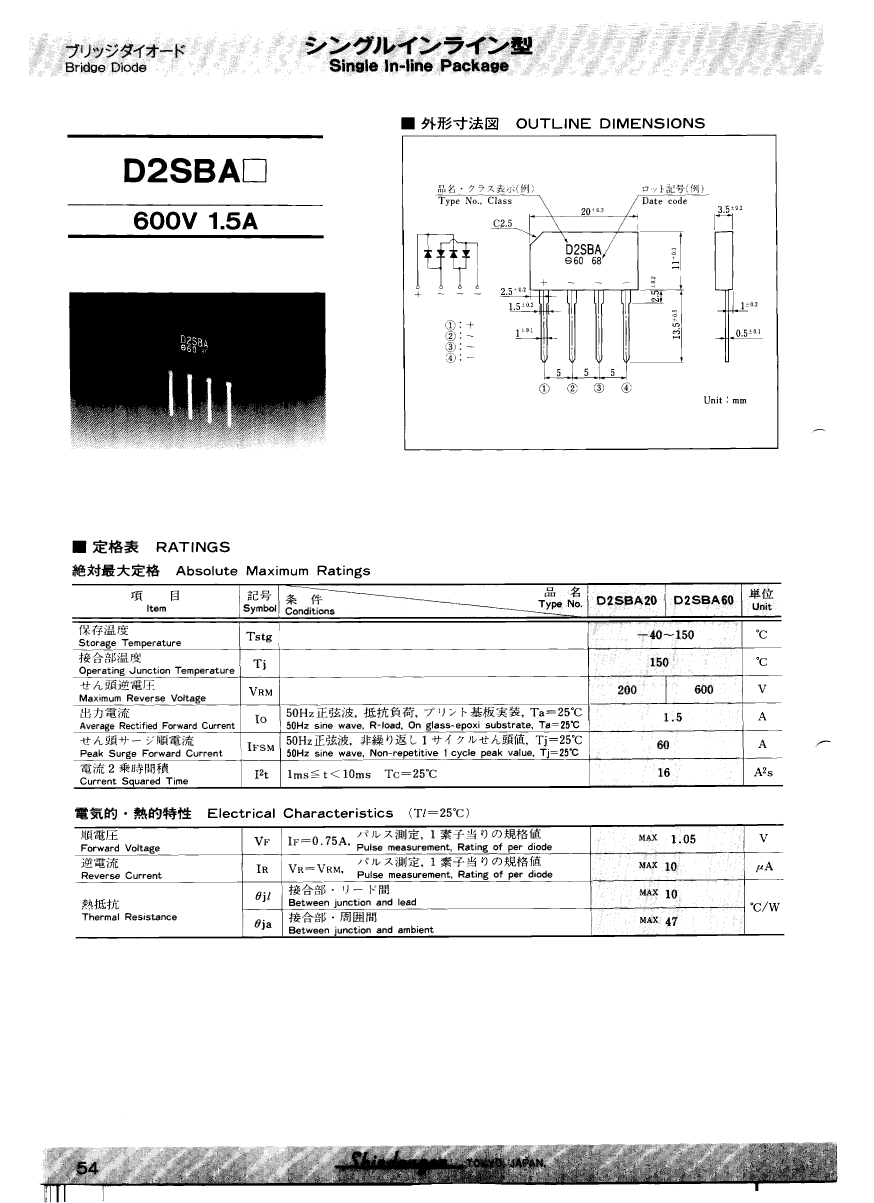

Preview

D2SBA20-4001: DescriptionBridge Rectifier Diode, 1 Phase, 1.5A, Silicon,; CategoryDiscrete semiconductor diode; File Size294KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

D2SBA20-4001 Overview

Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,

D2SBA20-4001 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
package instruction	R-PSIP-T4
Reach Compliance Code	unknown
Minimum breakdown voltage	200 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
JESD-30 code	R-PSIP-T4
Maximum non-repetitive peak forward current	60 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum reverse current	10 µA
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

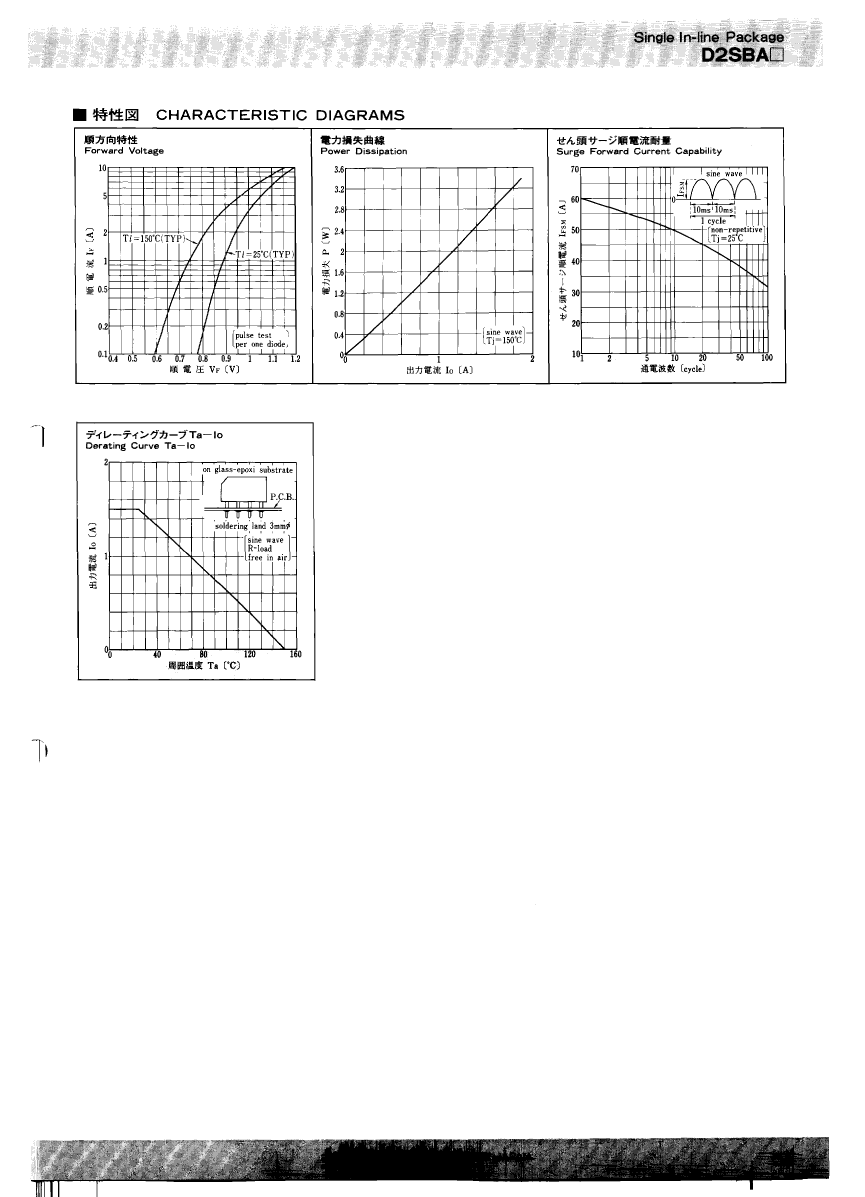

Preview

Download Datasheet

View All

D2SBA20-4001 Related Products

	D2SBA20-4001	D2SBA20-4004	D2SBA20-4003	D2SBA60-4003	D2SBA60-4004	D2SBA60-4001
Description	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,
Maker	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN
package instruction	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Minimum breakdown voltage	200 V	200 V	200 V	600 V	600 V	600 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V
JESD-30 code	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Maximum non-repetitive peak forward current	60 A	60 A	60 A	60 A	60 A	60 A
Number of components	4	4	4	4	4	4
Phase	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	10 µA	10 µA	10 µA	0.00001 µA	0.00001 µA	0.00001 µA
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
