SP9604AL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> SP9604AL

SP9604AL: DescriptionD/A Converter, 4 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC28, PLASTIC, LCC-28; CategoryAnalog mixed-signal IC converter; File Size610KB，9 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

SP9604AL Overview

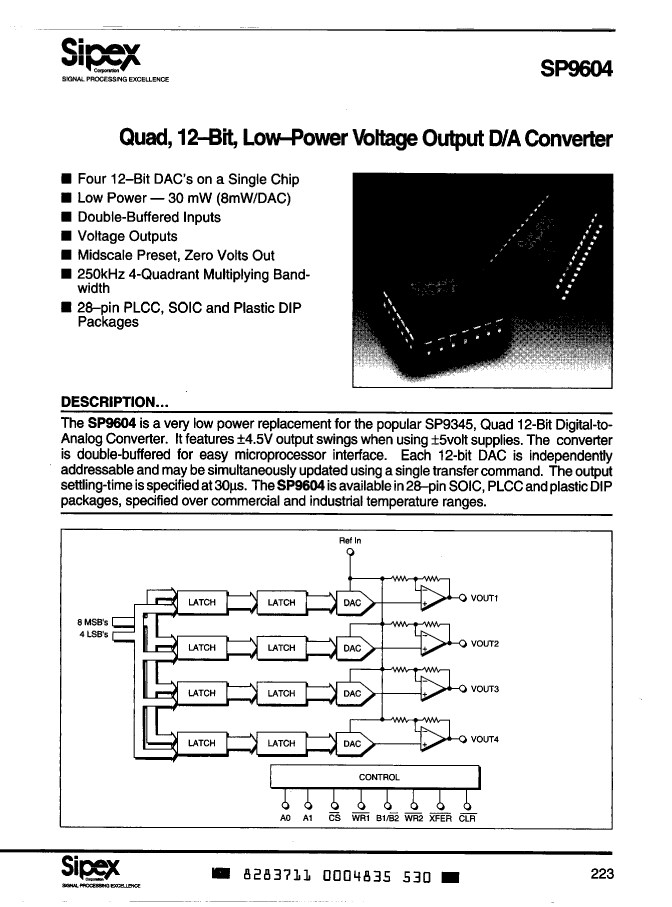

D/A Converter, 4 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC28, PLASTIC, LCC-28

SP9604AL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
package instruction	PLASTIC, LCC-28
Reach Compliance Code	unknown
Maximum analog output voltage	4.5 V
Minimum analog output voltage	-4.5 V
Converter type	D/A CONVERTER
Enter bit code	OFFSET BINARY
Input format	PARALLEL, WORD

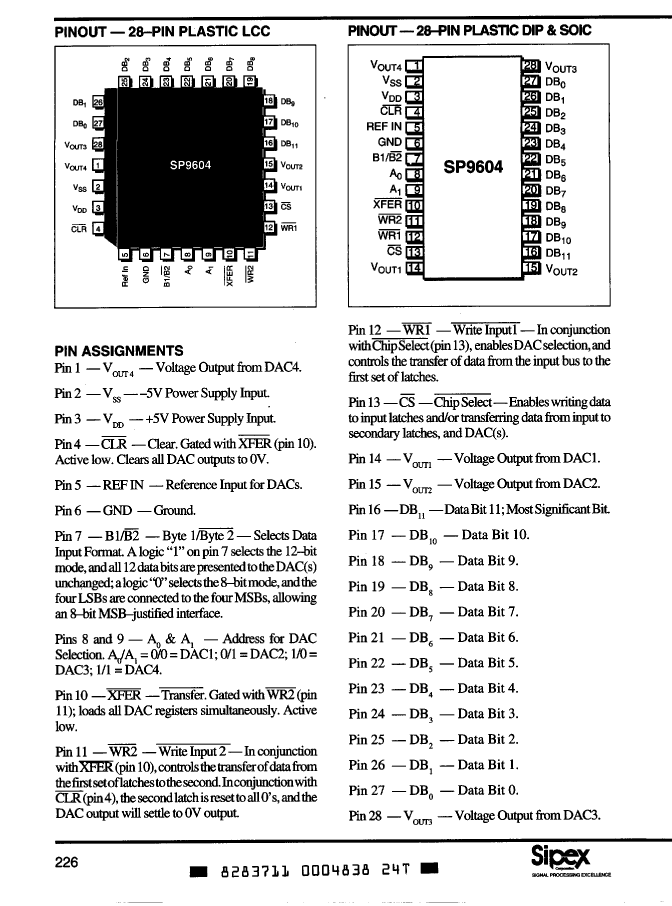

JESD-30 code	S-PQCC-J28
length	11.5062 mm
Maximum linear error (EL)	0.0244%
Humidity sensitivity level	1
Nominal negative supply voltage	-5 V
Number of digits	12
Number of functions	4
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	4.57 mm
Nominal settling time (tstl)	30 µs
Maximum slew rate	6.5 mA
Nominal supply voltage	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.5062 mm

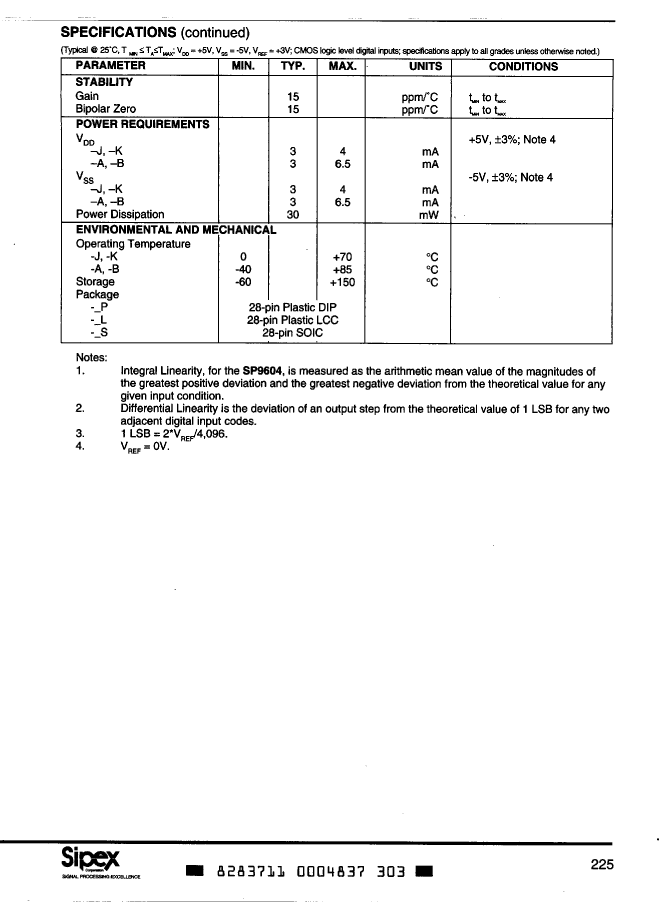

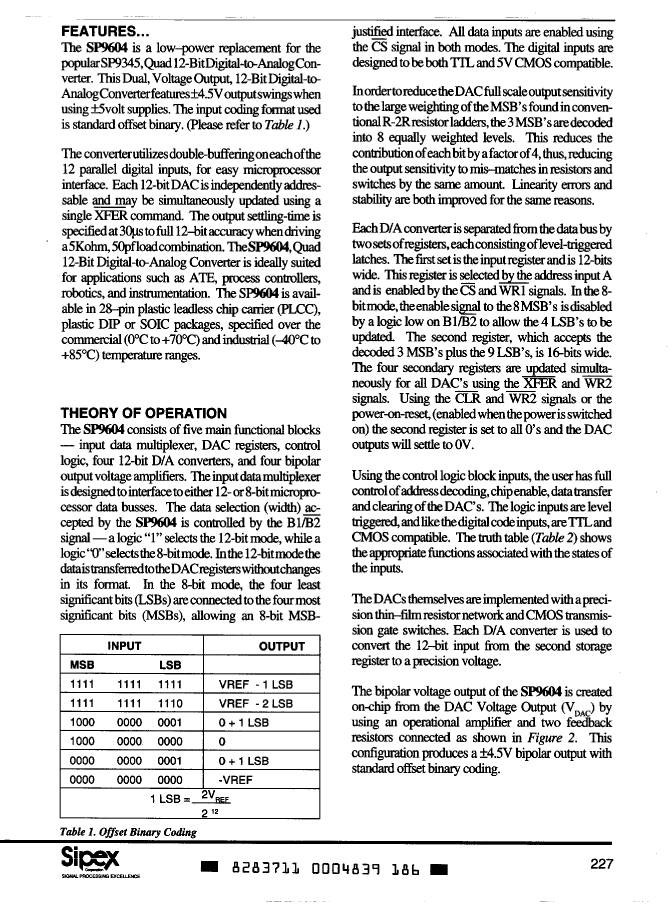

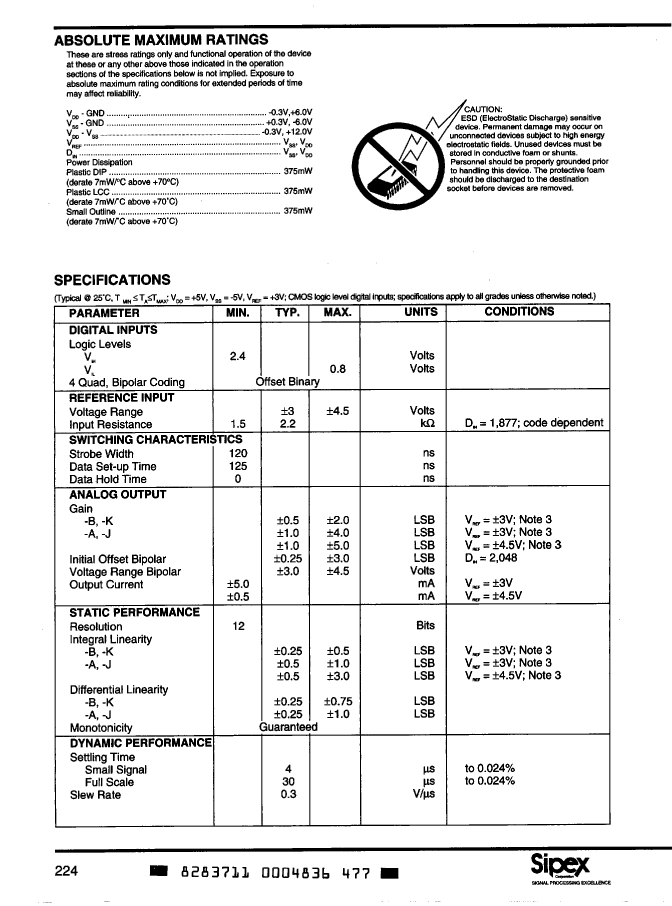

Preview

Download Datasheet

View All

SP9604AL Related Products

	SP9604AL	SP9604KL	SP9604BL	SP9604BS	SP9604AP	SP9604AS	SP9604JL	SP9604BP
Description	D/A Converter, 4 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 30us Settling Time, PDSO28, 0.400 INCH, PLASTIC, SOIC-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 30us Settling Time, PDIP28, 0.600 INCH, PLASTIC, DIP-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 30us Settling Time, PDSO28, 0.400 INCH, PLASTIC, SOIC-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 4 Func, Parallel, Word Input Loading, 30us Settling Time, PDIP28, 0.600 INCH, PLASTIC, DIP-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX
package instruction	PLASTIC, LCC-28	PLASTIC, LCC-28	PLASTIC, LCC-28	0.400 INCH, PLASTIC, SOIC-28	0.600 INCH, PLASTIC, DIP-28	0.400 INCH, PLASTIC, SOIC-28	PLASTIC, LCC-28	0.600 INCH, PLASTIC, DIP-28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Minimum analog output voltage	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	S-PQCC-J28	S-PQCC-J28	S-PQCC-J28	R-PDSO-G28	R-PDIP-T28	R-PDSO-G28	S-PQCC-J28	R-PDIP-T28
length	11.5062 mm	11.5062 mm	11.5062 mm	18.39 mm	37.4 mm	18.39 mm	11.5062 mm	37.4 mm
Maximum linear error (EL)	0.0244%	0.0122%	0.0122%	0.0122%	0.0244%	0.0244%	0.0244%	0.0122%
Humidity sensitivity level	1	1	1	1	1	1	1	1
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of digits	12	12	12	12	12	12	12	12
Number of functions	4	4	4	4	4	4	4	4
Number of terminals	28	28	28	28	28	28	28	28
Maximum operating temperature	85 °C	70 °C	85 °C	85 °C	85 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	SOP	DIP	SOP	QCCJ	DIP
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	225	225	225	225	225	225	225	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	2.54 mm	6.35 mm	2.54 mm	4.57 mm	6.35 mm
Nominal settling time (tstl)	30 µs	30 µs	30 µs	30 µs	30 µs	30 µs	30 µs	30 µs
Maximum slew rate	6.5 mA	4 mA	6.5 mA	6.5 mA	6.5 mA	6.5 mA	4 mA	6.5 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	YES	YES	NO
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal form	J BEND	J BEND	J BEND	GULL WING	THROUGH-HOLE	GULL WING	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	DUAL	DUAL	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	11.5062 mm	11.5062 mm	11.5062 mm	10.16 mm	15.24 mm	10.16 mm	11.5062 mm	15.24 mm
