5962-9551901MLX: DescriptionIC 1-CH 12-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP24, CERAMIC, DIP-24, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size88KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-9551901MLX Overview

IC 1-CH 12-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP24, CERAMIC, DIP-24, Analog to Digital Converter

5962-9551901MLX Parametric

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum conversion time	0.5 µs
Converter type	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T24
Maximum linear error (EL)	0.0977%
Nominal negative supply voltage	-5 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sampling rate	2 MHz
Filter level	MIL-STD-883
Nominal supply voltage	5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

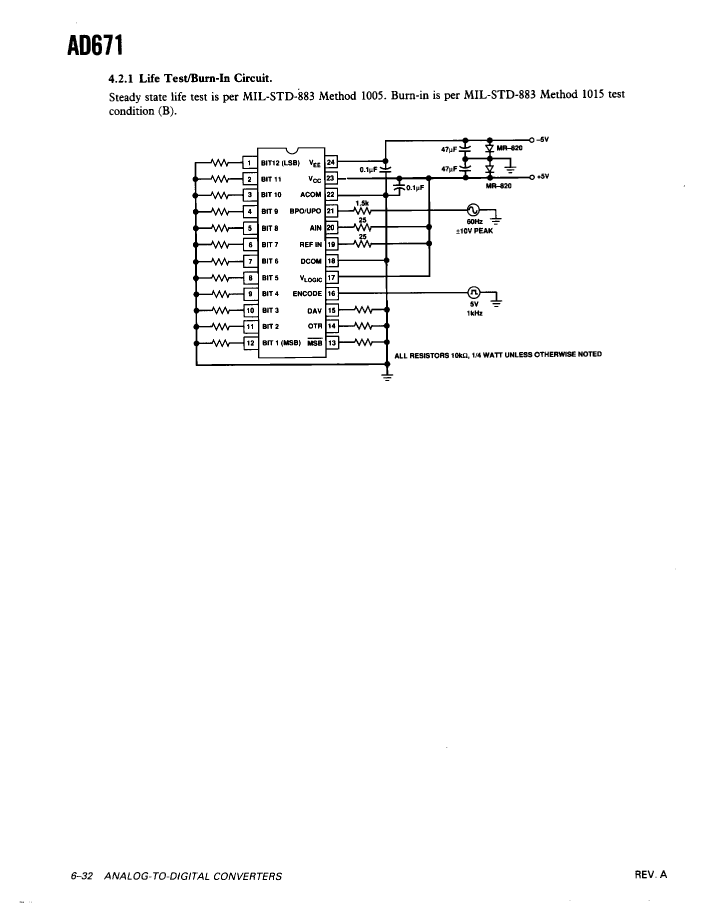

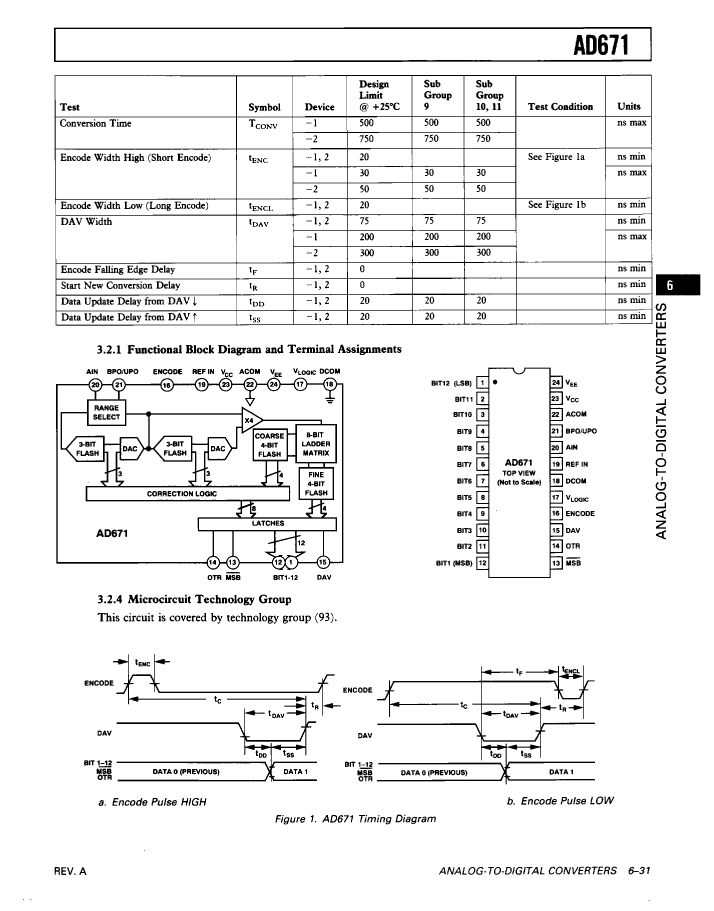

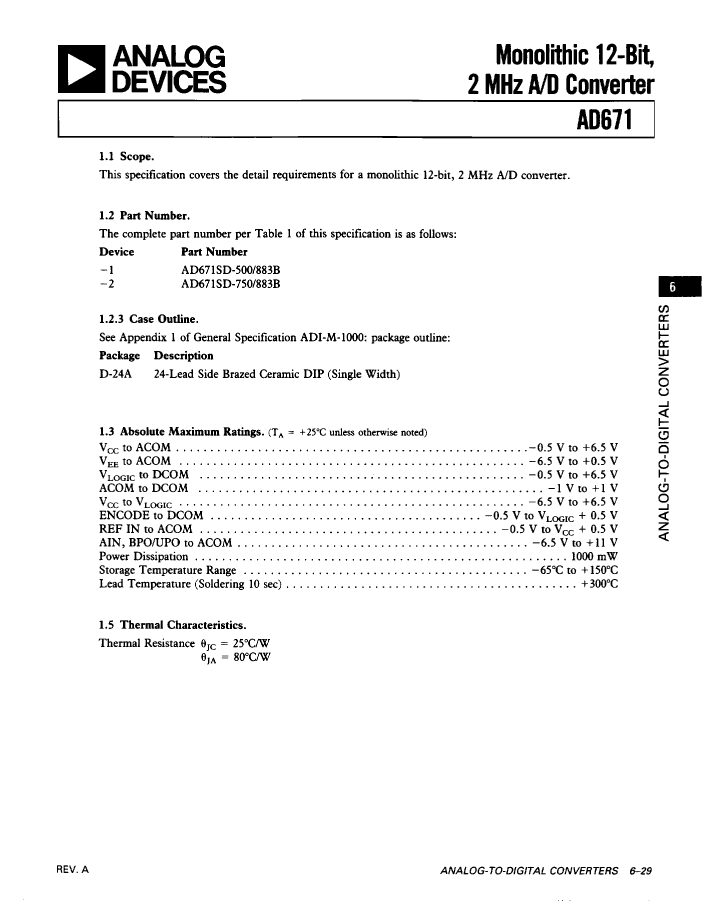

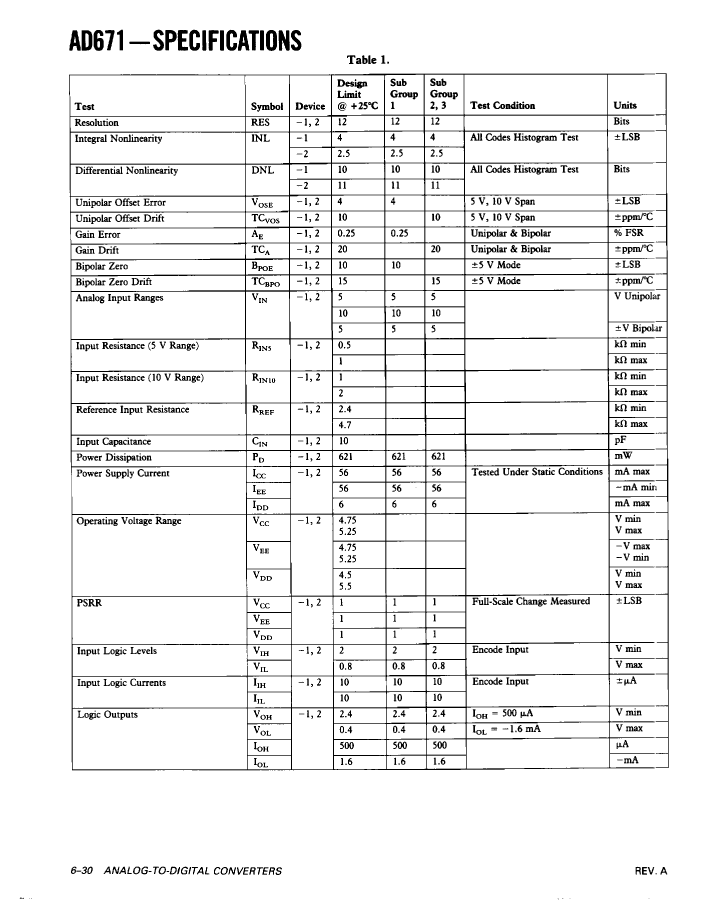

Preview

Download Datasheet

View All

5962-9551901MLX Related Products

	5962-9551901MLX	5962-9551902MLX	AD671SD-750/883B	5962-9551901MLA	5962-9551902MLA	AD671SD-500/883B
Description	IC 1-CH 12-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP24, CERAMIC, DIP-24, Analog to Digital Converter	IC 1-CH 12-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP24, CERAMIC, DIP-24, Analog to Digital Converter	IC 1-CH 12-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP24, SIDE BRAZED, CERAMIC, DIP-24, Analog to Digital Converter	IC 1-CH 12-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP24, CERAMIC, DIP-24, Analog to Digital Converter	IC 1-CH 12-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP24, CERAMIC, DIP-24, Analog to Digital Converter	IC 1-CH 12-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP24, SIDE BRAZED, CERAMIC, DIP-24, Analog to Digital Converter
Maker	ADI	ADI	ADI	ADI	ADI	ADI
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP,	SIDE BRAZED, CERAMIC, DIP-24	CERAMIC, DIP-24	CERAMIC, DIP-24	SIDE BRAZED, CERAMIC, DIP-24
Contacts	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	not_compliant	not_compliant	not_compliant	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum conversion time	0.5 µs	0.75 µs	0.75 µs	0.5 µs	0.75 µs	0.5 µs
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24
Maximum linear error (EL)	0.0977%	0.061%	0.061%	0.0977%	0.061%	0.0977%
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of analog input channels	1	1	1	1	1	1
Number of digits	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Sampling rate	2 MHz	2 MHz	-	2 MHz	2 MHz	-
Filter level	MIL-STD-883	MIL-STD-883	38535Q/M;38534H;883B	-	-	38535Q/M;38534H;883B
Base Number Matches	-	1	1	1	1	-
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	incompatible
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	225	225	NOT SPECIFIED
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
