74ABT573DB datasheet, PDF - EEWORLD Datasheet

74ABT573DB: DescriptionD Latch, 1-Func, 8-Bit, PDSO20; Categorylogic logic; File Size434KB，6 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

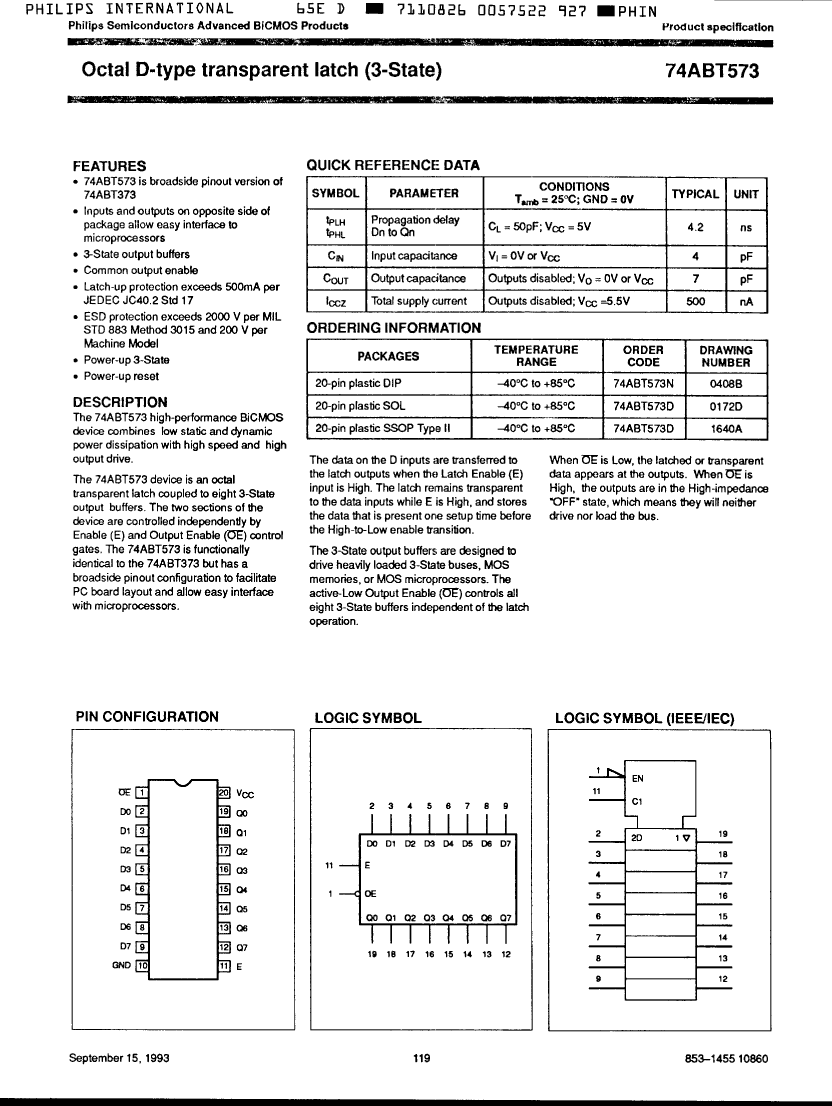

74ABT573DB Overview

D Latch, 1-Func, 8-Bit, PDSO20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G20
JESD-609 code	e0

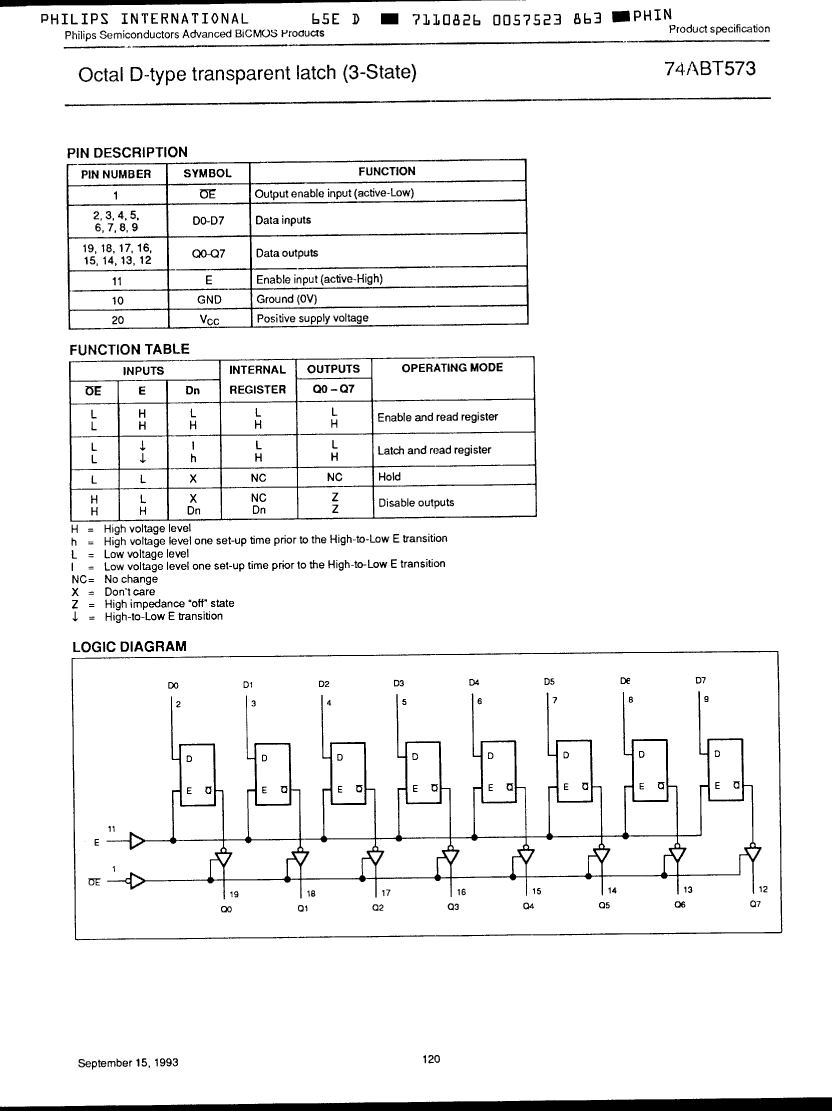

Logic integrated circuit type	D LATCH

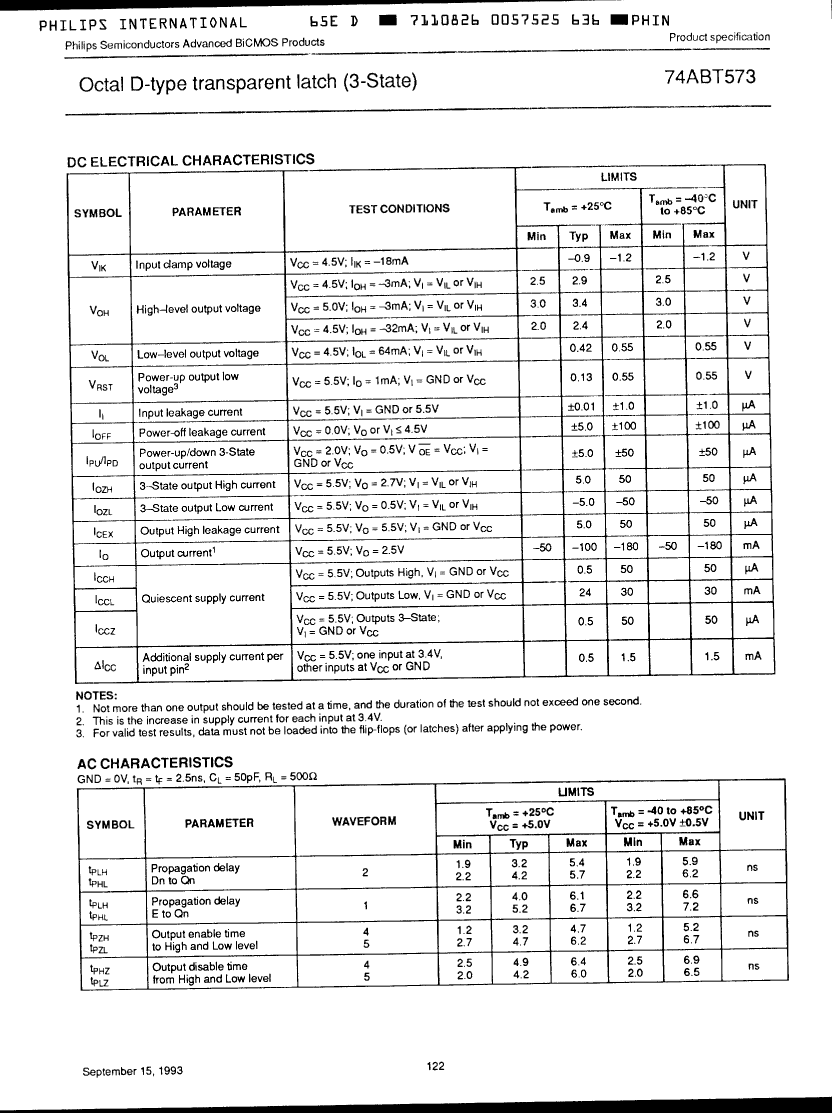

MaximumI(ol)	0.064 A
Number of digits	8
Number of functions	1
Number of terminals	20

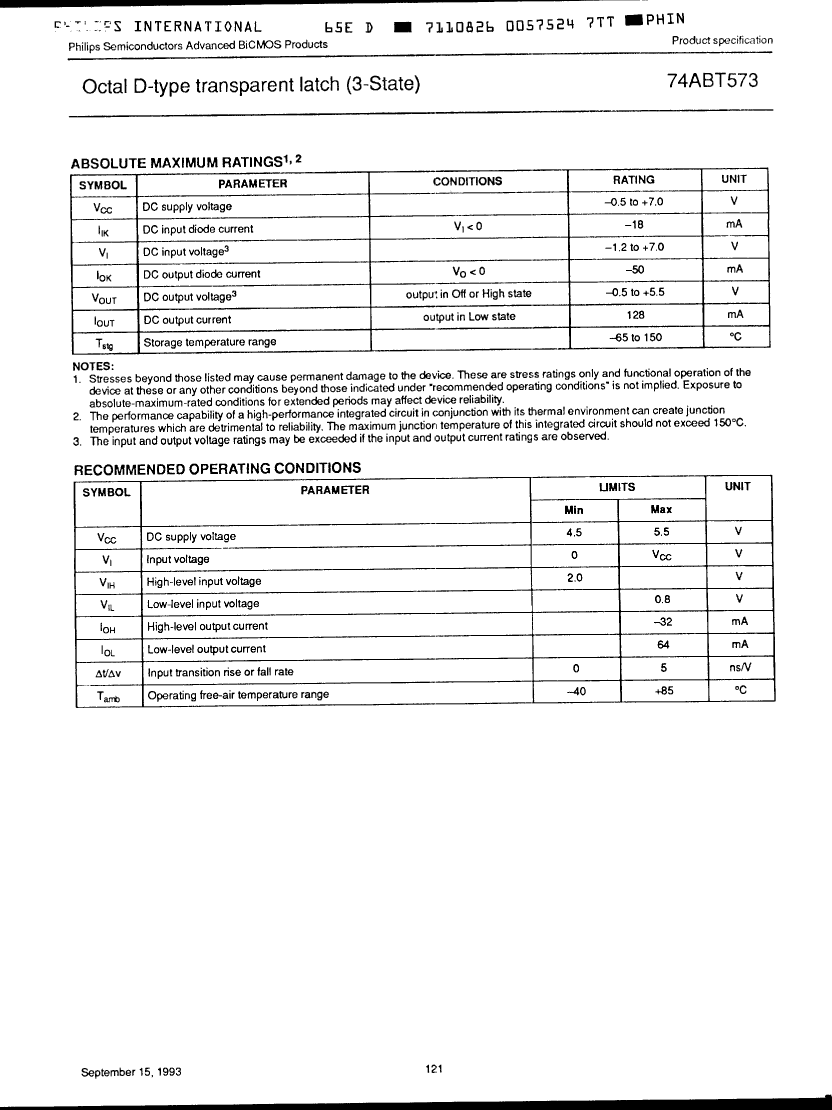

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V

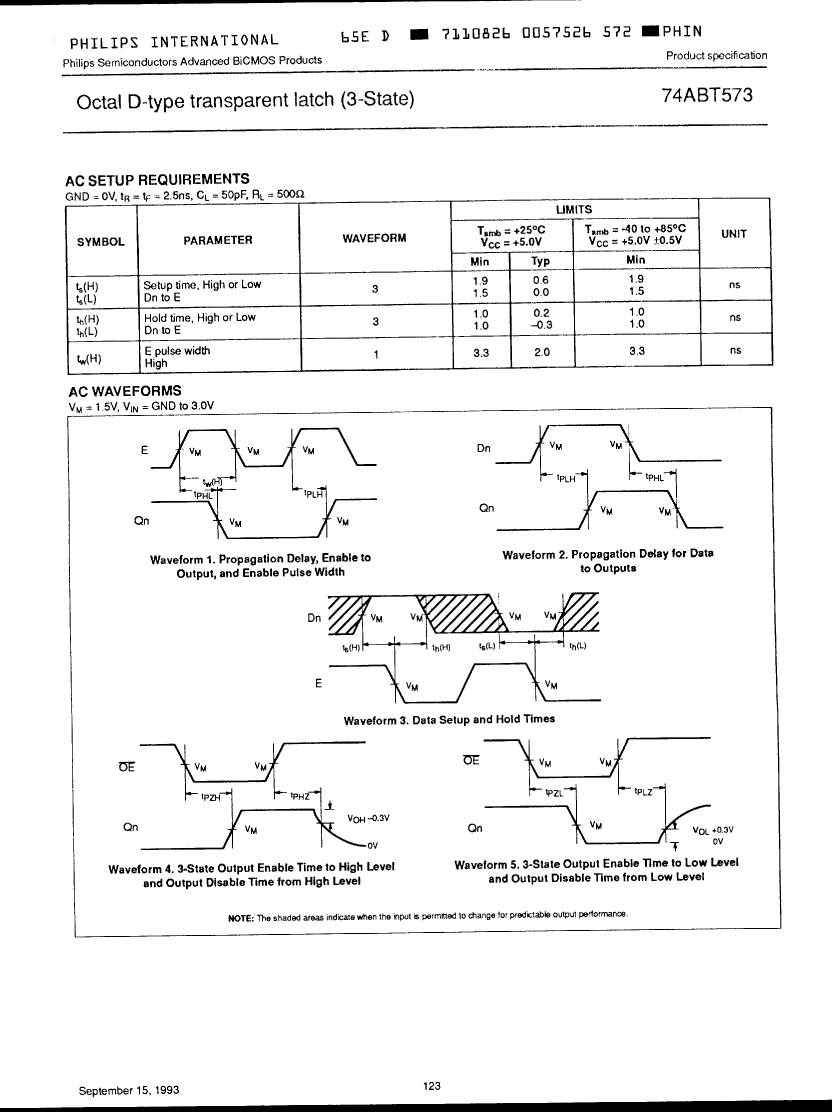

Prop。Delay @ Nom-Sup	6.2 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL

	74ABT573DB	74ABT573D	74ABT573N
Description	D Latch, 1-Func, 8-Bit, PDSO20	D Latch, 1-Func, 8-Bit, PDSO20	D Latch, 1-Func, 8-Bit, PDIP20
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP20,.3	SOP, SOP20,.4	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20
JESD-609 code	e0	e0	e0
Logic integrated circuit type	D LATCH	D LATCH	D LATCH
MaximumI(ol)	0.064 A	0.064 A	0.064 A
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SOP	DIP
Encapsulate equivalent code	SSOP20,.3	SOP20,.4	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	6.2 ns	6.2 ns	6.2 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	0.635 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	-	1	1
