TC74LVQ138FN(ELP) datasheet, PDF

Datasheet> All Categories > logic> logic> TC74LVQ138FN(ELP)

TC74LVQ138FN(ELP): DescriptionIC LVQ SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOL-16, Decoder/Driver; Categorylogic logic; File Size126KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74LVQ138FN(ELP) Overview

IC LVQ SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOL-16, Decoder/Driver

TC74LVQ138FN(ELP) Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	0.150 INCH, PLASTIC, SOL-16
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	3 ENABLE INPUTS
series	LVQ
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm

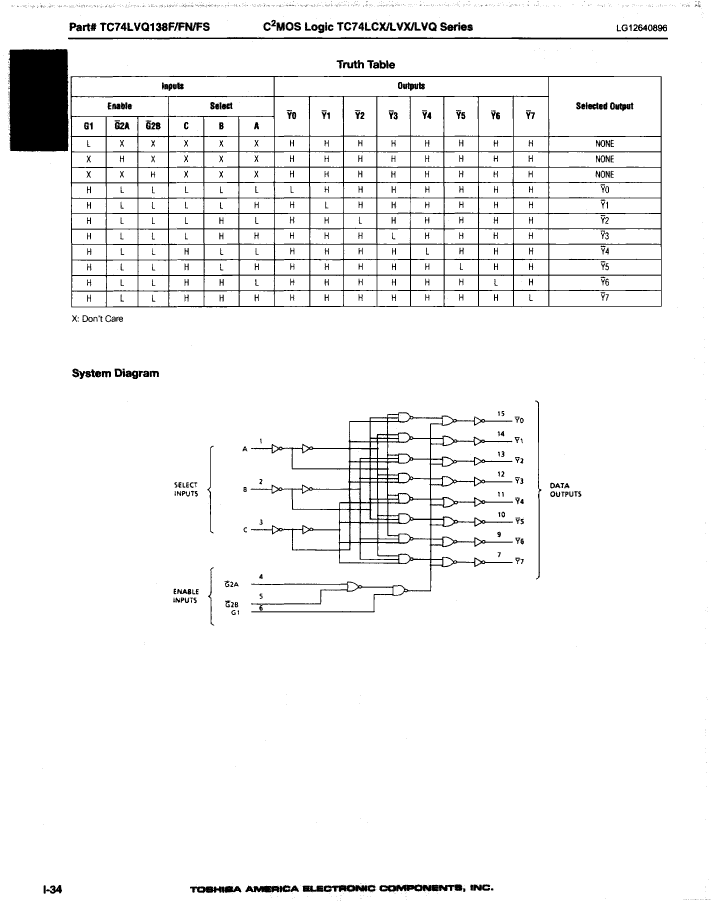

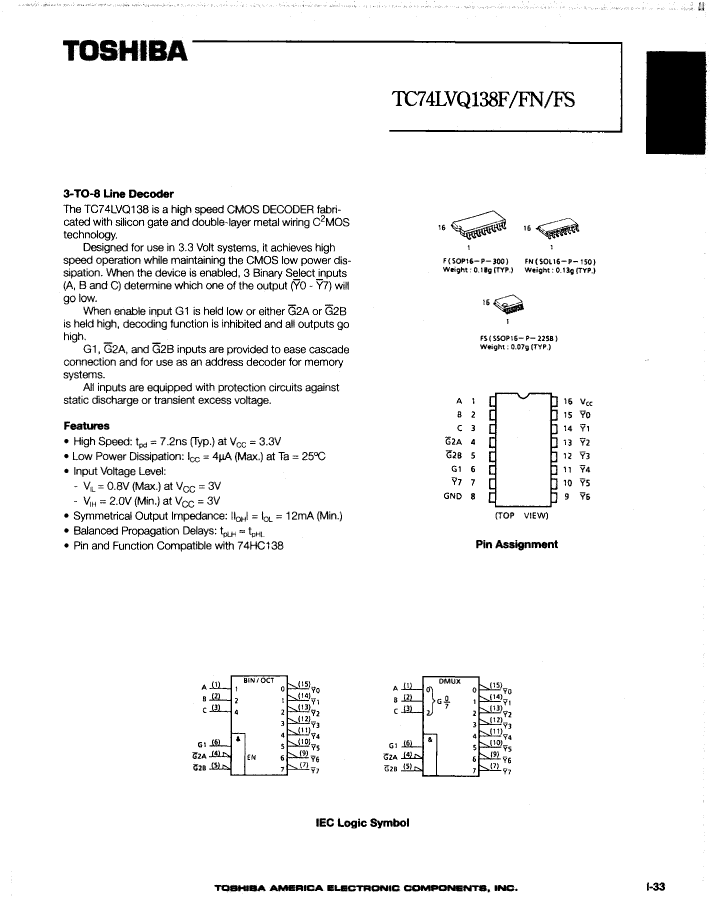

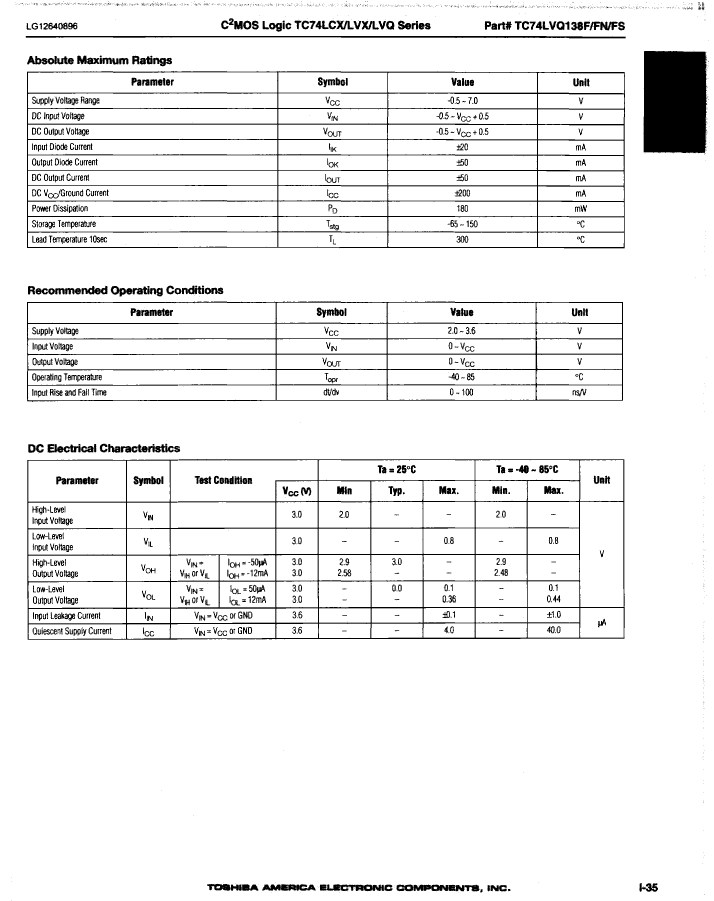

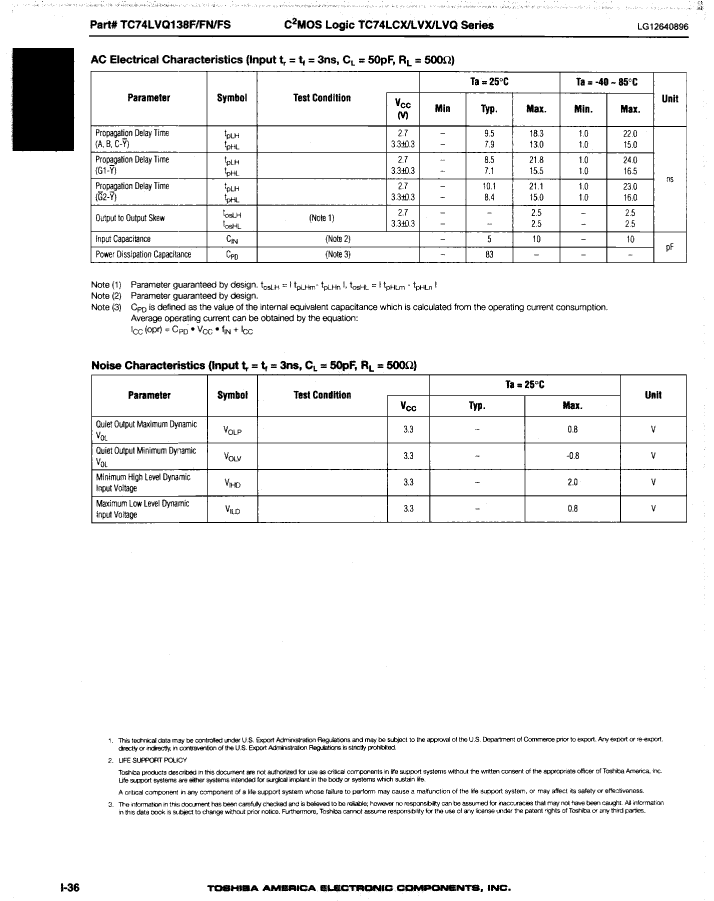

TC74LVQ138FN(ELP) Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TC74LVQ138FN(ELP) Related Products

	TC74LVQ138FN(ELP)	TC74LVQ138F(EL)	TC74LVQ138F(ELP)	TC74LVQ138FN(EL)	TC74LVQ138FS(ELP)	TC74LVQ138FN	TC74LVQ138FS(EL)
Description	IC LVQ SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOL-16, Decoder/Driver	IC LVQ SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Decoder/Driver	IC LVQ SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Decoder/Driver	IC LVQ SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOL-16, Decoder/Driver	IC LVQ SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.225 INCH, PLASTIC, SSOP-16, Decoder/Driver	IC LVQ SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOL-16, Decoder/Driver	IC LVQ SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, 0.225 INCH, PLASTIC, SSOP-16, Decoder/Driver
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	0.150 INCH, PLASTIC, SOL-16	SOP,	SOP,	0.150 INCH, PLASTIC, SOL-16	LSSOP,	SOP, SOP16,.25	LSSOP,
Contacts	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknow
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	LSSOP	SOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.65 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	-
Other features	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	-	3 ENABLE INPUTS
series	LVQ	LVQ	LVQ	LVQ	LVQ	-	LVQ
length	9.9 mm	10.3 mm	10.3 mm	9.9 mm	5 mm	-	5 mm
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	-	INVERTED
Peak Reflow Temperature (Celsius)	240	240	240	240	240	-	240
propagation delay (tpd)	15 ns	15 ns	15 ns	15 ns	15 ns	-	15 ns
Maximum seat height	1.75 mm	1.9 mm	1.9 mm	1.75 mm	1.6 mm	-	1.6 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	-	3.6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	-	2 V
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
width	3.9 mm	5.3 mm	5.3 mm	3.9 mm	4.4 mm	-	4.4 mm
JESD-609 code	-	e0	e0	-	e0	e0	e0
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD
