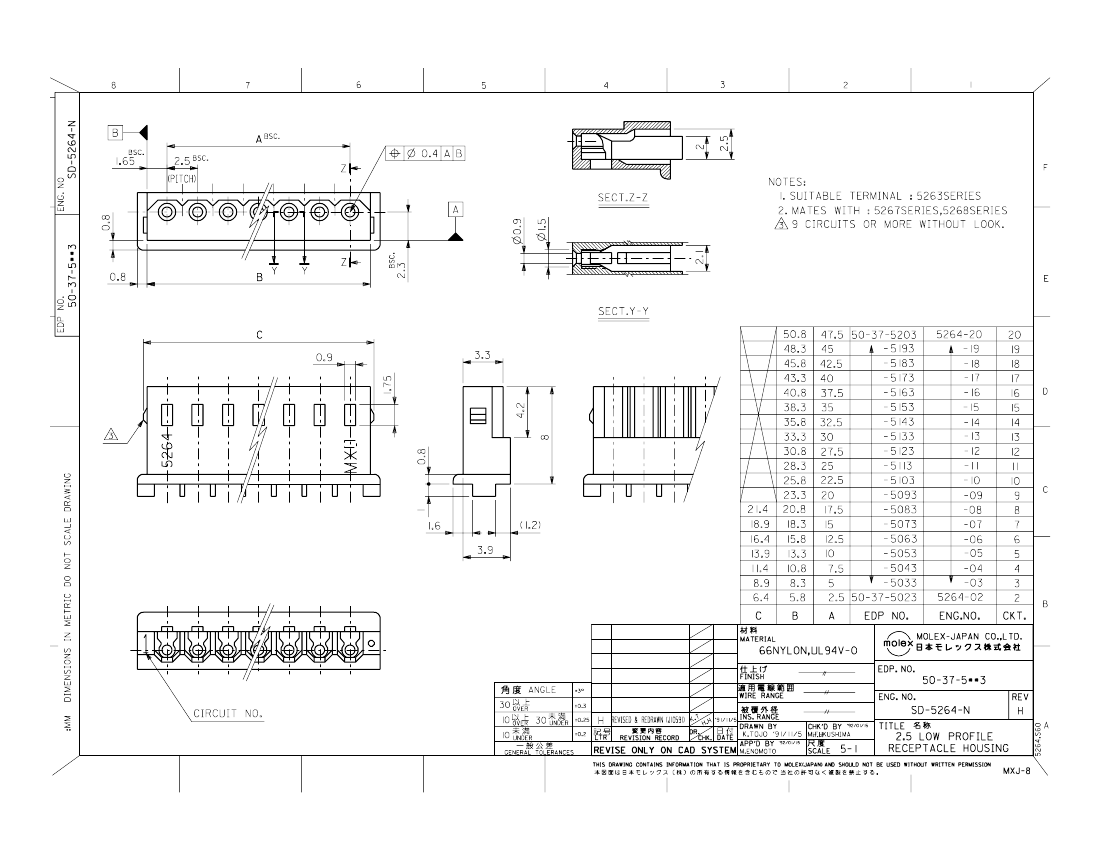

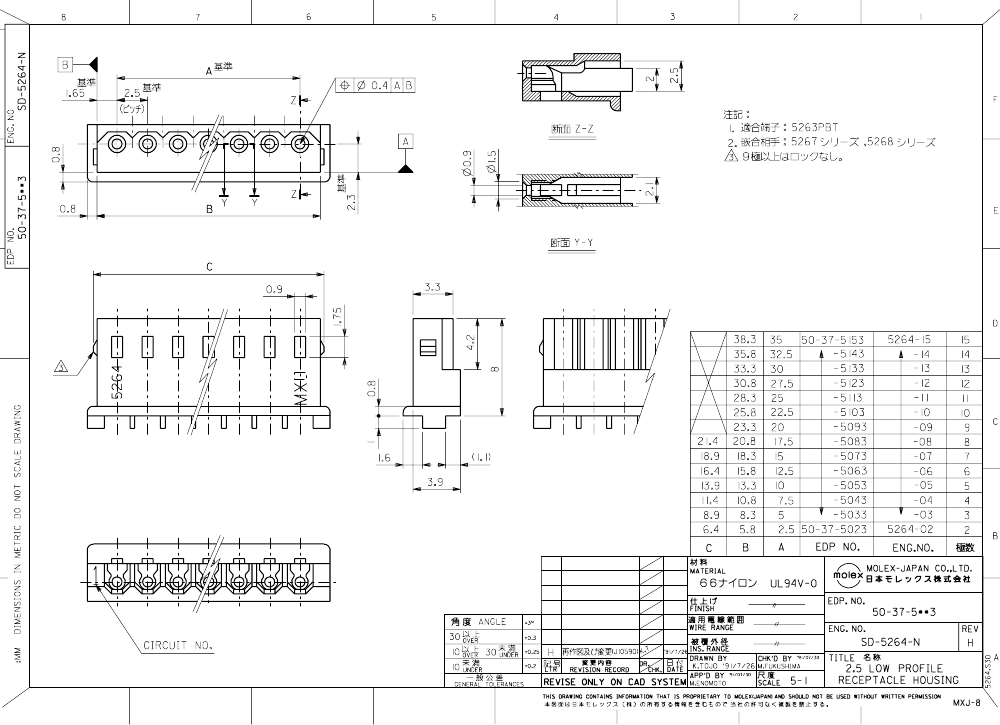

Preview

5264-17: DescriptionBoard Connector, 17 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size110KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

5264-17 Overview

Board Connector, 17 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle,

5264-17 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	17
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

5264-17 Related Products

	5264-17	50-37-5173	5264-19	50-37-5163	5264-18	5264-20	50-37-5203
Description	Board Connector, 17 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle,	Board Connector, 17 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Receptacle,	Board Connector, 19 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 16 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Receptacle,	Board Connector, 18 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle,	Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle,	Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Receptacle,
Reach Compliance Code	unknown	compli	unknown	compliant	unknown	unknown	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	CABLE	BOARD	CABLE	BOARD	BOARD	CABLE
Number of rows loaded	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	SOLDER	CRIMP	SOLDER	CRIMP	SOLDER	SOLDER	CRIMP
Total number of contacts	17	17	19	16	18	20	20
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Molex	-	Molex	Molex	Molex	Molex	Molex
