LCHF0603-2N2J

Description
General Purpose Inductor, 0.0022uH, 5%, 1 Element, SMD
CategoryPassive components    inductor
File Size14KB,1 Pages
ManufacturerInductor Supply Inc
Download Datasheet Parametric View All

LCHF0603-2N2J Overview

General Purpose Inductor, 0.0022uH, 5%, 1 Element, SMD

LCHF0603-2N2J Parametric

Parameter NameAttribute value
MakerInductor Supply Inc
Reach Compliance Codeunknown
ECCN codeEAR99
DC Resistance0.16 Ω
Nominal inductance(L)0.0022 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberLCHF0603
Number of functions1
Number of terminals2
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Maximum rated current0.3 A
self resonant frequency6000 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsMULTILAYER
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency100 MHz
Tolerance5%

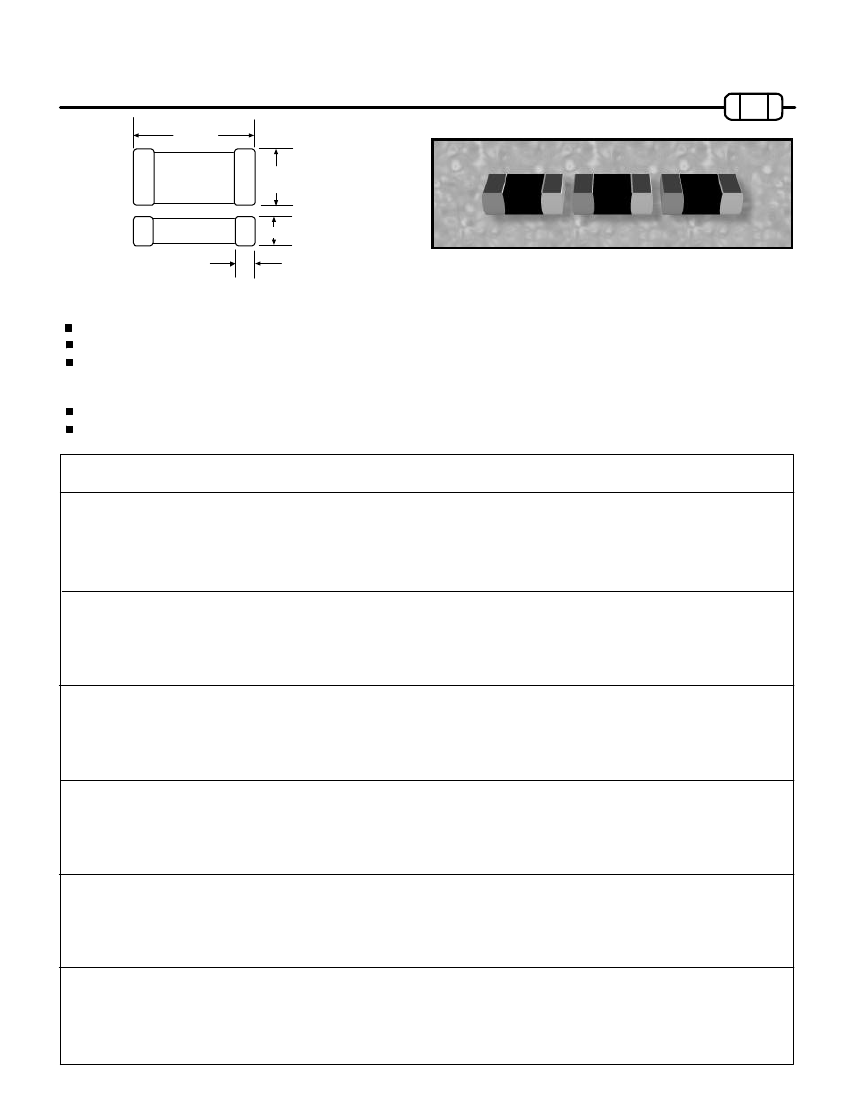

High Fr equency
Multilayer Chip Inductor
Length
.063
Width
.031
LCHF0603
Thickness .031
Terminal
.012
FEATURES
High efficiency
SMD
Reflow or flow soldering
APPLICATIONS
High frequency circuits
Hand held electronics
PART
NUMBER
LCHF0603-1N2
LCHF0603-1N5
LCHF0603-1N8
LCHF0603-2N2
LCHF0603-2N7
LCHF0603-3N3
LCHF0603-3N9
LCHF0603-4N7
LCHF0603-5N6
LCHF0603-6N8
LCHF0603-8N2
LCHF0603-10N
LCHF0603-12N
LCHF0603-15N
LCHF0603-18N
LCHF0603-22N
LCHF0603-27N
LCHF0603-33N
LCHF0603-39N
LCHF0603-47N
LCHF0603-58N
LCHF0603-68N
LCHF0603-82N
LCHF0603-R10
INDUCTANCE
(nH)
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
58
68
82
100
TEST FREQUENCY
(Mhz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
INDUCTANCES 1.20 nhy to 100 nH
OPERATING TEMPERATURE RANGE -40°C to +100°C
TOLERANCES 2%, 5 % and 10%
Q (TYPICAL) FREQUENCY
(MHz)
100
800
10
10
10
10
10
10
10
10
10
11
11
11
11
11
11
14
14
14
14
14
15
16
15
15
40
38
36
34
32
30
32
32
32
32
28
31
30
26
25
30
26
24
20
18
14
18
18
13
SELF RESONANT
FREQUENCY
TYPICAL (MHz)
>6000
>6000
>6000
>6000
>6000
5700
5600
4800
4350
3650
3300
2850
2700
2400
2050
1850
1750
1500
1350
1200
1100
1000
900
830
DC RESISTANCE
OHMS
MAXIMUM (Ω )
0.10
0.10
0.12
0.16
0.20
0.22
0.25
0.28
0.29
0.30
0.33
0.35
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.90
1.00
1.50
2.00
2.50
RATED DC
CURRENT MAX
(Amps)
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.300
