DSS2X61-0035A datasheet, PDF - EEWORLD Datasheet

DSS2X61-0035A: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 35V V(RRM), Silicon, SOT-227B, MINIBLOC-4; CategoryDiscrete semiconductor diode; File Size197KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

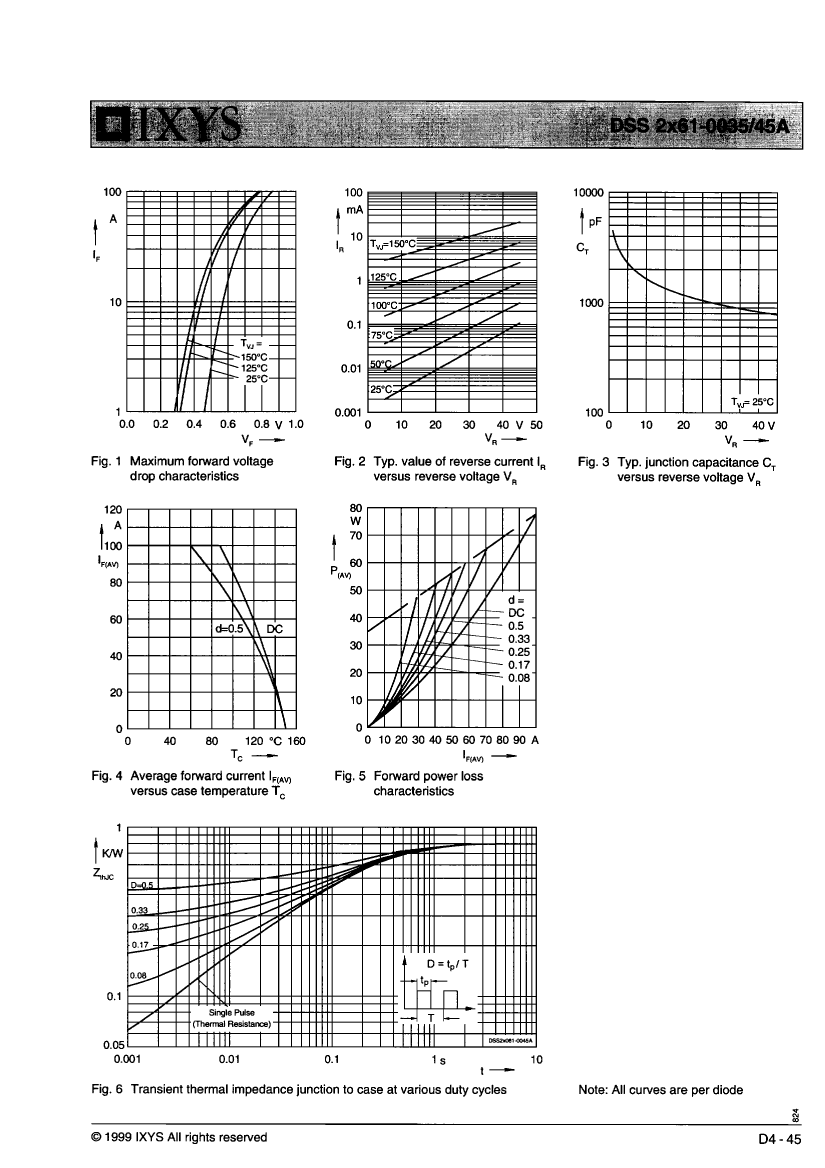

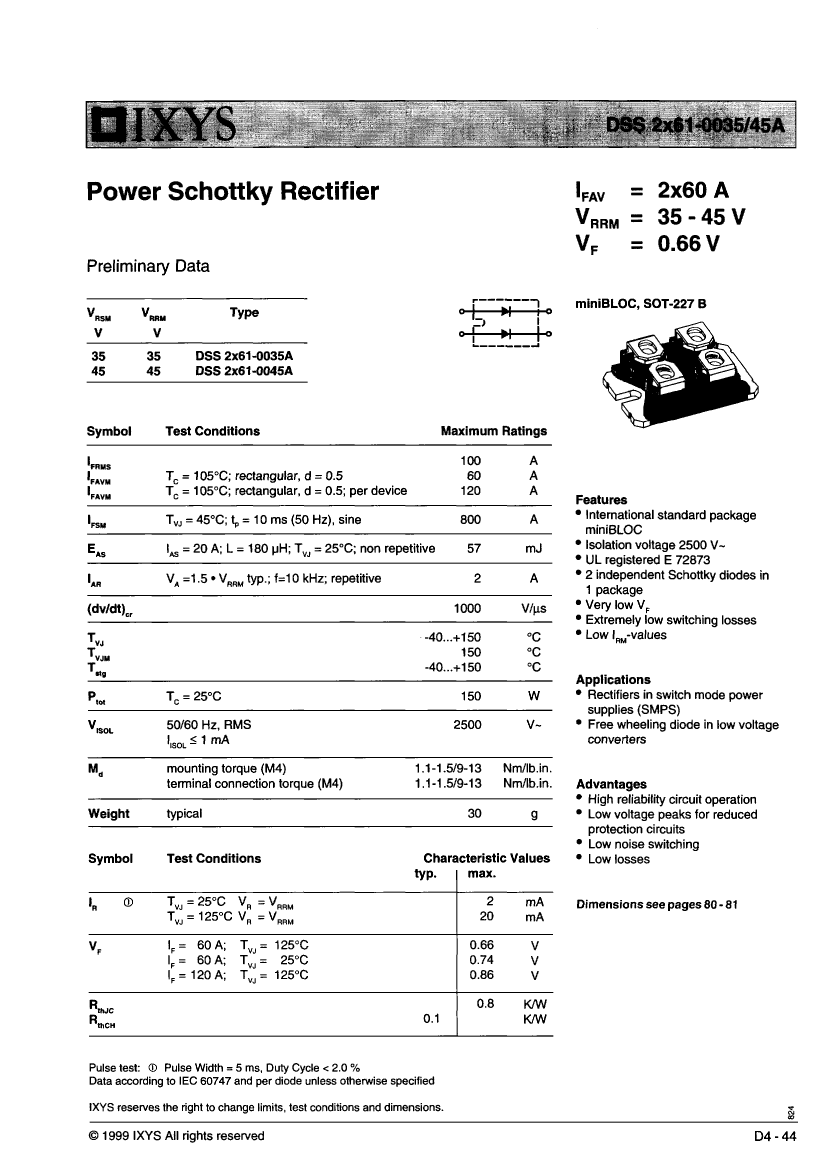

DSS2X61-0035A Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 35V V(RRM), Silicon, SOT-227B, MINIBLOC-4

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	SOT-227B, MINIBLOC-4
Reach Compliance Code	compliant
Other features	FREE WHEELING DIODE
application	POWER
Configuration	2 BANKS, SEPARATE, 1 ELEMENT
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V
JESD-30 code	R-PUFM-X4
Maximum non-repetitive peak forward current	800 A
Number of components	2
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	60 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	150 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
Maximum reverse current	1000 µA
Reverse test voltage	35 V
surface mount	NO
technology	SCHOTTKY
Terminal surface	Nickel (Ni)
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

	DSS2X61-0035A
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 60A, 35V V(RRM), Silicon, SOT-227B, MINIBLOC-4
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	SOT-227B, MINIBLOC-4
Reach Compliance Code	compliant
Other features	FREE WHEELING DIODE
application	POWER
Configuration	2 BANKS, SEPARATE, 1 ELEMENT
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V
JESD-30 code	R-PUFM-X4
Maximum non-repetitive peak forward current	800 A
Number of components	2
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	60 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	150 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
Maximum reverse current	1000 µA
Reverse test voltage	35 V
surface mount	NO
technology	SCHOTTKY
Terminal surface	Nickel (Ni)
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
