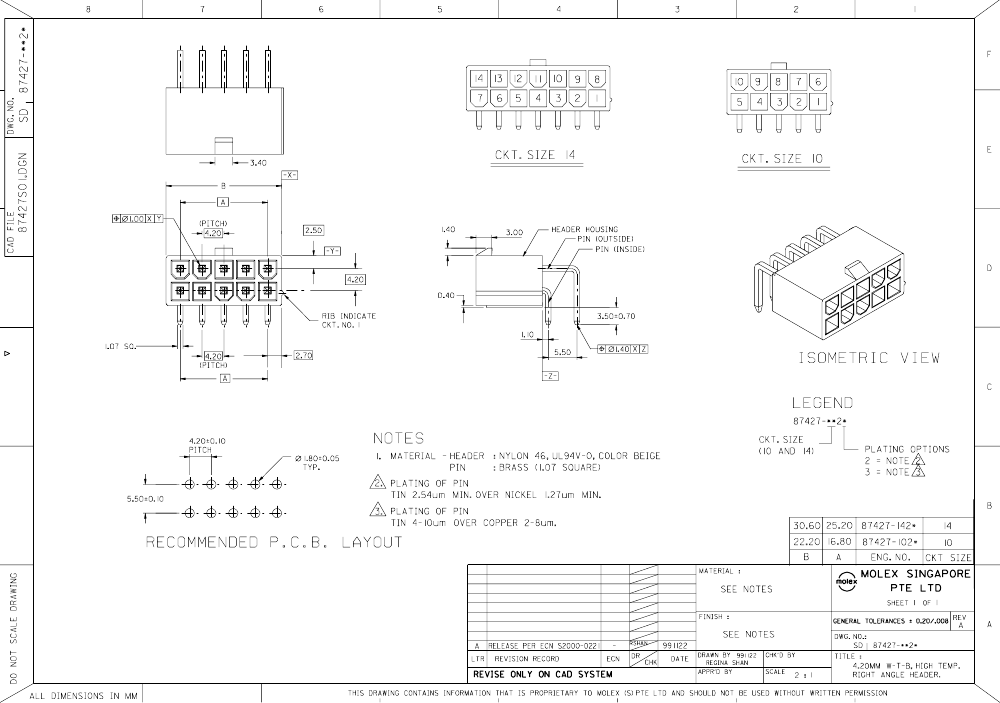

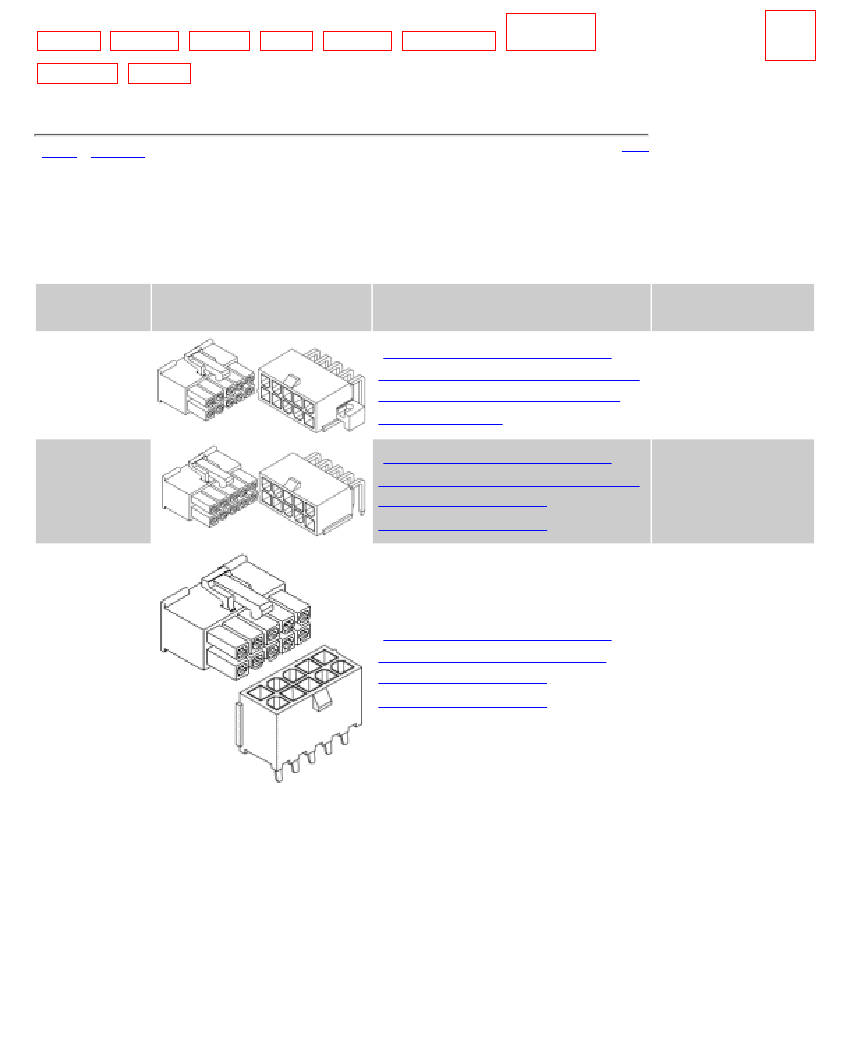

Rectangular Power Connector, 12 Contact(s), Male, Solder Terminal, Receptacle

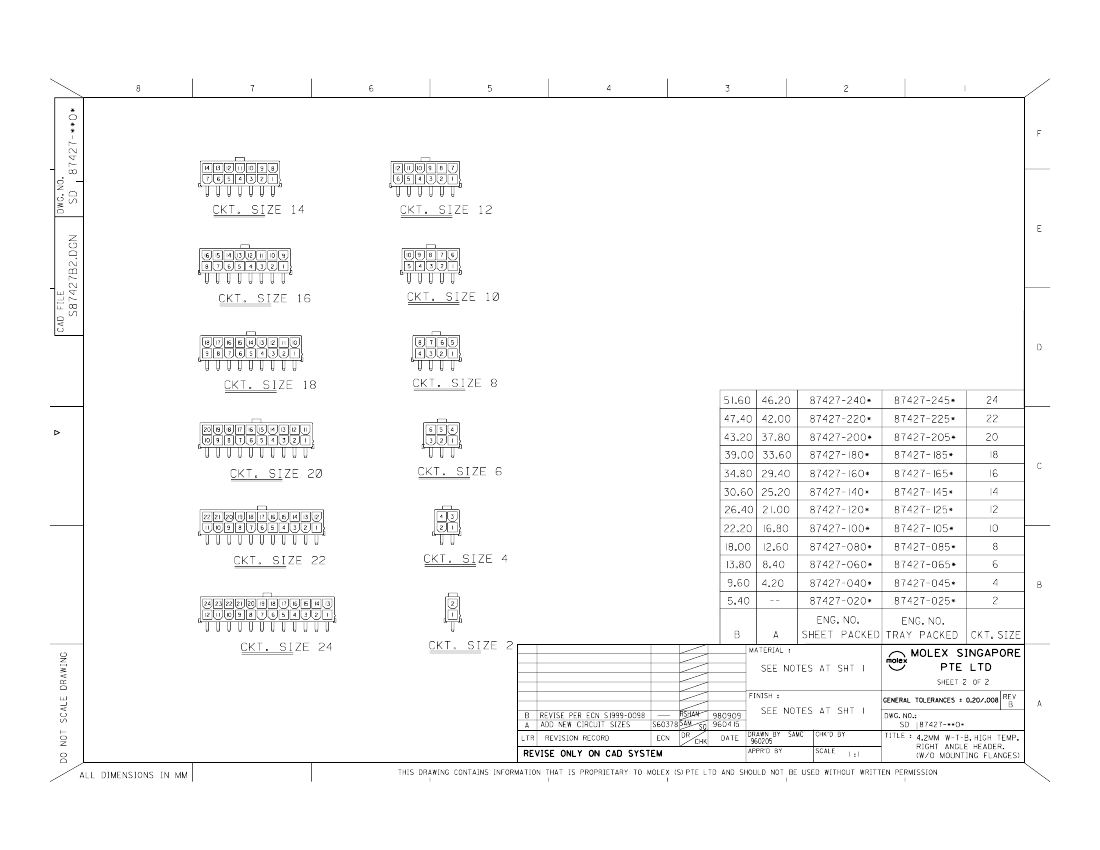

| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | MINI-FIT JR |
| body width | 0.449 inch |
| subject depth | 0.72 inch |
| body length | 1.039 inch |
| Body/casing type | RECEPTACLE |
| Connector type | RECTANGULAR POWER CONNECTOR |
| Contact to complete cooperation | SN ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 30 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 6.672 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BEIGE |
| insulator material | NYLON |
| MIL compliance | NO |
| Plug contact pitch | 0.165 inch |
| Match contact row spacing | 0.165 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | POLARIZED LCK |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.5118 mm |
| Plating thickness | 100u inch |
| polarization key | POLAR PIN POSITION |
| Rated current (signal) | 9 A |
| Guideline | CSA,UL,VDE |
| reliability | COMMERCIAL |
| Shell material | POLYAMIDE |
| Terminal length | 0.138 inch |
| Terminal pitch | 4.191 mm |
| Termination type | SOLDER |
| Total number of contacts | 12 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | 3.0024 N |
| 87427-1252 | 87427-1022 | 87427-1023 | 87427-1422 | 87427-1423 | 87427-1652 | 87427-0653 | |
|---|---|---|---|---|---|---|---|
| Description | Rectangular Power Connector, 12 Contact(s), Male, Solder Terminal, Receptacle | Rectangular Power Connector, 10 Contact(s), Male, Solder Terminal, Receptacle | Rectangular Power Connector, 10 Contact(s), Male, Solder Terminal, Receptacle | Rectangular Power Connector, 14 Contact(s), Male, Solder Terminal, Receptacle | Rectangular Power Connector, 14 Contact(s), Male, Solder Terminal, Receptacle | Rectangular Power Connector, 16 Contact(s), Male, Solder Terminal, Receptacle | Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal, Receptacle |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | MINI-FIT JR | MINI-FIT JR | MINI-FIT JR | MINI-FIT JR | MINI-FIT JR | MINI-FIT JR | MINI-FIT JR |
| body width | 0.449 inch | 0.449 inch | 0.449 inch | 0.449 inch | 0.449 inch | 0.449 inch | 0.449 inch |
| subject depth | 0.72 inch | 0.72 inch | 0.72 inch | 0.72 inch | 0.72 inch | 0.72 inch | 0.72 inch |
| body length | 1.039 inch | 0.874 inch | 0.874 inch | 1.205 inch | 1.205 inch | 1.37 inch | 0.543 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | RECTANGULAR POWER CONNECTOR | RECTANGULAR POWER CONNECTOR | RECTANGULAR POWER CONNECTOR | RECTANGULAR POWER CONNECTOR | RECTANGULAR POWER CONNECTOR | RECTANGULAR POWER CONNECTOR | RECTANGULAR POWER CONNECTOR |
| Contact to complete cooperation | SN ON NI | SN ON NI | SN ON CU | SN ON NI | SN ON CU | SN ON NI | SN ON CU |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER COPPER | TIN OVER NICKEL | TIN OVER COPPER | TIN OVER NICKEL | TIN OVER COPPER |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | BRASS | BRASS | BRASS | BRASS | BRASS | BRASS | BRASS |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V |
| Durability | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles |
| empty shell | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO |
| maximum insertion force | 6.672 N | 6.672 N | 6.672 N | 6.672 N | 6.672 N | 6.672 N | 6.672 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BEIGE | BEIGE | BEIGE | BEIGE | BEIGE | BEIGE | BEIGE |
| insulator material | NYLON | NYLON | NYLON | NYLON | NYLON | NYLON | NYLON |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch |
| Match contact row spacing | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | POLARIZED LCK | POLARIZED LCK | POLARIZED LCK | POLARIZED LCK | POLARIZED LCK | POLARIZED LCK | POLARIZED LCK |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 5.5118 mm | 5.5118 mm | 5.5118 mm | 5.5118 mm | 5.5118 mm | 5.5118 mm | 5.5118 mm |
| polarization key | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION |
| Rated current (signal) | 9 A | 9 A | 9 A | 9 A | 9 A | 9 A | 9 A |
| Guideline | CSA,UL,VDE | CSA,UL,VDE | CSA,UL,VDE | UL,VDE,CSA | UL,VDE,CSA | CSA,UL,VDE | CSA,UL,VDE |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell material | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE |
| Terminal length | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch |
| Terminal pitch | 4.191 mm | 4.191 mm | 4.191 mm | 4.191 mm | 4.191 mm | 4.191 mm | 4.191 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 12 | 10 | 10 | 14 | 14 | 16 | 6 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | 3.0024 N | 3.0024 N | 3.0024 N | 3.0024 N | 3.0024 N | 3.0024 N | 3.0024 N |
| Maker | Molex | - | - | Molex | Molex | Molex | Molex |
| Plating thickness | 100u inch | 100u inch | - | 100u inch | - | 100u inch | - |
| Base Number Matches | - | 1 | 1 | 1 | 1 | - | - |
