MHL2ACLTE39NK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> MHL2ACLTE39NK

MHL2ACLTE39NK: DescriptionGeneral Purpose Inductor, 0.039uH, 10%, 1 Element, Ceramic-Core, SMD; CategoryPassive components inductor; File Size200KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

MHL2ACLTE39NK Overview

General Purpose Inductor, 0.039uH, 10%, 1 Element, Ceramic-Core, SMD

MHL2ACLTE39NK Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KOA Speer
Reach Compliance Code	compliant
ECCN code	EAR99
core material	CERAMIC
DC Resistance	0.65 Ω
Nominal inductance(L)	0.039 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	MHL
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	10
Maximum rated current	0.3 A
self resonant frequency	1300 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	10%

Preview

Download Datasheet

View All

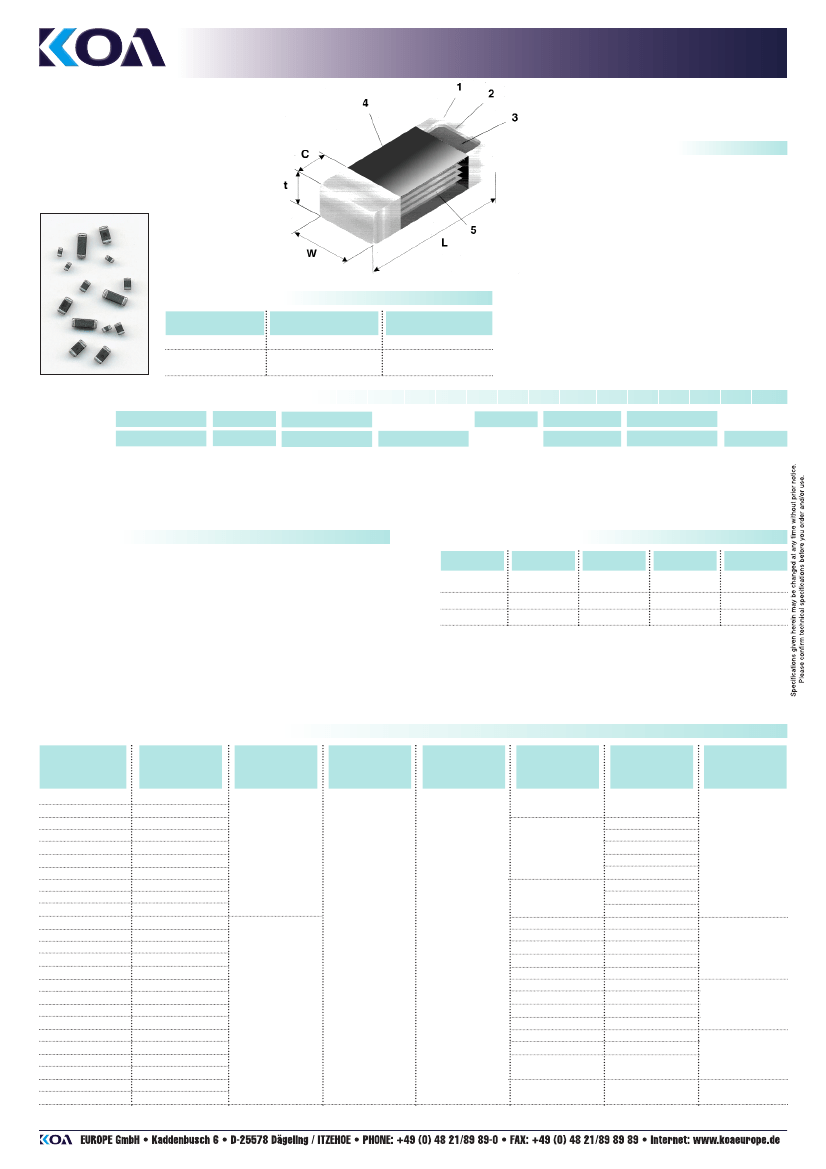

INDUCTORS

TECHNOLOGY OF TOMORROW

MULTILAYER

CERAMIC INDUCTORS

MHL (MHI)

STRUCTURE

Solder plating

Diffusion barrier

Silver metallisation

Ceramic

Electrodes

IDENTIFICATION

TYPE

MHL xx C

MHL 1E K

COATING COLOR

Black

White

MARKING

None

Polarity mark

for “+” side

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

New Part No.

MHI

MHL

PRODUCT CODE

0805

SIZE

1E = 0402

1J = 0603

2A = 0805

PERMEABILITY

CODE

C,K

TERMINATION

SURFACE

MATERIAL

L: Sn/Pb

T: Sn

TAPING*

68N

NOMINAL

INDUCTANCE

3 digits

INDUCTANCE

TOLERANCE

M(±20%),

K(±10%), J(±5%),

T(±3%), S(±0.3nH)

INDUCTANCE

TOLERANCE

*Please see “PACKAGING”

FEATURES

Monolithic structure provides high reliability in wide temperature and

humidity range

Anti-leaching nickel barrier terminations

Wide range of electrical properties

High quality ceramic material and unique manufacturing process provides

high Q at high frequency

Suitable for high frequency equipment including cellular phones, pagers,

radar detectors, computer communications etc.

In size 0402 (1E) two different materials (code ‘C’ and ‘K’) are available for

different frequency characteristics

Suitable for reflow and wave soldering

Lab kit available

DIMENSIONS (mm)

SIZE

0402 (1E)

0603 (1J)

0805 (2A)

1.0 ± 0.10

1.6 ± 0.15

2.0 ± 0.20

0.50 ± 0.10

0.80 ± 0.15

1.25 ± 0.20

0.50 ± 0.10

0.80 ± 0.15

0.90 ± 0.30

0.25 ± 0.10

0.30 ± 0.20

0.50 ± 0.30

RATING (Permeability Code ‘K’)*

TYPE

MHL 1E K TP 1N0

MHL 1E K TP 1N2

MHL 1E K TP 1N5

MHL 1E K TP 1N8

MHL 1E K TP 2N2

MHL 1E K TP 2N7

MHL 1E K TP 3N3

MHL 1E K TP 3N9

MHL 1E K TP 4N7

MHL 1E K TP 5N6

MHL 1E K TP 6N8

MHL 1E K TP 8N2

MHL 1E K TP 10N

MHL 1E K TP 12N

MHL 1E K TP 15N

MHL 1E K TP 18N

MHL 1E K TP 22N

MHL 1E K TP 27N

MHL 1E K TP 33N

MHL 1E K TP 39N

MHL 1E K TP 47N

MHL 1E K TP 56N

MHL 1E K TP 68N

MHL 1E K TP 82N

MHL 1E K TP R10

NOMINAL

INDUCTANCE

1.0 nH

1.2 nH

1.5 nH

1.8 nH

2.2 nH

2.7 nH

3.3 nH

3.9 nH

4.7 nH

5.6 nH

6.8 nH

8.2 nH

10 nH

12 nH

15 nH

18 nH

22 nH

27 nH

33 nH

39 nH

47 nH

56 nH

68 nH

82 nH

100 nH

INDUCTANCE

TOLERANCE

QUALITY

FACTOR (MIN.)

L/Q

MEASURING

FREQUENCY

SELF-RESONANT

FREQUENCY

(MIN.)

10000 MHz

RESISTANCE

(MAX.)

0.12

Ω

0.13

Ω

0.14

Ω

0.16

Ω

0.17

Ω

0.19

Ω

0.22

Ω

0.24

Ω

0.27

Ω

0.32

Ω

0.37

Ω

0.42

Ω

0.50

Ω

0.55

Ω

0.65

Ω

0.8

Ω

0.9

Ω

1.0

Ω

1.2

Ω

1.3

Ω

1.4

Ω

1.6

Ω

ALLOWABLE

DC CURRENT

(MAX.)

S(±0.3nH)

6000 MHz

300 mA

4000 MHz

100 MHz

3900 MHz

3600 MHz

3200 MHz

2700 MHz

2300 MHz

2100 MHz

1900 MHz

1600 MHz

1300 MHz

1200 MHz

1000 MHz

750 MHz

600 MHz

250 mA

J(±5%)

200 mA

150 mA

100 mA

* Operating temperature range: -55°C…+125°C
