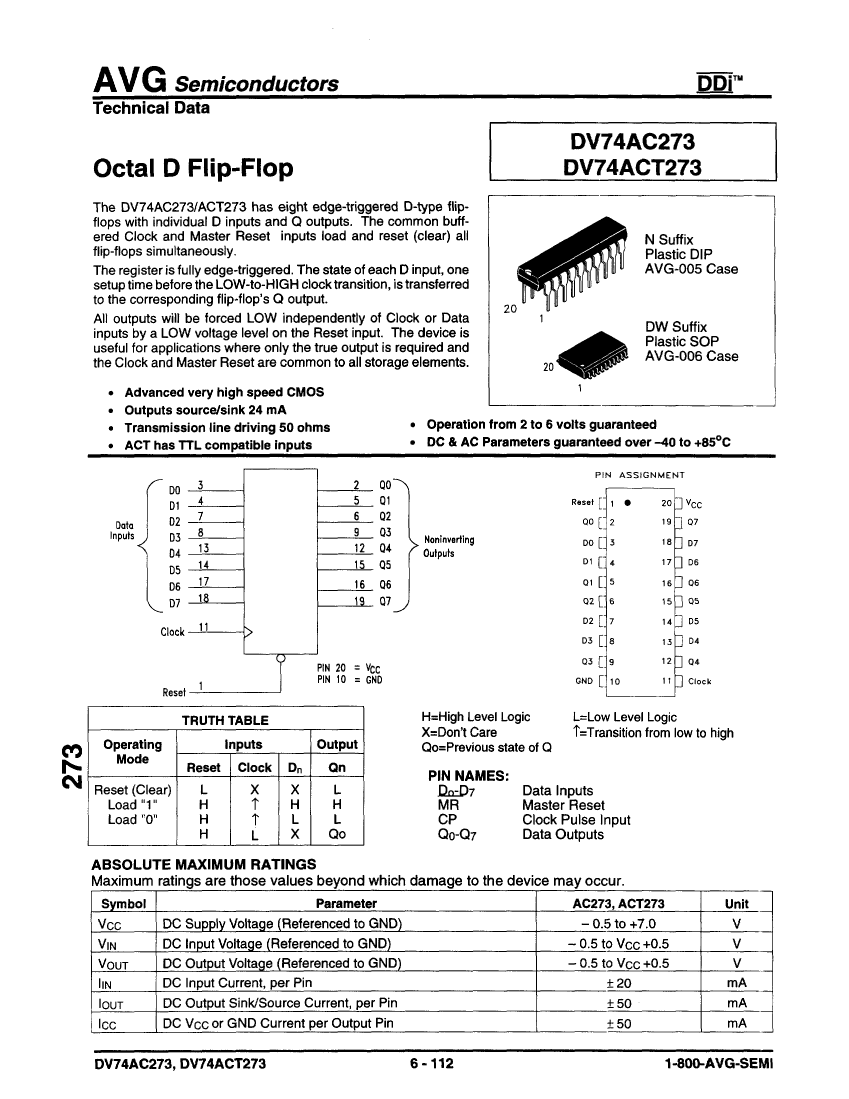

D Flip-Flop, ACT Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20

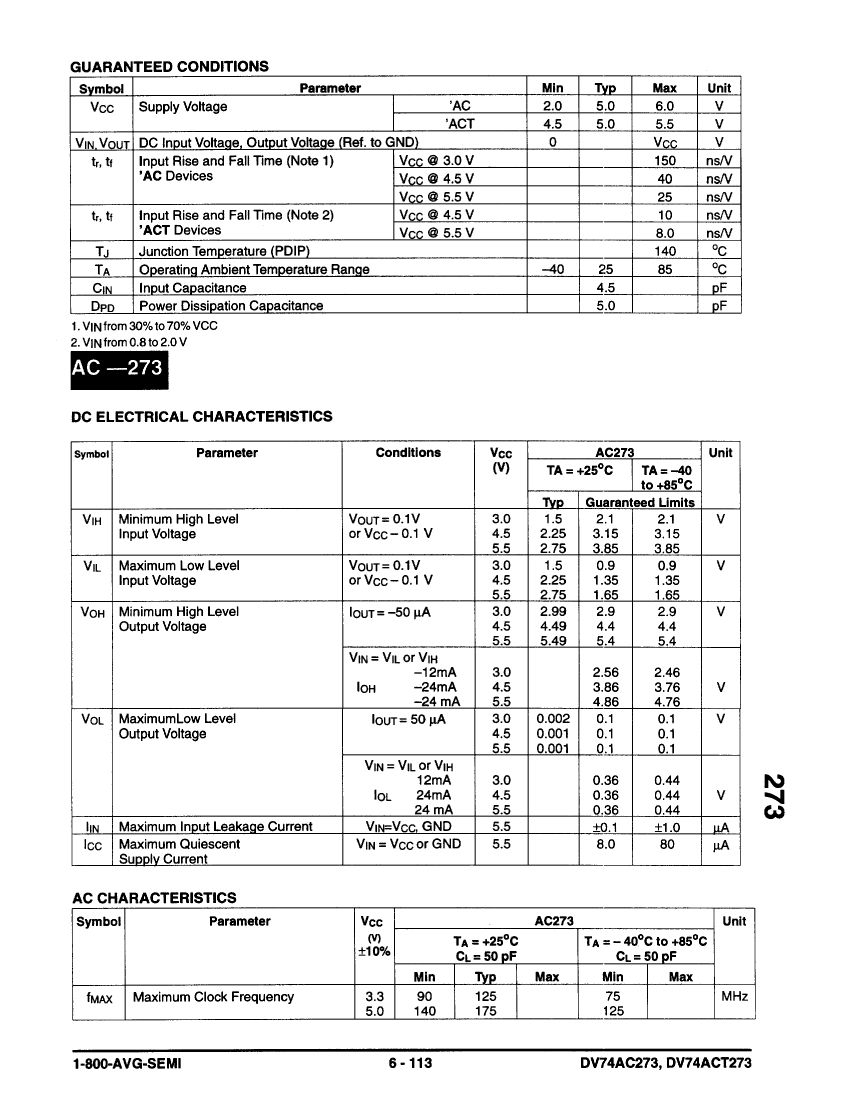

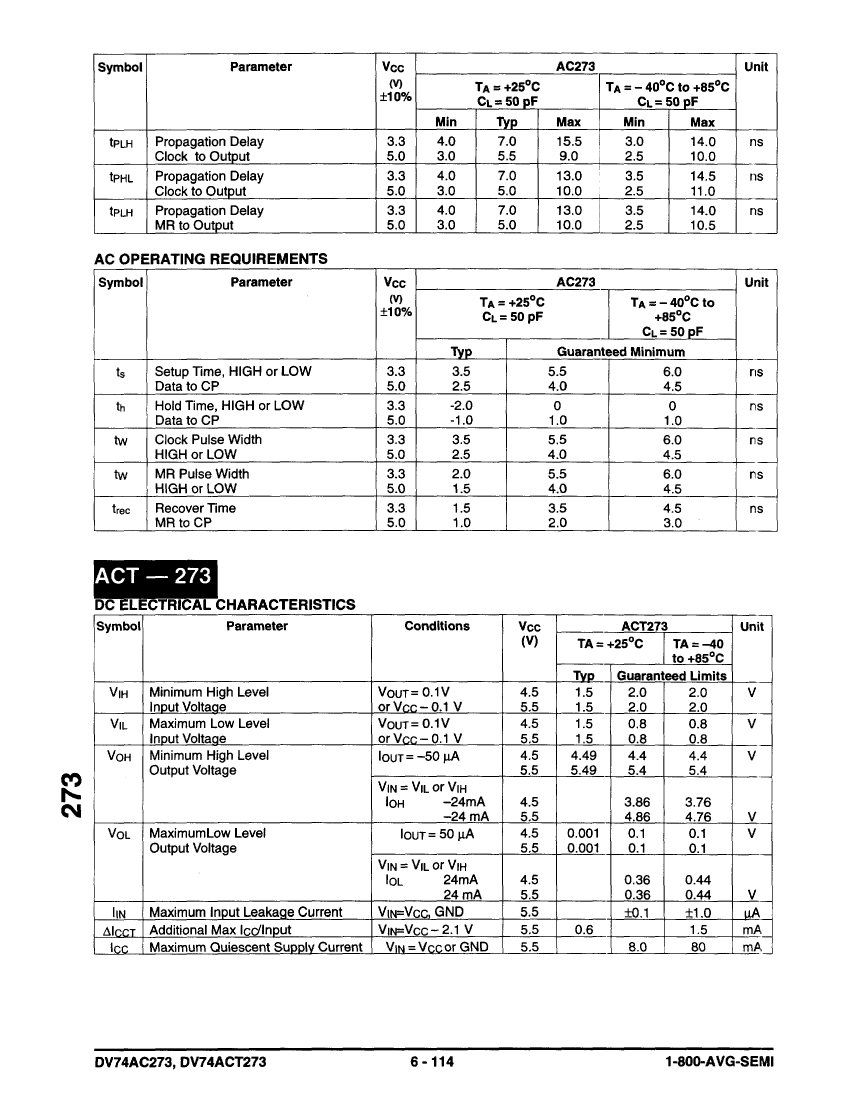

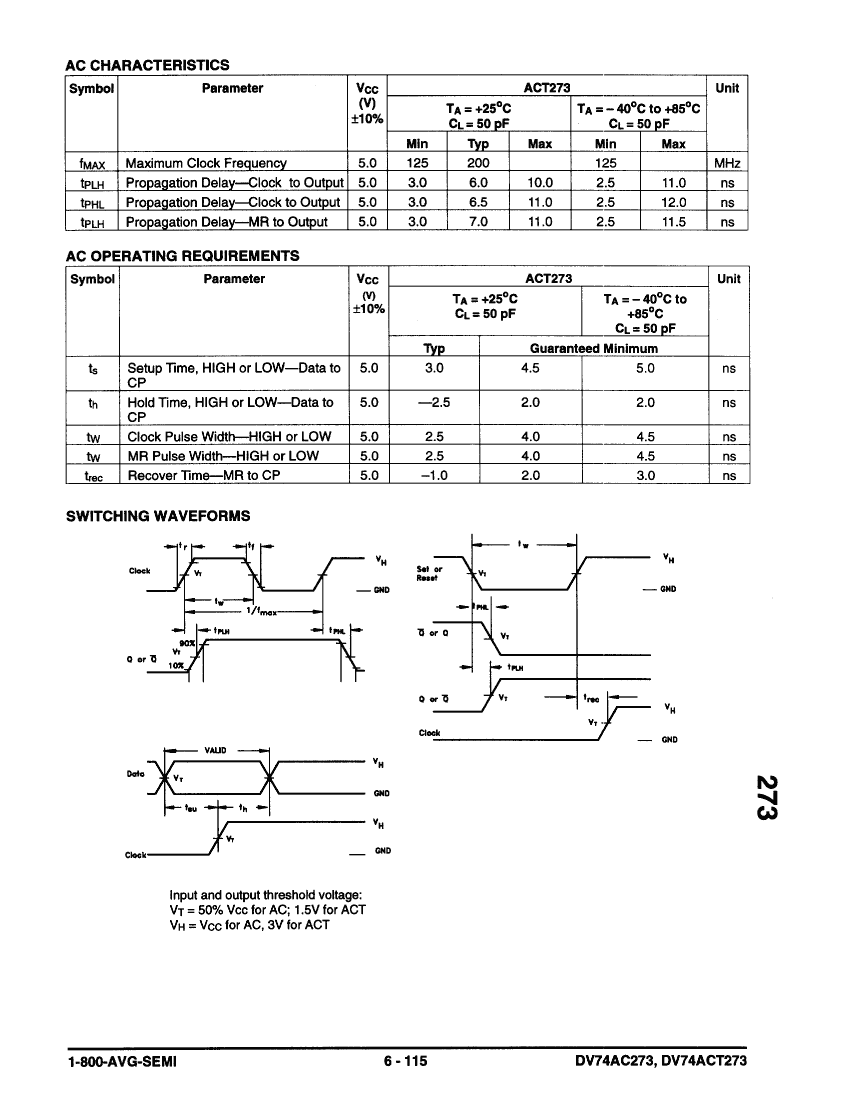

| Parameter Name | Attribute value |
| Maker | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP |
| package instruction | PLASTIC, DIP-20 |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| series | ACT |
| JESD-30 code | R-PDIP-T20 |
| length | 26.415 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 12 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.57 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| width | 7.62 mm |
| minfmax | 125 MHz |
| DV74ACT273N | DV74AC273N | DV74AC273DW | DV74ACT273DW | |
|---|---|---|---|---|
| Description | D Flip-Flop, ACT Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20 | D Flip-Flop, AC Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, PDIP20, PLASTIC, DIP-20 | D Flip-Flop, AC Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, PDSO20, PLASTIC, SOP-20 | D Flip-Flop, ACT Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, PDSO20, PLASTIC, SOP-20 |
| Maker | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP | DIP | SOIC | SOIC |
| package instruction | PLASTIC, DIP-20 | DIP, | SOP, | PLASTIC, SOP-20 |
| Contacts | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | ACT | AC | AC | ACT |
| JESD-30 code | R-PDIP-T20 | R-PDIP-T20 | R-PDSO-G20 | R-PDSO-G20 |
| length | 26.415 mm | 26.415 mm | 12.8 mm | 12.8 mm |
| Logic integrated circuit type | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP |
| Number of digits | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| propagation delay (tpd) | 12 ns | 14.5 ns | 14.5 ns | 12 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.57 mm | 4.57 mm | 2.65 mm | 2.65 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 6 V | 6 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 2 V | 2 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 7.62 mm | 7.62 mm | 7.5 mm | 7.5 mm |
| minfmax | 125 MHz | 125 MHz | 125 MHz | 125 MHz |
