DATA SHEET
PART NO. : C-1201Y
REV :
A/0
CUSTOMER’S APPROVAL : _______________
DRAWING NO. : DS-11-09-0055
DCC : ___________
Page : 1
HD-R/RD012
DATE : 2009-04-02
Release
by
PARALIGHTDCC
1.2
INCH
SINGLE
C-1201Y
DIGIT DISPLAY
REV:A / 0

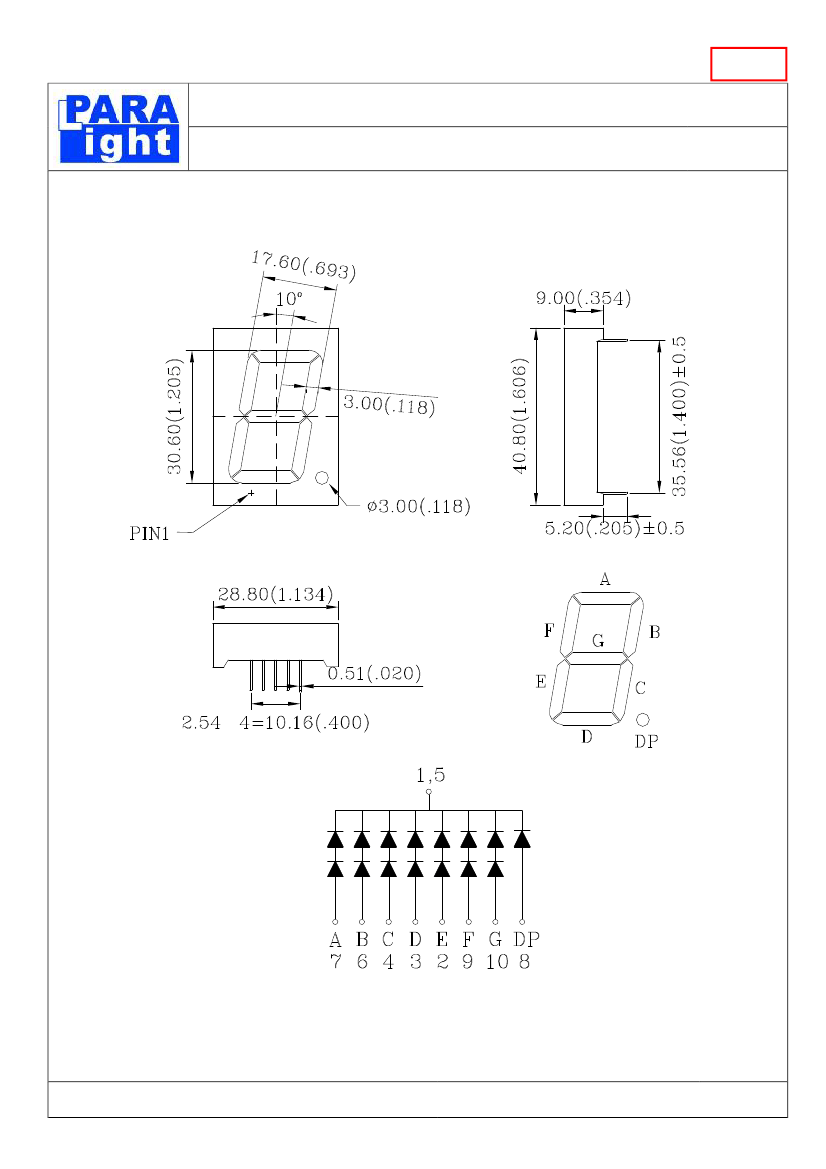

PACKAGE DIMENSIONS
×
NOTES : 1. All dimensions are in millimeters. (inches)
2. Tolerance is
6
0.25(0.01") unless otherwise specified.
3. Pls. contact with us when your production need to be
operated under the Pb free process.
DRAWING NO. : DS-11-09-0055
DATE : 2009-04-02
Page : 2
HD-R/RD013
Release
by
PARALIGHTDCC
1.2
INCH
SINGLE
C-1201Y
DIGIT DISPLAY
REV:A / 0
FEATURES
Û
Û
Û
Û
Û
30.60mm (1.2 inch ) DIGIT HEIGHT
COMMON CATHODE
I.C. COMPATIBLE
LOW POWER CONSUMPTION
ROHS COMPLIANCE
Raw Material : GaAsP/GaP
ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
P
D
V
R
I
AF
I
PF
－
T
opr
T
stg
PARAMETER
Power Dissipation Per Segment
Reverse Voltage Per Segment(DP)
Continuous Forward Current Per Segment
Peak Forward Current Per Segment
(1/10 Duty Cycle,0.1ms Pulse Width)
Derating
Linear From 25BC Per Segment
Operating Temperature Range
Storage Temperature Range
YELLOW GREEN
140
10(5)
20
100
0.33
UNIT
mW
V
mA
mA
mA/BC
－35BC
to 85BC
－35BC
to 85BC

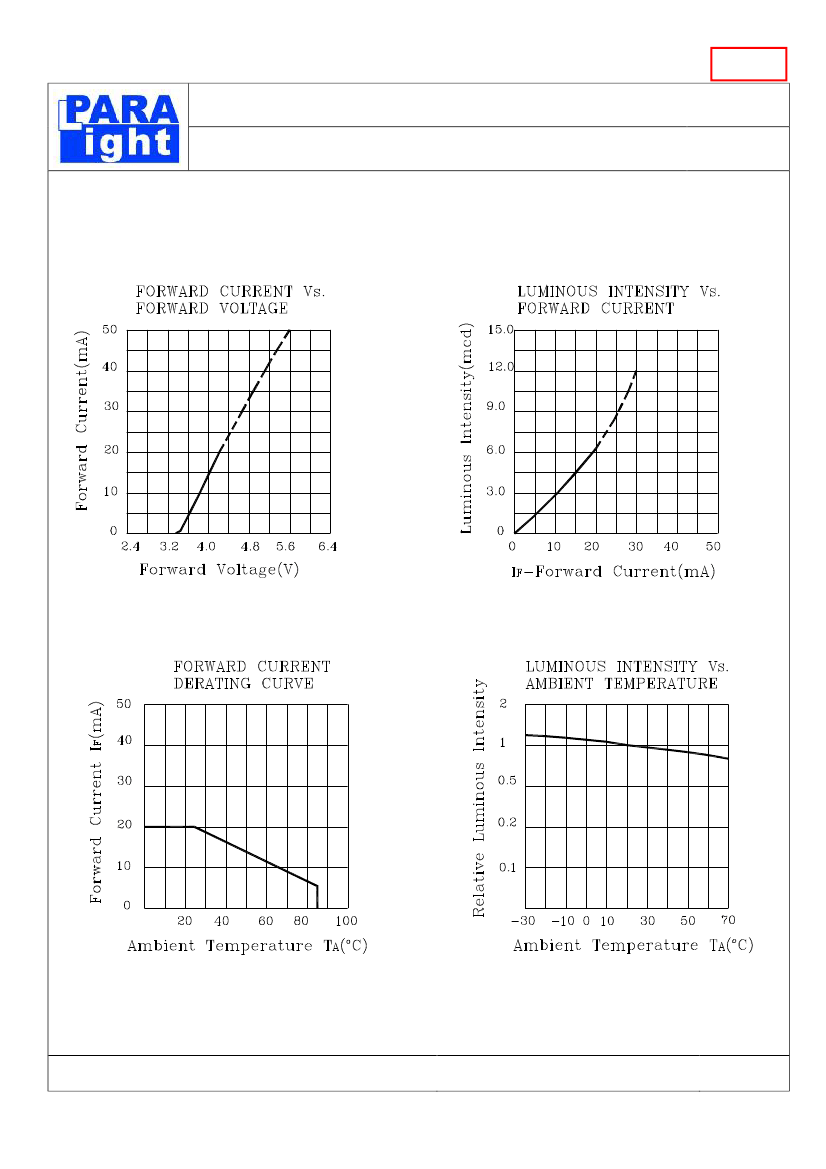

ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
SYMBOL
V
F
I
R
l
P
l
D
Δ
l
I
V
PARAMETER
Forward Voltage , Per Segment(DP)
Reverse Current , Per Segment(DP)
Peak Emission Wavelength
Dominant Wavelength
Spectral Line Half－Width
Luminous Intensity Per Segment
TEST
CONDITION
I
F
= 20mA
V
R
= 10 (5) V
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 10mA
1.2
583
585
30
3.0
MIN.
TYP.
MAX.
UNIT
V
mA
nm
nm
nm
mcd
4.2(2.1) 5.6(2.8)
100

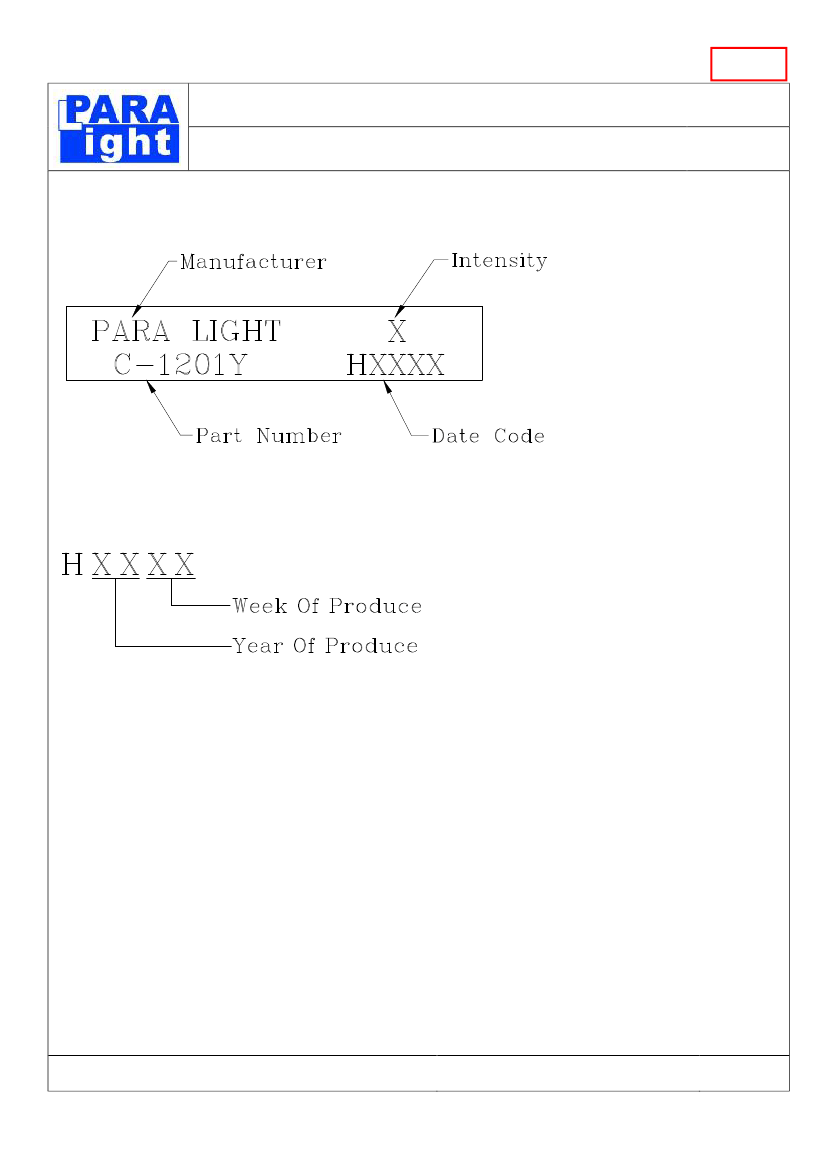

DRAWING NO. : DS-11-09-0055
DATE : 2009-04-02
Page : 3
HD-R/RD014
