HD74LV157FP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HD74LV157FP

HD74LV157FP: DescriptionMultiplexer, LV/LV-A/LVX/H Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16, EIAJ, SOP-16; Categorylogic logic; File Size99KB，5 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD74LV157FP Overview

Multiplexer, LV/LV-A/LVX/H Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16, EIAJ, SOP-16

HD74LV157FP Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
series	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G16
length	10.06 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	27.5 ns
Certification status	Not Qualified
Maximum seat height	2.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.5 mm

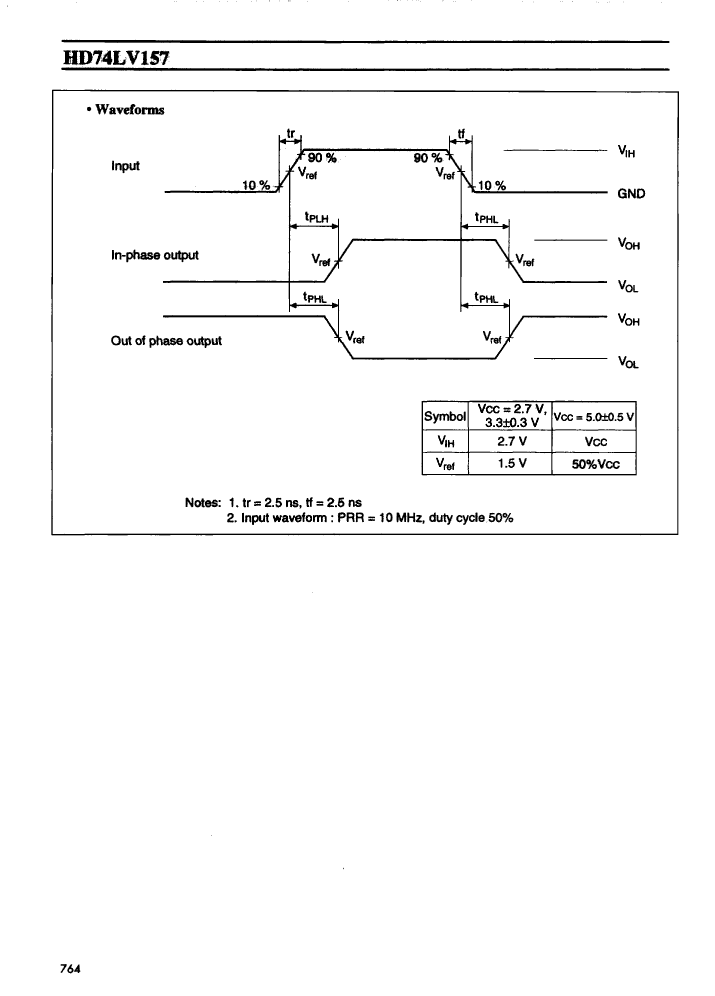

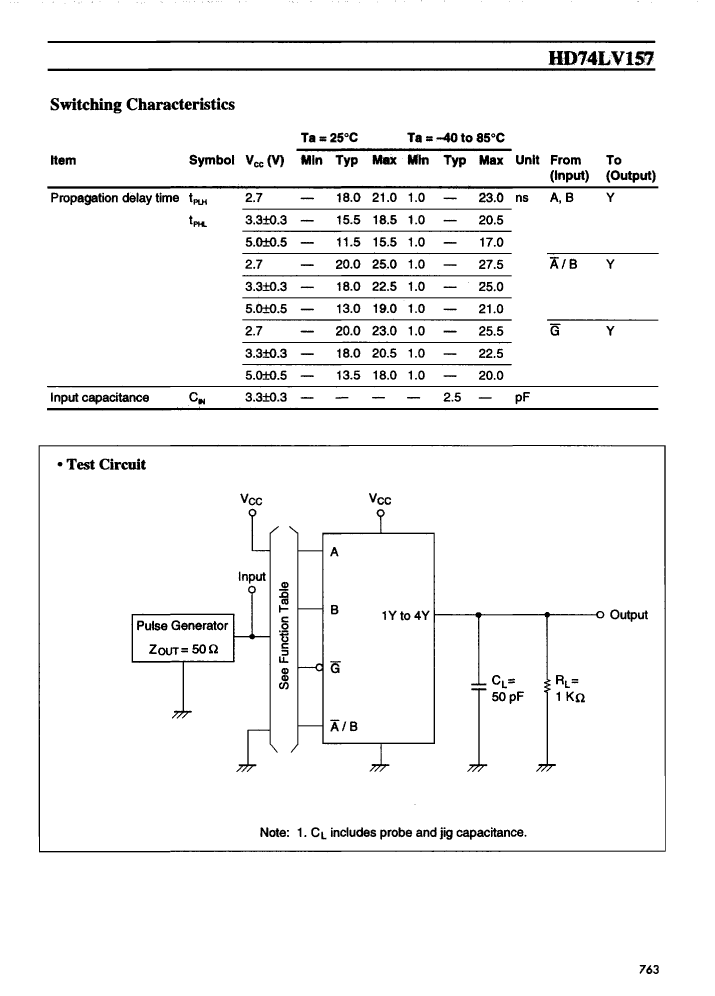

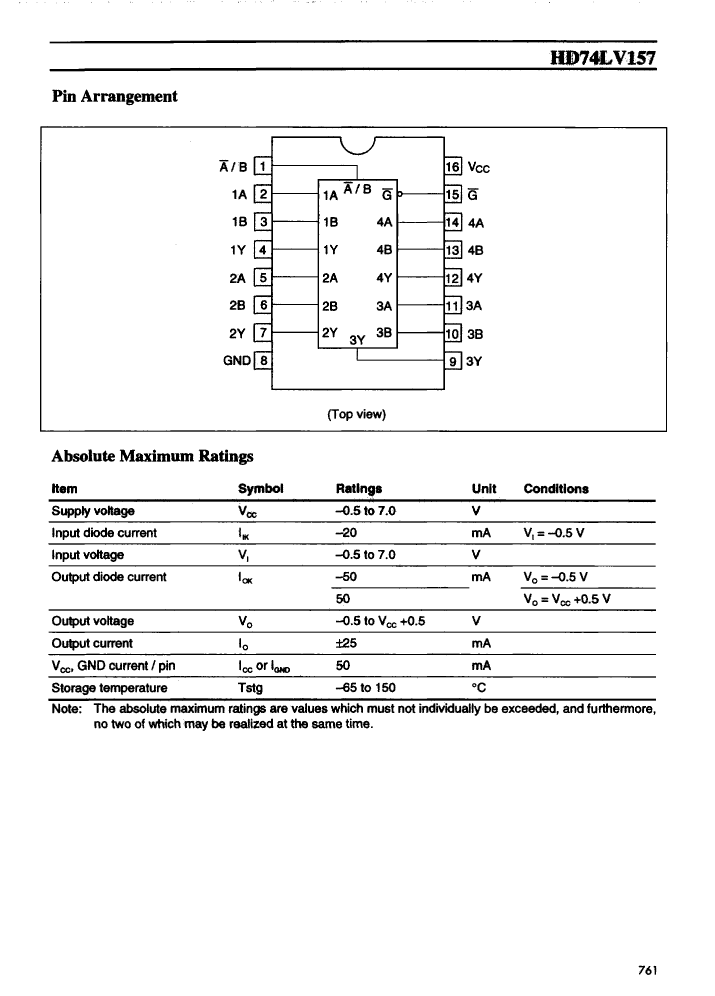

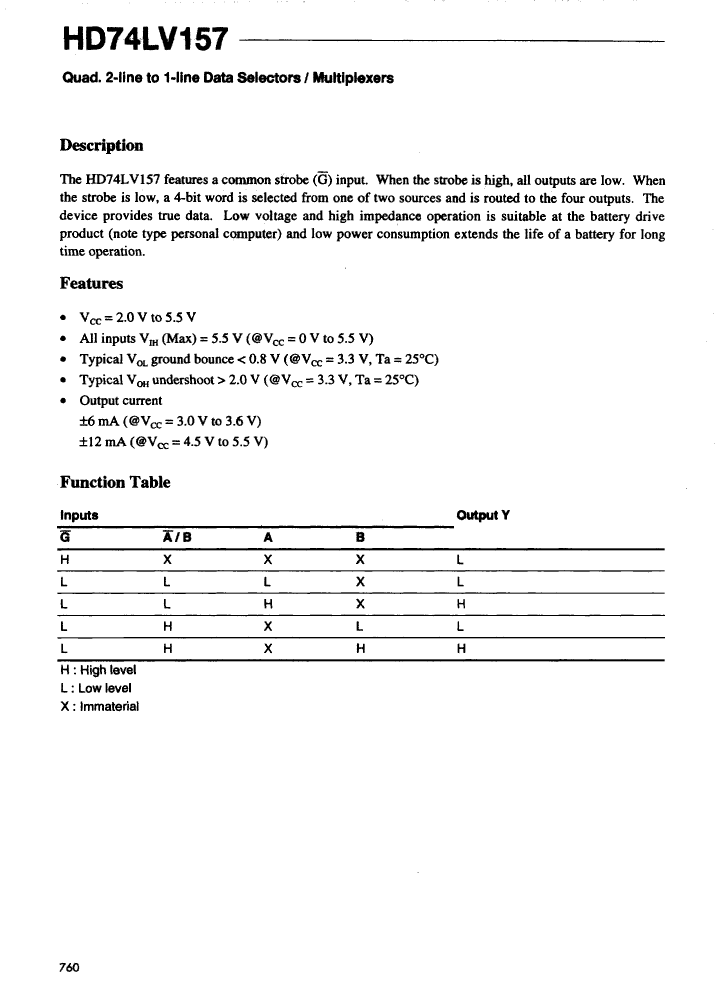

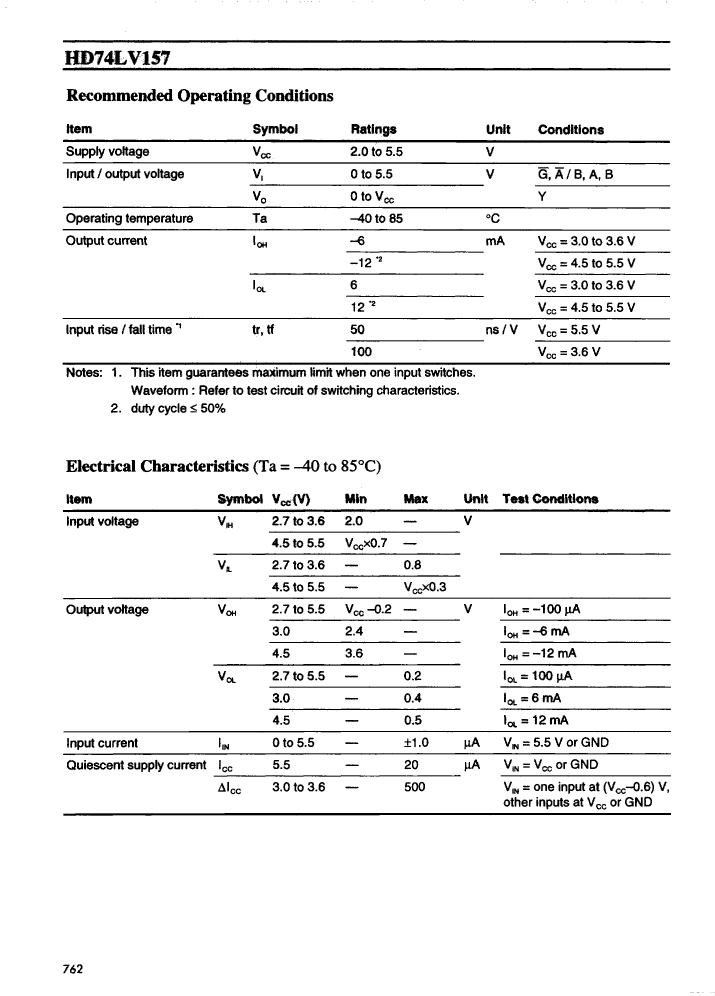

HD74LV157FP Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HD74LV157FP Related Products

	HD74LV157FP	HD74LV157T	HD74LV157RP
Description	Multiplexer, LV/LV-A/LVX/H Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16, EIAJ, SOP-16	Multiplexer, LV/LV-A/LVX/H Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16, TSSOP-16	Multiplexer, LV/LV-A/LVX/H Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16, SOP-16
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	SOIC	TSSOP	SOIC
package instruction	SOP,	TSSOP,	SOP,
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
series	LV/LV-A/LVX/H	LV/LV-A/LVX/H	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4
Number of entries	2	2	2
Output times	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
propagation delay (tpd)	27.5 ns	27.5 ns	27.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.2 mm	1.1 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	5.5 mm	4.4 mm	3.9 mm
length	10.06 mm	5 mm	-
