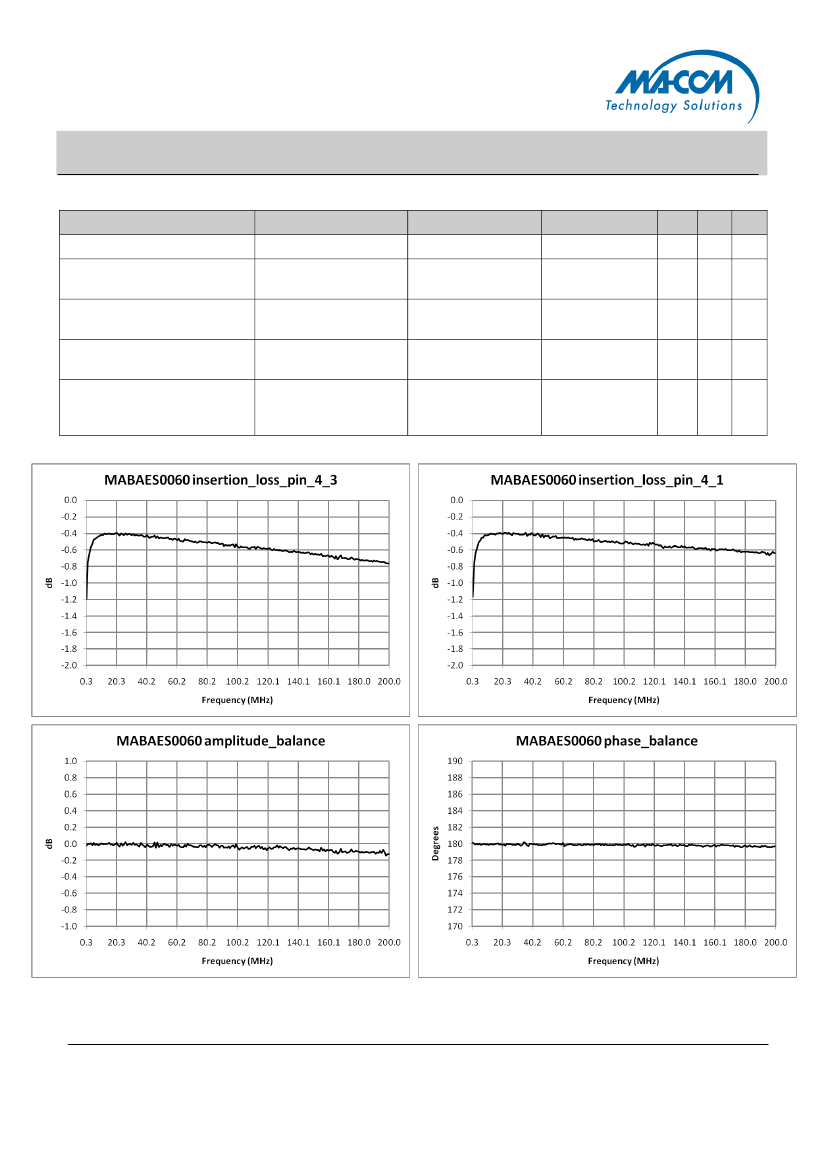

MABAES0060

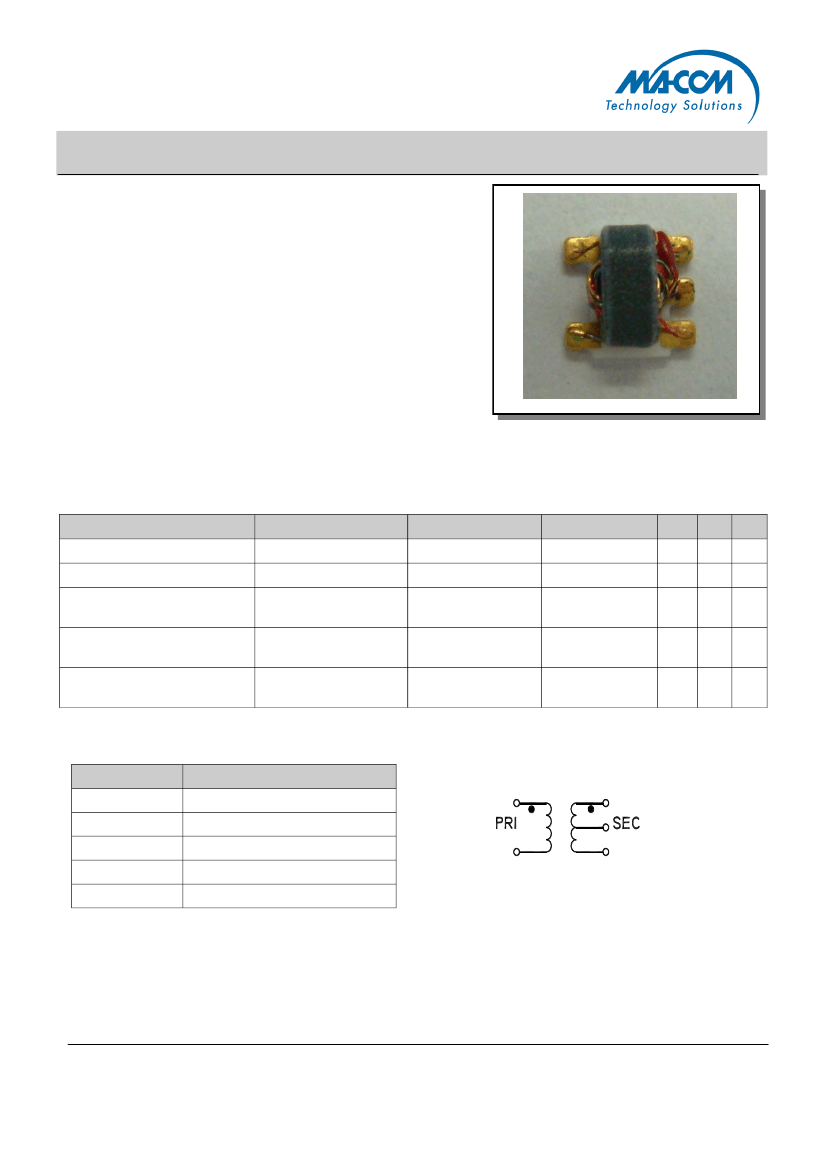

E-Series RF 1:1 Flux Coupled Transformer
0.3 - 200 MHz
Features
Surface Mount
1:1 Impedance Ratio
CT on Secondary
RoHS* Compliant version of the ETC1-1T
Tape and reel packaging available
Description
M/A-COM’s MABAES0060 is a RoHS compliant device that is
equivalent to the ETC1-1T transformer. This device is a 1:1 RF
flux coupled transformer in a low cost, surface mount package.
Ideally suited for high volume cellular and wireless applications.
Typical applications include single to balanced mode conversion
and impedance matching. The MABAES0060 transformer is of-
fered in an SM-22 surface mount package and is designed to be
utilized in both standard reflow and high temperature soldering
Electrical Specifications: T
A
= 25°C, Z
0
= 50Ω
Parameter
RF Frequency
Insertion Loss
Amplitude Imbalance
Phase Imbalance
Input Return Loss
Test Conditions
—
—
—
—
—
Frequency
0.3 - 200
0.3 - 200
0.3 - 50
0.3 - 200
0.3 - 50
0.3 - 200
0.3 - 200
5 - 120
Units
MHz
dB
dB
dB
Degrees
Degrees
dB
dB
Min Typ Max
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
1.5
0.1
0.5
1.0
5.0
10.0
15.0
Rev. V6
Pin Configuration
Pin No.
1
2
3
4
5
Function
Secondary
Secondary CT
Secondary Dot
Primary Dot
Primary
Schematic
Primary Dot
4
Primary
5
3
Secondary Dot
2
Secondary CT
1
Secondary
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MABAES0060
E-Series RF 1:1 Flux Coupled Transformer
0.3 - 200 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50Ω
Insertion Loss
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9
-1.0
0
50
100
150
200
Rev. V6
Phase Unbalance
185
183
Degrees
181
179
177
175
0
50
100
150
200
dB
Frequency (MHz)
Amplitude Unbalance
0.05
0.00
-0.05
Freq (MHz)
Input Return Loss
-10
-15
-20
dB
-0.15
-0.20
-0.25
0
50
100
150
200
dB
-0.10
-25
-30
-35
0
50
Freq (MHz)
Freq (MHz)
100
150
200
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MABAES0060
E-Series RF 1:1 Flux Coupled Transformer
0.3 - 200 MHz
Rev. V6
Electrical Specifications: T
A
= 25°C, Z
0
= 75Ω
Parameter
RF Frequency
Insertion Loss
Amplitude Imbalance
Phase Imbalance
Input Return Loss
Test Conditions
-
-
-
-
-
Frequency
0.3 - 200
0.3 - 5
5 - 200
0.3 - 50
0.3 - 200
0.3 - 50
0.3 - 200
0.3 - 5
5 - 120
120 - 200
Units
MHz
dB
dB
dB
dB
Degrees
Degrees
dB
dB
dB
Min Typ Max
-
-
-
-
-
-
-
7
19
15
-
-
-
-
-
-
-
-
-
-
-
1.7
0.9
0.1
0.5
±2.0
±5.0
-
-
-
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MABAES0060
E-Series RF 1:1 Flux Coupled Transformer
0.3 - 200 MHz

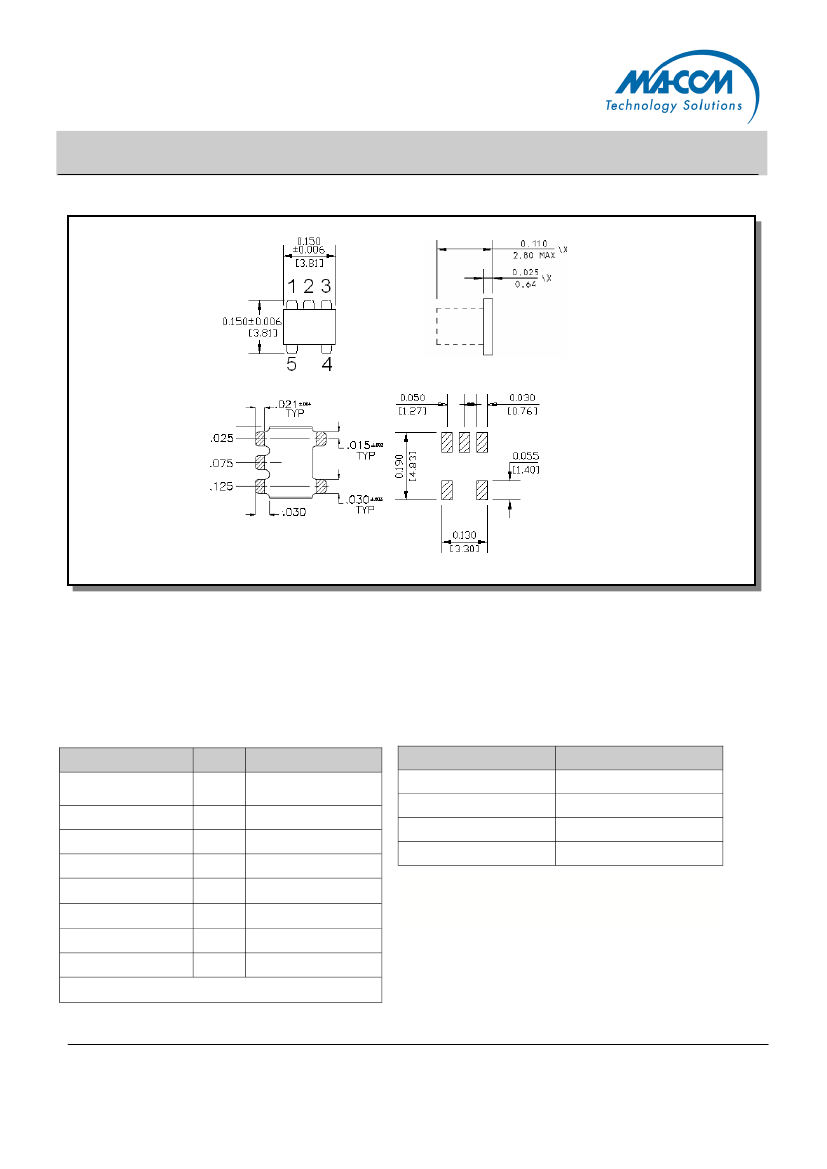

Outline Drawing
Rev. V6
1.
2.
3.
4.
Dimensions are in inches (mm)
Tolerance: ±0.015’’ (0.38mm) unless otherwise noted.
Model number and lot code printed on reel.
Plating finish: ENIG on both sides, 0.05 to 0.1 µm gold over 3 to 6 µm nickel
Tape & Reel Information
Parameter
Qty per reel
Reel size
Tape width (W)
Pitch (P
1
)
A
0
B
0
K
0
Orientation
Units
-
mm
mm
mm
mm
mm
mm
-
Value
2000
330
12.0
8
4.0
4.0
2.9
F5
Absolute Maximum Ratings
1,2
Parameter
RF Power
DC Current
Operating Temperature
Storage Temperature
Absolute Maximum
250 mW
240 mA
2
-40°C to +85°C
-55°C to +125°C
1. Operation of this device above any one of these parameters
may cause permanent damage.
2. The maximum DC current applies to the secondary center tap
in applications where the secondary is balanced.
Reference Application note ANI-019 for orientation
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
