MIC5891AJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MIC5891AJ

MIC5891AJ: DescriptionSIPO Based Peripheral Driver, 8 Driver, 0.5A, BIMOS, CDIP16, CERDIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size123KB，4 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC5891AJ Overview

SIPO Based Peripheral Driver, 8 Driver, 0.5A, BIMOS, CDIP16, CERDIP-16

MIC5891AJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Built-in protection	TRANSIENT
Number of drives	8
Input properties	STANDARD
Interface integrated circuit type	SIPO BASED PERIPHERAL DRIVER
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.304 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Output current flow direction	SOURCE
Nominal output peak current	0.5 A
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12/16 V
Certification status	Not Qualified
Maximum seat height	3.937 mm
Maximum slew rate	3 mA
Maximum supply voltage	12 V
Nominal supply voltage	5 V
Supply voltage 1-max	50 V
surface mount	NO
technology	BIMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	10 µs
connection time	2 µs
width	7.62 mm

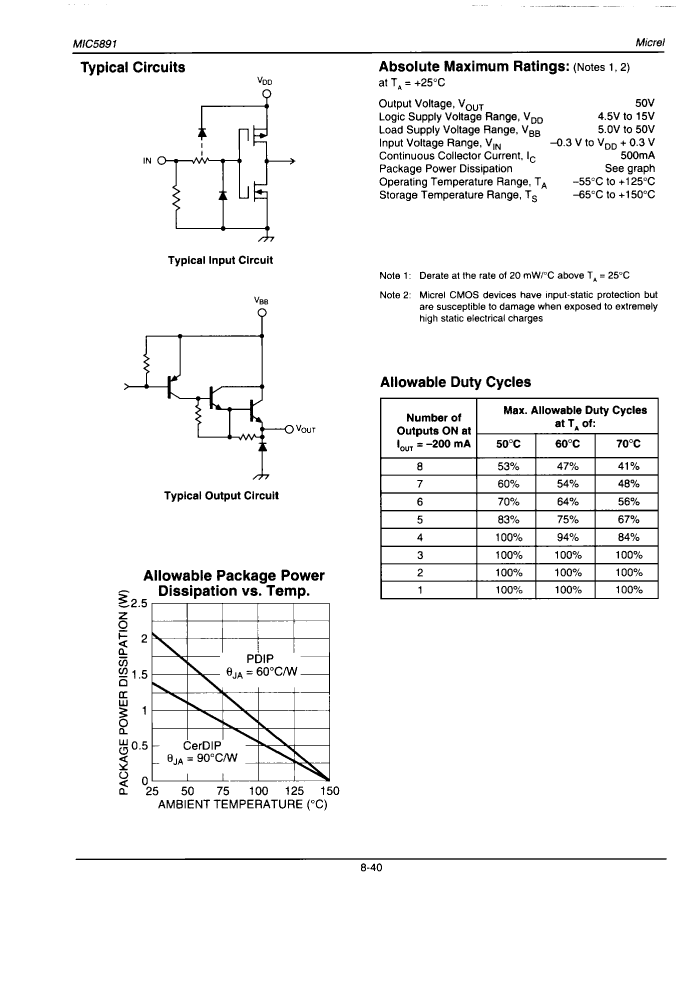

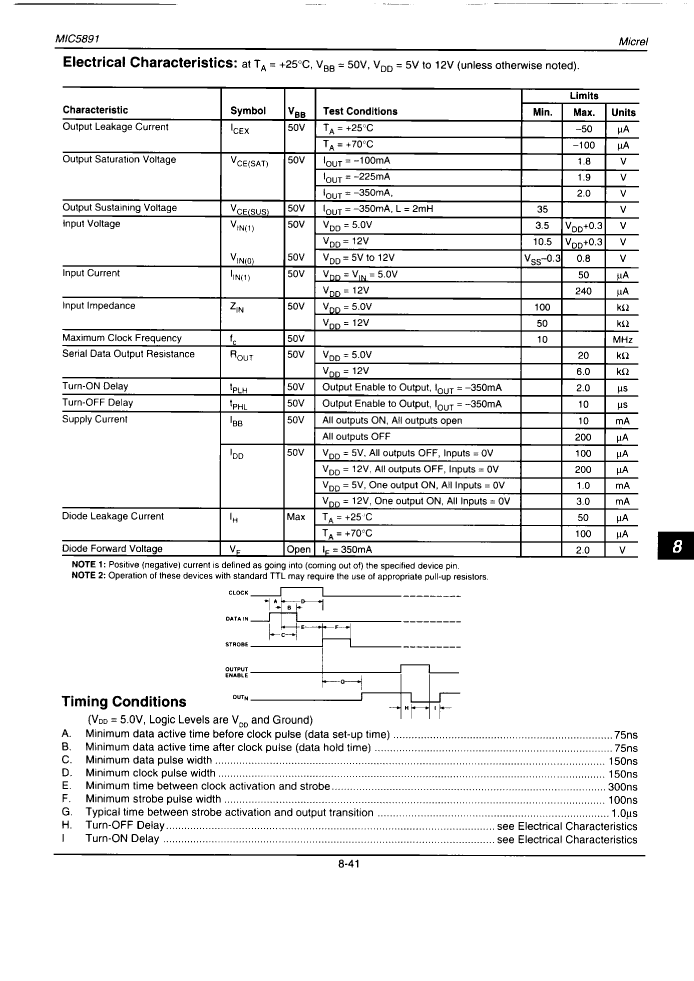

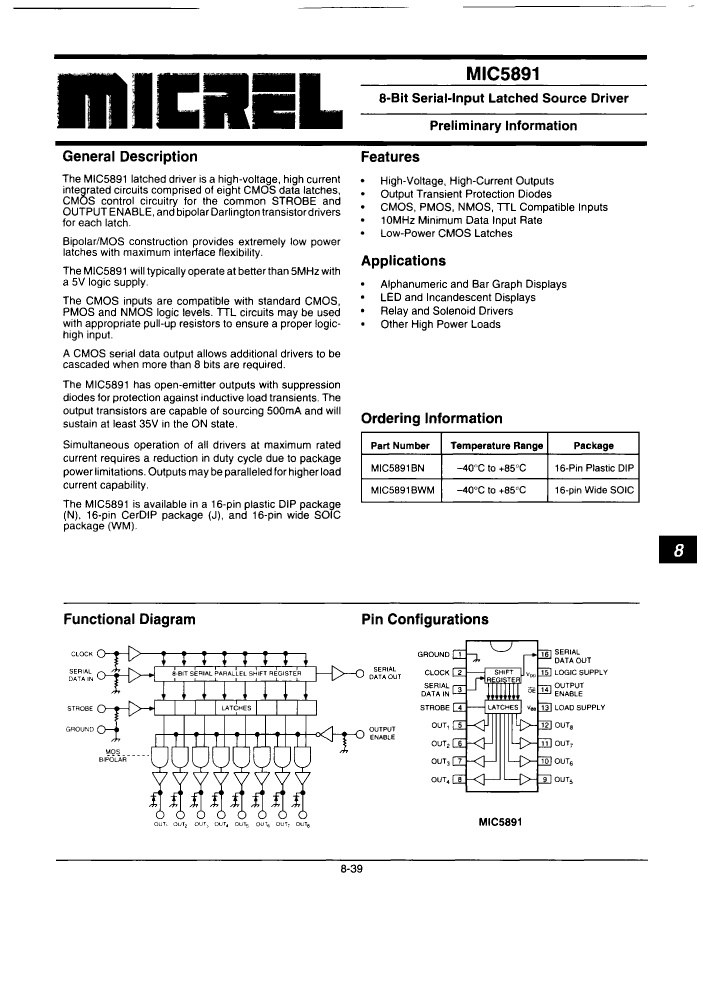

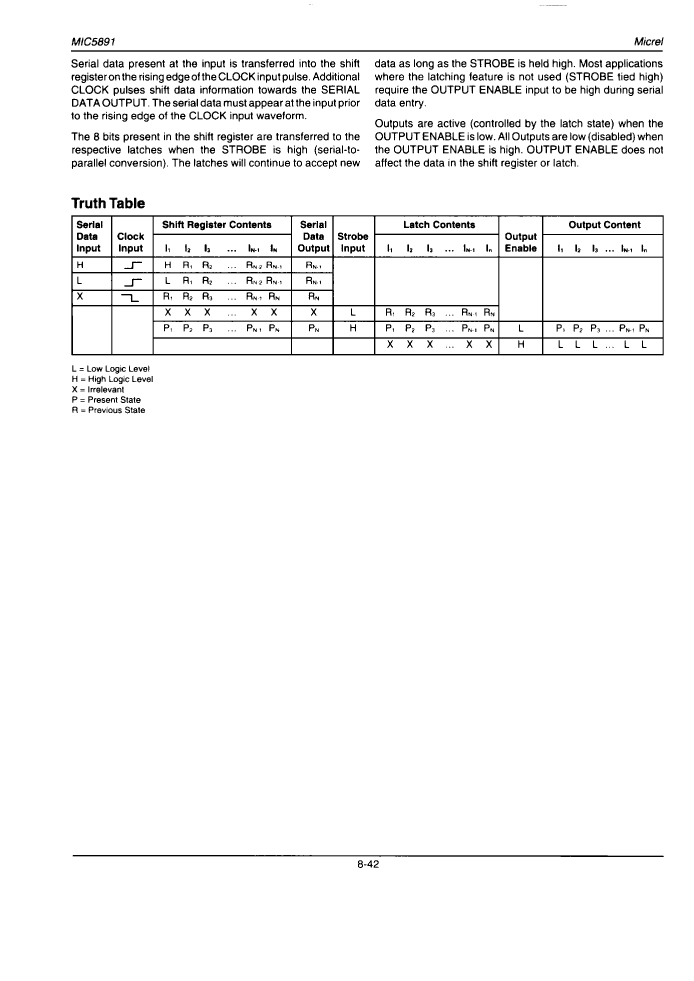

MIC5891AJ Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

MIC5891AJ Related Products

	MIC5891AJ	MIC5891BJ
Description	SIPO Based Peripheral Driver, 8 Driver, 0.5A, BIMOS, CDIP16, CERDIP-16	SIPO Based Peripheral Driver, 8 Driver, 0.5A, BIMOS, CDIP16, CERDIP-16
Is it Rohs certified?	incompatible	incompatible
Maker	Microchip	Microchip
Parts packaging code	DIP	DIP
package instruction	DIP, DIP16,.3	DIP, DIP16,.3
Contacts	16	16
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Built-in protection	TRANSIENT	TRANSIENT
Number of drives	8	8
Input properties	STANDARD	STANDARD
Interface integrated circuit type	SIPO BASED PERIPHERAL DRIVER	SIPO BASED PERIPHERAL DRIVER
JESD-30 code	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0
length	19.304 mm	19.304 mm
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER
Output current flow direction	SOURCE	SOURCE
Nominal output peak current	0.5 A	0.5 A
Output polarity	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	12/16 V	12/16 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.937 mm	3.937 mm
Maximum slew rate	3 mA	3 mA
Maximum supply voltage	12 V	12 V
Nominal supply voltage	5 V	5 V
Supply voltage 1-max	50 V	50 V
surface mount	NO	NO
technology	BIMOS	BIMOS
Temperature level	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Disconnect time	10 µs	10 µs
connection time	2 µs	2 µs
width	7.62 mm	7.62 mm
