CMR1U-02FL: DescriptionSURFACE MOUNT ULTRA FAST RECOVERY SILICON RECTIFIER 1 AMP, 200 THRU 600 VOLTS; CategoryDiscrete semiconductor diode; File Size492KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMR1U-02FL Overview

SURFACE MOUNT ULTRA FAST RECOVERY SILICON RECTIFIER 1 AMP, 200 THRU 600 VOLTS

CMR1U-02FL Parametric

Parameter Name	Attribute value
package instruction	SMBFL, 2 PIN
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	FREE WHEELING DIODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-F2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

CMR1U-02FL

CMR1U-04FL

CMR1U-06FL

SURFACE MOUNT ULTRA FAST

RECOVERY SILICON RECTIFIER

1 AMP, 200 THRU 600 VOLTS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMR1U-02FL

series devices are 1.0 amp, surface mount, ultra fast

recovery silicon rectifiers packaged in the low profile

SMBFL case. The SMBFL fits on existing industry

standard SMB mounting pad layouts.

MARKING CODE: SEE MARKING CODE TABLE ON

FOLLOWING PAGE

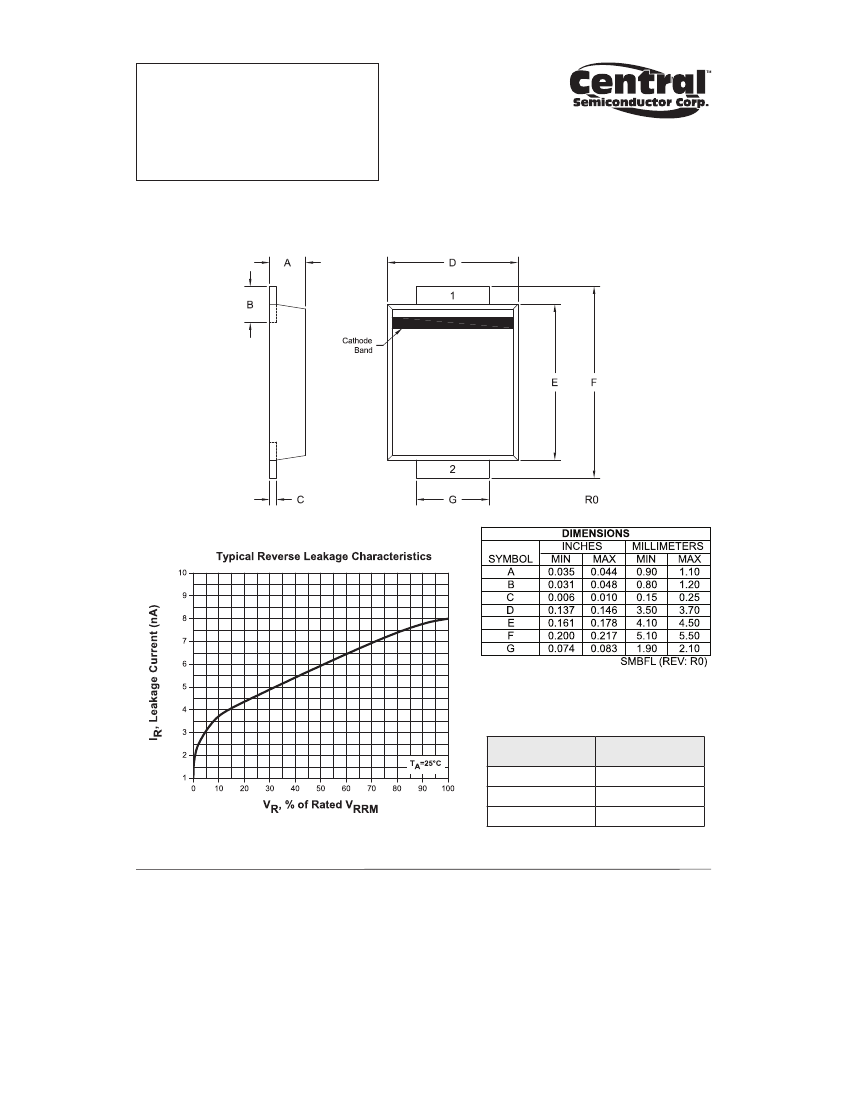

SMBFL CASE

FEATURES:

• Ultra fast recovery time

• Low capacitance

APPLICATIONS:

•

DC-DC converters

•

Flyback diode

•

Freewheeling diode

CMR1U

-02FL

200

140

CMR1U

-04FL

400

280

1.0

-55 to +150

62.5

CMR1U

-06FL

600

420

MAXIMUM RATINGS:

(TA=25ºC unless otherwise noted)

SYMBOL

Peak Repetitive Reverse Voltage

VRRM

DC Blocking Voltage

RMS Reverse Voltage

Average Forward Current (TL=120ºC)

Peak Forward Surge Current, tp=8.3ms

Operating and Storage Junction Temperature

Thermal Resistance

VR(RMS)

IFSM

TJ, Tstg

UNITS

ºC

ºC/W

ELECTRICAL CHARACTERISTICS:

(TA=25ºC) unless otherwise noted)

SYMBOL

TEST CONDITIONS

TYP

VR=Rated VRRM

0.01

IF=1.0A, (CMR1U-02FL)

trr

IF=1.0A, (CMR1U-04FL)

IF=1.0A, (CMR1U-06FL)

VR=4.0V, f=1.0MHz (CMR1U-02FL)

VR=4.0V, f=1.0MHz (CMR1U-04FL)

VR=4.0V, f=1.0MHz (CMR1U-06FL)

IF=0.5A,

IR=1.0A,

Irr=0.25A (CMR1U-02FL, 04FL)

Irr=0.25A (CMR1U-06FL)

8.0

MAX

1.0

1.3

1.7

UNITS

μA

100
