LI0805H750R-00 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> LI0805H750R-00

Preview

LI0805H750R-00: DescriptionData Line Filter, 1 FUNCTIONS, 75 V, 0.8 A, FERRITE CHIP, SURFACE MOUNT; CategoryAnalog mixed-signal IC filter; File Size116KB，2 Pages; ManufacturerLaird

Download Datasheet Parametric View All

LI0805H750R-00 Overview

Data Line Filter, 1 FUNCTIONS, 75 V, 0.8 A, FERRITE CHIP, SURFACE MOUNT

LI0805H750R-00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Laird
package instruction	EIA STD PACKAGE SIZE 0805
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.15 Ω
filter type	FERRITE CHIP
high	0.9 mm
JESD-609 code	e0
length	2 mm
Manufacturer's serial number	LI
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	75 OHM Ω
physical size	L2.0XB1.25XH0.9 (mm)/L0.079XB0.049XH0.035 (inch)
Rated current	0.8 A
Rated voltage	75 V
Terminal surface	Tin/Lead (Sn/Pb)
width	1.25 mm

LI0805H750R-00 Preview

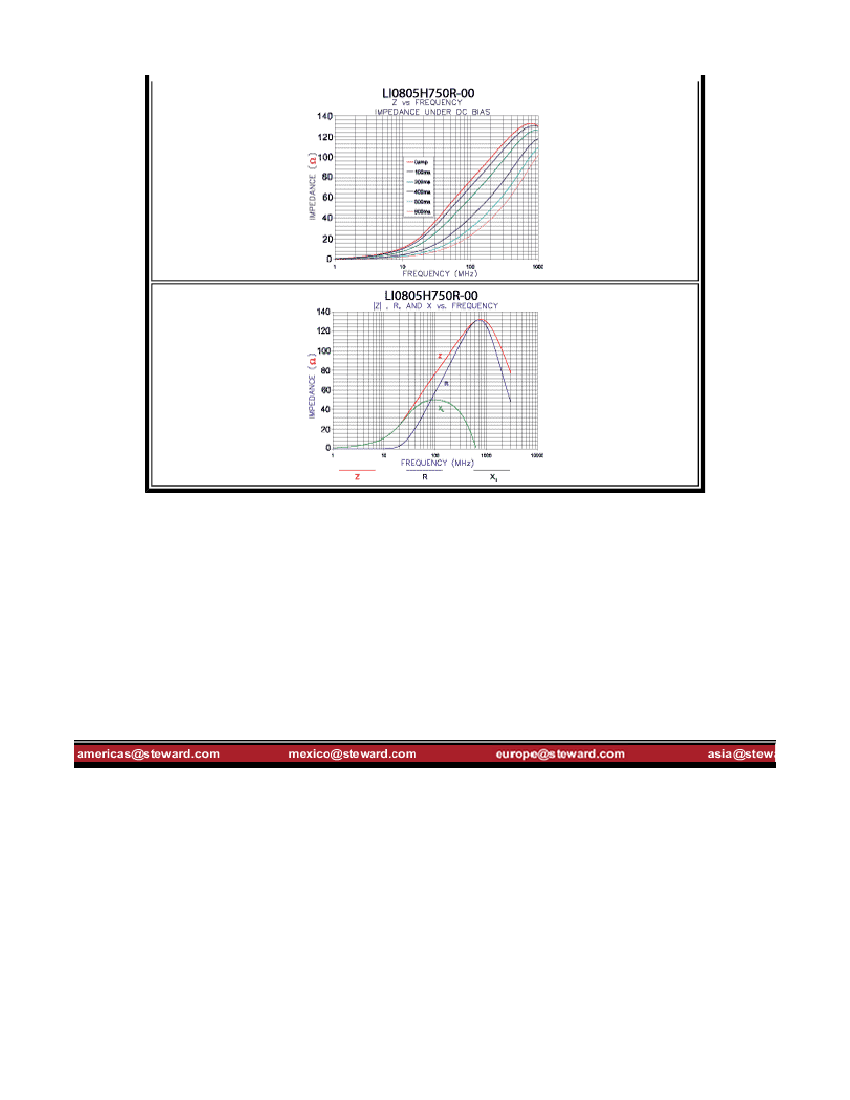

Part Curves

Page 1 of 2

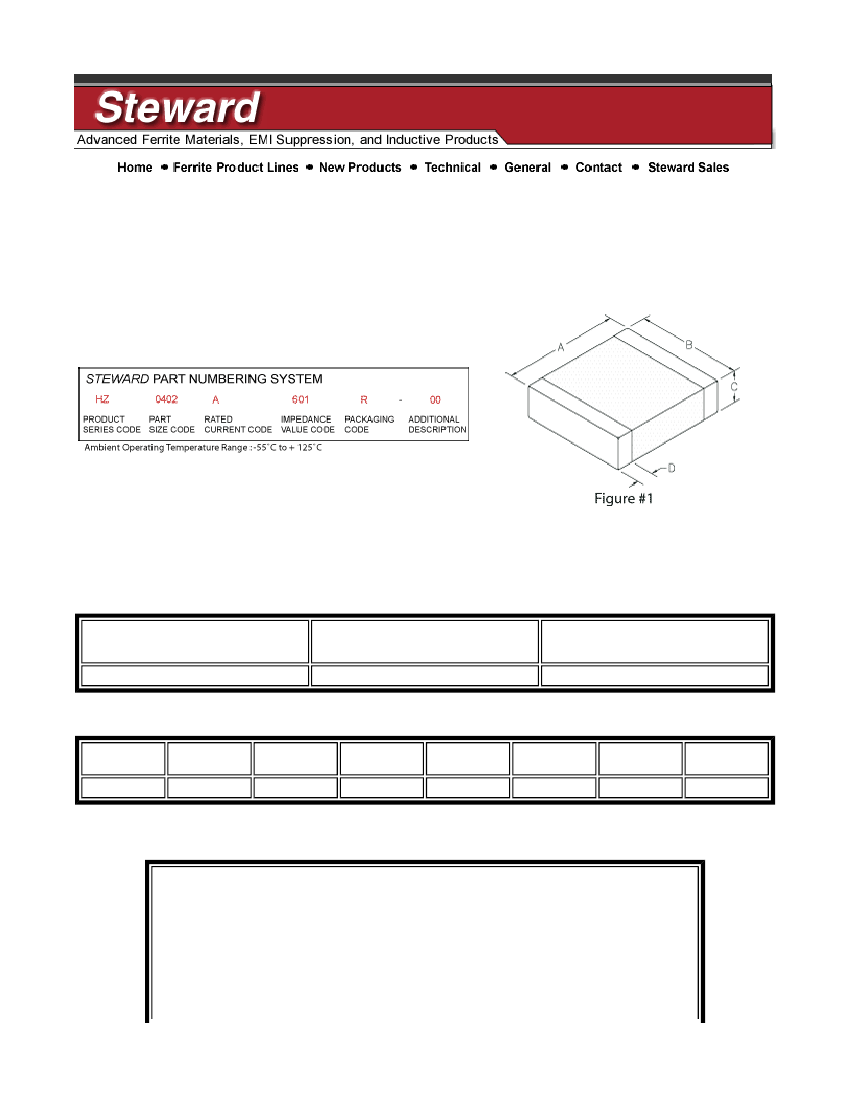

LI0805H750R-00

Electrical Characteristics

NET Z

@ 100 MHz

75

DCR

Max

0.15

Rated

Current

mA

800

Physical Dimensions

A

mm

2.00

B

mm

1.25

C

mm

0.90

D

mm

0.51

A

in

0.079

B

in

0.049

C

in

0.035

D

in

0.020

http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/19/2004

Part Curves

Page 2 of 2

Specifications, which provide more details for the correct use of the described products, are available upon request. All

specifications are subject to change without notice. For more information on any of the products listed above, please contact

Steward customer service department at (800) 634-2673.

Last Updated:

2/19/2004

http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/19/2004

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
