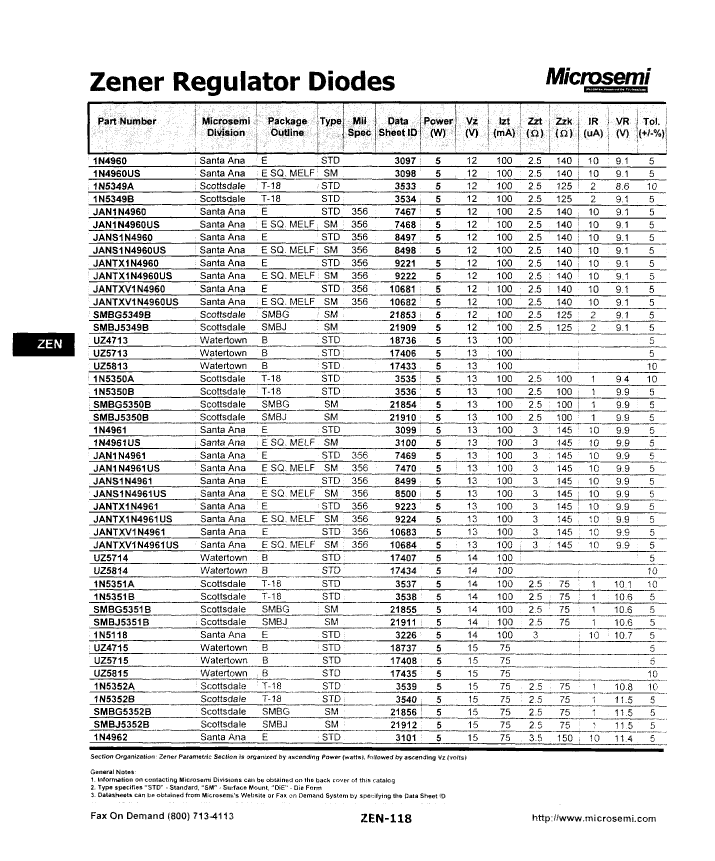

Zener Diode, 13V V(Z), 10%, 5W, Silicon, Unidirectional,
| Parameter Name | Attribute value |
| Maker | Microsemi |
| package instruction | O-LALF-W2 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | METALLURGICALLY BONDED |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | ZENER DIODE |
| JESD-30 code | O-LALF-W2 |
| Number of components | 1 |
| Number of terminals | 2 |
| Package body material | GLASS |
| Package shape | ROUND |
| Package form | LONG FORM |
| polarity | UNIDIRECTIONAL |
| Maximum power dissipation | 5 W |
| Nominal reference voltage | 13 V |
| surface mount | NO |
| technology | ZENER |
| Terminal form | WIRE |
| Terminal location | AXIAL |
| Maximum voltage tolerance | 10% |
| Working test current | 100 mA |
| UZ5813E3 | 1N5118E3 | UZ5713E3 | UZ5714E3 | UZ5814E3 | UZ5815E3 | UZ5715E3 | UZ4715E3 | |
|---|---|---|---|---|---|---|---|---|
| Description | Zener Diode, 13V V(Z), 10%, 5W, Silicon, Unidirectional, | Zener Diode, 14V V(Z), 5%, 5W, Silicon, Unidirectional, | Zener Diode, 13V V(Z), 5%, 5W, Silicon, Unidirectional, | Zener Diode, 14V V(Z), 5%, 5W, Silicon, Unidirectional, | Zener Diode, 14V V(Z), 10%, 5W, Silicon, Unidirectional, | Zener Diode, 15V V(Z), 10%, 5W, Silicon, Unidirectional, | Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional, | Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional, |
| package instruction | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 |
| Reach Compliance Code | compliant | compli | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE |
| JESD-30 code | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Package body material | GLASS | GLASS | GLASS | GLASS | GLASS | GLASS | GLASS | GLASS |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM |
| polarity | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL |
| Maximum power dissipation | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Nominal reference voltage | 13 V | 14 V | 13 V | 14 V | 14 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| technology | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL |
| Maximum voltage tolerance | 10% | 5% | 5% | 5% | 10% | 10% | 5% | 5% |
| Working test current | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 75 mA | 75 mA | 75 mA |
| Maker | Microsemi | - | Microsemi | Microsemi | Microsemi | Microsemi | Microsemi | Microsemi |
| Other features | METALLURGICALLY BONDED | METALLURGICALLY BONDED | METALLURGICALLY BONDED | METALLURGICALLY BONDED | METALLURGICALLY BONDED | METALLURGICALLY BONDED | METALLURGICALLY BONDED | - |
| Maximum operating temperature | - | - | 175 °C | - | 175 °C | 175 °C | 175 °C | 175 °C |
| Minimum operating temperature | - | - | -65 °C | - | -65 °C | -65 °C | -65 °C | -65 °C |
