MAFL-010639-CB0AD0
MoCA Band Pass Filter
500 - 3000 MHz
Features
Surface Mount
75 Ohm
RoHS* Compliant
Pb Free
MoCA Application

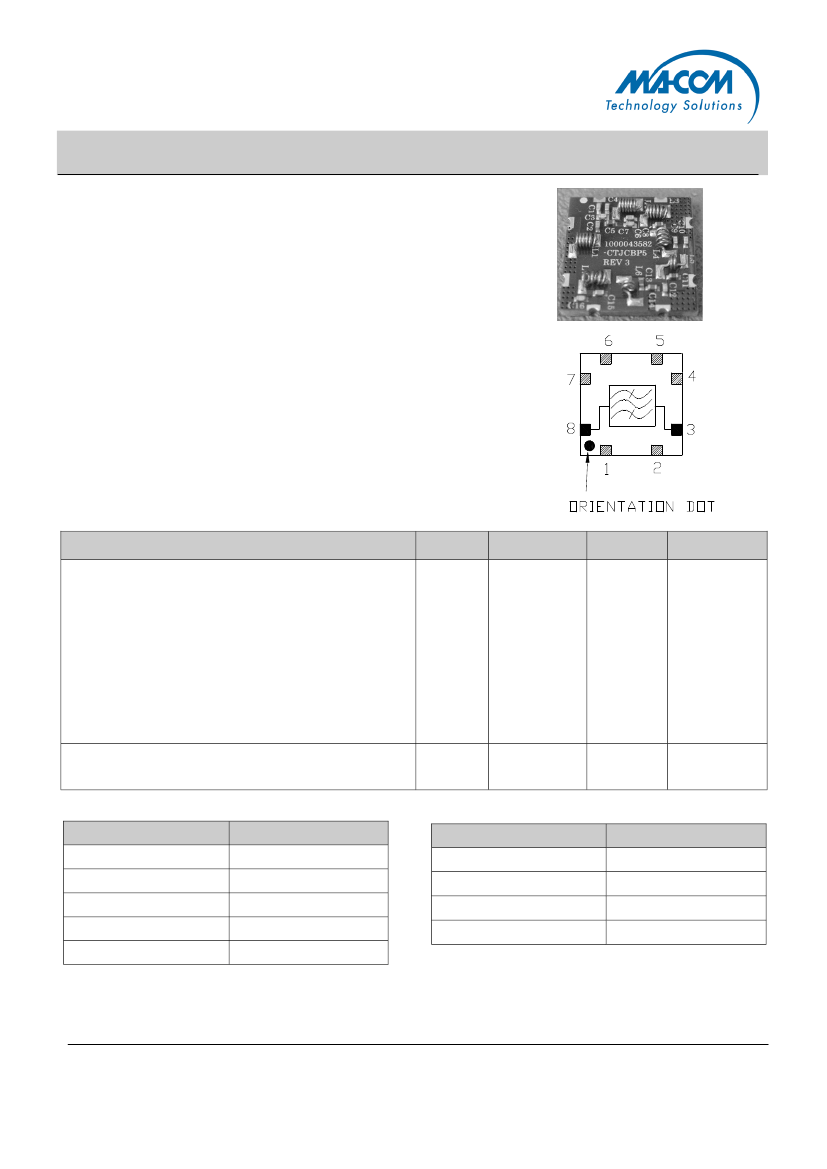

Product Image
Rev. V5
Description
M/A-COM Technology Solutions’ MAFL-010639-
CB0AD0 is a surface mount Band Pass Filter unit
designed for MoCA applications.
Functional
Schematic
Electrical Specifications: Z0 = 75Ω, TA = 25ºC, P
in
= 0dBm
Parameter
Common to MoCA / MoCA to Common
Rejection
500 - 565 MHz
565 - 575 MHz
950 - 960 MHz
960 - 1220 MHz
1220-2000 MHz
2000 - 2500 MHz
2600 - 3000 MHz
Insertion Loss
650 - 875 MHz
Common Port Return Loss
650 - 875 MHz
Recommended Maximum Ratings
Parameter
Storage Temperature
Operating Temperature
DC Current
RF Power
Transient Voltage
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
Units
Min
Typ
Max
dB
dB
dB
dB
dB
dB
dB
dB
dB
-35
-30
-32
-34
-37
-35
-30
-
-9.5
-38
-32
-36
-40
-42
-40
-33
-2.0
-10
-
-
-
-
-
-
-
-3.0
-
Pin Configuration
Value
Function
Common Port (Input)
MoCA Port (Output)
Ground
Not connected
Pin Number
8
3
1 - 2, 4 - 7
-
-40C to +85ºC
-40C to +85ºC
30mA
+23.9dBm (250mW)
200V
Restrictions on Hazardous Substances, European Union Directive 2002/95/EC
Full temperature plots are available on request.
MAFL-010639-CB0AD0
MoCA Band Pass Filter
500 - 3000 MHz

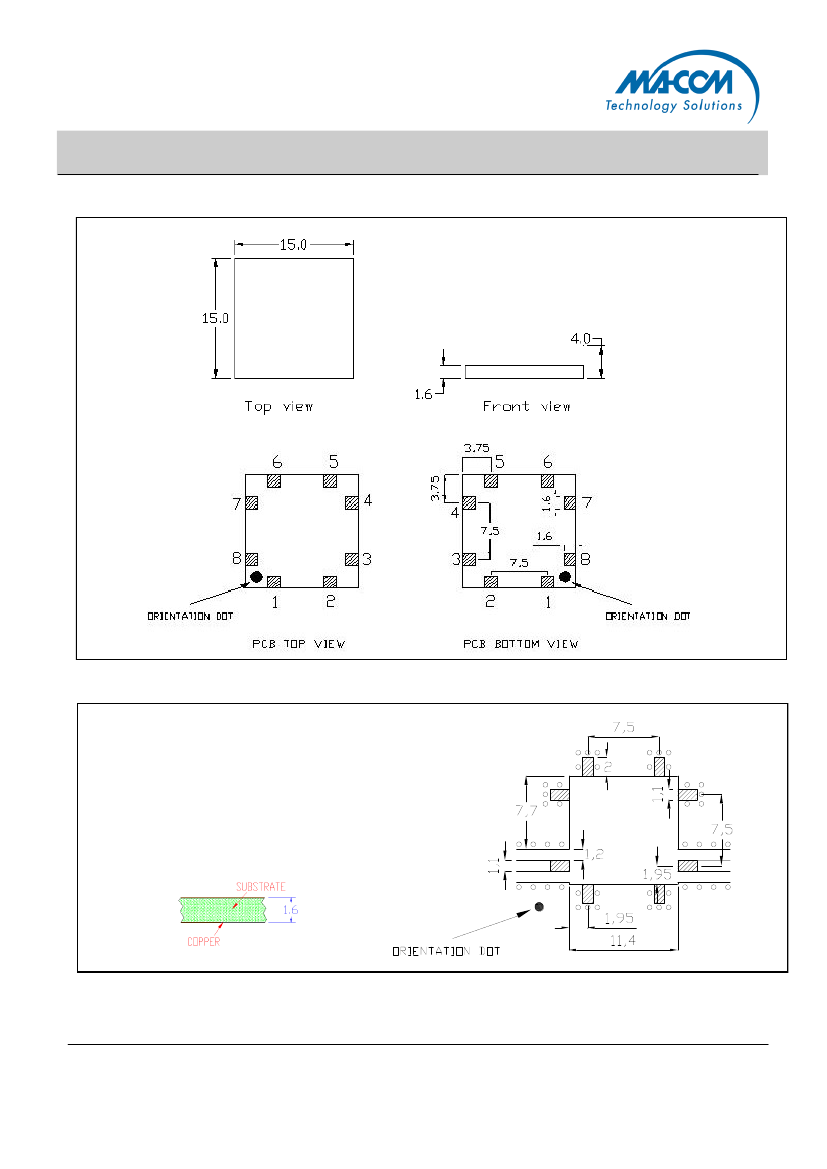

Outline Drawing:
Rev. V5
Recommended PCB Configuration
Track dimension = 1.1mm
Gap dimension = 1.2mm
It is not recommended to run tracks under the filter unless they are greater than
1.6mm below the base.
Ground should be 1.6mm below the base of the filter
Area directly under the filter should be free from copper
RF shield should be kept a minimum of 6mm above the filter
2
1.
2.
3.
4.
Dimensions in mm.
Tolerance: ±0.1mm unless otherwise noted.
Model number and lot code printed on reel.
Plating finish: ENIG on both sides, 0.05 to 0.1 µm gold over 3 to 6 µm nickel
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAFL-010639-CB0AD0
MoCA Band Pass Filter
500 - 3000 MHz
Typical Performance Curves at +25°C
Insertion Loss
0
-8
-16
-24
-32
S21 (dB)
Rev. V5
-40
-48
-56
-64
-72
-80
300
570
840
1110
1380
1650
Frequency (MHz)
1920
2190
2460
2730
3000
Common Port Return Loss
0
-3
-6
-9
-12
S11 (dB)
-15
-18
-21
-24
-27
-30
300
570
840
1110
1380
1650
Frequency (MHz)
1920
2190
2460
2730
3000
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAFL-010639-CB0AD0
MoCA Band Pass Filter
500 - 3000 MHz
Rev. V5

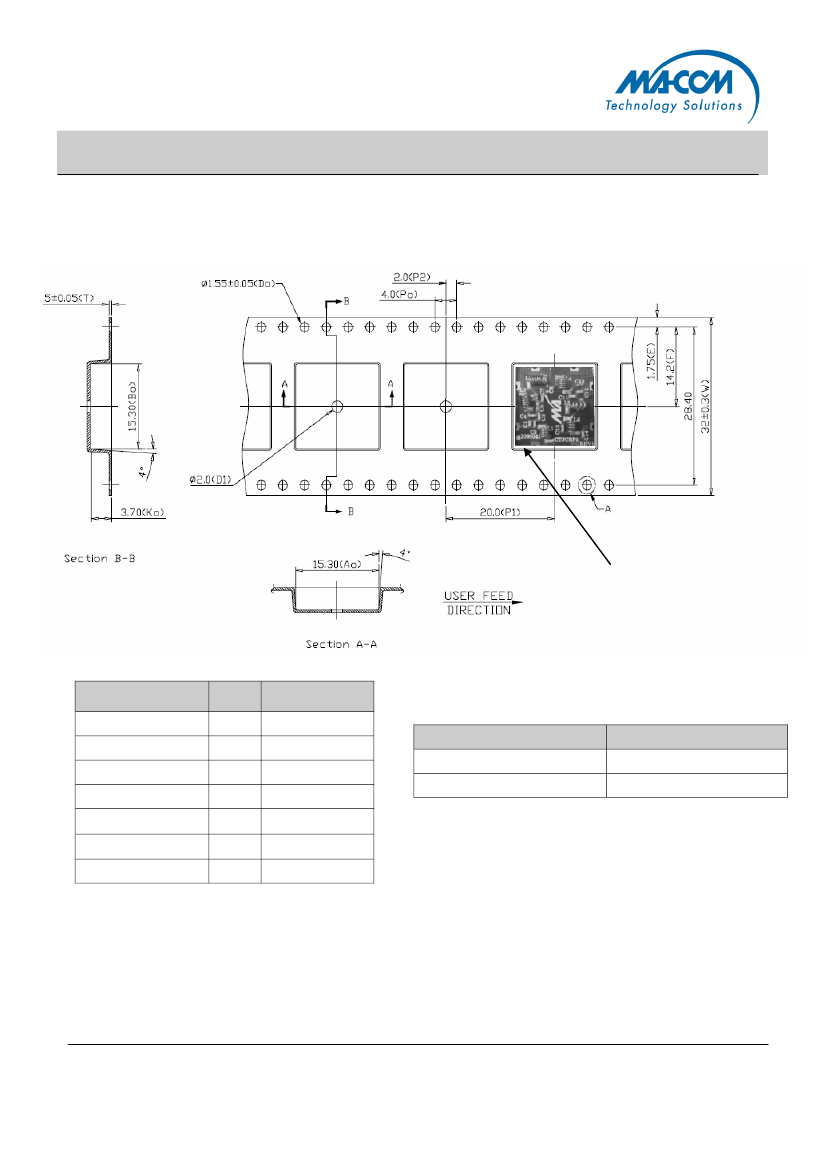

Tape & Reel Information
Orientation dot
Parameter
Qty per reel
Reel size
Tape width (W)
Pitch (P
1
)
A
0
B
0
K
0
Units
-
mm
mm
mm
mm
mm
mm
Value
500
330
32.0
20.0
15.3
15.3
3.70
Ordering Information
Part Number
MAFL-010639-CB0AD0
MAFL-010639-CB0ATB
Description
Tape & Reel
Customer Evaluation Board
4
