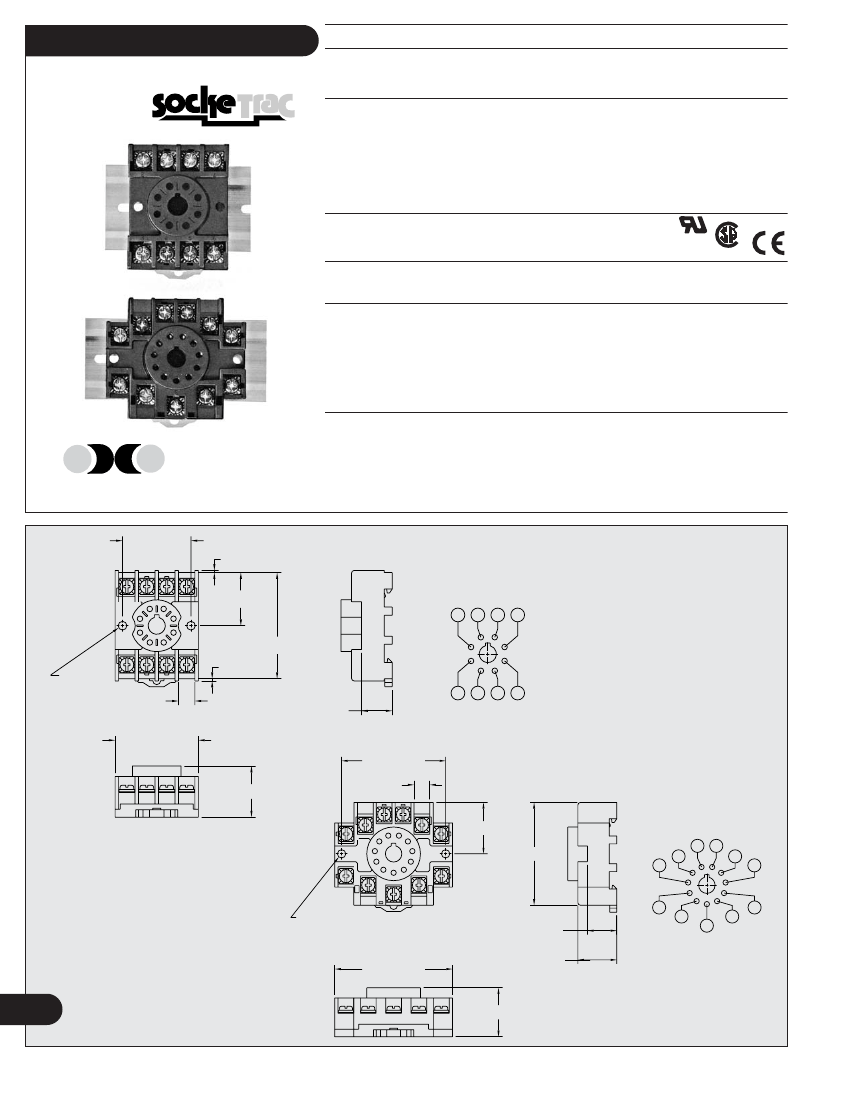

OT SERIES
RELAY SOCKETS
TM
DESCRIPTION
ELECTRICAL RATING
8 and 11 Pin Octal Sockets, DIN Rail Mountable
•
OT08, OT08-PC - 600 Volts, 10 Amps
**NEW UPGRADED RATING - OT08-PC***
•
OT11, OT11-PC - 300 Volts, 10 Amps
Contacts
Screws
•
Brass, Nickel Plated
•
Binder Head, 6 - 32 x 1/4”
Steel, Zinc Plated
•
Pressure Clamp, 6 - 32 x 5/16” Steel,
Zinc Plated, Wire Range #12 - #22
Solid or Stranded
•
Break Resistant Thermoplastic
Black Standard, Grey Available
®
®
CONSTRUCTION
Molding
AGENCY APPROVALS
•
UL recognized, File No. E60008
•
CSA certified, File No. LR29513
•
CE
ORDERING CODE
PART NO.
OT08
OT08-PC
OT11
OT11-PC
DESCRIPTION
DPDT, 8 Pin Octal (Fig. 1)
DPDT, 8 Pin Octal (Fig. 1)
3PDT, 11 Pin Octal Style (Fig. 2)
3PDT, 11 Pin Octal Style (Fig. 2)
TERMINAL TYPE
Binder Head Screws
Pressure Clamp Screws
Binder Head Screws
Pressure Clamp Screws
ACCESSORIES
PART NO.
C-103-PM
C-104-PM
C-105-PM
C-106-2PM
C-108-PM
C-108-2PM
DESCRIPTION
(Refer to the accessories pages 25-27)
Prepunched Aluminum DIN Rail (1 Meter Lengths)
Prepunched Steel DIN Rail (1 Meter Lengths)
Prepunched Steel DIN Rail (1 Meter Lengths)
Prepunched Steel DIN Rail (2 Meter Lengths)
Prepunched Raised Aluminum DIN Rail (1 Meter Lengths)
Prepunched Raised Aluminum DIN Rail (2 Meter Lengths)
CUSTOM CONNECTOR
1.295 [32.89]
Fig. 1
.040[1.02]
NOTE: OT08 SAME AS 0T08-PC
BUT WITH BINDER HEAD SCREWS
1.005[25.53]
TERMINAL LOCATION
2
1
8
7
3
4
5
MADE
IN
USA
6
.165 [4.19]
DIA. TYP.
.312 [7.92]
TYP.
1.575 [40.01]
4
5
6
7
.165 [4.19] DIA. TYP.
.580 [14.73]
.770 [19.56]
2.332 [59.22]
4
Custom Connector Corporation • 1738 E. 30th, Cleveland, OH 44114 • 216/241-1679 • Fax 216/241-5529
E-mail: sales@customconnector.com • Web: www.customconnector.com
9 10
11
1
2
3
7
8
1
2
2.010[51.05]
.040[1.02]
3
.580 [14.73]
4
5
6
TOP VIEW
2.060 [52.32]
.312 [7.92]
TYP.
Fig. 2
.970 [24.64]
1.018 [25.84]
2.035 [51.69]
8
TERMINAL LOCATION
1
2
3
11
10
9
4
5
6
7
8
TOP VIEW
.970 [24.64]
