MDH & MDT Series Oscillator
Plastic 4 J-Lead Package
HCMOS
Tri-state Function
Tape and Reel Package Available
Frequency
Frequency Stability (Inclusive of Temperature, Load and
Voltage)
Aging @ +25°C
Operating Temperature Range
Storage Temperature Range
Output Waveform
Supply Voltage (Vdd)
Supply Current (unloaded)
Load
Logic “0”
Logic “1”
Rise/Fall Time
Start Up Time
Duty Cycle
1.000MHZ to 66.000MHZ
66.000MHZ and above
1.000MHZ to 33.000MHZ
33.000MHZ and above
+3.3 VDC ±10%
25mA
5TTL or 30pF
0.4V max
2.4.V min
4nSec max
10mSec max
45%/55% (TTL @ 1.4V Level / Cmos @ 50% Waveform)
40%/60% (TTL @ 1.4V Level / Cmos @ 50% Waveform)
50pSec max (RMS)
30pSec max (RMS)
50pSec max (RMS)
40pSec max (RMS)
TTL
+5.0 VDC ±10%
45mA
10TTL or 50pF
1.000MHZ to 125.000MHZ
See Part Number Guide
±5 ppm per year max
See Part Number Guide
-55°C to +125°C
HCMOS
+3.3 VDC ±10%
25mA
15pF
0.5V max
Vdd-0.5V min
+5.0 VDC ±10%
45mA
30pF
Jitter
Environmental & Mechanical Detail
Shock
Solderability
Solvent Resistance
Vibration
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
Marking Detail
Line 1 = MXXXXX
M
XXXXX
Line 2 = SYYWWL
S
YYWW
L
Line 3 = XXXXX
Internal use only
May vary with lots
Pin 1 Designator
=
=
=
Internal Code
4 Numerical Digit Date
Code (Year / Week)
Denotes RoHS Compliant
=
=
MMD
Frequency in MHZ
Gross Leak Test
MIL-STD-883, Method 1014, Cond C
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Subject to change without notice
07/21/11 J
Pg 1 of 2

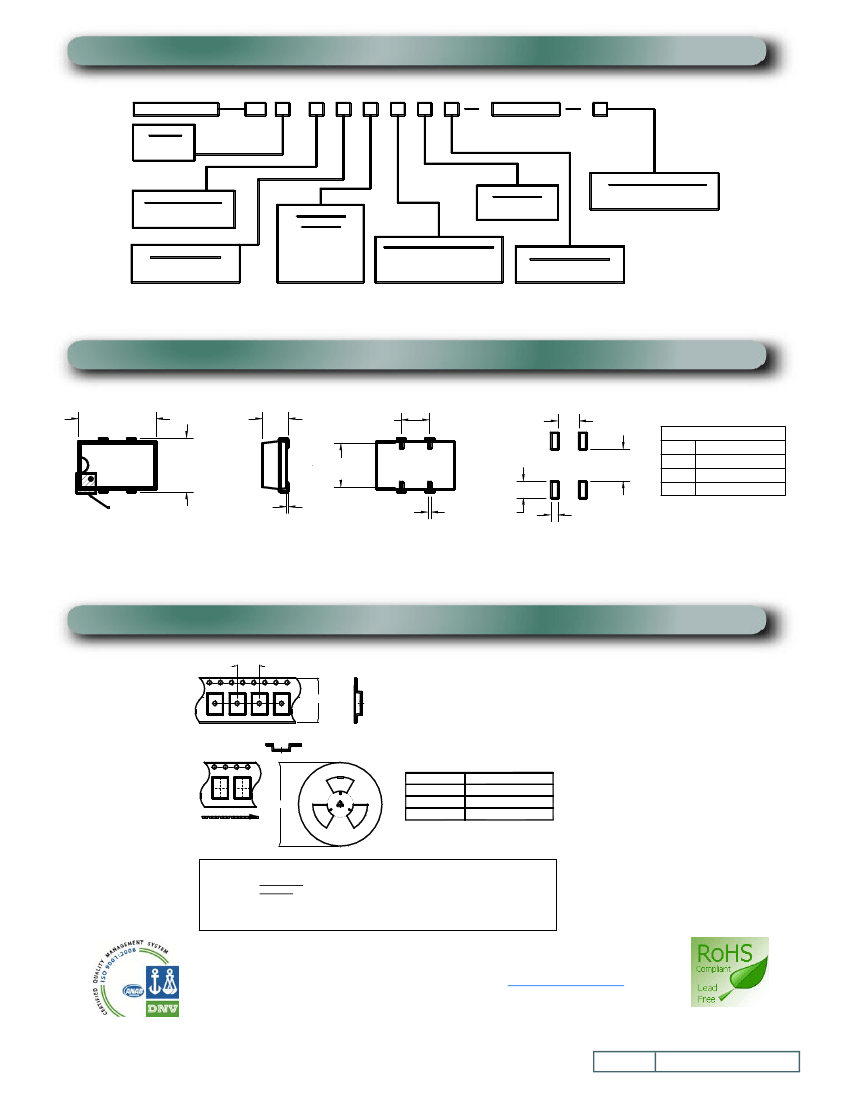

Part Number Guide
Plastic SMD J-Lead
Output
H = HCMOS
T = TTL
Value Added Options
Blank = No Added Options
T
= Tape & Reel
MD
FREQUENCY
RoHS Compliant
Blank = Not Compliant
F = Is RoHS Compliant
Supply Voltage
5 = +5.0 VDC
3 = +3.3 VDC
Frequency
Stability
015 = ±15 ppm
020 = ±20 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
Symmetry
Blank = 40/60%
A = 45/55%
Operating Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
Pin 1 Connection
Blank = No Connect
H = Tri-state
PLEASE CONSULT WITH MMD SALES DEPARTMENT FOR ANY OTHER PARAMETERS OR OPTIONS
Mechanical Details
14.00 [.551]
MAX
4.70 [.185]
MAX
9.80 [.386]
MAX
5.08 [.200]
3
7.62 [.300]
2
.51 [.020]
4
1
3.00 [.118]
3.81 [.150]
PIN
PIN 1
PIN 2
PIN 3
PIN 4
CONNECTIONS
TRI-STATE
CASE GROUND
OUTPUT
SUPPLY VOLTAGE
5.80 [.228]
PIN 1 INDICATOR
.25 [.010]
1.27 [.050]
SUGGESTED
LAND PATTERN
DIMENSION IN BRACKETS ARE IN INCHES
EXTERNAL BYPASS CAPACITOR IS RECOMMENDED
Tape & Reel Dimensions
PITCH
Tape Width
Q1 Q2
Q3 Q4
Q1 Q2
Q3 Q4
REEL DIA
PITCH
TAPE WIDTH
REEL DIA
PIN 1 ORIENT.
12.00 [.471]
24.00 [.945]
330 [13.0]
Q1
DIRECTION OF FEED
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters [inch].
3. Tolerances are ±0.1 [.004] mm unless otherwise specified.
4. Do not scale drawing.
