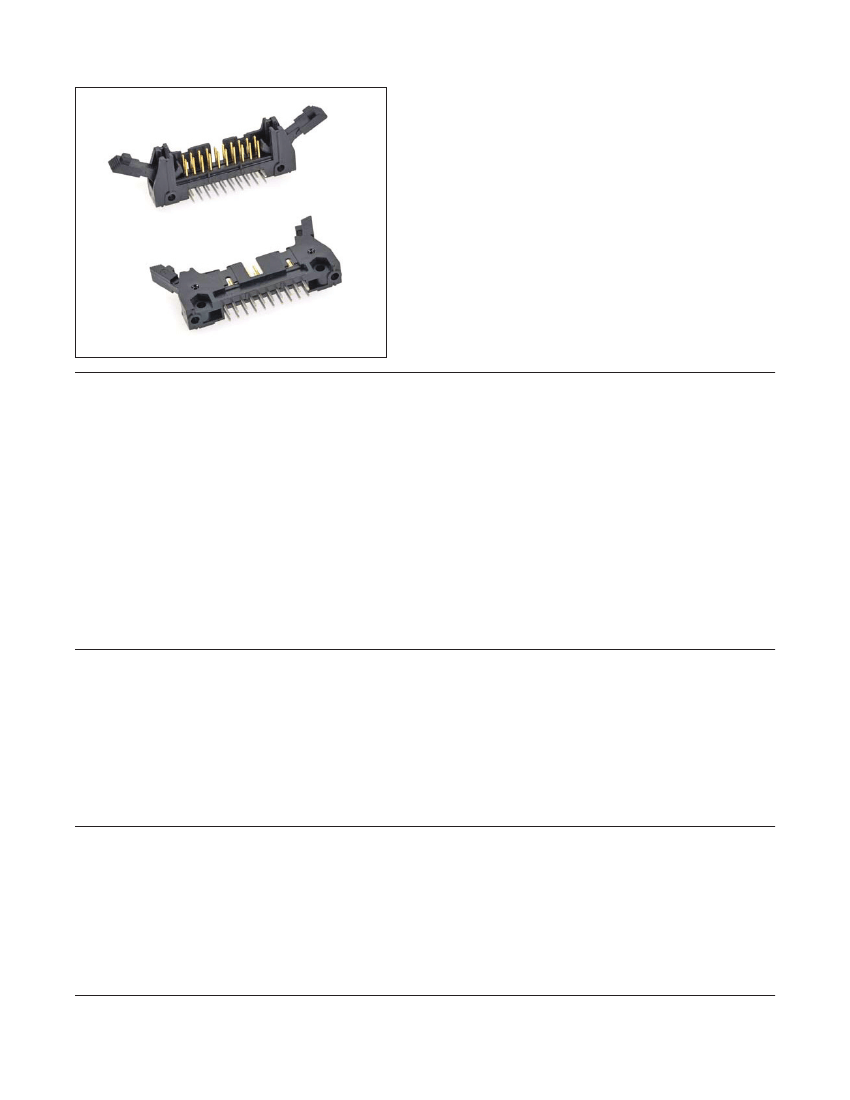

3M
™

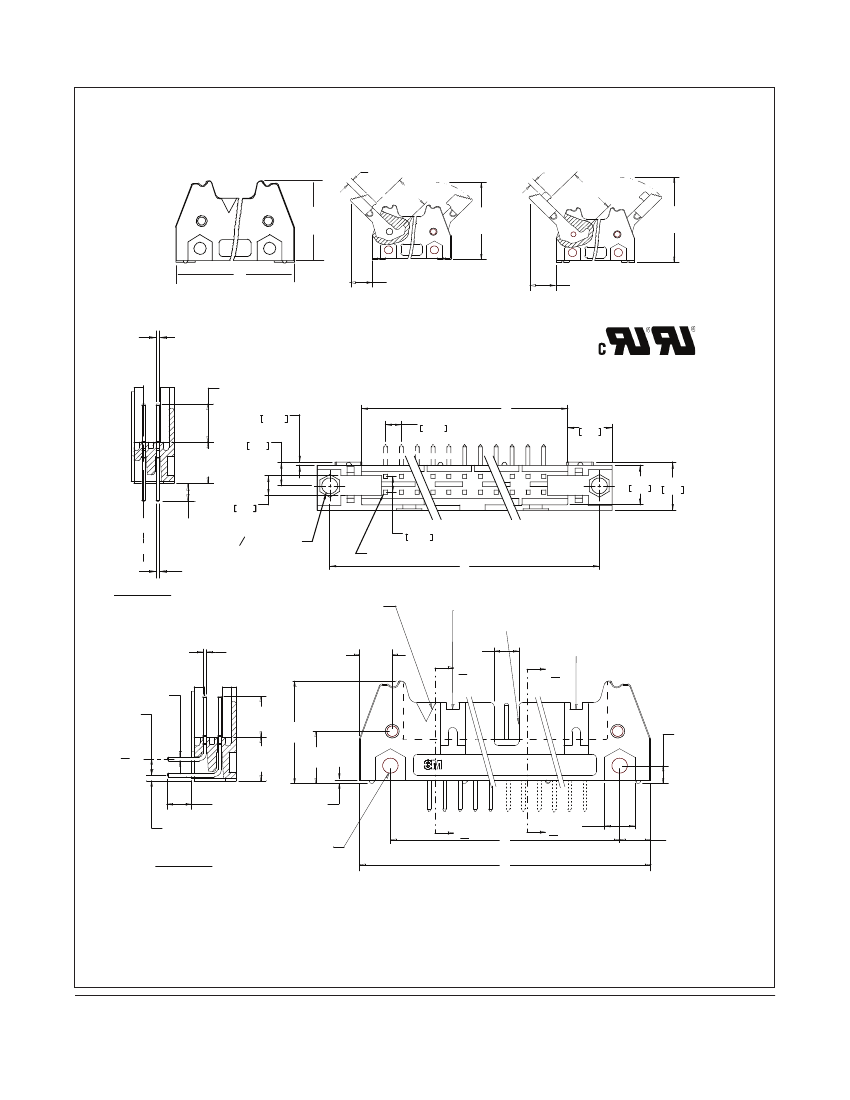

Three-Wall Header
.100” × .100” Latch/Ejector, Straight and Right Angle
3000 Series
• Military (with 3M’s 3518 or N3518 polarizing key) and center
bump polarization
• Low profile
• Optional ejector latches
• Mounting holes for securing header to board
• Three wall shroud provides design flexibility
• Solder tail and wrap tail options
• Optional polarizing posts available
• Optional high temperature insulator suitable for “no lead”
soldering operations
• High temperature option is suitable for reflow soldering using
“paste in hole” techniques
• See the Regulatory Information Appendix (RIA) in the “RoHS
compliance” section of www.3Mconnectors.com for compliance
information
Date Modified: May 21, 2012
TS-0771-F
Sheet 1 of 5
Physical
Insulator:
Material: Glass Filled Polyester (PBT)
Glass Filled Polyester (PCT) - High Temp Option
Flammability: UL 94V-0
Color: Gray (PBT), Black (PCT)
Contact:
Material: Copper Alloy
Plating:
Underplating: 100 μ” [ 2.54 μm ] Nickel - Overall
Wiping Area: 30 μ” [ 0.76 μm ] Gold
Solder Tails: 200 μ” [ 5.08 μm ] Tin Lead or Matte Tin (See Ordering Information)
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
3.00 A, 6 Contacts Powered
1.75 A, All Contacts Powered
Rating Conditions: EIA-364-070 Method 2, 30°C maximum temperature rise, 20%
derated. Reference appropriate 3M Product Specification for detailed current
derating curves.
Insulation Resistance:
>1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1000 V
RMS
at Sea Level
Current Rating:
5.00 A, 1 Contact Powered
Environmental
PBT insulator version: 191°C, maximum insulator temperature, solder wave
process only
Moisture Sensitivity Level:
1 (per J-STD-020C) High Temp. (PCT) versions only
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Temperature Rating:
-55°C to +105°C
Process Rating:
High Temp PCT insulator version: 260°C, per J-STD-020C, single pass
3M
™
Three-Wall Header
.100” × .100” Latch/Ejector, Straight and Right Angle
-X0XX
Header without Latchs
-X2XX
Header with
Short Ejector/Latch
for 3M Sockets without
Strain Relief
.08
[2.0]
.08
[2.0]
.424
±
.010
[ 10.77 ]
.97 Ref
[24.6]
.573
±
.010
[ 14.55 ]
1.07 Ref
[27.2]
-X3XX
Header with
Long Ejector/Latch
for 3M Sockets with
Strain Relief
3000 Series
A
.68
[17.3]
.37 Ref
[9.4]
.46 Ref
[11.7]
.025
±
.002 Sq Typ
[ 0.64 ]
.24
[6.1]
.020
0.51
.15
3.8
D
.100
2.54
REF.
.28
7.1
.30
[7.6]
.25
6.4
.13
3.3
C
L
“Y”
F Typ
E
±
.010
.31
7.9
2X O .100 [2.54]
SEE NOTE #2
.100
2.54
POSITION #1
REF.
B
Section A-A
(Straight)
Position 1
Orientation
Triangle
.025
±
.002 Sq
Typ
[ 0.64 ]
F Typ
.100 Ref
[2.54]
.24
[6.1]
.30
[7.6]
.68
[17.3]
.35
[8.9]
.21
[5.3]
Notch A
(See Table 1 & Note1)
Notch B
(See Table 1)
.16
[4.1]
Notch C
(See Table 1 & Note 1)
A
B
.12
[3.0]
C
L “Y”
E
±
.010
.049
Ref
.020
[0.51]
A
2X Ø .100
[2.54]
(See Note 2)
C
A
B
.197
[5.00]
.20
[5.1]
Section B-B
(Right Angle)
TS-0771-F
Sheet 2 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Three-Wall Header
.100” × .100” Latch/Ejector, Straight and Right Angle
Table 1
Pin Qty
10
14
16
20
26
34
40
50
60
64
3000 Series
Polarizing
Notches
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
3M Part
Number
3793
3314
3408
3428
3429
3431
3432
3433
3372
3764
Dimensions
A
1.26 (32.1)
1.46 (37.2)
1.56 (39.7)
1.76 (44.8)
2.06 (52.4)
2.46 (62.6)
2.76 (70.2)
3.26 (82.9)
3.76 (95.6)
3.96 (100.7)
B
1.105 (28.07)
1.305 (33.15)
1.405 (35.69)
1.605 (40.77)
1.905 (48.39)
2.305 (58.55)
2.605 (66.17)
3.105 (78.87)
3.605 (91.57)
3.805 (96.65)
C
0.865 (21.97)
1.065 (27.05)
1.165 (29.59)
1.365 (34.67)
1.665 (42.29)
2.065 (52.45)
2.365 (60.07)
2.865 (72.77)
3.365 (85.47)
3.565 (90.55)
D
0.71 (18.0)
0.91 (23.1)
1.01 (25.6)
1.21 (30.7)
1.51 (38.3)
1.91 (48.5)
2.21 (56.1)
2.71 (68.8)
3.21 (81.5)
3.41 (86.6)
Table 2
3M Part
Number Suffix
-1XX2
-2XX2
-1X03
-2X03
Pin Cross Section
Contact Tail
Solder Tail for
.062 (1.57)
Thick PC Board
Solder Tail for
0.94 (2.39) to .125
(3.18) Thick PC
Board
Dimension E
Dimension F
.0245 ± .0005
(0.622)
.0245 ± .0005
(0.622)
Diagonals
.028 ± .001
(0.71)
.028 ± .001
(0.71)
Corner Radii
.0075 Ref
(0.191)
.0075 Ref
(0.191)
Dimension G
.112
(2.84)
.155
(3.94)
0.035 ± .003
(0.89) (See Note 3)
0.035 ± .003 (0.89)
Ø.106
[2.69]
.300
[7.62]
Side to Side Stackability
Ø.116
[2.95]
(See Note 2)
G Dim
“Y”
or
.41
[10.4]
Max to Edge of PCB
for Daisy Chain
Ø.106 or
Ø.116
[2.69]
[2.95]
(See Note 2)
G Dim
C
L
Position 1
.100
±
.003
[2.54]
.232
[5.89]
C
“Y”
C
L
.029
[0.74]
.060
[1.52]
Position 1
.100
±
.003
[2.54]
.352
[8.94]
B
.100
±
.003
[2.54]
.100
±
.003
[2.54]
Recommended Mounting Hole Pattern
(Straight)
Recommended Mounting Hole Pattern
(Right Angle)
Inch
(mm)
Tolerance Unless Noted
.0
Inch
Notes:
1. Notches A & C will accomodate 3M Polarizing Keys (3M Part #3518 or N3518).
2. Accepts Rear and Front mounting hardware:
Rear Entry: #4-24 thread cutting screw, 3M Part #3341-5, .116 [2.95] dia mounting hole
Front Entry: (Prior to installation of latch on Straight Versions) #2-56 bolt and nut, 3M Part #3341-6,
.106 [2.69] dia mounting hole. See illustrations on page 5.
3. The recommended PCB hole size for the kinked tail positions on the .112 solder tail connector is .035 ± .002.
Kink is located .05” below bottom surface of plastic. External radius of kink toward part centerline
±
.1
.00
.000
±
.01
±
.005
[ ] Dimensions for
Reference only
TS-0771-F
Sheet 3 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Three-Wall Header
.100” × .100” Latch/Ejector, Straight and Right Angle
Ordering Information
3000 Series
X3XXX - XXXX XX
N = High Temp Black (PCT)/(RB Plating Req’d)
Blank = Std. Temp Gray (PBT) /(Blank or UB Pltg. Req’d.)
3M Part Number
(See Table 1)
Shroud and Pin Configuration
1 = 3 Wall, Right Angle Solder Tail
2 = 3 Wall, Straight Solder Tail
RB = 30 μ” Gold with Matte Tin Tails (App. E1 & C1 Apply)
Blank or UB = 30 μ” Gold with Sn/Pb Tails (App. E3 & C2 Apply)
Tail
02 = Solder Tail for .062 [1.57] Thick Board
K2= Kinked Solder Tails for .062 [1.57] Thick Board
03 = Solder Tails for .094 to .125 [2.39 to 3.18] Thick Board
Latch/Ejector System
0 = No Latch/Ejector
2 = Short Roll PinLatch/Ejectors
3 = Long Roll Pin Latch/Ejectors
Part Customization
This spec sheet details our standard offering.
3M has several capabilities that can provide a part tailored to
your specific needs. Ask your 3M sales representative or
customer service for more details.
Use of snap-in style latch/ejectors in either short (N3XXX
X5XX) or long (N3XXX-X6XX) styles, installed or shipped
separately (the -5 & -6 snap-in latches are dimensional and
functional equivalents to the -2 & -3 roll pin latches) which
are also available separately with roll pins included. Refer to
chart below.
If ordering snap-in or roll pin style latches separately, please use the below chart
Kinked Tail (K2 option) positions:
2500 & 3000 Series Shrouded Header
Total Num-
ber
of Pins
10
14
16
20
24
26
30
34
36
40
50
60
64
Number of
Tails Kinked
4
4
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
3
3
5
7
7
7
7
11
11
Positions
Kinked
4
4
4
4
4
4
6
8
8
8
8
12
12
7
11
13
17
21
23
25
27
27
33
43
49
53
8
12
14
18
22
24
26
28
28
34
44
50
54
Short
Latch
Standard Temperature
(PBT)
High Temperature
(PCT)
High Temperature
(PBT)
High Temperature
(PPA)
3505-2
N3505-2B
3505-30
N3505-30B
Long
Latch
3505-3
N3505-3B
3505-31
N3505-
31B
Latch
Style
Roll Pin
Roll Pin
Snap-In
Snap-In
Color
Gray
Black
Gray
Black
• Selective pin removal (ATA or other compatability)
• Wire wrap tails styles
Kinked Tail Detail:
Kink is located .05” below bottom surface of plastic.
External radius of kink toward part centerline.
TS-0771-F
Sheet 4 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Three-Wall Header
.100” × .100” Latch/Ejector, Straight and Right Angle
3000 Series

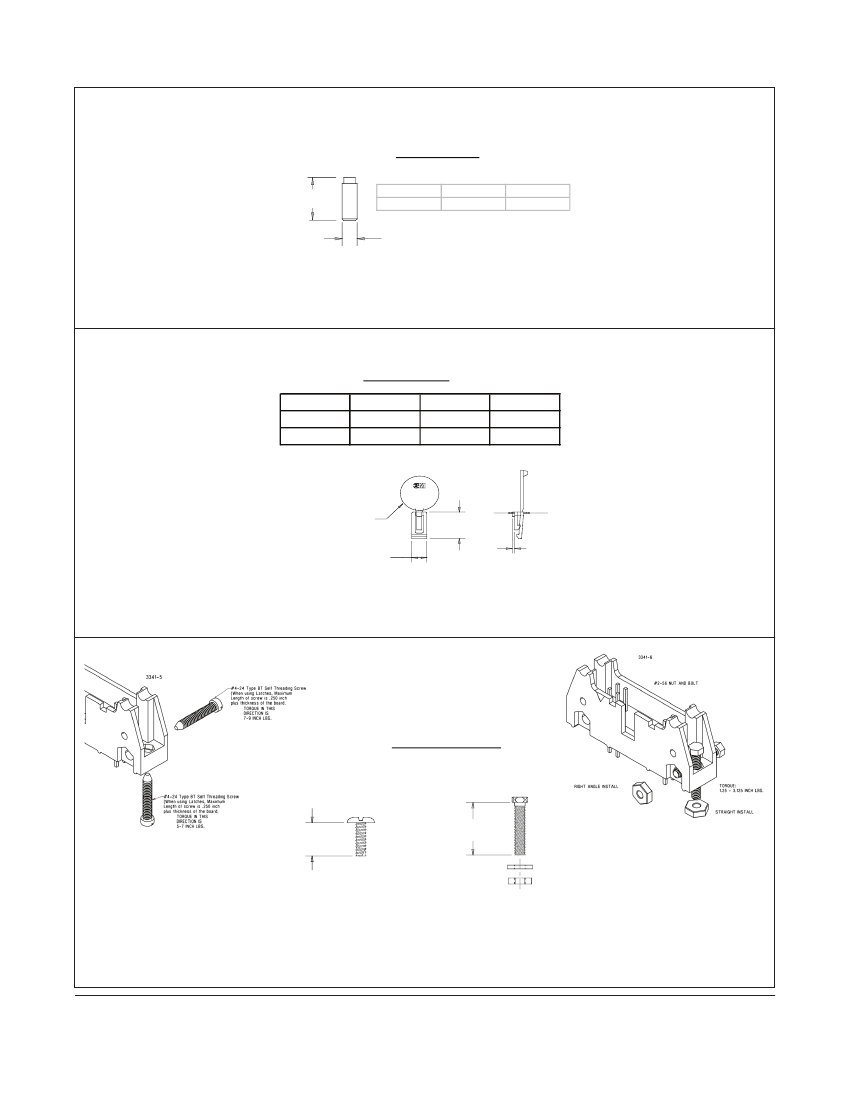

Polarizing Post
.321
[8.15]
.100 Dia
[2.54]
Note: Insert Post into one mounting hardware hole on
bottom of header. Set post to protrude .115” [2.92]
3 2 0 1 -3
3 2 0 1 -4
PBT
LCP
G ra y
B la c k
Polarizing Keys
Dim A
N3518
3518
LCP
PBT
Blac k
Gray
.02
.02
Breakaway Tab
.34 Ref
[8.6]
.15
[3.8]
A
.09
[2.3]
Note: #2216 B/A Scotchweld can be used to adhere keys.
Mounting Hardware
3341-5
(Installed from bottom of board)
3341-6
(Must be inserted prior to latch on
vertical headers)
.31
[7.9]
.50
[12.7]
Panhead Thread Cutting Screw:
#4-24 X 5/16”
Type: USA Std BT, Federal BG
Hex Head Bolt, Nut and Washer
Bolt - #2-56 X 1/2”
3341-5 & 6
Material - Stainless Steel
TS-0771-F
Sheet 5 of 5
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
