PART NO.: L-T690WDT-NWA
REV: A / 2
CUSTOMER’S APPROVAL : _______________
DRAWING NO. : DS-31P-12-0002
DATE : 2012-5-8
PARA-FOR-065
DCC : ____________
PAGE
1 of 14
Release
by
PARA LIGHT DCC
SURFACE MOUNT DEVICE LED
Part No. : L-T690WDT-NWA
l
Features
Û
Û
Û
Û
Û
Û
l
Top view, Wide view angle, Netural White color PLCC6 package SMD LED .
EIA STD package, packing in 12mm tape on 7" diameter reels (ANSI/EIA-481-B-2001).
Compatible with automatic Pick & Place equipment.
Compatible with IR Reflow soldering and TTW soldering.
Pb free product and acceptable lead-free process!
Meet RoHS Green Product.
REV: A / 2
Application
＊General
lighting
＊Decorative
and Entertainment Lighting.
＊Indicators.
l

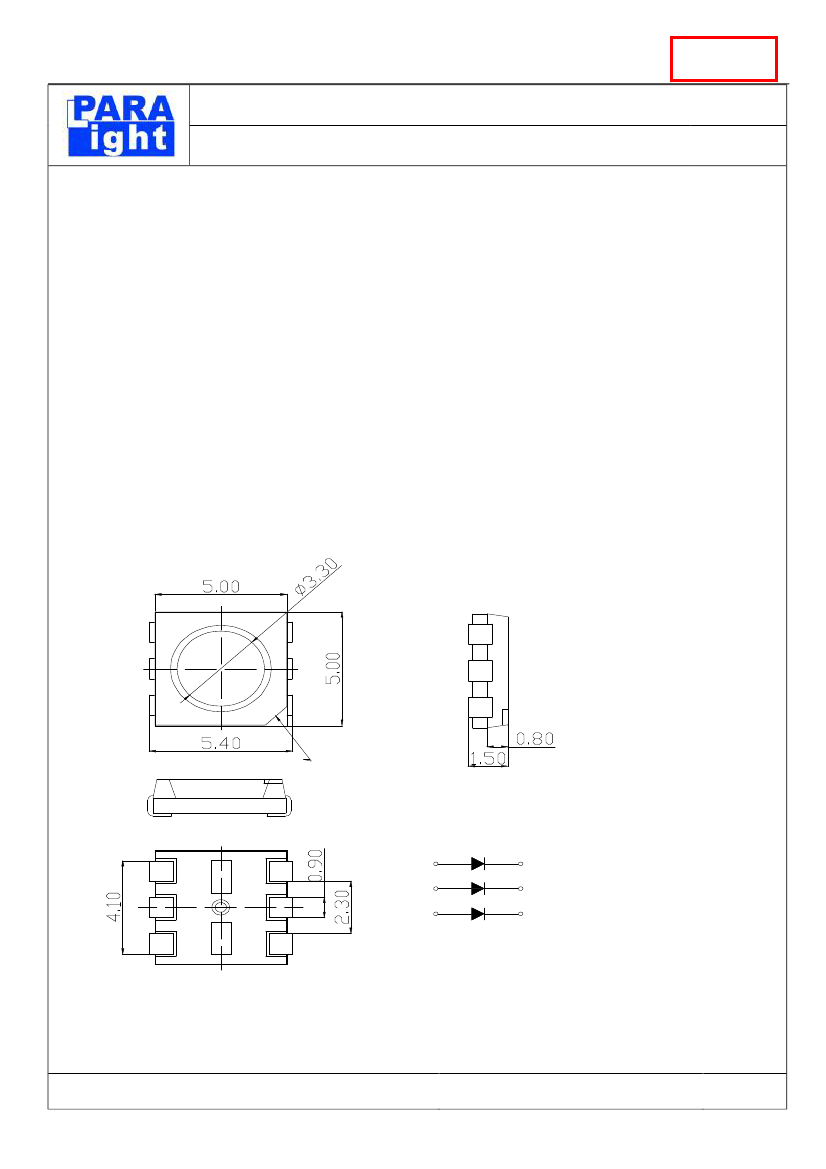

Package Outline Dimensions
3
2
1
6
5
4
C ath od e M ark
3
2
1
B
B
B
6
5
4
Notes:
1. All dimensions are in millimeters.
2. Tolerance is
±
0.10mm (.004") unless otherwise noted.
DRAWING NO. : DS-31P-12-0002
PARA-FOR-068
DATE : 2012-5-8
PAGE
2 of 14
Release
by
PARA LIGHT DCC
SURFACE MOUNT DEVICE LED
Part No. : L-T690WDT-NWA
l
Chip Materials
Û
Û
Û
Dice Material : InGaN
Light Color : Netural White
Lens Color : Light Yellow Diffused.
REV: A / 2
l
Absolute Maximum Ratings(Ta=25℃)
Symbol
P
D
I
PF
I
F
V
R
ESD
Topr
Tstg
Parameter
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current
Reverse Voltage
Electrostatic Discharge Threshold (HBM)
Note A
Operating Temperature Range
Storage Temperature Range
Rating
270
100
90
5
1000
-40 ~ + 85
-40 ~ +
100
Unit
mW
mA
mA
V
V
℃
℃
Note A :
HBM : Human Body Model. Seller gives no other assurances regarding the ability of to
withstand ESD.
l
Electro-Optical Characteristics
(Ta=25℃)
Parameter
Luminous Flux
Viewing Angle
CIE Chromaticity
CIE Chromaticity
Color temperature
Forward Voltage
Color Rending Index
Reverse Voltage
Symbol
φ
v
2θ1/2
x
y
CCT
VF
CRI
Ir
4000
2.90
70
10
3.20
Min.
18
120
0.3700
0.3700
4500
3.40
K
V
Ra
uA
IF = 60mA
IF=60mA
Vf=5V
Typ.
Max.
22
Unit
lm
Deg
Test Condition
IF=60mA
Note 2
IF=60mA
DRAWING NO. : DS-31P-12-0002
PARA-FOR-068
DATE : 2012-5-8
PAGE
3 of 14
Release
by
PARA LIGHT DCC
SURFACE MOUNT DEVICE LED
Part No. : L-T690WDT-NWA
Notes:
1. Luminous intensity is measured with a light sensor and filter combination that
proximities the CIE eye-response curve.
2.
θ1/2
is the off-axis angle at which the luminous intensity is half the axial luminous
intensity.
3. Caution in ESD :
Static Electricity and surge damages the LED. It is recommended use a wrist band or
anti-electrostatic glove when handling the LED. All devices, equipment and machinery
must be properly grounded.
4. Major standard testing equipment by
“Instrument
System” Model : CAS140B Compact
Array Spectrometer and
“KEITHLEY”
Source Meter Model : 2400.
REV: A / 2
l
Typical Electro-Optical Characteristics Curves

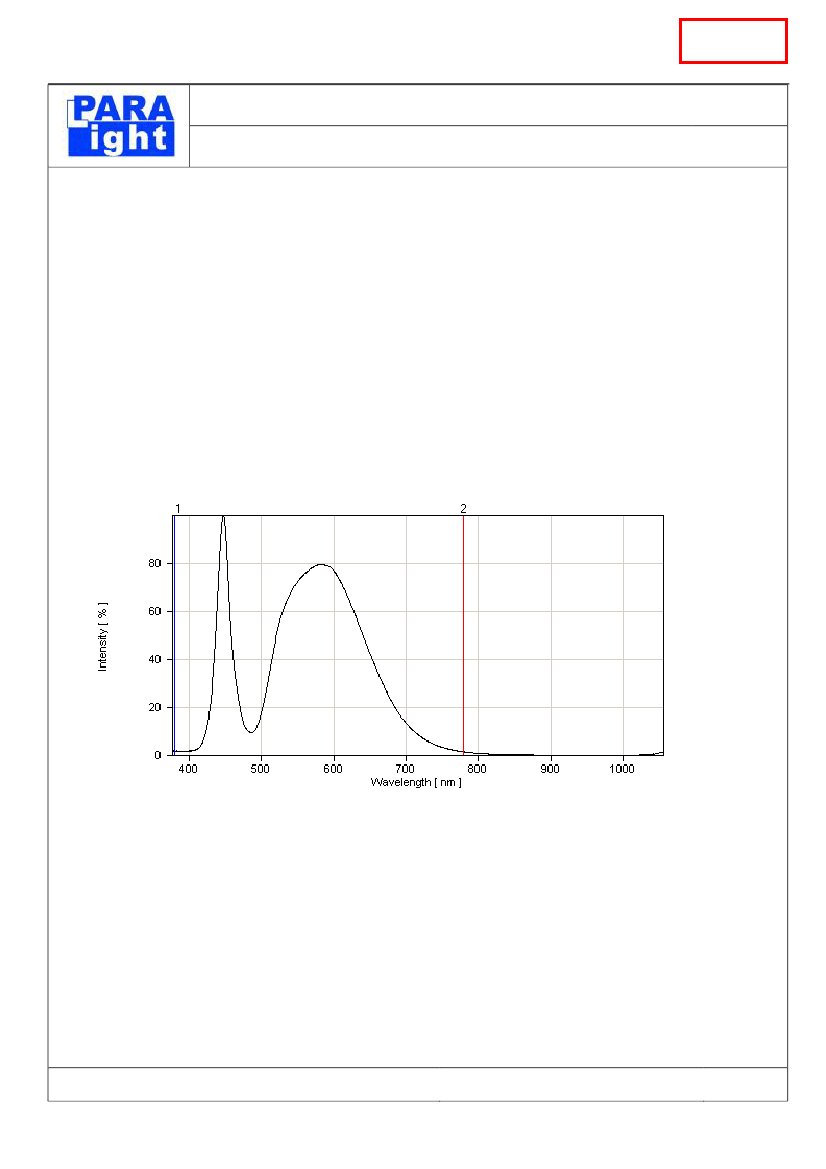

Fig.1 Relative Intensity vs. Wavelength
DRAWING NO. : DS-31P-12-0002
PARA-FOR-068
DATE : 2012-5-8
PAGE
4 of 14
Release
by
PARA LIGHT DCC
SURFACE MOUNT DEVICE LED
Part No. : L-T690WDT-NWA
l

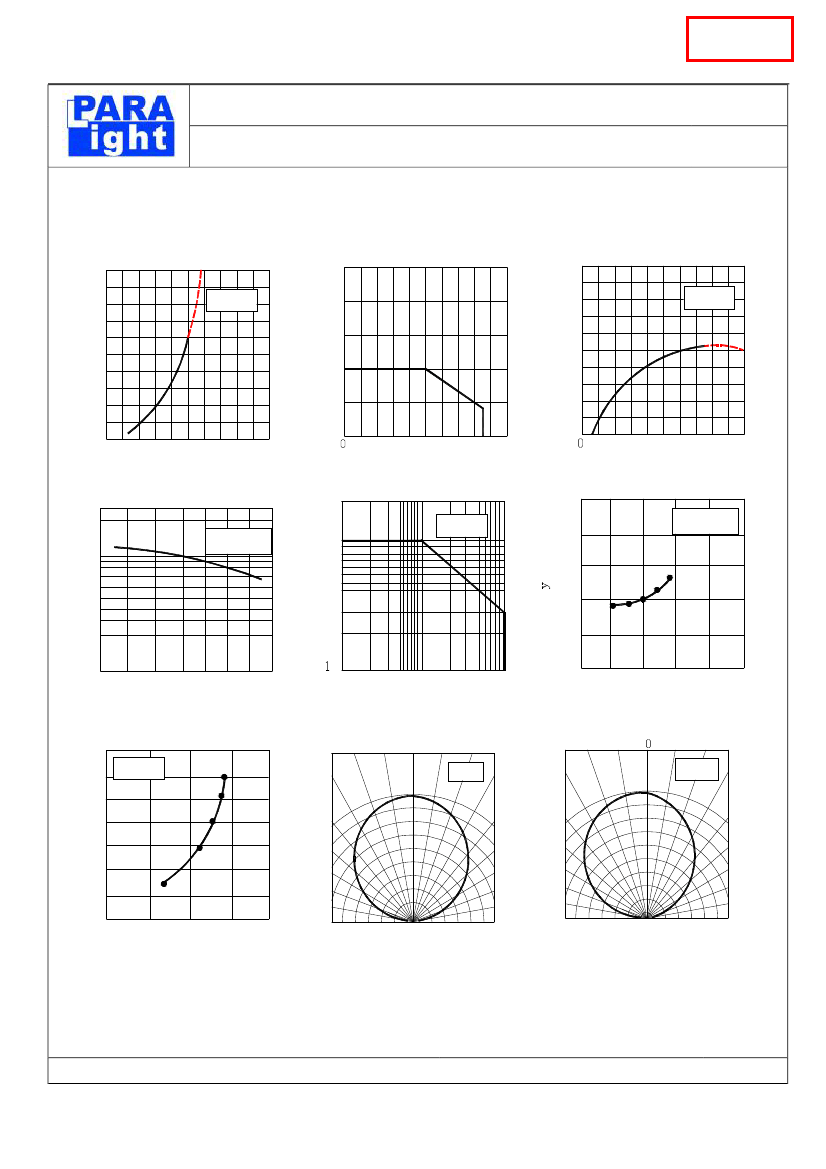

Typical Electro-Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
100
80
60
40
20
0
Forward Current IF(mA)
REV: A / 2
150
Relative Luminous lntensity
Normalized of 120mA
2.5
2.0
1.5
1.0
0.5
Ta=25
℃
Forward Current(mA)
Ta=25
℃
120
90
60
30
0
2.8
3.0 3.2 3.4 3.6
Forward Voltage(v)
3.8
Fig.1 Forward Current vs.Forward Voltage
20
40
60
80 100
20
40
60
80 100
Forward Current(mA)
Ambient Temperature Ta(
℃
)
Fig.3 Relative Luminous Intensity vs.Forward Current
Fig.2 Forward Current Derating Curve
Allowable Forward Current IFP(mA)
200
Ta=25
℃
100
0.35
IFP=120mA
0.34
0.33
50
0.32
30
20
0
1
5 10
20
0.31
50 100
0.30
0.29
0.30 0.31 0.32
x
0.33
0.34
2
Relative luminous intensity
IFP=120mA
1
-30
℃
0
℃
85
℃
50
℃
25
℃
0.5
0.2
0.1
-40 -20 0 20 40 60 80 100
Ambient Temperature Ta(
℃
)
Fig.4 Luminous Intensity vs.Ambient Temperature
0.35
0.34
0.33
0.32
Y
0.31
0.30
0.29
0.315
0.320
Ambient Temperature Ta(
℃
)
Fig.5 Forward Current Derating Curve
Fig.6 Ambient Temperature vs.Chromaticity Coordinate
0°
Ta=25
℃
300mA
240mA
120mA
60mA
10mA
1.0
0.9
0.8
0.7
0.5 0.3 0.1
10°
20°
Y-Y
°
30°
10°
20°
30°
X-X
40°
50°
60°
70°
80°
90°
1.0
0.9
0.8
0.7
0.5 0.3 0.1
0.2 0.4 0.6
40°
50°
60°
70°
80°
90°
0.325 0.330 0.335
x
Fig.7 Forward Current vs.Chromaticity Coordinate
0.2 0.4 0.6
Fig 8 Spatial Distribution
Fig.9 Spatial Distribution
DRAWING NO. : DS-31P-12-0002
PARA-FOR-068
DATE : 2012-5-8 PAGE
5 of 14
