MAOC-009260
Voltage Controlled Oscillator
6.1 – 7.0 GHz
Features
Low Phase Noise
Wide Tuning Range
Divide-by-Two Output
Integrated Buffer Amplifier
Excellent Temperature Stability
+5V Bias
Lead-Free 5 mm 32-Lead PQFN Package
Halogen-Free “Green” Mold Compound
RoHS* Compliant and 260°C Reflow Compatible
Rev. V2

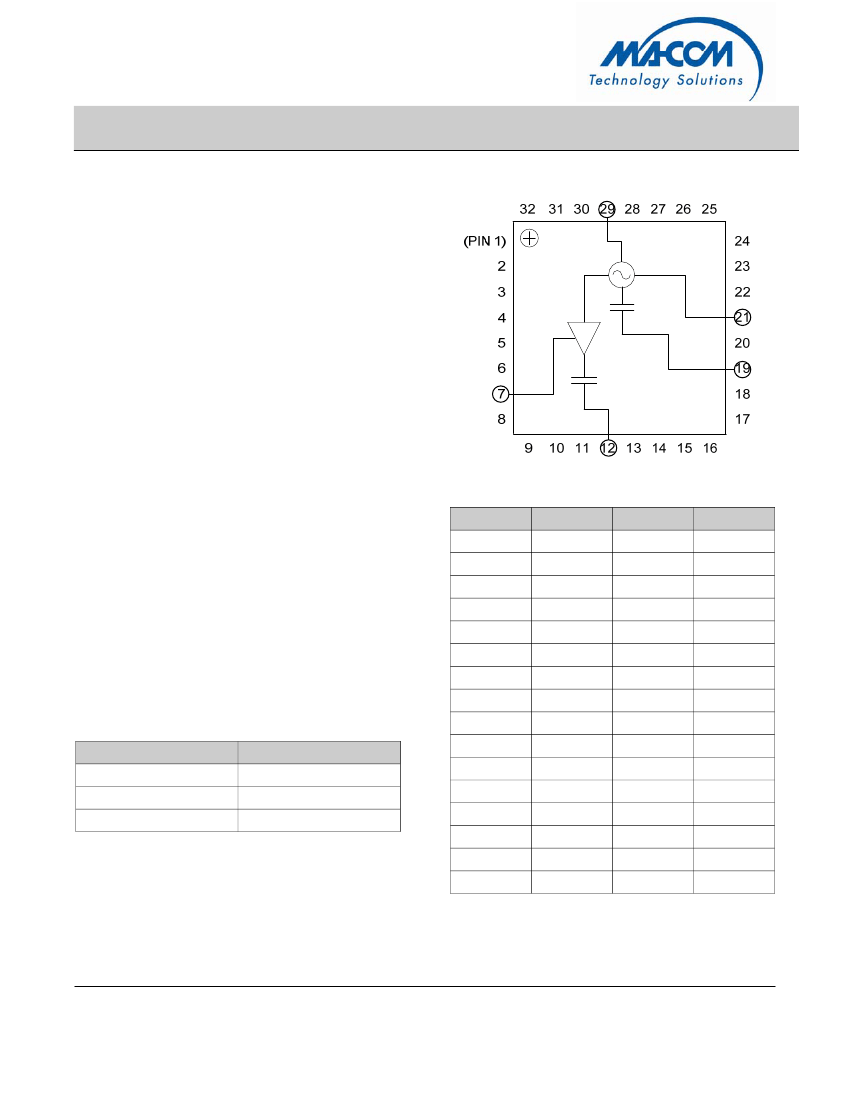

Block Diagram
Description
The MAOC-009260 is an InGaP HBT-based voltage
controlled oscillator for frequency generation. No
external matching components are required. This
VCO is easily integrated into a phase lock loop using
the divide-by-two output. The extremely low phase
noise makes this part ideal for many radio
applications including high capacity digital radios.
The MAOC-009260 primary applications are
Point-to-Point Radio, Point-to-Multipoint Radio,
Communications Systems, and Low Phase Noise
applications.
The 5 mm PQFN package has a lead-free finish that
is RoHS compliant and compatible with a 260ºC
reflow temperature. The package also features low
lead inductance and an excellent thermal path.
Pin Designations
2
Pin
1
2
3
4
5
6
7
8
Function
N/C
N/C
N/C
N/C
N/C
N/C
V
BUFFER
N/C
N/C
N/C
N/C
RF/2
N/C
N/C
N/C
N/C
Pin
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Function
N/C
N/C
RF
N/C
V
CC
N/C
N/C
N/C
N/C
N/C
N/C
N/C
V
TUNE
N/C
N/C
N/C
Ordering Information
1
Part Number
MAOC-009260-TR0500
MAOC-009260-TR1000
MAOC-009260-SMB003
Package
500 piece reel
1000 piece reel
Sample Board
9
10
11
12
13
14
15
16
1. Reference Application Note M513 for reel size information.
The
exposed pad centered on the package bottom must be
connected to RF and DC ground. Connecting all N/C pins to
RF/DC Ground in the layout is also recommended.
*
Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAOC-009260
Voltage Controlled Oscillator
6.1 – 7.0 GHz
Electrical Specifications: T
A
= +25°C, V
CC
= V
BUFFER
= 5.0 V
3
, Z
0
= 50
Ω
Parameter
Output Power
SSB Phase Noise
V
CC
=V
BUFFER
=V
TUNE
=5V
Harmonics/Subharmonics
V
CC
=V
BUFFER
=V
TUNE
=5V
Pulling
(Sensitivity to Match)
V
CC
=V
BUFFER
=V
TUNE
=5V
Pushing
(Sensitivity to Supply Voltage)
Frequency Drift Rate
(Sensitivity to Temperature)
Output Return Loss
Tuning Sensitivity @ RF Port
Supply Current
Tune Voltage
Tuning Current Leakage
Test Conditions
RF Port, 6.1 - 7.0 GHz
RF/2 Port, 3.05 - 3.5 GHz
RF Port, 10 KHZ Offset
RF Port, 100 KHZ Offset
RF Port,
1
/
2
F
o
RF Port, 2 F
o
RF Port, VSWR = 1.95:1 to 2.25:1
RF Port, V
TUNE
= 5 V
RF/2 Port, V
TUNE
= 5 V
RF Port, 6.1 - 7.0 GHz
RF/2 Port, 3.05 - 3.5 GHz
RF Port, 6.1 - 7.0 GHz
RF/2 Port, 3.05 - 3.5 GHz
V
TUNE
= 5 V
I
TOTAL
(I
CC
+ I
BUFFER
)
I
CC
I
BUFFER
V
TUNE
V
TUNE
= 13 V
Units
dBm
dBc/Hz
dBc
MHz pk-pk
MHz/V
MHz/ºC
dB
GHz/V
mA
V
µA
Min.
9
2
—
—
—
—
—
—
—
—
—
—
1
—
Typ.
12
5
-92
-117
-26
-21
7.5
6
3
0.8
0.4
4
9
0.13
185
165
20
—
5
Max.
—
—
—
—
—
—
—
—
205
175
30
13
10
Rev. V2
3. VCO can operate over the 4.75 V to 5.25 V supply voltage range.
Absolute Maximum Ratings
4,5,6
Parameter
Supply Voltage
(V
CC
& V
BUFFER
)
V
TUNE
Storage Temperature
Operating Temperature
Case Temperature (T
C
)
(measured @ exposed pad)
Junction Temperature
7
Absolute Maximum
+5.5 Vdc
0 to +15 Vdc
-55ºC to +150ºC
-40ºC to +85ºC
+100ºC
+135ºC
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
2
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. M/A-COM Technology Solutions does not recommend
sustained operation near these survivability limits.
6. Operating at nominal conditions with T
J
≤
+135°C will ensure
MTBF > 2.5 x 10
6
hours.
7. Junction Temperature (T
J
) = T
C
+
Өjc
* (V * I)
Typical thermal resistance (Өjc) = 35° C/W.
a) For T
C
= 25°C, T
J
= 57°C @ 5 V, 185 mA
b) For T
C
= 85°C, T
J
= 118°C @ 5 V, 190 mA
ESD Rating: Class 1A
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAOC-009260
Voltage Controlled Oscillator
6.1 – 7.0 GHz

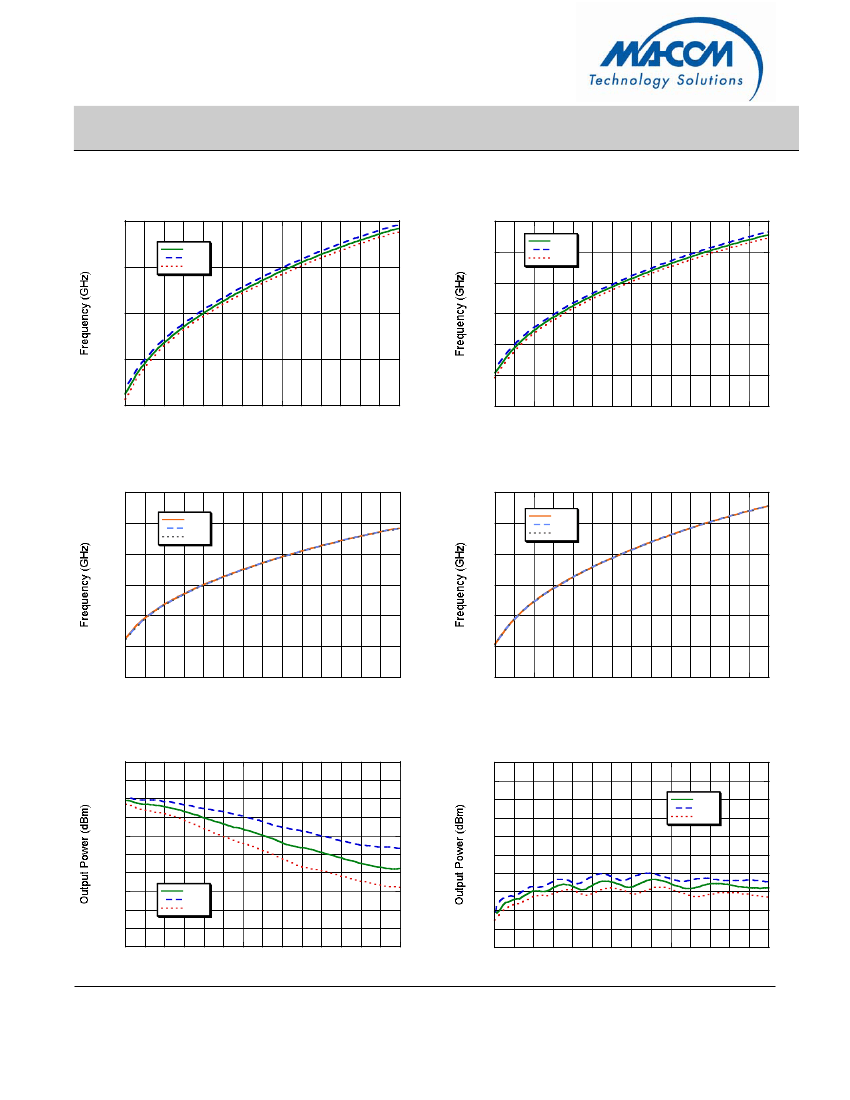

Output Frequency vs. Tuning Voltage - RF Port
7.5
+25°C
-40°C
+85°C
Rev. V2
Typical Performance Curves: V
CC
= V
BUFFER
= 5V, T
A
= +25C (unless otherwise indicated)
Output Frequency vs. Tuning Voltage - RF/2 Port
3.8
3.6
3.4
6.5
+25°C
-40°C
+85°C
7.0
3.2
3.0
6.0
2.8
5.5
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
2.6
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
Tuning Voltage (V)
Tuning Voltage (V)
Output Frequency vs. Tuning / Supply Voltage - RF Port
8.0
7.5
7.0
6.5
6.0
5.5
5.0
4.75 V
5.00 V
5.25 V
Output Frequency vs. Tuning / Supply Voltage - RF/2 Port
3.8
3.6
3.4
3.2
3.0
2.8
2.6
4.75 V
5.00 V
5.25 V
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
Tuning Voltage (V)
Tuning Voltage (V)
Output Power vs. Tuning Voltage - RF Port
20
18
16
14
12
10
8
6
4
2
0
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
+25°C
-40°C
+85°C
Output Power vs. Tuning Voltage - RF/2 Port
20
18
16
14
12
10
8
6
4
2
0
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
+25°C
-40°C
+85°C
Tuning Voltage (V)
Tuning Voltage (V)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAOC-009260
Voltage Controlled Oscillator
6.1 – 7.0 GHz
Rev. V2
Typical Performance Curves: V
CC
= V
BUFFER
= 5V, T
A
= +25C (unless otherwise indicated)

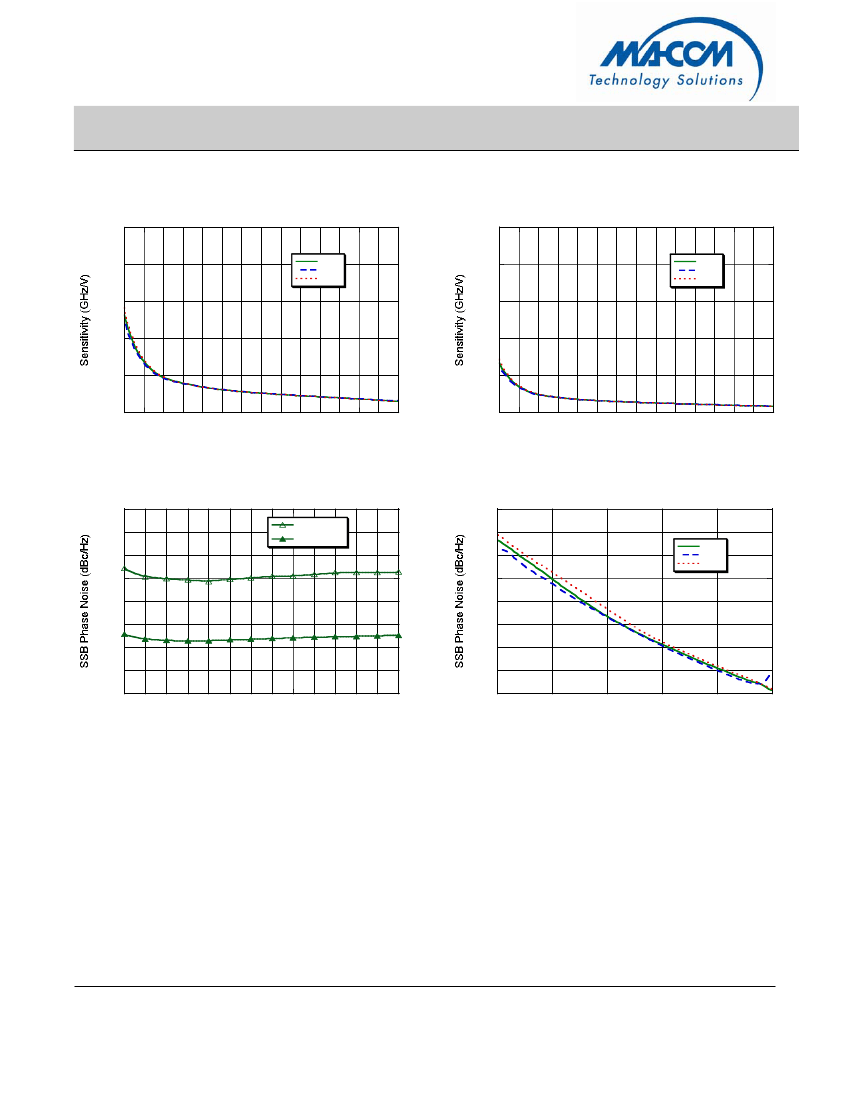

Frequency Sensitivity vs. Tuning Voltage - RF Port
1.0
Frequency Sensitivity vs. Tuning Voltage - RF/2 Port
1.0
0.8
+25°C
-40°C
+85°C
0.8
+25°C
-40°C
+85°C
0.6
0.6
0.4
0.4
0.2
0.2
0.0
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
0.0
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
Tuning Voltage (V)
Tuning Voltage (V)
Single Side Band Phase Noise vs. Tuning Voltage
RF Port
-60
-70
-80
-90
-100
-110
-120
-130
-140
1
2
3
4
5
6
7
8
9
10
11
12
13
14
10 KHz offset
100 KHz offset
Single Side Band Phase Noise vs. Frequency Offset
RF Port (V
TUNE
= 5V)
0
-20
-40
-60
-80
-100
-120
-140
-160
10
2
+25°C
-40°C
+85°C
10
3
10
4
10
5
10
6
10
7
Tuning Voltage (V)
Frequency Offset (Hz)
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAOC-009260
Voltage Controlled Oscillator
6.1 – 7.0 GHz

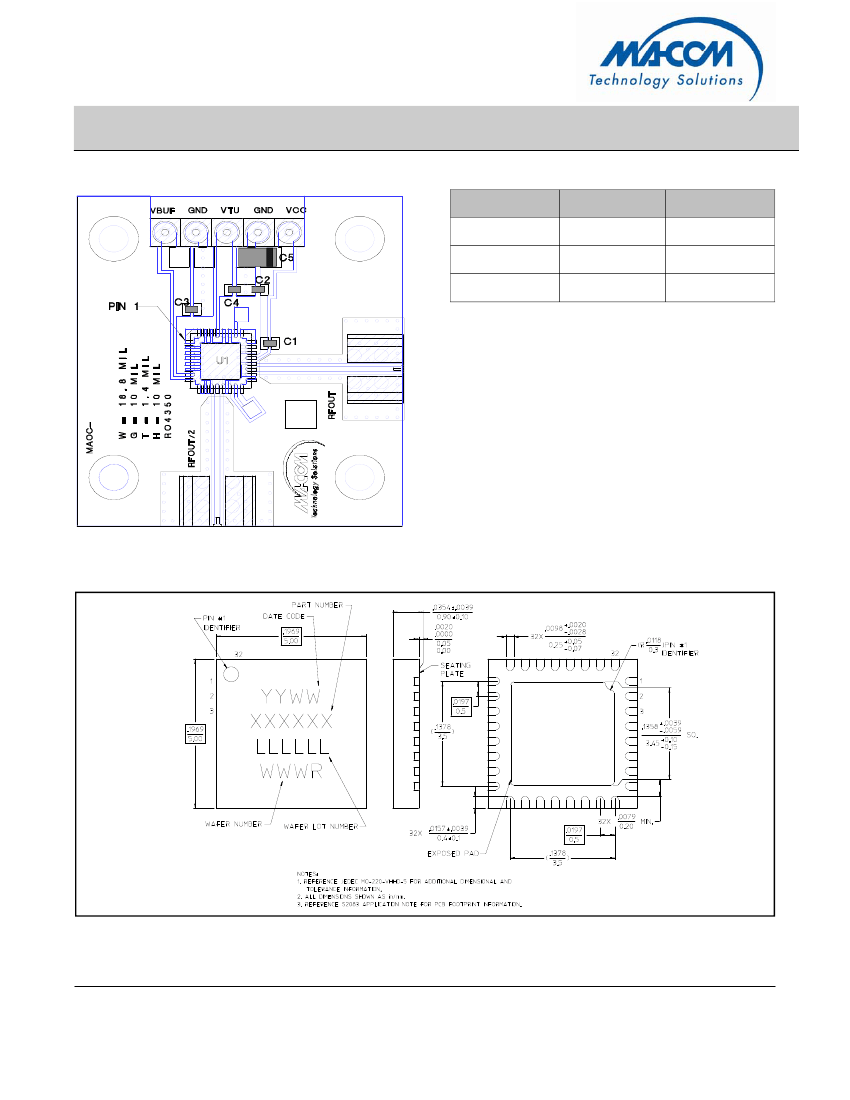

Sample Board
Parts List
Component
C1
C2, C3, C4
C5
Value
100 pF
0.1 µF
10 µF Tantalum
Case Size
0402
0402
1206
Rev. V2
Lead-Free
5 mm 32-Lead PQFN
†
†
Reference Application Note S2083 for lead-free solder reflow recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
Plating is 100% matte tin over copper.
5
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
京公网安备 11010802033920号
EEWORLD
