IDT74LVC14ADC8: DescriptionInverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 1.27 MM PITCH, SOIC-14; Categorylogic logic; File Size94KB，5 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74LVC14ADC8 Overview

Inverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, 1.27 MM PITCH, SOIC-14

IDT74LVC14ADC8 Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	SOIC
package instruction	1.27 MM PITCH, SOIC-14
Contacts	14
Reach Compliance Code	unknown
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	7.5 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

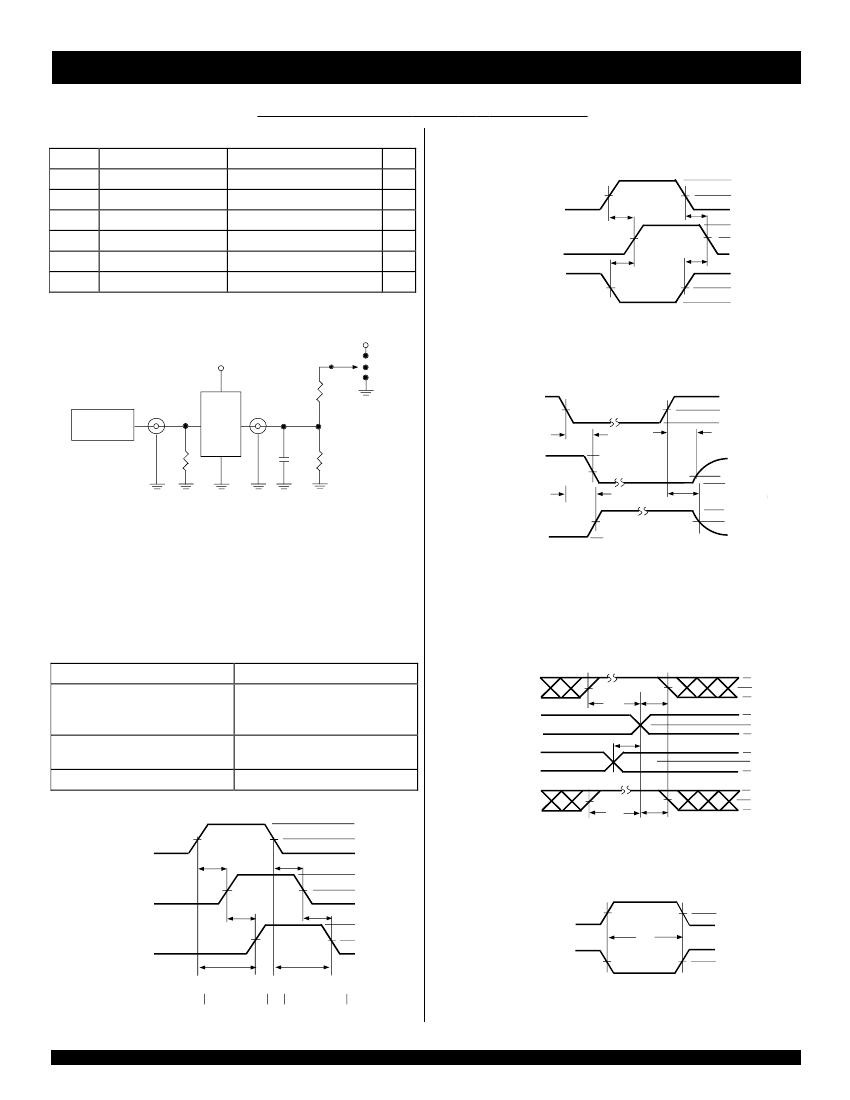

Preview

Download Datasheet

View All

IDT74LVC14A

3.3V CMOS HEX SCHMITT-TRIGGER INVERTER

EXTENDED COMMERCIAL TEMPERATURE RANGE

3.3V CMOS HEX SCHMITT-

TRIGGER INVERTER WITH

5 VOLT TOLERANT I/O

FEATURES:

–

0.5 MICRON CMOS Technology

ESD > 2000V per MIL-STD-883, Method 3015;

> 200V using machine model (C = 200pF, R = 0)

1.27mm pitch SOIC, 0.65mm pitch SSOP and

0.65mm pitch TSSOP packages

Extended commercial range of – 40°C to +85°C

= 3.3V ±0.3V, Normal Range

= 2.3V to 3.6V, Extended Range

CMOS power levels (0.4µ W typ. static)

Rail-to-Rail output swing for increased noise margin

All inputs, outputs and I/O are 5 Volt tolerant

Supports hot insertion

IDT74LVC14A

ADVANCE

INFORMATION

DESCRIPTION:

The LVC14A Hex Schmitt-trigger inverter is built using advanced dual

metal CMOS technology. This device contains six independent inverters

and performs the Boolean function Y =

Inputs can be driven from either 3.3V or 5V devices. This feature allows

the use of this device as a translator in a mixed 3.3V/5V supply system.

The LVC14A has been designed with a ±24mA output driver. This driver

is capable of driving a moderate to heavy load while maintaining speed

performance.

Drive Features for LVC14A:

– High Output Drivers:

±24mA

– Reduced system switching noise

APPLICATIONS:

• 5V and 3.3V mixed voltage systems

• Data communication and telecommunication systems

Functional Block Diagram

PIN CONFIGURATION

SO14-1

SO14-2

SO14-3

GND

SOIC/ SSOP/ TSSOP

TOP VIEW

FUNCTION TABLE

(each inverter)

Inputs

NOTE:

1. H = HIGH Voltage Level

L = LOW Voltage Level

(1)

Outputs

PIN DESCRIPTION

Pin Names

Description

Inputs

Outputs

EXTENDED COMMERCIAL TEMPERATURE RANGE

1999 Integrated Device Technology, Inc.

APRIL 1999

DSC-4592/-
