MC34164, MC33164,
NCV33164
Micropower Undervoltage
Sensing Circuits
The MC34164 series are undervoltage sensing circuits specifically
designed for use as reset controllers in portable microprocessor based
systems where extended battery life is required. These devices offer
the designer an economical solution for low voltage detection with a
single external resistor. The MC34164 series features a bandgap
reference, a comparator with precise thresholds and built−in hysteresis
to prevent erratic reset operation, an open collector reset output
capable of sinking in excess of 6.0 mA, and guaranteed operation
down to 1.0 V input with extremely low standby current. The MC
devices are packaged in 3−pin TO−226AA, micro size TSOP−5, 8−pin
SOIC−8 and Micro8™ surface mount packages. The NCV device is
packaged in SOIC−8.
Applications include direct monitoring of the 3.0 V or 5.0 V
MPU/logic power supply used in appliance, automotive, consumer,
and industrial equipment.
•
Temperature Compensated Reference
•
Monitors 3.0 V (MC34164−3) or 5.0 V (MC34164−5) Power Supplies
•
Precise Comparator Thresholds Guaranteed Over Temperature
•
Comparator Hysteresis Prevents Erratic Reset
•
Reset Output Capable of Sinking in Excess of 6.0 mA
•
Internal Clamp Diode for Discharging Delay Capacitor
•
Guaranteed Reset Operation With 1.0 V Input
•
Extremely Low Standby Current: As Low as 9.0
mA
•
Economical TO−226AA, TSOP−5, SOIC−8 and Micro8 Surface
Mount Packages
•
NCV Prefix for Automotive and Other Applications Requiring Site
and Control Changes
•
Pb−Free Packages are Available
Input
Reset
http://onsemi.com
8
1
1
2
3
SOIC−8
D SUFFIX
CASE 751
5
8
1
Micro8
DM SUFFIX
CASE 846A
1
TSOP−5
SN SUFFIX
CASE 483
TO−226AA
P SUFFIX
CASE 29
PIN CONNECTIONS
Reset 1
Input 2
N.C. 3
Ground 4
(Top View)
8 N.C.
7 N.C.
6 N.C.
5 N.C.
TSOP−5
Pin 1.
2.
3.
4.
5.
Ground
Input
Reset
NC
NC
TO−226AA
Pin 1. Reset
2. Input
3. Ground
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 7 of this data sheet.
1.2 V
ref
= Sink Only
Positive True Logic
DEVICE MARKING INFORMATION
See general marking information in the device marking
section on page 9 of this data sheet.
GND

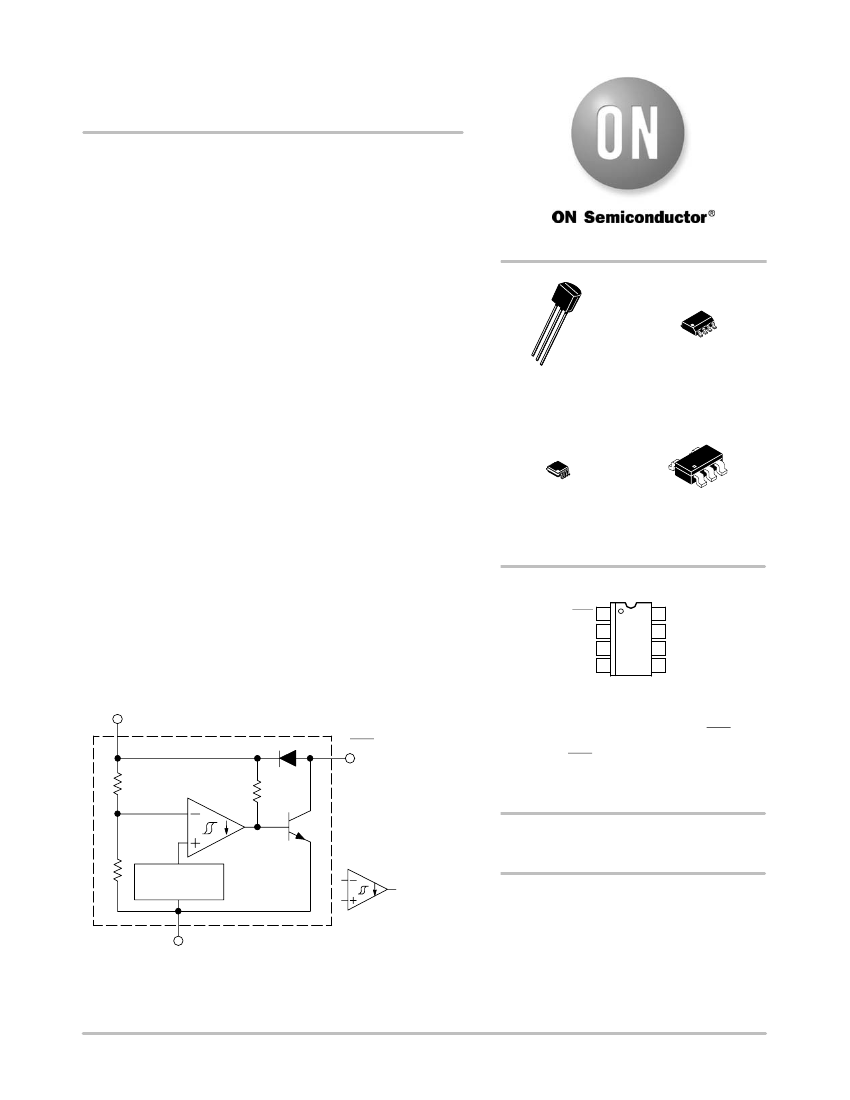

Figure 1. Representative Block Diagram
This device contains 28 active transistors.
©
Semiconductor Components Industries, LLC, 2005
1
August, 2005 − Rev. 16
Publication Order Number:
MC34164/D
MC34164, MC33164, NCV33164
MAXIMUM RATINGS
Rating
Power Input Supply Voltage
Reset Output Voltage
Reset Output Sink Current
Clamp Diode Forward Current, Reset to Input Pin (Note 1)
Power Dissipation and Thermal Characteristics
P Suffix, Plastic Package
Maximum Power Dissipation @ T
A
= 25°C
Thermal Resistance, Junction−to−Air
D Suffix, Plastic Package
Maximum Power Dissipation @ T
A
= 25°C
Thermal Resistance, Junction−to−Air
DM Suffix, Plastic Package
Maximum Power Dissipation @ T
A
= 25°C
Thermal Resistance, Junction−to−Air
Operating Junction Temperature
Operating Ambient Temperature Range
MC34164 Series
MC33164 Series, NCV33164
Storage Temperature Range
Electrostatic Discharge Sensitivity (ESD)
Human Body Model (HBM)
Machine Model (MM)
Symbol
V
in
V
O
I
Sink
IF
Value
−1.0 to 12
−1.0 to 12
Internally
Limited
100
Unit
V
V
mA
mA
P
D
R
qJA
P
D
R
qJA
P
D
R
qJA
T
J
T
A
700
178
700
178
520
240
+150
0 to +70
− 40 to +125
mW
°C/W
mW
°C/W
mW
°C/W
°C
°C
T
stg
ESD
− 65 to +150
4000
200
°C
V
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit
values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied,
damage may occur and reliability may be affected.
MC34164−3, MC33164−3 SERIES, NCV33164−3
ELECTRICAL CHARACTERISTICS
(For typical values T
A
= 25°C, for min/max values T
A
is the operating ambient temperature
range that applies [Notes 2 & 3], unless otherwise noted.)
Characteristic
COMPARATOR
Threshold Voltage
High State Output (V
in
Increasing)
Low State Output (V
in
Decreasing)
Hysteresis (I
Sink
= 100
mA)
RESET OUTPUT
Output Sink Saturation
(V
in
= 2.4 V, I
Sink
= 1.0 mA)
(V
in
= 1.0 V, I
Sink
= 0.25 mA)
Output Sink Current (V
in
, Reset = 2.4 V)
Output Off−State Leakage
(V
in
, Reset = 3.0 V)
(V
in
, Reset = 10 V)
Clamp Diode Forward Voltage, Reset to Input Pin (I
F
= 5.0 mA)
TOTAL DEVICE
Operating Input Voltage Range
Quiescent Input Current
V
in
= 3.0 V
V
in
= 6.0 V
V
in
I
in
−
−
9.0
24
15
40
1.0 to 10
−
−
V
mA
V
OL
−
−
I
Sink
I
R(leak)
Symbol
Min
Typ
Max
Unit
V
V
IH
V
IL
V
H
2.55
2.55
0.03
2.71
2.65
0.06
2.80
2.80
−
V
0.14
0.1
12
0.02
0.02
0.9
0.4
0.3
30
0.5
1.0
1.2
V
mA
mA
−
−
6.0
V
F
0.6
1. Maximum package power dissipation limits must be observed.
2. Low duty cycle pulse techniques are used during test to maintain junction temperature as close to ambient as possible.
3. T
low
= 0°C for MC34164
T
high
= +70°C for MC34164
= − 40°C for MC33164, NCV33164
= +125°C for MC33164, NCV33164
http://onsemi.com
2
MC34164, MC33164, NCV33164
MC34164−5, MC33164−5 SERIES, NCV33164−5
ELECTRICAL CHARACTERISTICS
(For typical values T
A
= 25°C, for min/max values T
A
is the operating ambient temperature
range that applies [Notes 5 & 6], unless otherwise noted.)
Characteristic
COMPARATOR
Threshold Voltage
High State Output (V
in
Increasing)
Low State Output (V
in
Decreasing)
Hysteresis (I
Sink
= 100
mA)
RESET OUTPUT
Output Sink Saturation
(V
in
= 4.0 V, I
Sink
= 1.0 mA)
(V
in
= 1.0 V, I
Sink
= 0.25 mA)
Output Sink Current (V
in
, Reset = 4.0 V)
Output Off−State Leakage
(V
in
, Reset = 5.0 V)
(V
in
, Reset = 10 V)
Clamp Diode Forward Voltage, Reset to Input Pin (I
F
= 5.0 mA)
TOTAL DEVICE
Operating Input Voltage Range
Quiescent Input Current
V
in
= 5.0 V
V
in
= 10 V
V
in
I
in
−
−
12
32
20
50
1.0 to 10
−
−
V
mA
V
OL
−
−
I
Sink
I
R(leak)
Symbol
Min
Typ
Max
Unit
V
V
IH
V
IL
V
H
4.15
4.15
0.02
4.33
4.27
0.09
4.45
4.45
−
V
0.14
0.1
20
0.02
0.02
0.9
0.4
0.3
50
0.5
2.0
1.2
V
mA
mA
−
−
7.0
V
F
0.6
4. Maximum package power dissipation limits must be observed.
5. Low duty cycle pulse techniques are used during test to maintain junction temperature as close to ambient as possible.
6. T
low
= 0°C for MC34164
T
high
= +70°C for MC34164
= − 40°C for MC33164, NCV33164
= +125°C for MC33164, NCV33164
7. NCV prefix is for automotive and other applications requiring site and change control.
10
8.0
6.0
4.0
2.0
0
0
2.0
4.0
6.0
V
in
, INPUT VOLTAGE (V)
8.0
10
R
L
= 82 k to V
in
T
A
= 25°C
10
8.0
6.0
4.0
2.0
0
0
2.0
4.0
6.0
V
in
, INPUT VOLTAGE (V)
8.0
10
R
L
= 82 k to V
in
T
A
= 25°C
VO , OUTPUT VOLTAGE (V)
Figure 2. MC3X164−3 Reset Output
Voltage versus Input Voltage
VO , OUTPUT VOLTAGE (V)
Figure 3. MC3X164−5 Reset Output
Voltage versus Input Voltage
http://onsemi.com
3
MC34164, MC33164, NCV33164
5.0
V O , OUTPUT VOLTAGE (V)
V O , OUTPUT VOLTAGE (V)
4.0
3.0
2.0
1.0
R
L
= 82 k to V
in
T
A
= 25°C
0
2.62
2.66
2.70
2.74
2.78
0
4.22
4.26
5.0
4.0
3.0
2.0
1.0
R
L
= 82 k to V
in
T
A
= 25°C
4.30
4.34
4.38
V
in
, INPUT VOLTAGE (V)
V
in
, INPUT VOLTAGE (V)
Figure 4. MC3X164−3 Reset Output
Voltage versus Input Voltage
Figure 5. MC3X164−5 Reset Output
Voltage versus Input Voltage
2.76
V in , THRESHOLD VOLTAGE (V)
V in , THRESHOLD VOLTAGE (V)
Upper Threshold
High State Output
2.72
4.36
4.32
Upper Threshold
High State Output
2.68
4.28
2.64
Lower Threshold
Low State Output
4.24
Lower Threshold
Low State Output
2.60
− 50
− 25
0
25
50
75
100
125
4.20
− 50
− 25
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)
T
A
, AMBIENT TEMPERATURE (°C)
Figure 6. MC3X164−3 Comparator Threshold
Voltage versus Temperature
Figure 7. MC3X164−5 Comparator Threshold
Voltage versus Temperature
50
40
30
20
10
0
T
A
= 0°C
T
A
= 70°C
T
A
= 25°C
50
40
30
20
10
0
T
A
= 25°C
I in, INPUT CURRENT (
μ
A)
I in, INPUT CURRENT (
μ
A)
T
A
= 0°C
T
A
= 70°C
0
2.0
4.0
6.0
8.0
10
0
2.0
4.0
6.0
8.0
10
V
in
, INPUT VOLTAGE (V)
V
in
, INPUT VOLTAGE (V)
Figure 8. MC3X164−3 Input Current
versus Input Voltage
Figure 9. MC3X164−5 Input Current
versus Input Voltage
http://onsemi.com
4
京公网安备 11010802033920号
EEWORLD
