9000-233-502 datasheet, PDF - EEWORLD Datasheet

9000-233-502: DescriptionBoard Connector, 66 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9000-233-502 Overview

Board Connector, 66 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.24 inch
subject depth	0.35 inch
body length	3.3 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	9000
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	9.525 mm
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	66
Evacuation force-minimum value	.556 N
Base Number Matches	1

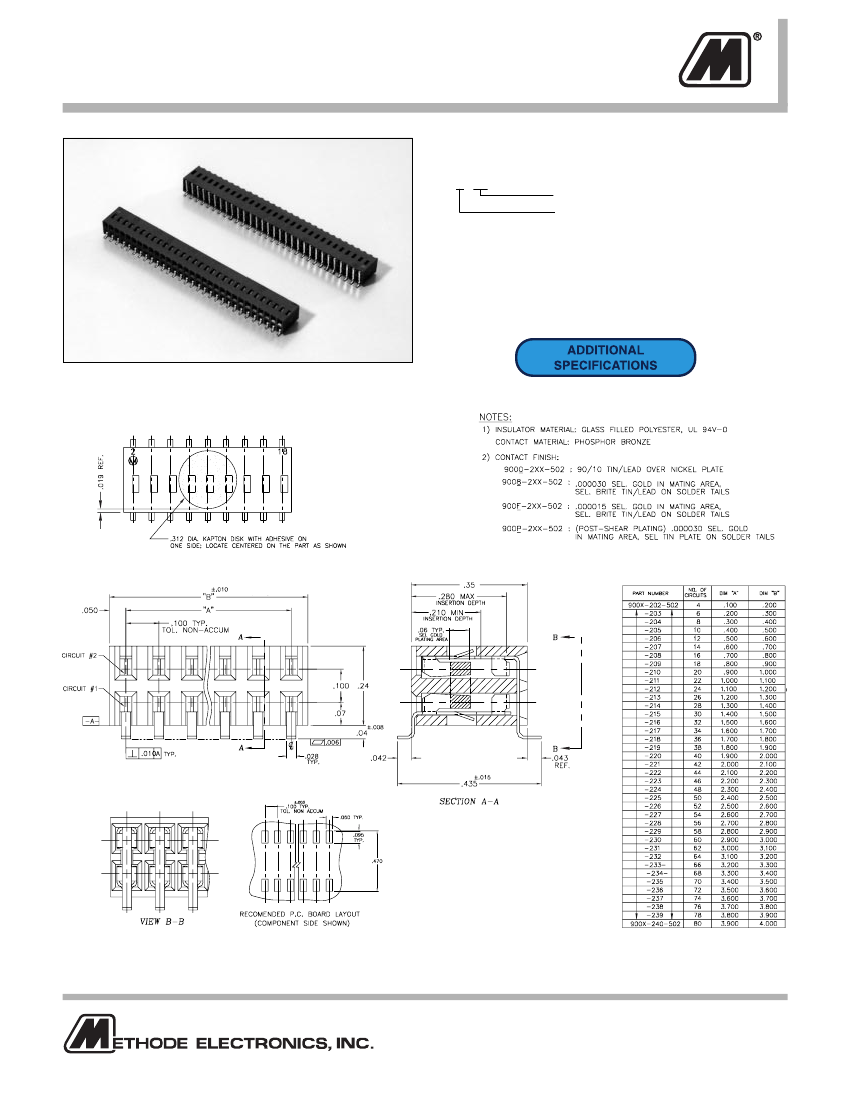

.100” (2.54mm) Surface Mount

Right Angle Dual Row Connector

9000 SERIES “POST/BOXE”

PART NUMBER LEGEND

900X-2XX-502

NUMBER OF POSITIONS PER ROW

(SEE TABLE)

CONTACT FINISH

(SEE NOTE 2)

MATING HEADERS: 9100 SERIES

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
