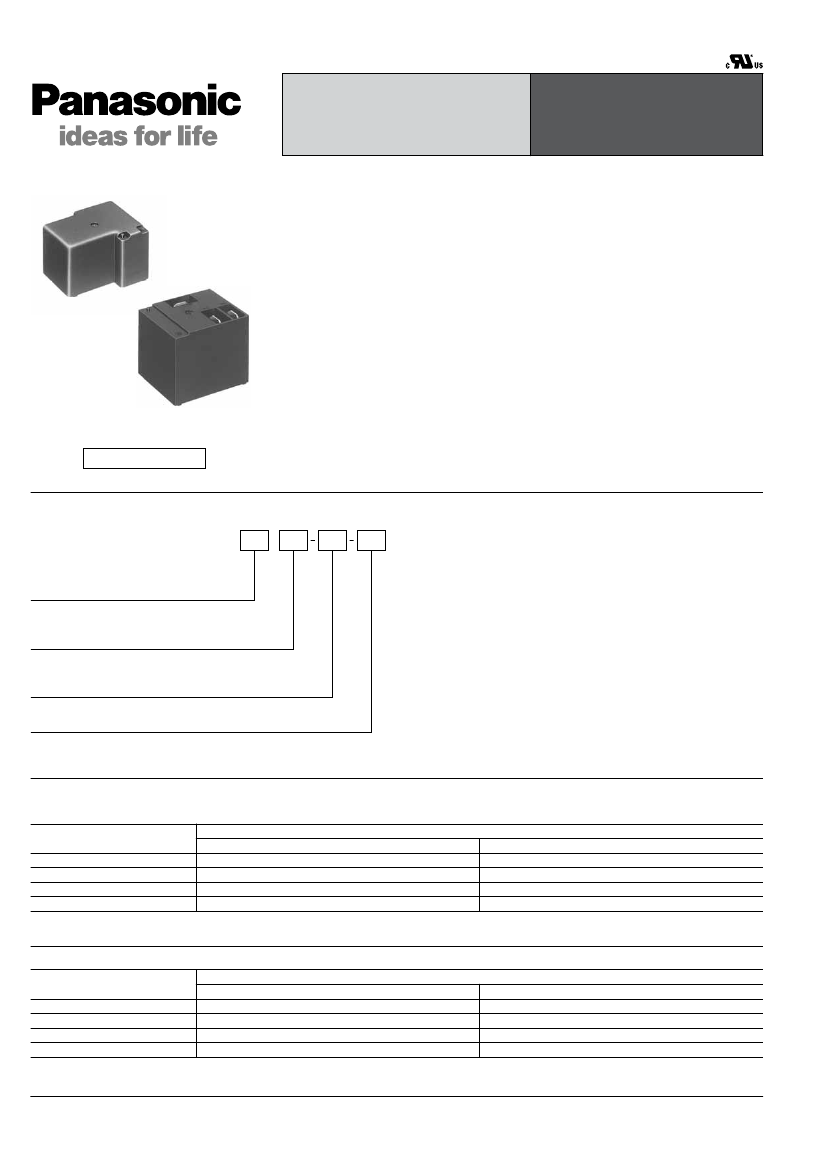

JT-V
Surge withstand voltage:
6kV
1a/1c 30A power relays
JT-V RELAYS
TYPICAL APPLICATIONS
• Oven
• Heating & ventilation
• Home appliance
FEATURES
• Surge withstand voltage: 6,000 V
• High switching capacity — 30 A for
1 Form A
• 2 contact arrangements — 1 Form A
or 1 Form C
• “TMP” types available
• UL/C-UL recognized
• Class F types standard
PCB type
TMP type
RoHS compliant
ORDERING INFORMATION
JTV
Contact arrangement
1a: 1 Form A
1: 1 Form C
Protective construction
S: Sealed type
G: Dust cover type
Mounting classification
TMP: TMP type
PA: PCB type
Nominal coil voltage, DC
12V, 18V, 24V, 48V
Notes: 1. Certified by UL/C-UL
2. 5 V, 6 V, 9 V DC types are also available. Please contact us for details.
TYPES
1. 1 Form A Dust cover type
Nominal coil voltage
12V DC
18V DC
24V DC
48V DC
Standard packing: PCB type: Carton: 50 pcs.; Case: 500 pcs.
TMP type: Carton: 50 pcs.; Case: 300 pcs.
Part No.
PCB type
JTV1aG-PA-12V
JTV1aG-PA-18V
JTV1aG-PA-24V
JTV1aG-PA-48V
TMP type
JTV1aG-TMP-12V
JTV1aG-TMP-18V
JTV1aG-TMP-24V
JTV1aG-TMP-48V
2. 1 Form C Dust cover type
Nominal coil voltage
12V DC
18V DC
24V DC
48V DC
Standard packing: PCB type: Carton: 50 pcs.; Case: 500 pcs.
TMP type: Carton: 50 pcs.; Case: 300 pcs.
Part No.
PCB type
JTV1G-PA-12V
JTV1G-PA-18V
JTV1G-PA-24V
JTV1G-PA-48V
TMP type
JTV1G-TMP-12V
JTV1G-TMP-18V
JTV1G-TMP-24V
JTV1G-TMP-48V
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB188E 201202-T
JT-V
3. 1 Form A Sealed type
Nominal coil voltage
12V DC
18V DC
24V DC
48V DC
Standard packing: PCB type: Carton: 50 pcs.; Case: 500 pcs.
TMP type: Carton: 50 pcs.; Case: 300 pcs.
Part No.
PCB type
JTV1aS-PA-12V
JTV1aS-PA-18V
JTV1aS-PA-24V
JTV1aS-PA-48V
TMP type
JTV1aS-TMP-12V
JTV1aS-TMP-18V
JTV1aS-TMP-24V
JTV1aS-TMP-48V
4. 1 Form C Sealed type
Nominal coil voltage
12V DC
18V DC
24V DC
48V DC
Standard packing: PCB type: Carton: 50 pcs.; Case: 500 pcs.
TMP type: Carton: 50 pcs.; Case: 300 pcs.
Part No.
PCB type
JTV1S-PA-12V
JTV1S-PA-18V
JTV1S-PA-24V
JTV1S-PA-48V
TMP type
JTV1S-TMP-12V
JTV1S-TMP-18V
JTV1S-TMP-24V
JTV1S-TMP-48V
RATING
1. Coil data
Nominal coil
voltage
12V DC
18V DC
24V DC
48V DC
75%V or less of
nominal voltage
(Initial)
10%V or more of
nominal voltage
(Initial)
Pick-up voltage
(at 20°C
68°F)
Drop-out voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
83.3mA
55.6mA
41.7mA
20.8mA
Coil resistance
[±10%] (at 20°C
68°F)
144Ω
324Ω
576Ω
2,304Ω
1,000mW
120%V of
nominal voltage
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
2. Specifications
Characteristics
Contact
Item
Contact material
Arrangement
Contact resistance (Initial)
Nominal switching capacity (resistive load)
Max. switching power (resistive load)
Max. switching voltage
Max. switching current
Nominal operating power
Min. switching capacity (reference value)*
1
Insulation resistance (Initial)
Between open contacts
Between contact and coil
Surge breakdown voltage*
2
(Between contact and coil) (Initial)
Operate time (at nominal voltage) (at 20°C
68°F)
Release time (at nominal voltage) (at 20°C
68°F)
Breakdown voltage
(Initial)
Functional
Destructive
Functional
Vibration resistance
Destructive
Mechanical
Shock resistance
Electrical (at 20 times/min.)*
3
Specifications
AgSnO
2
type
1 Form A
1 Form C
Max. 50 mΩ (By voltage drop 6 V DC 1A)
20A 277V AC
N.C.: 10A 277V AC, N.O.: 20A 277V AC
8,310VA (30A 277V AC)
N.C.: 2,770VA, N.O.: 5,540VA
277V AC
30A
N.C.: 10A, N.O.: 20A
Approx. 1,000mW
100mA, 5V DC
Min. 100MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
1,200 Vrms for 1 min. (Detection current: 10 mA)
3,500 Vrms for 1 min. (Detection current: 10 mA)
6,000 V
Max. 15 ms (excluding contact bounce time.)
Max. 10 ms (excluding contact bounce time) (Without diode)
Min. 98 m/s
2
(Half-wave pulse of sine wave: 11 ms; detection time: 10µs.)
Min. 980 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
10 to 55 Hz at double amplitude of 1.5 mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 2 mm
Min. 1×10
7
N.O.: Min. 1×10
5
(20A 277V AC at resistive load)
Min. 1×10
5
(20A 277V AC at resistive load)
N.C.: Min. 1×10
5
(10A 277V AC at resistive load)
Ambient temperature: –55°C to +85°C
–67°F to +185°F,
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 times/min. (at nominal switching capacity)
PCB type: Approx. 25 g
.88 oz
TMP type: Approx. 30 g
1.06 oz
Rating
Electrical
characteristics
Mechanical
characteristics
Expected life
Conditions
Unit weight
Conditions for operation, transport and storage*
4
Max. operating speed
* Specifications will vary with foreign standards certification ratings.
Notes: *1. This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. Wave is standard shock voltage of
±1.2×50µs
according to JEC-212-1981
*3. In order to obtain the full rated life cycles, the relay should be properly vented by removing the vent nib. More detail, please look at caution for NOTES.
*4. The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to Usage, transport and storage
conditions in NOTES.
ASCTB188E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
JT-V
REFERENCE DATA
1. Change of rate of pick-up and drop-out
voltage (at 20°C
68°F)
Sample: JTV1S-TMP-24V (6 pcs.)
Rate of
change, %
40
30
20
2. Operate/release time
Sample: JTV1S-TMP-24V
3. Operate/release time
Sample: JTV1aS-PA-24V
Operate/release time, ms
Drop-out voltage
20
Operate time
Operate/release time, ms
20
10
Pick-up voltage
–55 –35 –15 5 25 45 65 85 105
–67 –31 +5 +41
+113+149+185+221
+77
Ambient
–10
temperature,
°C
°F
–20
–30
–40
Operate time
10
Max.
Min.
Release time
0
80
Max.
Min.
10
Release time
Max.
Min.
Max.
Min.
110
120
0
80
90
100
Coil applied voltage,%V
90
100 110 120
Coil applied voltage,%V
4. Distribution frequency of pick-up voltage
(at 20°C
68°F)
Sample: JTV1S-TMP-12V (100 pcs.)
40
5. Distribution frequency of drop-out voltage
(at 20°C
68°F)
Sample: JTV1S-TMP-12V (100 pcs.)
40
6.-(1) Coil temperature rise (TMP type)*
Ambient temperature: 25°C
77°F
Sample: JTV1aS-TMP-12V (6 pcs.)
80
Distribution frequency
Distribution frequency
30
30
Temperature rise,
°C
20 A
60
10 A
20
20
40
10
10
20
0
5.9 6.1 6.3 6.5 6.7 6.9 7.0
Pick-up voltage, V
0
2.7 2.9 3.1 3.3 3.5 3.7 3.8
Drop-out voltage, V
0
0
90
100
120
140
Coil applied voltage,%V
6.-(2) Coil temperature rise (TMP type)*
Ambient temperature: 85°C
185°F
Sample: JTV1aS-TMP-12V (6 pcs.)
80
Temperature rise,
°C
60
20 A
10 A
40
20
0
0
90
100
120
140
Coil applied voltage,%V
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB188E 201202-T
JT-V

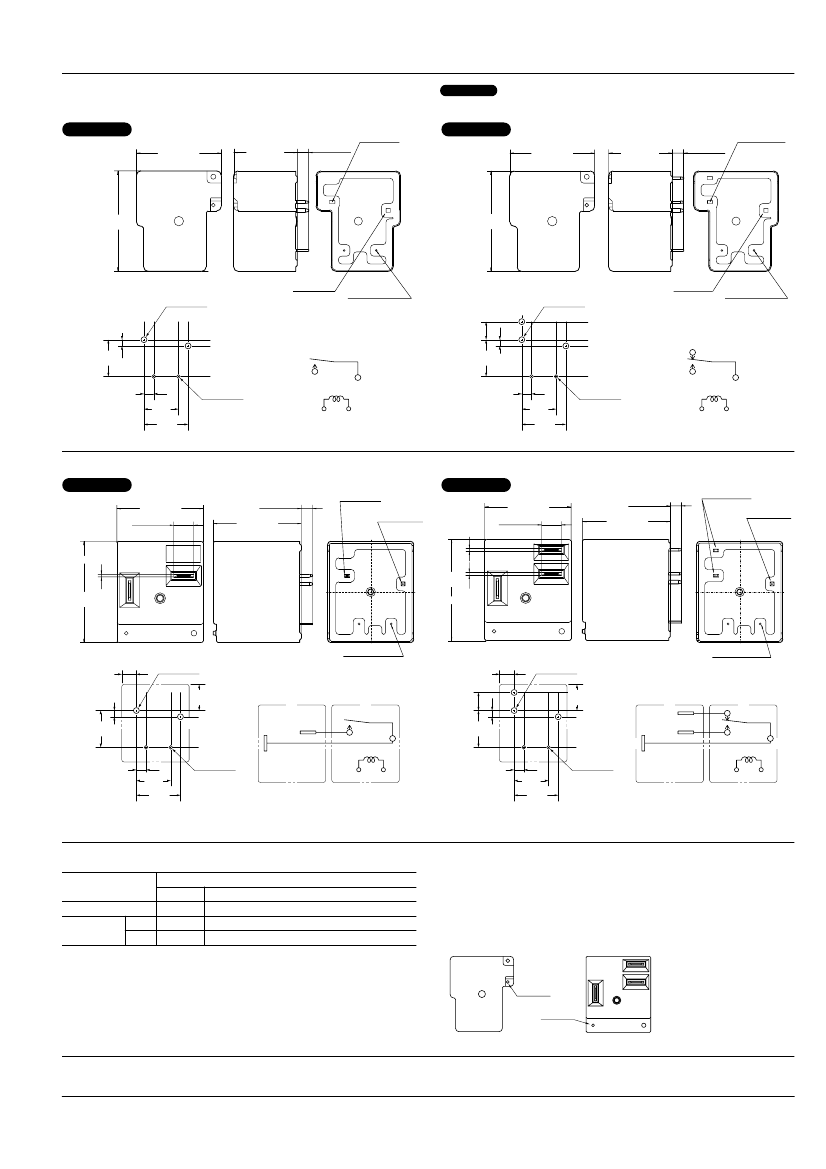

DIMENSIONS
(mm
inch)
1. PCB type
CAD Data
1 Form A
26.9±0.6
1.059±.024
20.2±0.6
.795±.024
3.6±0.5
.142±.020
Terminals
0.8×1.6
.031×.063
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
CAD Data
1 Form C
26.9±0.6
1.059±.024
20.2±0.6
.795±.024
3.6±0.5
.142±.020
Terminals
2-0.8×1.6
2-.031×.063
31.9±0.6
1.256±.024
31.9±0.6
1.256±.024
PC board pattern (Bottom view)
2-2.1 dia.
2-.083 dia.
2.54
.100
15.24
.600
Terminal
1.14×1.14
.045×.045
Coil Terminals
2-0.6 dia.
2-.024 dia.
PC board pattern (Bottom view)
3-2.1 dia.
3-.083 dia.
7.62
.300
15.24 2.54
.600 .100
Terminal
1.14×1.14
.045×.045
Coil Terminals
2-0.6 dia.
2-.024 dia.
Schematic (Bottom view)
Schematic (Bottom view)
3.81
.150
13.97
.550
17.78
.700
2-1.1 dia.
2-.043 dia.
3.81
.150
13.97
.550
17.78
.700
2-1.1 dia.
2-.043 dia.
Tolerance:
±0.1
±.004
2. TMP type
CAD Data
1 Form A
27.4±0.6
1.079±.024
6.35±0.1
.250±.004
NC
NO
CAD Data
3.6±0.5
.142±.020
27.9±0.6
1.096±.024
Terminals
0.8×1.6
.031×.063
Terminal
1.14×1.14
.045×.045
1 Form C
0.8±0.1
.031±.004
27.4±0.6
1.079±.024
6.35±0.1
.250±.004
NC
NO
3.6±0.5
.142±.020
27.9±0.6
1.096±.024
Terminals
2-0.8×1.6
2-.031×.063
Terminal
1.14×1.14
.045×.045
0.8±0.1
.031±.004
32.2±0.6
1.268±.024
COM
32.2±0.6
1.268±.024
0.8±0.1
.031±.004
COM
PC board pattern (Bottom view)
6.20±0.5
.244±.020
2.54
.100
15.24
.600
COM
3.81
.150
13.97
.550
17.78
.700
2-1.1 dia.
2-.043 dia.
2-2.1 dia.
2-.083 dia.
10.93±0.5
.430±.020
Coil Terminals
2-0.6 dia.
2-.024 dia.
PC board pattern (Bottom view)
6.20±0.5
.244±.020
7.62
.300
15.24 2.54
.600 .100
COM
3.81
.150
13.97
.550
17.78
.700
2-1.1 dia.
2-.043 dia.
3-2.1 dia.
3-.083 dia.
10.93±0.5
.430±.020
N.C.
Coil Terminals
2-0.6 dia.
2-.024 dia.
Schematic
N.O.
Schematic
N.O.
(Top view)
(Bottom view)
(Top view)
(Bottom view)
Tolerance:
±0.1
±.004
SAFETY STANDARDS
Item
1 Form A
1 Form C
N.O.
N.C.
File No.
E43028
E43028
E43028
UL/C-UL (Recognized)
Contact rating
30A 277V AC, 30A 28V DC, 2HP 250V AC
20A 277V AC, 20A 28V DC, 2HP 250V AC
10A 277V AC, 10A 28V DC,
1
/
2
HP 250V AC
NOTES
1. Electrical life
In order to obtain the full rated life cycles, the relay should be
properly vented by removing the vent nib after the soldering/
washing process.
• PCB type
• TMP type
NC
* CSA standard: Certified by C-UL
NO
Vent Nib
Vent Nib
For Cautions for Use.
ASCTB188E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
COM
