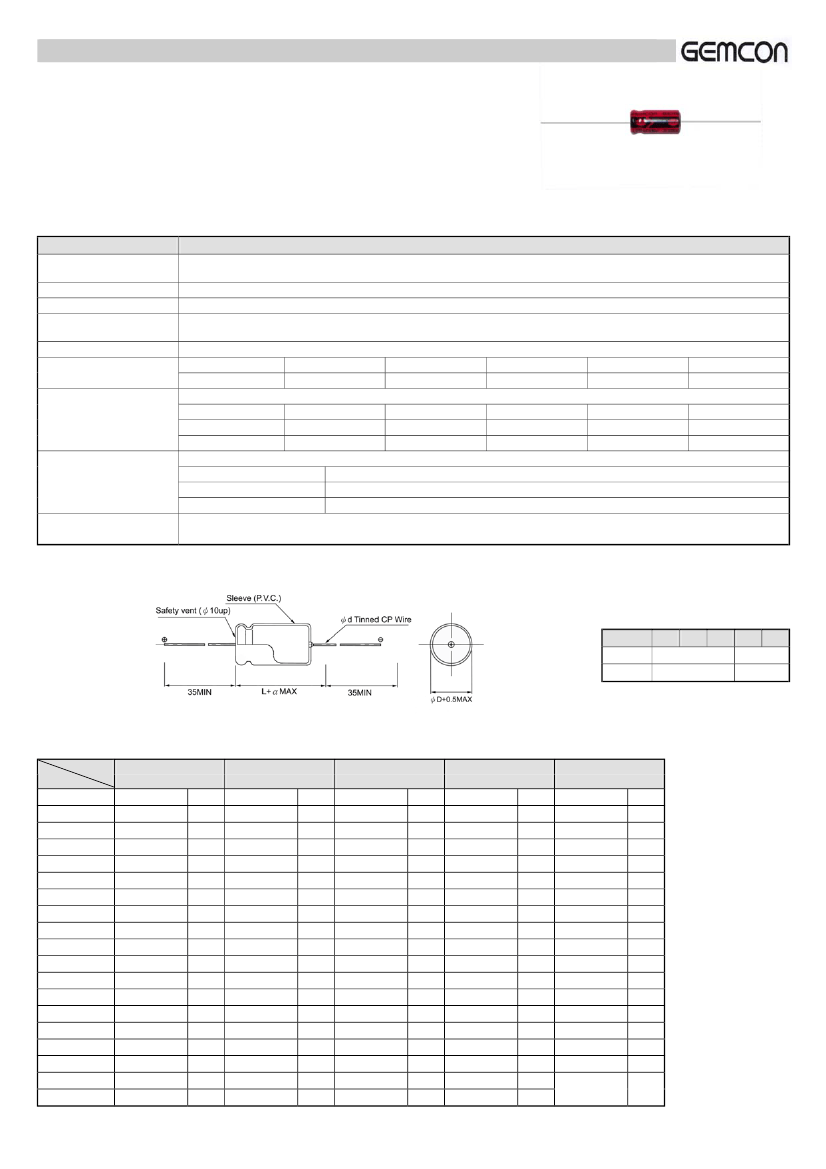

ALUMINUM ELECTROLYTIC CAPACITOR
GLA
臥式
85°C
½漏電流型品
Axial Leads, Low leakage current 85°C Series
i
2,000
85
i
i
Low leakage current for timing or high reliability products required
i
Life guaranteed 2,000 hours/85°C.
i
Specifications
Item
Operating Temperature
range
Rated Voltage
Capacitance Range
容量範圍
Capacitance Tolerance
Leakage Current
Dissipation Factor
(120Hz, 20°C)
Temperature
Characteristics
(120Hz)
Load Life
Performance Characteristics
-40 + 85°C
10V
∼
50V
0.47
∼
1,000
µF
±20%
(120Hz, 20°C)
I
≤
0.002CV or 0.4
µA,
whichever is greater after 2 minutes application of rated voltage.
Rated voltage (V)
10
16
25
35
50
Tan
δ
(max.)
0.20
0.16
0.14
0.12
0.10
Impedance Ratio / Stability at Low Temperature
Rated voltage (V)
10
16
25
35
50
Z (-25°C) / Z (20°C)
3
2
2
2
2
Z (-40°C) / Z (20°C)
6
4
4
3
3
After 1,000 hours application of WV at 85°C, capacitor shall meet the characteristics requirements mentioned below.
Capacitance change
Within
±20%
of initial value
Tan
δ
200% or less of initial specified value
Leakage current
Initial specified value or less
After leaving capacitors under no load at 85°C for 1,000 hours and applying voltage according to JIS C5102 4.4, they shall
meet the specified value as load life characteristics listed above.
Shelf Life
i
Dimension
D
φ
5
6.3
0.6
1.5
8
10
13
φ
d
α
0.6
1.5
i
Standard Products Table
WV(SV)
Cap(µF)
0.47
1
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
5 x 13
6.3 x 13
6.3 x 13
6.3 x 16
8 x 16
8 x 16
8 x 20
10 x 21
10 x 26
13 x 26
65
90
105
145
195
235
320
430
570
760
10
(13)
16
(20)
25
(32)
35
(44)
D
φ
x L (mm)
50
(63)
5 x 13
5
5 x 13
5 x 13
5 x 13
5 x 13
5 x 13
10
23
30
35
45
55
70
95
130
155
205
280
380
500
660
5 x 13
5 x 13
5 x 13
6.3 x 13
6.3 x 13
6.3 x 16
8 x 16
8 x 16
8 x 20
10 x 21
10 x 26
13 x 26
60
80
100
130
180
220
295
400
530
700
6.3 x 13
6.3 x 13
6.3 x 16
8 x 16
8 x 16
8 x 20
10 x 21
10 x 26
13 x 26
55
70
90
120
155
190
260
350
470
620
6.3 x 13
6.3 x 13
6.3 x 16
8 x 16
8 x 16
8 x 20
10 x 21
10 x 26
13 x 26
13 x 31
50
65
80
105
140
170
230
310
420
560
720
6.3 x 13
6.3 x 13
6.3 x 16
8 x 16
8 x 16
8 x 20
10 x 21
10 x 26
13 x 26
13 x 31
Case Size
ripple
Ripple (mA) at 85°C 120Hz
