SN54F280AFK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN54F280AFK

SN54F280AFK: DescriptionParity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CQCC20, QFN-20; Categorylogic logic; File Size194KB，4 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SN54F280AFK Overview

Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CQCC20, QFN-20

SN54F280AFK Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QFN-20
Reach Compliance Code	unknown
Other features	ODD/EVEN PARITY GENERATOR
series	F/FAST
JESD-30 code	S-CQCC-N20
length	8.89 mm
Logic integrated circuit type	PARITY GENERATOR/CHECKER
Number of digits	9
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	17 ns
Maximum seat height	2.03 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm

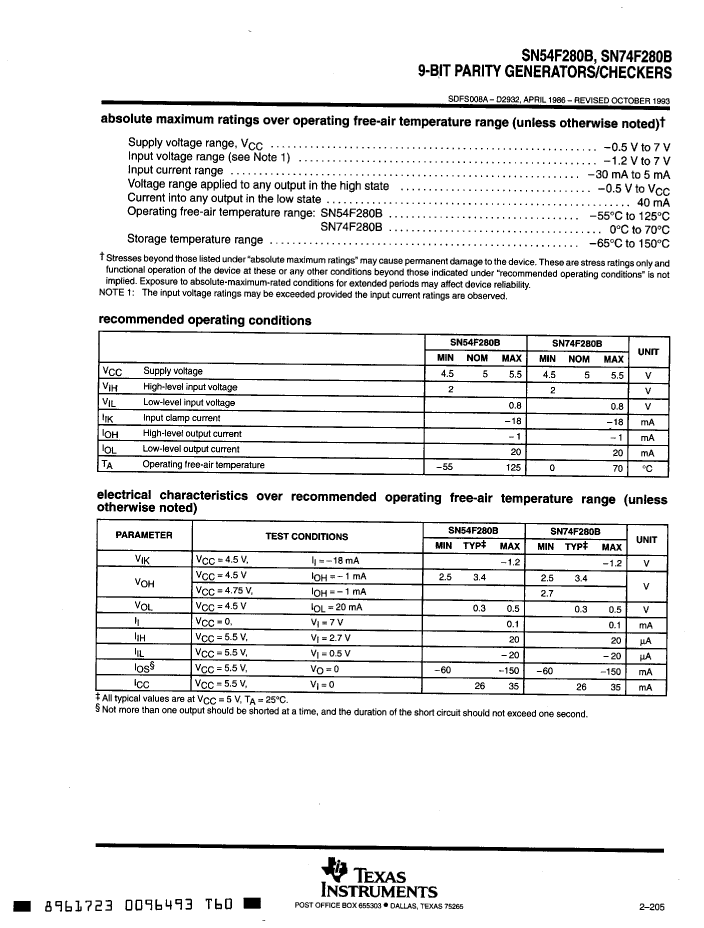

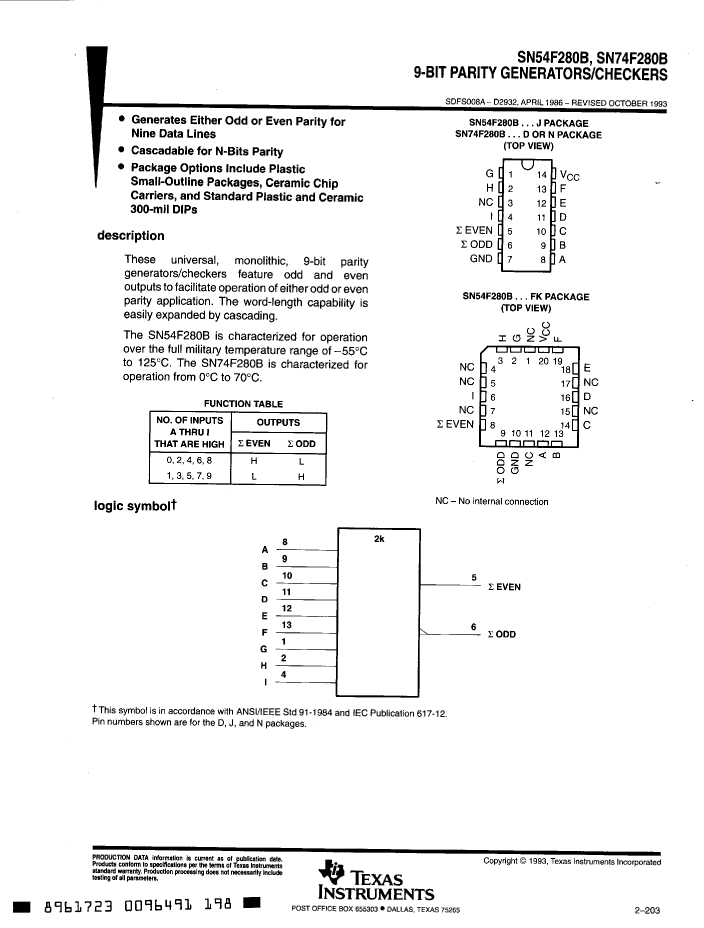

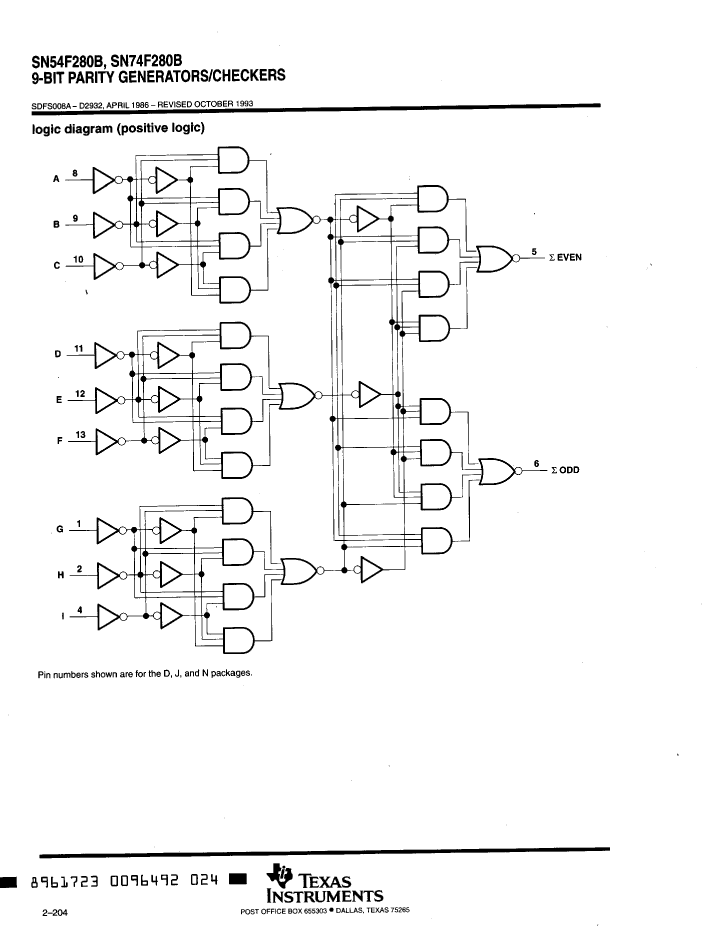

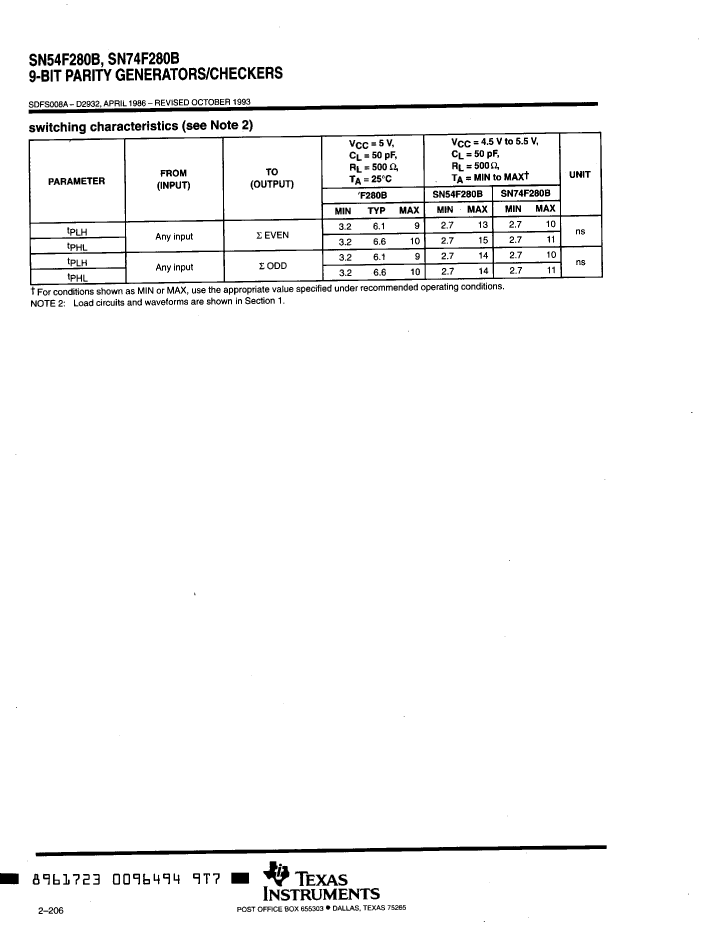

Preview

Download Datasheet

View All

SN54F280AFK Related Products

	SN54F280AFK	SNJ54F280AJ	SNJ54F280AFK	SN54F280AJ	SN74F280AD3	SN74F280AD
Description	Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CQCC20, QFN-20	Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CDIP14, DIP-14	Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CQCC20, QFN-20	Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, CDIP14, DIP-14	Parity Generator/Checker,	Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, PDSO14, SOP-14
package instruction	QFN-20	DIP,	QCCN,	DIP,	,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Logic integrated circuit type	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER
Maker	Rochester Electronics	-	-	Rochester Electronics	Rochester Electronics	Rochester Electronics
Other features	ODD/EVEN PARITY GENERATOR	ODD/EVEN PARITY GENERATOR	ODD/EVEN PARITY GENERATOR	ODD/EVEN PARITY GENERATOR	-	ODD/EVEN PARITY GENERATOR
series	F/FAST	F/FAST	F/FAST	F/FAST	-	F/FAST
JESD-30 code	S-CQCC-N20	R-GDIP-T14	S-CQCC-N20	R-GDIP-T14	-	R-PDSO-G14
length	8.89 mm	19.56 mm	8.89 mm	19.56 mm	-	8.65 mm
Number of digits	9	9	9	9	-	9
Number of functions	1	1	1	1	-	1
Number of terminals	20	14	20	14	-	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	-	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	-	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	-	PLASTIC/EPOXY
encapsulated code	QCCN	DIP	QCCN	DIP	-	SOP
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	-	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	-	SMALL OUTLINE
propagation delay (tpd)	17 ns	17 ns	17 ns	17 ns	-	14.5 ns
Maximum seat height	2.03 mm	5.08 mm	2.03 mm	5.08 mm	-	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-	5 V
surface mount	YES	NO	YES	NO	-	YES
technology	TTL	TTL	TTL	TTL	-	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	-	COMMERCIAL
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	-	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	-	1.27 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	-	DUAL
width	8.89 mm	7.62 mm	8.89 mm	7.62 mm	-	3.9 mm
