85001-0397: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size252KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85001-0397 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

85001-0397 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Other features	STANDARDS: DIN 41612; IEC 603-2
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (24) OVER NICKEL
Contact completed and terminated	GOLD (24) OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
DIN compliance	YES
Filter function	NO
IEC compliance	YES
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	85001
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0

85001-0397 Preview

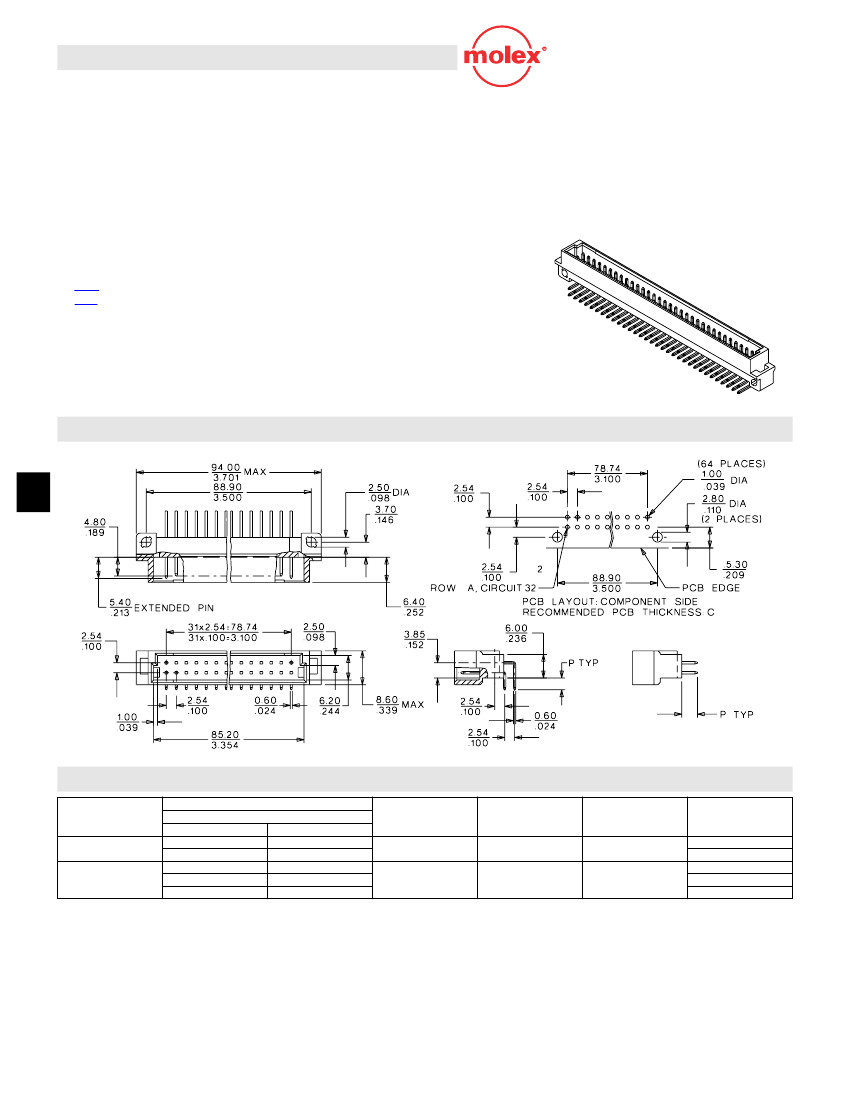

FEATURES AND SPECIFICATION

s

Features and Beneﬁts

Performance levels 1 and 2

Flux proof option

FMLB/LMFB pins (extended/recessed) available

Board lock option

Solder tails for 1.6mm (.062") PCBs

(for 2.4mm (.094") PCBs on request)

Reference Information

Product Speciﬁcation: PS-85003-0001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980-390

Mates With:

85040—Straight

female style B

85050—Right

angle female style Q

Electrical

Current: 1.0A

Physical

Housing: Glass-ﬁlled polyester, UL 94V-0

Contact: Brass

Operating Temperature: -55 to +125˚C

2.54mm (.100") Pitch

DIN 41612/IEC 603-2

Connector

85001

Male

Style B

Backplane Connector Systems

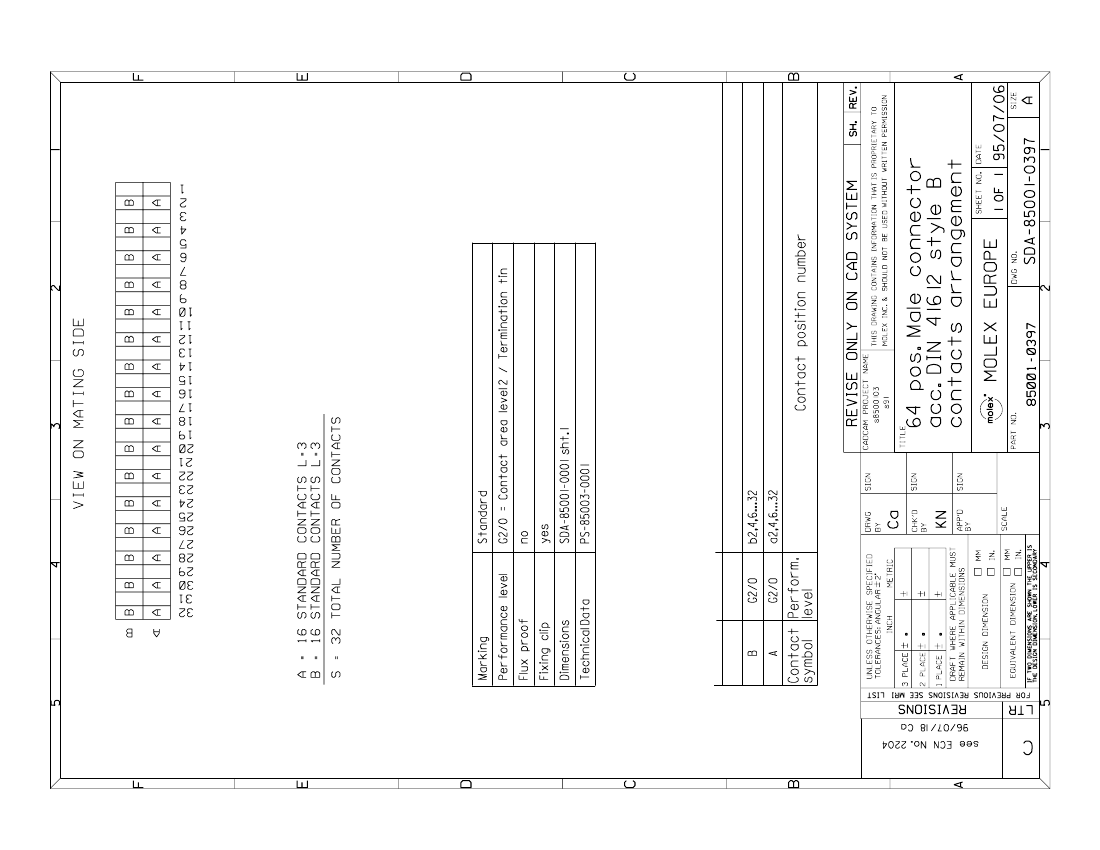

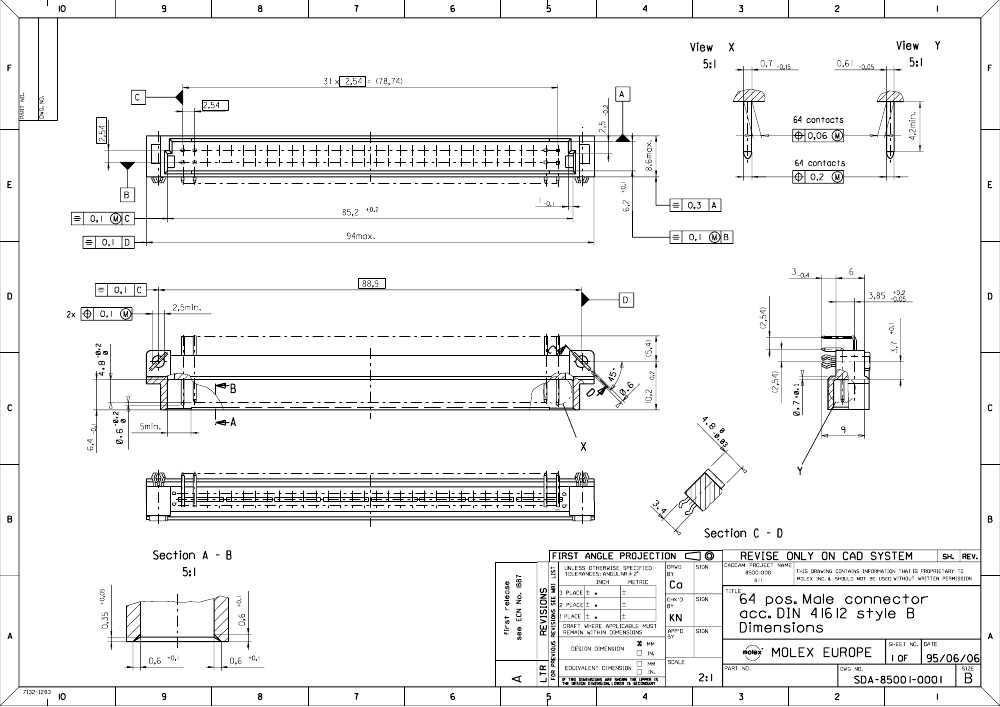

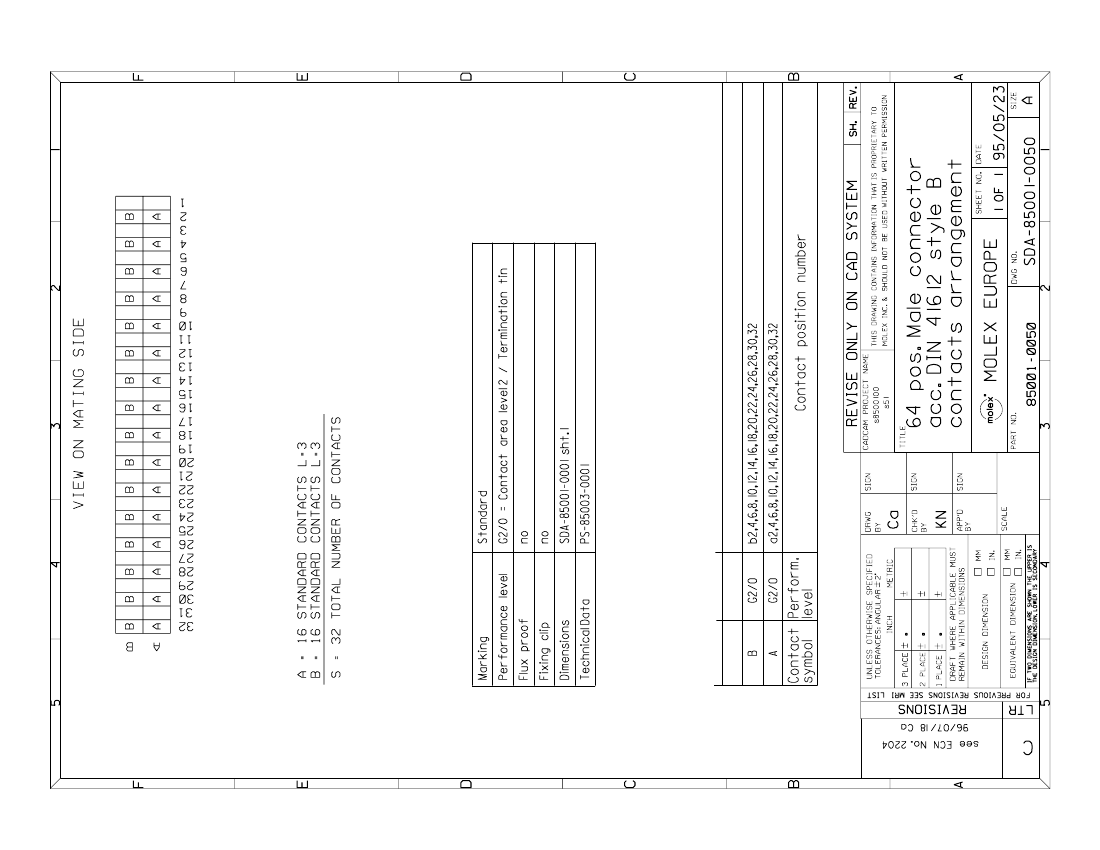

CATALOG DRAWING (FOR REFERENCE ONLY)

J

ORDERING INFORMATION AND DIMENSIONS

Circuits

1

32

85001-0256

64

For other versions contact Molex

* Performance levels based on test conditions per DIN 41612, part 5:

1: >500 mating cycles. 10 day industrial environment (S02)

2: >400 mating cycles. 4 day industrial environment (S02)

Order No.

Performance Level*

2

85001-0050

85001-0397

85001-0036

85001-0191

85001-0385

Contact

Loading

Even only

Full

Rows

a, b

Solder Tail Dimension P

3.0 (.118)

Option(s)

Board locks

FMLB-8 pins: 1, 2, 31, 32

J-140

MX01

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
