82.50.82.70.Z9: DescriptionRocker Switch, DPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size202KB，1 Pages; ManufacturerLamb Industries

Download Datasheet Parametric Compare View All

82.50.82.70.Z9 Overview

Rocker Switch, DPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount

82.50.82.70.Z9 Parametric

Parameter Name	Attribute value
Maker	Lamb Industries
Reach Compliance Code	unknown
Actuator angle
Actuator color	RED
Actuator length	0.354 inch
Actuator material	POLYCARBONATE
Actuator type	ROCKER
Other features	UL APPROVED
body width	21.7932 mm
Body color	BLACK
body height	28.4988 mm
Body length or diameter	27.9908 mm
center contact material	BRASS
Center contact plating	SILVER
Contact (AC) maximum rated power R load	0.75HP@250VAC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Contact function	OFF-ON
Contact resistance	0.005 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1250VAC V
Electrical life	300000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
illumination	LAMP
Insulation resistance	2000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	82
Installation features	PANEL MOUNT
Maximum operating temperature	105 °C
Minimum operating temperature
surface mount	NO
Switch action	MAINTAINED
switch function	DPST
Switch type	ROCKER SWITCH
Terminal length	0.334 inch
Terminal material	BRASS
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

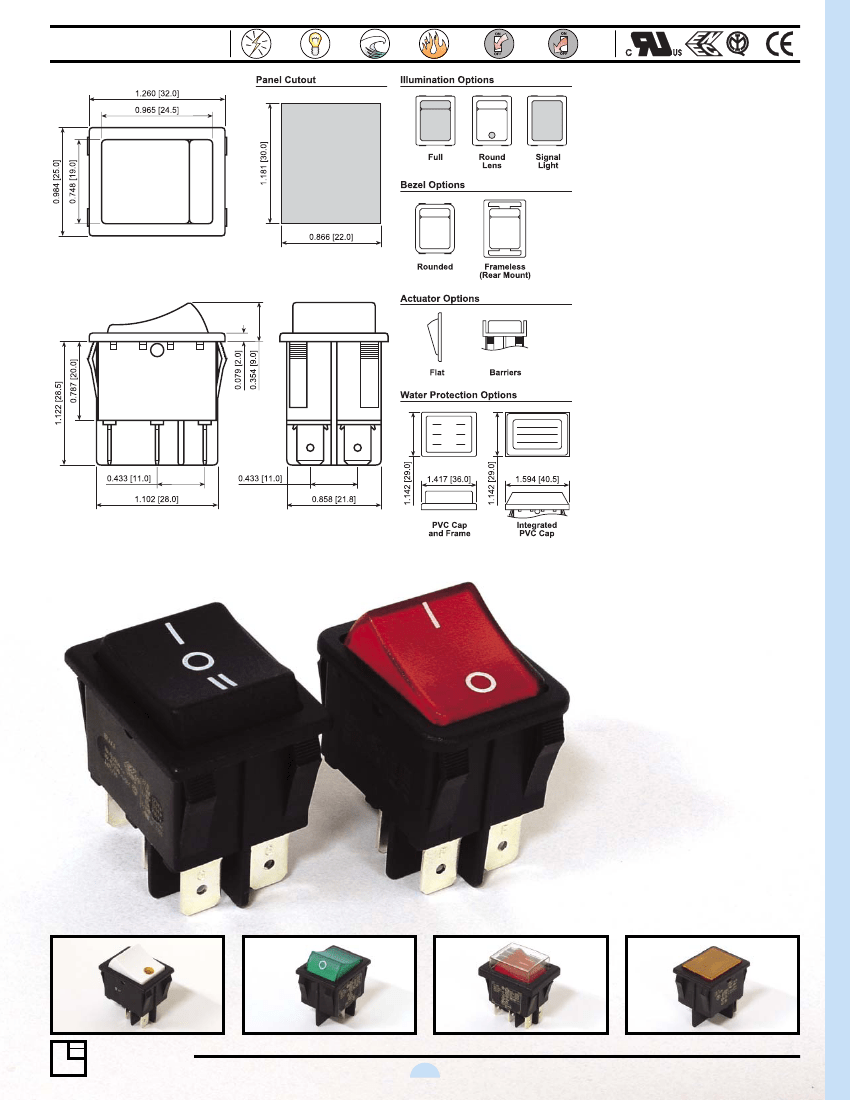

82-Series

High

Amperage

Illuminated

Water

Protection

High

Temperature

Front

Panel Mount

Rear

Panel Mount

The

82-Series

rocker switch is used in

nearly every industry. The high ratings

and reﬁned styling have made it a clas-

sic. Additionally, new features like rear

mounting and actuator barriers expand

the potential uses to new heights.

SPECIFICATIONS:

ATING

AINTAINED

WITCHES

20A 125VAC [cULus]

16A 250VAC [cULus]

3/4HP 125-250VAC [cULus]

20(2) 250V~ 1E4 T125 [ENEC]

10(6) 250V~ 5E4 T125 [ENEC]

10(4) 400V~ 1E4 T125 [ENEC]

Upon Request:

16(8) 250V~ 1E4 T125 [ENEC]

OMENTARY AND

ENTER

-O

WITCHES

16A 125-250VAC [cULus]

3/4HP 125-250VAC [cULus]

16(6) 250V~ 1E4 T125 [ENEC]

10(4) 250V~ 5E4 T125 [ENEC]

10(4) 400V~ 1E4 T125 [ENEC]

EMPERATURE

0°C to 65°C [cULus]

0°C to 105°C [cULus]

0°C to 125°C [ENEC]

ECHANICAL

IFE

300,000 Cycles

ITHSTAND

OLTAGE

1,250VAC for 1 Minute

NSULATION

ESISTANCE

2MΩ at 500VAC

ONTACT

ESISTANCE

5mΩ at 50VAC

NTRUSION

ROTECTION

IP40 Standard

IP54 with PVC Cap

MATERIALS:

ODY

Polyamide 6/6, UL 94V-2

CTUATOR

Polyamide 6/6, UL 94V-2

RANSPARENT

CTUATOR

Polycarbonate

ONTACTS

Silver

ERMINALS

Brass

Silver Plated Brass

PART NUMBER EXAMPLES:

82.43.82.95.5E:

Photo A

2 Poles, On-Off-On, 6.3mm tab terminals,

black body and actuator, white vertical

I/O/II marking.

82.50.82.70.Z9:

Photo B

2 Poles, Off-On, 6.3mm tab terminals,

black body with rounded bezel, fully illumi-

nated red actuator, 125V neon bulb, white

vertical I/O marking.

82.11.T2.10.G9:

Photo C

1 Pole, Off-On, 6.3mm tab terminals, black

body, white actuator with amber round lens

illumination, 12V incandescent bulb, no

marking.

82.50.84.70.C7:

Photo D

2 Poles, Off-On, 4.8mm tab terminals,

black body, fully illuminated green actuator,

125V ﬂuorescent bulb, white O marking on

edge of actuator.

82.52.82.77.9C:

Photo E

2 Poles, On-On, 6.3mm tab terminals,

black body, red fully illuminated actuator,

125V neon bulb, no marking, PVC cap

and frame.

82.F2.40.64.0E:

Photo F

Signal light, 6.3mm tab terminals, black

body, amber lens, 230V neon bulb.

LAMB

INDUSTRIES

Portland, OR USA

82.50.82.70.Z9 Related Products

	82.50.82.70.Z9	82.50.84.70.C7	82.11.T2.10.G9	82.43.82.95.5E
Description	Rocker Switch, DPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, On-off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount
Maker	Lamb Industries	Lamb Industries	Lamb Industries	Lamb Industries
Reach Compliance Code	unknown	unknown	unknown	unknown
Actuator color	RED	GREEN	WHITE	BLACK
Actuator length	0.354 inch	0.354 inch	0.354 inch	0.269 inch
Actuator material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYAMIDE
Actuator type	ROCKER	ROCKER	ROCKER	ROCKER
Other features	UL APPROVED	UL APPROVED	UL APPROVED	UL APPROVED
body width	21.7932 mm	21.7932 mm	21.7932 mm	21.7932 mm
Body color	BLACK	BLACK	BLACK	BLACK
body height	28.4988 mm	28.4988 mm	28.4988 mm	28.4988 mm
Body length or diameter	27.9908 mm	27.9908 mm	27.9908 mm	27.9908 mm
center contact material	BRASS	BRASS	BRASS	BRASS
Center contact plating	SILVER	SILVER	SILVER	SILVER
Contact (AC) maximum rated R load	16A@250VAC	16A@250VAC	16A@250VAC	16A@250VAC
Maximum contact current (AC)	16 A	16 A	16 A	16 A
Contact function	OFF-ON	OFF-ON	OFF-ON	ON-OFF-ON
Contact resistance	0.005 mΩ	0.005 mΩ	0.005 mΩ	0.005 mΩ
contact time	SNAP ACTION	SNAP ACTION	SNAP ACTION	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V
Dielectric withstand voltage	1250VAC V	1250VAC V	1250VAC V	1250VRMS V
Electrical life	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)
End contact material	BRASS	BRASS	BRASS	BRASS
End contact plating	SILVER	SILVER	SILVER	SILVER
Insulation resistance	2000000 Ω	2000000 Ω	2000000 Ω	2000000 Ω
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	82	82	82	82
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
surface mount	NO	NO	NO	NO
Switch action	MAINTAINED	MAINTAINED	MAINTAINED	MAINTAINED
switch function	DPST	DPST	DPST	DPDT
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Terminal material	BRASS	BRASS	BRASS	BRASS
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
Contact (AC) maximum rated power R load	0.75HP@250VAC	0.75HP@250VAC	0.75HP@250VAC	-
illumination	LAMP	LAMP	LAMP	-
Terminal length	0.334 inch	0.334 inch	0.334 inch	-
