Model PD0810J5050S2
Rev C
Ultra Low Profile 0805 Power Divider
50Ω to 50Ω
Description
The PD0810J5050S2 is a low profile, sub-miniature Wilkinson power divider in an
easy to use surface mount package. The PD0810J5050S2 is ideal for high volume
manufacturing and delivers higher performances than traditional printed and lumped
element solutions. The PD0810J5050S2 is matched to 50
Ω
and has a height
profile of 0.5 mm which is ideal for high level integrations in the following markets:
GSM, WCDMA, Home Cordless, and RFID. The PD0810J5050S2 does not include
the resistive element and therefore, requires an external resistor for operation. The
PD0810J5050S2 is available on tape and reel for high volume manufacturing pick
and place.
Detailed Electrical Specifications:
Specifications subject to change without notice.
ROOM (25°C)
•
•
•
•
•
•
•
•
•
•
Features:
800-1000 MHz
21 dB Isolation (output ports)
0.5mm Height Profile
50Ω Input / 50Ω Outputs
Low Insertion Loss
Surface Mountable
Tape & Reel
Non-conductive Surface
RoHS Compliant
External Resistor required
Parameter
Frequency
Input Port Impedance
Output Port Impedance
Return Loss
Insertion Loss*
Amplitude Balance
Phase Balance
Isolation (Output Ports)
Power Handling
Operating Temperature
Min.
800
Typ.
50
50
19
0.5
0.3
1
21
Max
1000
14
0.6
0.8
4
2
+85
17
-55
Unit
MHz
Ω
Ω
dB
dB
dB
Degrees
dB
Watts
ºC
* Insertion Loss stated at room temperature (Insertion Loss is approximately 0.1 dB higher at +85 ºC)

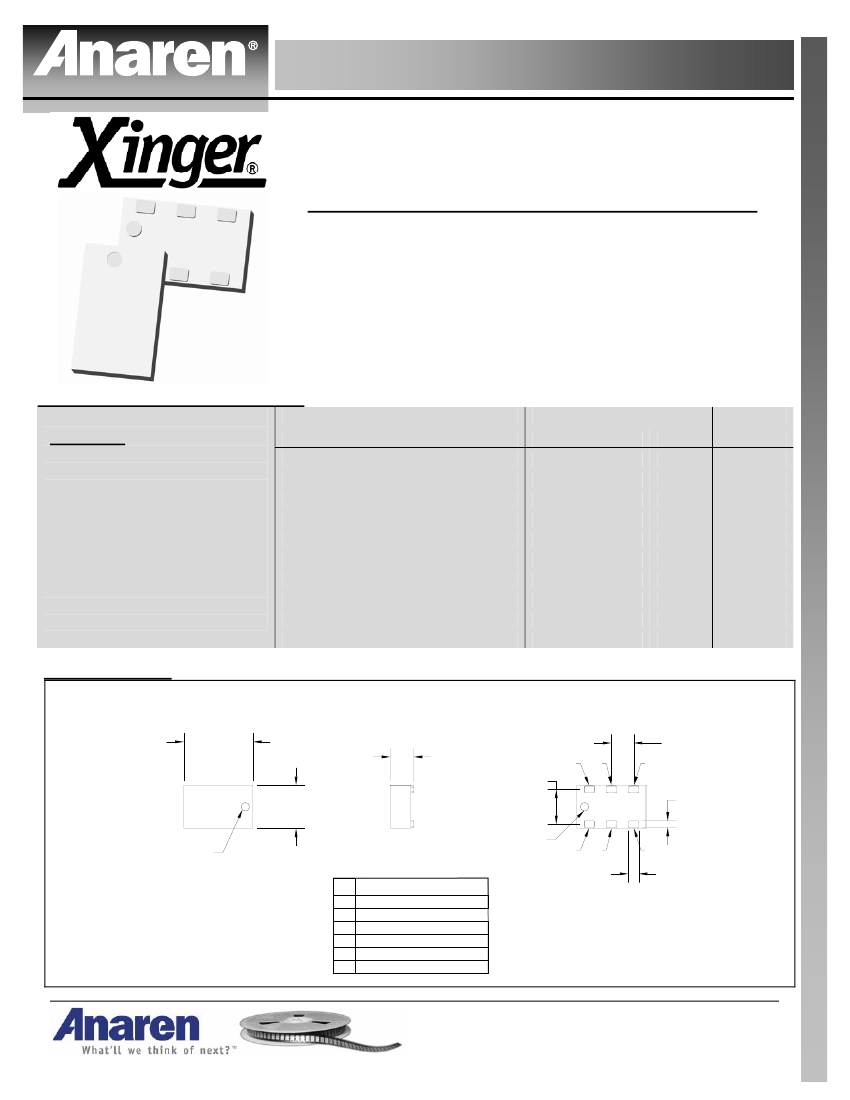

Outline Drawing
Top View (Near-side)
.079
±.004
[2.00
±0.10
]
Side View
Bottom View (Far-side)
2X .026
[0.65]
.039
[0.98]
1
2
3
6X .009
[0.22]
.021
±.002
[0.53
±0.05
]
.049
±.004
[1.25
±0.10
]
Orientation
Marker Denotes
Pin Location
Orientation
Marker Denotes
Pin Location
Pin
1
2
3
4
5
6
Designation
GND
Input
GND
Output 1
GND
Output 2
6
5
6X .012
[0.30]
4
Dimensions are in Inches [Millimeters]
Mechanical Outline
Tolerances are Non-Cumulative
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Model PD0810J5050S2
Rev C

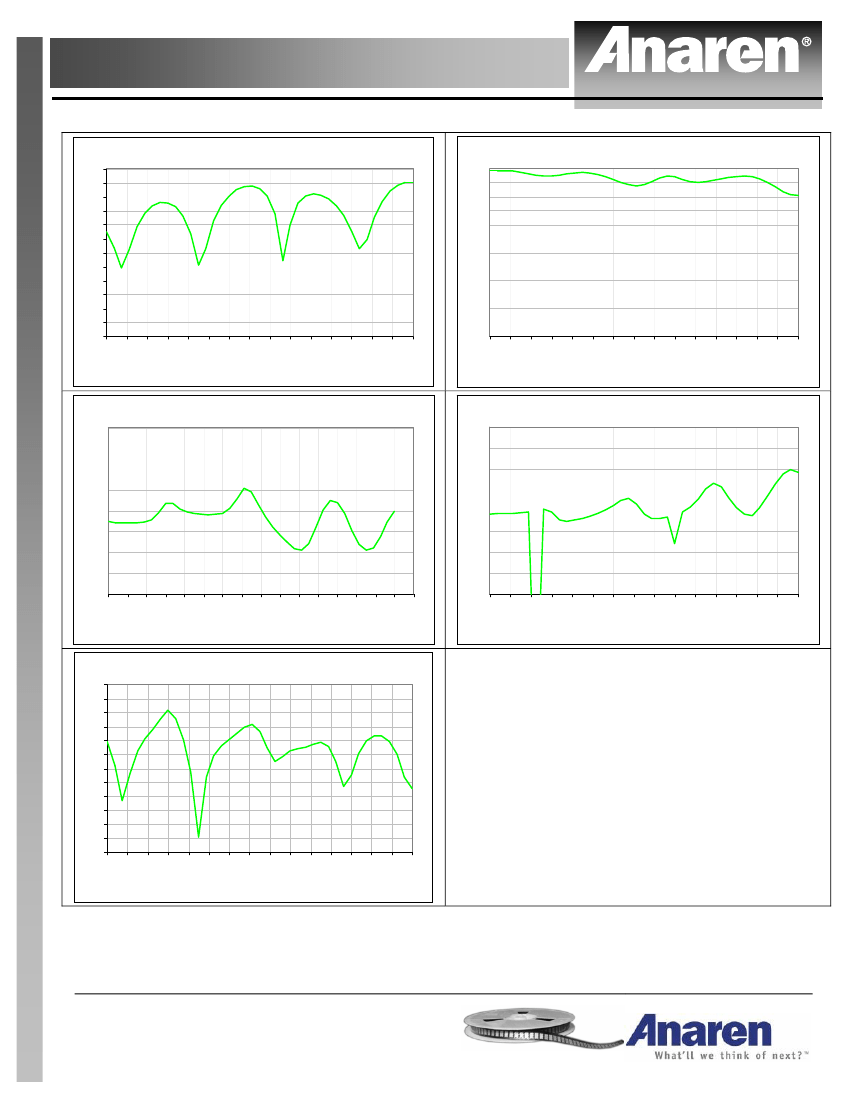

Typical Broadband Performance: 500 MHz. to 8.0 GHz.
Return Loss - Input
0
-3
-6
-9
-12
-15
[dB]
[dB]
Insertion Loss
0
-3
-6
-9
-12
-15
-18
-21
-24
-27
-30
-33
-36
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
-18
-21
-24
-27
-30
-33
-36
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
Frequency [MHz]
Frequency [MHz]
Amplitude Balance
2
1.5
1
0.5
[dB]
deg
Phase Balance
20
15
10
5
0
-5
-10
-15
-20
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
0
-0.5
-1
-1.5
-2
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
8500
Frequency [MHz]
Frequency [MHz]
Isolation
0
-3
-6
-9
-12
-15
[dB]
-18
-21
-24
-27
-30
-33
-36
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
Frequency [MHz]
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
8000
Model PD0810J5050S2
Rev C

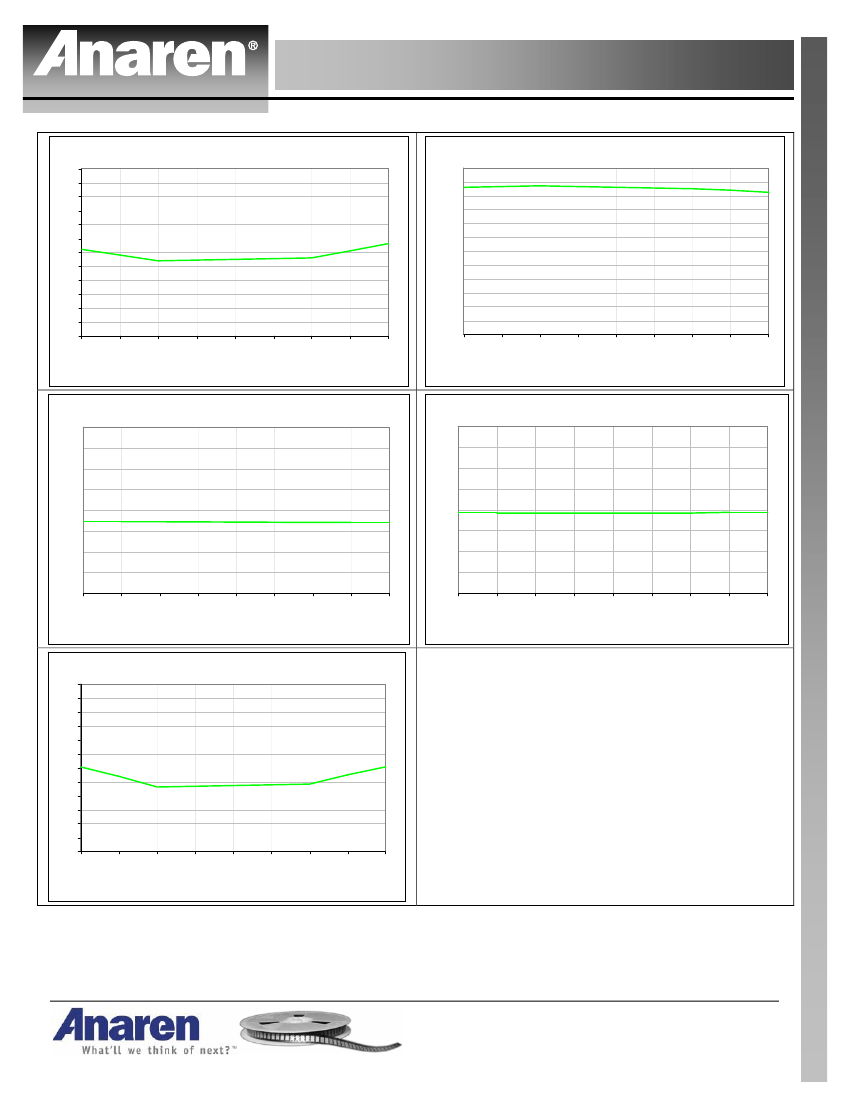

Typical Performance: 700 MHz. to 1100 MHz.
Return Loss - Input
0
-3
-6
-9
-12
-15
[dB]
Insertion Loss
0.0
-0.3
-0.6
-0.9
-1.2
-1.5
[dB]
-18
-21
-24
-27
-30
-33
-36
700
750
800
850
900
950
1000
1050
1100
-1.8
-2.1
-2.4
-2.7
-3.0
-3.3
-3.6
700
750
800
850
900
950
1000
1050
1100
Frequency [MHz]
Frequency [MHz]
Amplitude Balance
2
1.5
1
0.5
[dB]
Phase Balance
20
15
10
5
deg
0
-0.5
-1
-1.5
-2
700
750
800
850
900
950
1000
1050
1100
0
-5
-10
-15
-20
700
750
800
850
900
950
1000
1050
1100
Frequency [MHz]
Frequency [MHz]
Isolation
0
-3
-6
-9
-12
-15
[dB]
-18
-21
-24
-27
-30
-33
-36
700
750
800
850
900
950
1000
1050
1100
Frequency [MHz]
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Model PD0810J5050S2
Rev C
Mounting Configuration:
In order for Xinger surface mount components to work optimally, the proper impedance transmission lines must be
used to connect to the RF ports. If this condition is not satisfied, insertion loss, Isolation and VSWR may not meet
published specifications.
An example of the PCB footprint used in the testing of these parts is shown below. In specific designs, the
transmission line widths need to be adjusted to the unique dielectric coefficients and thicknesses as well as varying
pick and place equipment tolerances. In addition, since the PD0810J5050S2 is a Wilkinson power divider, an
external 0603 100Ω resistor must be mounted in locations R1 as shown in the Figure below.
All of the Xinger components are constructed from ceramic filled PTFE composites which possess excellent electrical
and mechanical stability having X and Y thermal coefficient of expansion (CTE) of 17 ppm/
o
C.

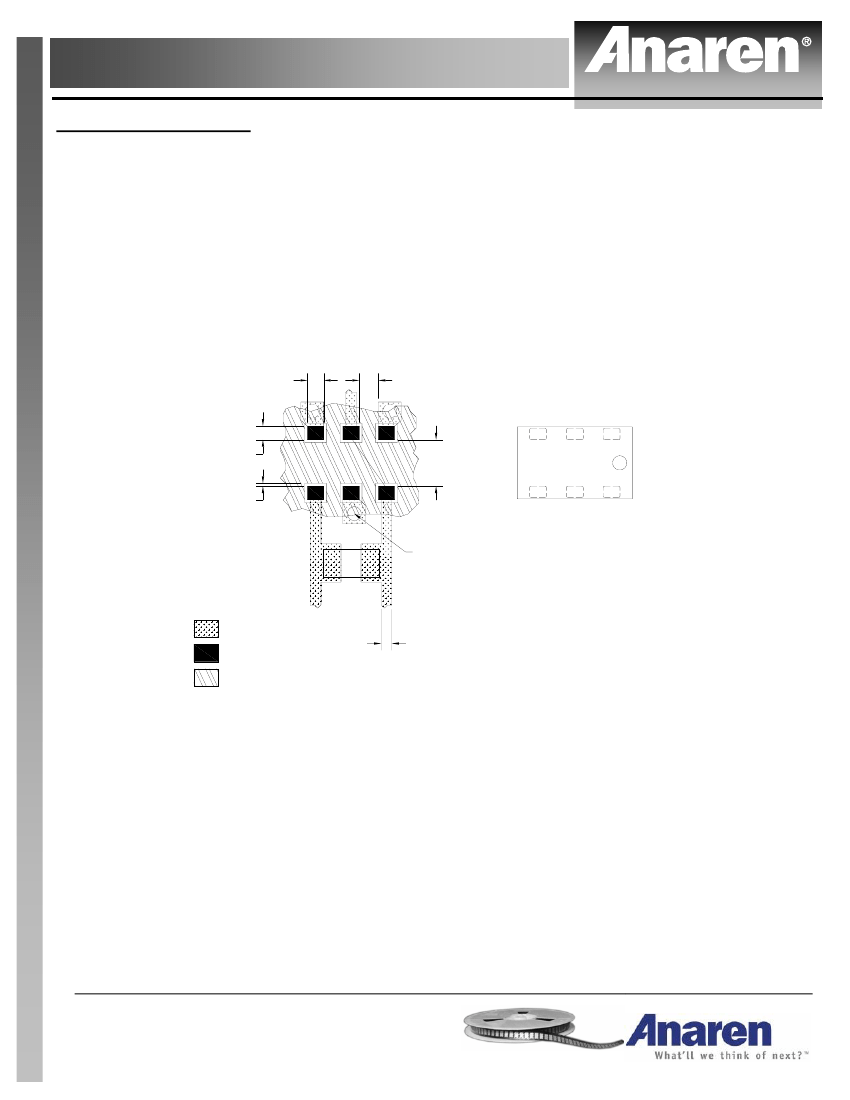

Pad Footprint w/ 0603 Resistor Locations
6X .014
[0.35]
4X .012
[0.30]
6X .010
[0.25]
6X .002
[0.05]
.033
[0.85]
R1
Plated thru
holes to
ground
Circuit Pattern
Footprint Pad (s)
Solder Resist
Dimensions are in Inches [Millimeters]
Mounting Footprint
3X Transmission
Line
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
Model PD0810J5050S2
Rev C

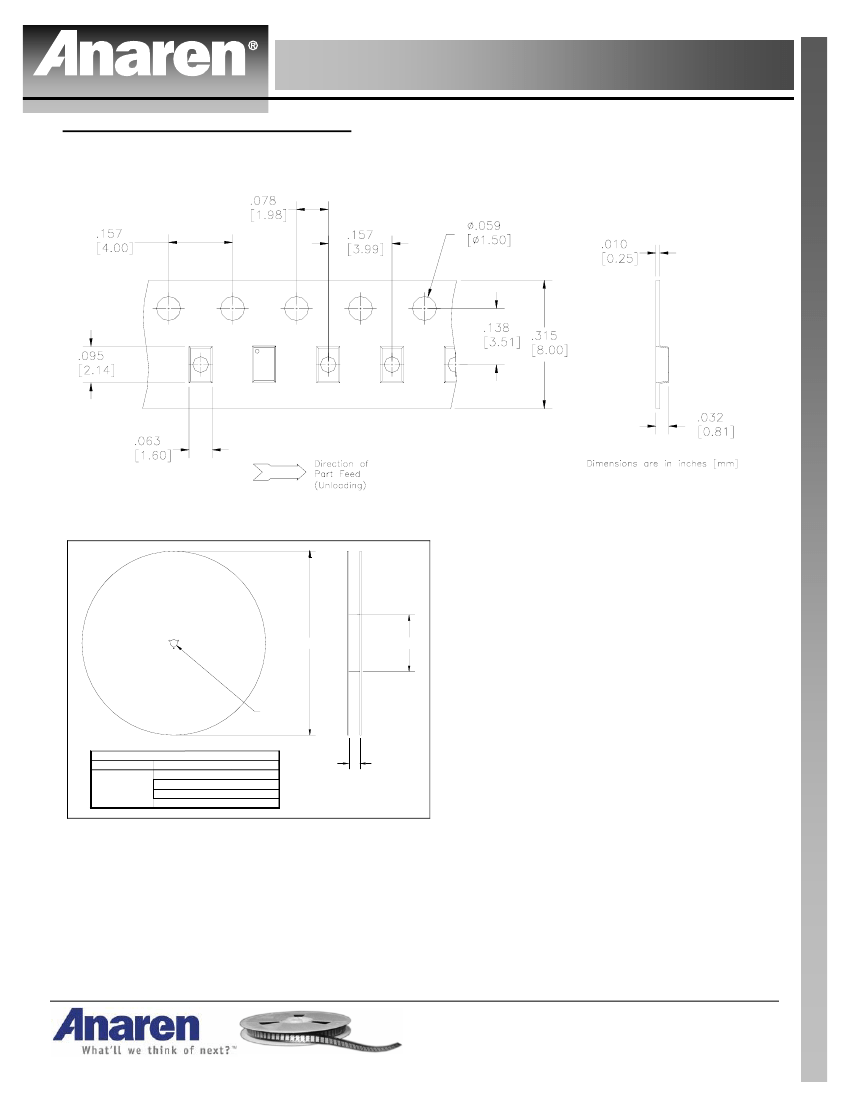

Packaging and Ordering Information
Parts are available in reels and are packaged per EIA 481-2. Parts are oriented in tape and reel as shown below. Minimum order
quantities are 4000 per reel. See Model Numbers below for further ordering information
.
ØA
ØC
ØD
QUANTITY/REEL
4000
TABLE 1
REEL DIMENSIONS (inches [mm])
ØA
7.00 [177.8]
B
0.32 [8.0]
ØC
2.0 [50.8]
ØD
0.512 [13.0]
B
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
