SK063M1000A7F-1632 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SK063M1000A7F-1632

SK063M1000A7F-1632: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, CAN, RADIAL LEADED; CategoryPassive components capacitor; File Size113KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SK063M1000A7F-1632 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, CAN, RADIAL LEADED

SK063M1000A7F-1632 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.63 mA
Manufacturer's serial number	SK
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	1550 mA
surface mount	NO
Delta tangent	0.09
Terminal shape	WIRE

Preview

Download Datasheet

View All

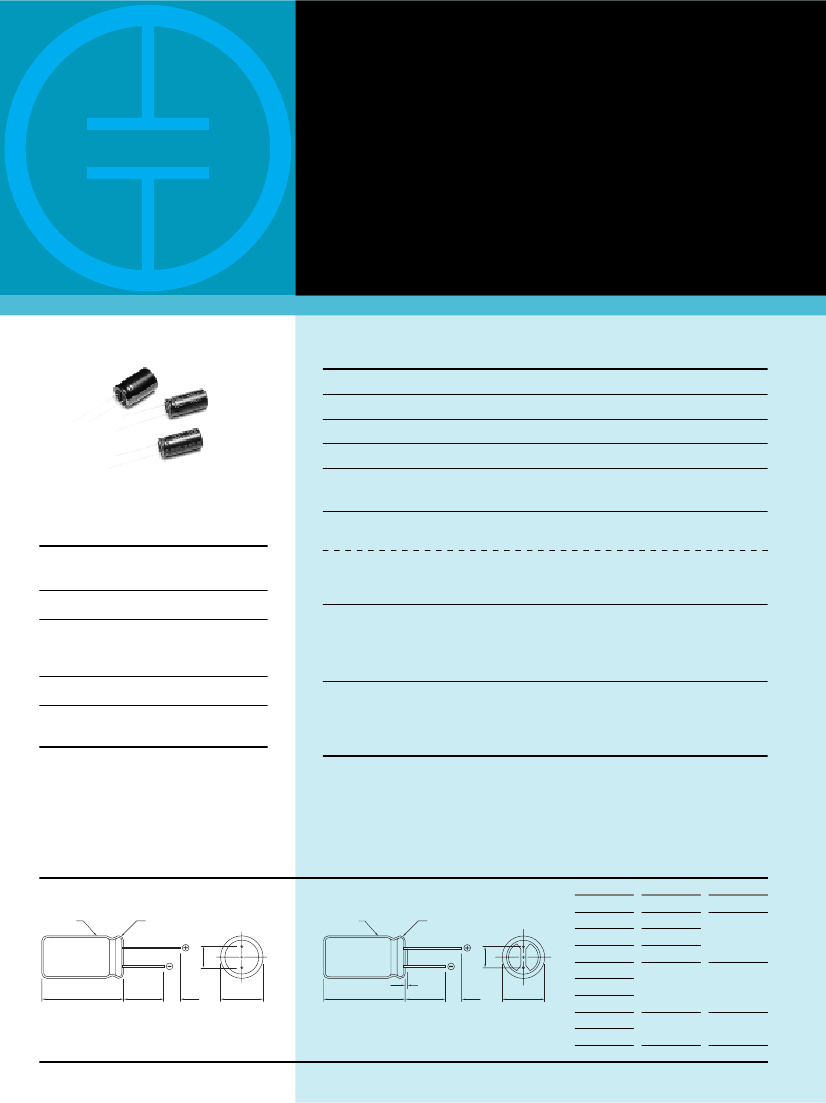

YAGEO CORPORATION

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Size Aluminum

Electrolytic Capacitors

[ For General ]

85°C Single-Ended Lead Aluminum Electrolytic Capacitors

ELECTRICAL CHARACTERISTICS

Working Voltage : 6.3 ~ 100V / 160 ~ 450V

Operating Temperature : -40º ~ +85ºC / -25º ~ +85ºC

Rate Capacitance Range : 0.1 ~ 22000µF / 0.47 ~ 470µF

Capacitance Tolerance : -20 ~ +20%

DC Leakage Current (µA) : 0.01 CV or 3

µA

/ 0.03 CV +10 Whichever is greater.

( After 2 Minutes Application of DC Working Voltage at 25ºC )

DESCRIPTION

Lower-cost capacitors expressly intended for

high density printed circuit board.

Very High Volumetric Efficiency

Dissipation Factor : at 120Hz, 25ºC

W V (V) :

D.F (%) :

6.3

100

160 ~ 250

350 ~ 450

For capacitor whose capacitance exceeds 1000µF. The value of DF(%) is increased by 2% for every

addition of 1000µF.

Load Life : 2000 Hours at 85°C Assured with Full Rated Maximum Ripple Current Applied

Ideally suited for general-purpose applications,

decoupling, by pass, and filtering circuit in

entertainment electronics.

Feature High CV Product with Moderate Cost

For Detail Specifications, Please Refer to

Engineering Bulletin No. 2052

(a) Capacitance Change : Within 20% of Initial Value

(b) Dissipation Factor : Not Exceed 200% of Initial Requirement

Shelf Life : 1000 Hours, No Voltage Applied

(a) Capacitance Change : Within 20% of Initial Value

(b) Dissipation Factor : Not Exceed 200% of Initial Requirement

DIAGRAM OF DIMENSIONS

Dimensions : mm

Rubber Stand-off

Vinyl Sleeve

(P.V.C)

Rubber End Seal

Vinyl Sleeve

(P.V.C)

Rubber End Seal

Dø

4.0

5.0

6.0

F±0.5

1.5

2.0

2.5

3.5

5.0

dø

0.45

0.5

F±0.5

15Min.

5Min.

D±0.5

0.4Max.

15Min.

5Min.

D±0.5

8.0

10.0

12.0

13.0

16.0

18.0

22.0

0.6

≤

13≤ L

≤

≥

L + 1.5Max.

+1.0

-0.5

L + 2.0Max.

7.5

10.0

0.8
