A Business Partner of Renesas Electronics Corporation.

PS7902-1A

OCMOS FET

Specifications in this document are tentative and subject to change.

Preliminary

Data Sheet

Mar 7, 2012

4-PIN SMALL FLAT-LEAD, LOW ON-STATE RESISTANCE

1-ch Optical Coupled MOS FET

DESCRIPTION

The PS7902-1A is a low output capacitance solid state relay containing a GaAs LED on the light emitting side (input

side) and MOS FETs on the output side.

A small flat-lead package has been provided which realizes a reduction in mounting area of about 50% compared with

the PS78xx series.

It is suitable for high-frequency signal control, due to its low C R, low output capacitance, and low off-state leakage

current.

FEATURES

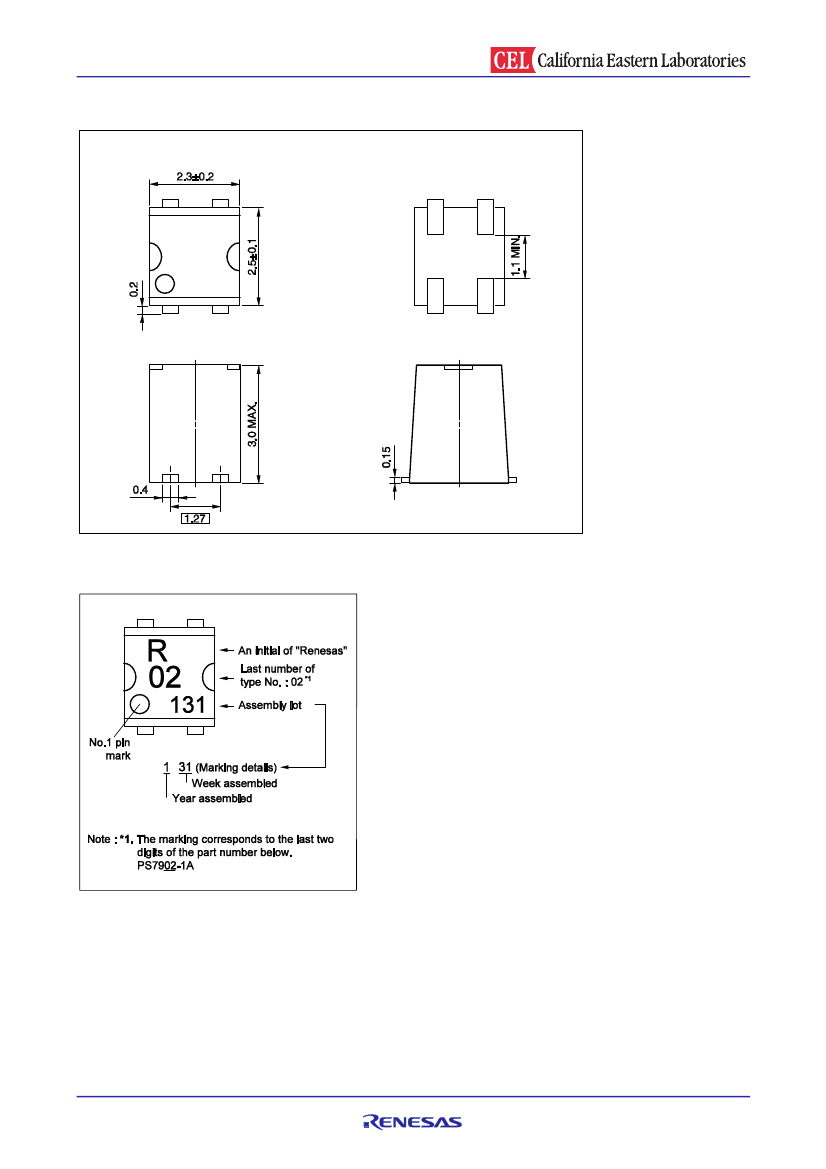

Small flat-lead package (2.5 (L) 2.3 (W) 2.9 (H) mm)

Low C R (C R = 12.6 pF • )

Low on-state resistance (R

= 1.1 TYP.)

High pass characteristics (ERT = 42 ps TYP.)

1 channel type (1 a output)

Designed for AC/DC switching line changer

Low offset voltage

Embossed tape product : PS7902-1A-F3

: 3 500 pcs/reel

Pb-Free product

APPLICATIONS

Measurement equipment

Mar 7, 2012

Page 1 of 6
