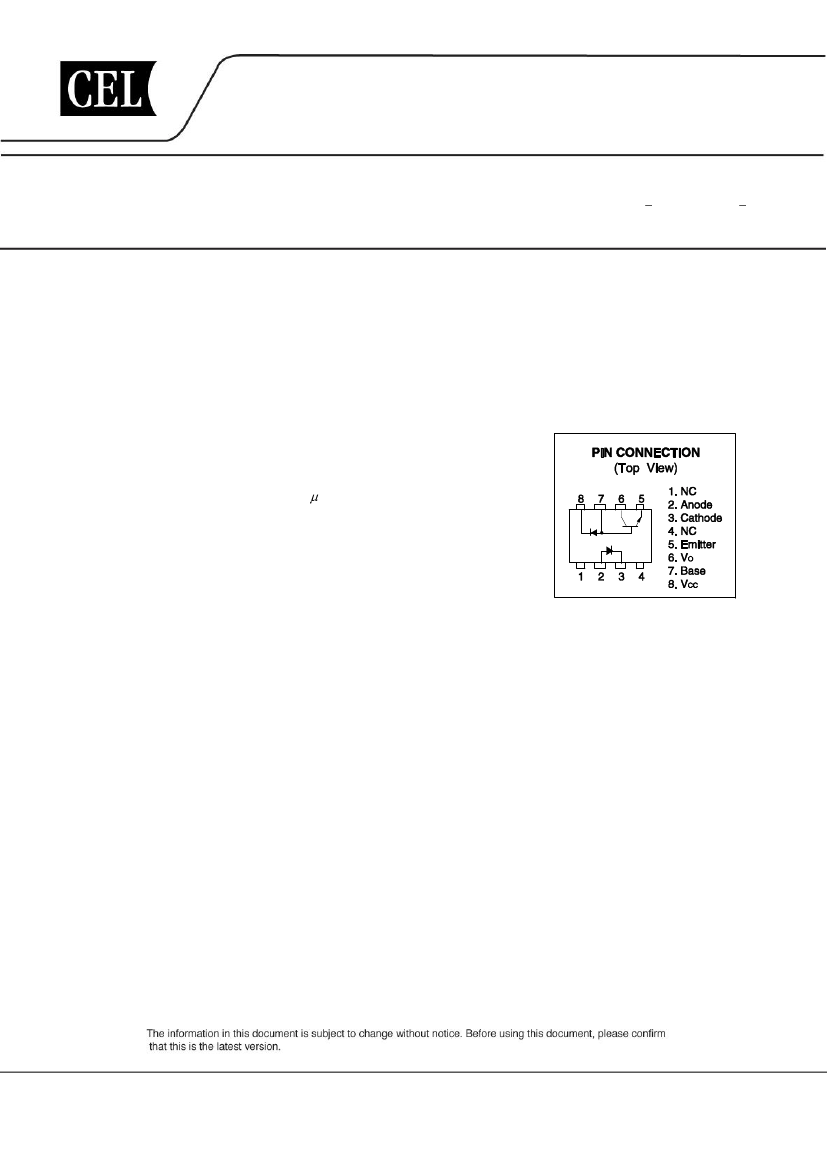

PHOTOCOUPLER
PS8501,PS8501L1,PS8501L2,PS8501L3
HIGH SPEED ANALOG OUTPUT TYPE
8 mm CREEPAGE 8-PIN PHOTOCOUPLER
NEPOC Series
DESCRIPTION
The PS8501, PS8501L1, PS8501L2 and PS8501L3 are 8-pin high speed photocouplers containing a GaAIAs LED
on input side and a PN photodiode and a high speed amplifier transistor on output side on one chip. The PS8501 is

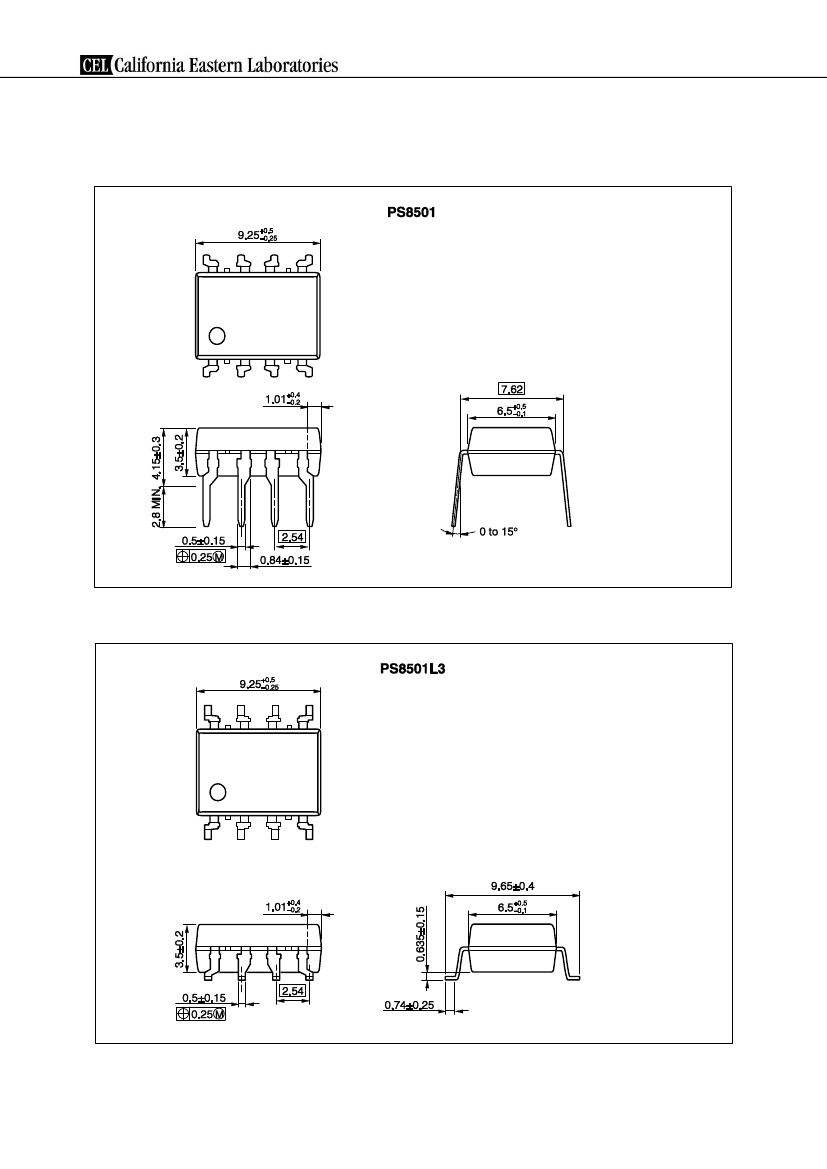

in a plastic DIP (Dual In-line Package) with 8 mm creepage distance product.

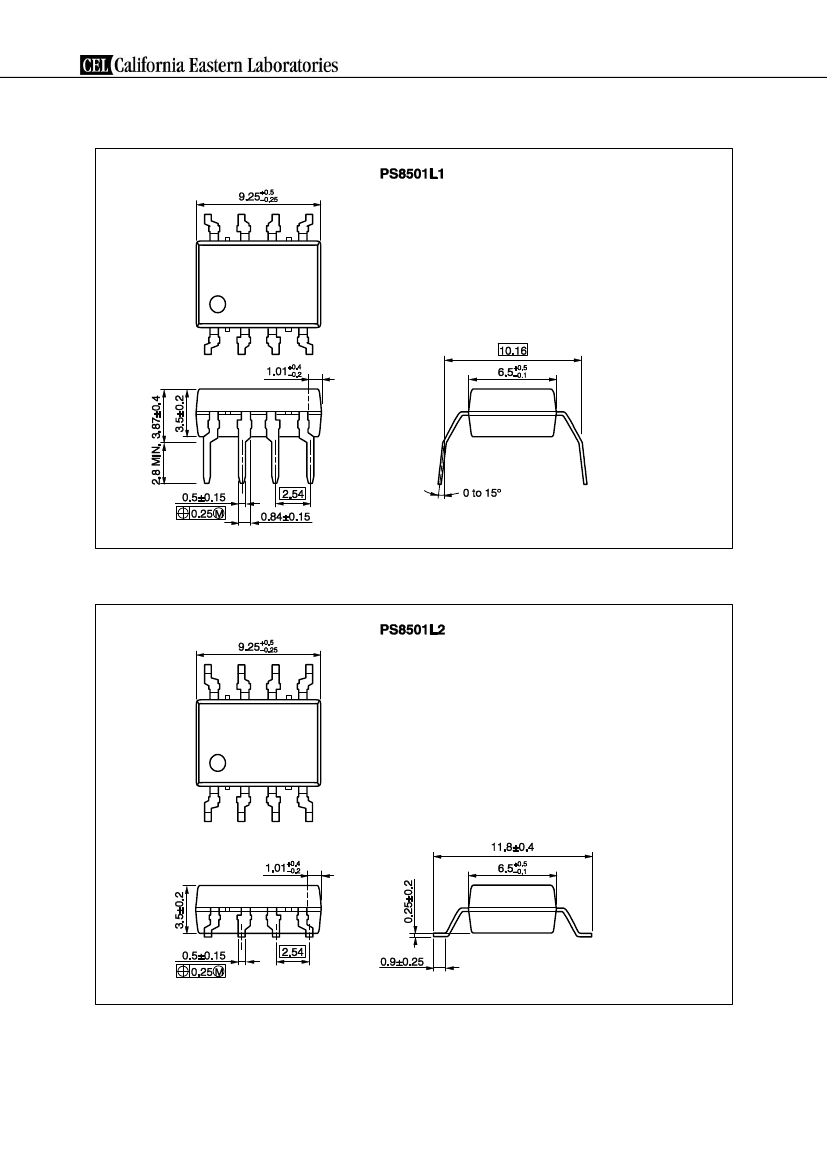

The PS8501L1 is lead bending type for long creepage distance.
The PS8501L2 is lead bending type for long creepage distance (Gull-wing) for surface mount.
The PS8501L3 is lead bending type (Gull-wing) for surface mounting.
FEATURES
• Long creepage distance (8 mm MIN.: PS8501L1, PS8501L2)
• High supply voltage (V
CC
= 35 V MAX.)
• High speed response (t
PHL
, t
PLH
= 0.8 s MAX.)
• High isolation voltage (BV = 5 000 Vr.m.s.)
• TTL, CMOS compatible with a resistor
• Ordering number of tape product: PS8501L2-E3: 1 000 pcs/reel
: PS8501L3-E3: 1 000 pcs/reel
• Pb-Free product
• Safety standards
• UL approved: No. E72422
<R>
• CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
• BSI approved: No. 8937, 8938
• SEMKO approved: No. 615433
• NEMKO approved: No. P06207243
• DEMKO approved: No. 314091
• FIMKO approved: No. FI 22827
<R>
• DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40019182 (Option)
APPLICATIONS
• Interface for measurement or control equipment
• Substitutions for relays and pulse transformers
• Modem, communications device
• General purpose inverter
Document No. PN10656EJ04V0DS (4th edition)
Date Published September 2009 NS
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
PS8501,PS8501L1,PS8501L2,PS8501L3
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance (MIN.)
Outer Creepage Distance (MIN.)
Isolation Distance (MIN.)
PS8501, PS8501L3
7 mm
7 mm
0.4 mm
PS8501L1, PS8501L2
8 mm
8 mm
0.4 mm
<R>
MARKING EXAMPLE
4
Data Sheet PN10656EJ04V0DS
PS8501,PS8501L1,PS8501L2,PS8501L3
ORDERING INFORMATION
Part Number
Order Number
Solder Plating
Specification
Pb-Free
(Ni/Pd/Au)
Packing Style
Safety Standard
Approval
Standard products
(UL, CSA, BSI,
SEMKO, NEMKO,
DEMKO, FIMKO
Embossed Tape 1 000 pcs/reel
approved)
Application Part
Number*
1
PS8501
PS8501L1
PS8501L2
PS8501L3
PS8501L2
PS8501L3
Magazine case 50 pcs
DIN EN60747-5-2
(VDE0884 Part2)
Approved (Option)
PS8501
PS8501L1
PS8501L2
PS8501L3
Embossed Tape 1 000 pcs/reel
PS8501L2
PS8501L3
PS8501
PS8501L1
PS8501L2
PS8501L3
PS8501L2-E3
PS8501L3-E3
PS8501-V
PS8501L1-V
PS8501L2-V
PS8501L3-V
PS8501L2-V-E3
PS8501L3-V-E3
PS8501-AX
PS8501L1-AX
PS8501L2-AX
PS8501L3-AX
PS8501L2-E3-AX
PS8501L3-E3-AX
PS8501-V-AX
PS8501L1-V-AX
PS8501L2-V-AX
PS8501L3-V-AX
PS8501L2-V-E3-AX
PS8501L3-V-E3-AX
Magazine case 50 pcs
*1
For the application of the Safety Standard, following part number should be used.
ABSOLUTE MAXIMUM RATINGS (T
A
= 25 C, unless otherwise specified)
Parameter
Diode
Forward Current
*1
Reverse Voltage
Detecto
r
Symbol
I
F
V
R
V
CC
Ratings
25
5
35
Unit
mA
V
V
Supply Voltage
Output Voltage
Output Current
Power Dissipation
*2
Isolation Voltage
*3
Operating Ambient Temperature
Storage Temperature
V
O
I
O
P
C
BV
T
A
T
stg
35
8
100
5 000
55 to +100
55 to +125
V
mA
mW
Vr.m.s.
C
C
*1
Reduced to 0.33 mA/ C at T
A
= 70 C or more.
*2
Reduced to 2.0 mW/ C at T
A
= 75 C or more.
*3
AC voltage for 1 minute at T
A
= 25 C, RH = 60% between input and output.
Pins 1-4 shorted together, 5-8 shorted together.
Data Sheet PN10656EJ04V0DS
5
