KUINTEL386SXSA40: DescriptionMicroprocessor, 32-Bit, 40MHz, CMOS, PQFP100, PLASTIC, QFP-100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size468KB，20 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

KUINTEL386SXSA40 Overview

Microprocessor, 32-Bit, 40MHz, CMOS, PQFP100, PLASTIC, QFP-100

KUINTEL386SXSA40 Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	QFP
package instruction	BQFP,
Contacts	100
Reach Compliance Code	compliant
ECCN code	3A001.A.3
Other features	NUMERIC COPROCESSOR INTERFACE
Address bus width	24
bit size	32
boundary scan	NO
maximum clock frequency	80 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G100
length	19.05 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	100
On-chip data RAM width
Maximum operating temperature	45 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	BQFP
Package shape	SQUARE
Package form	FLATPACK, BUMPER
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
speed	40 MHz
Maximum slew rate	275 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

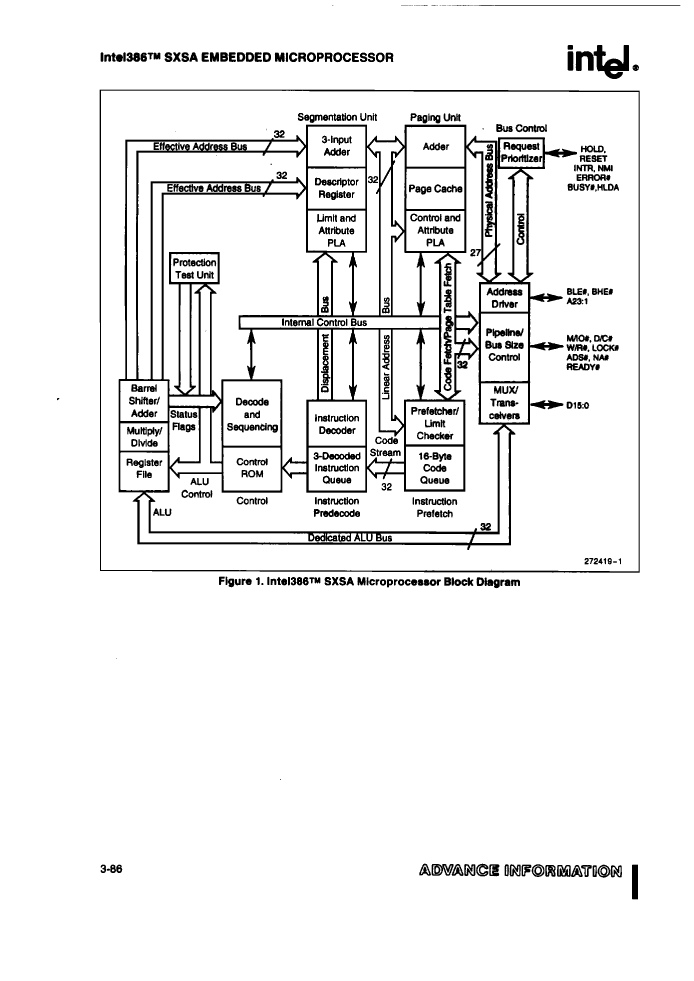

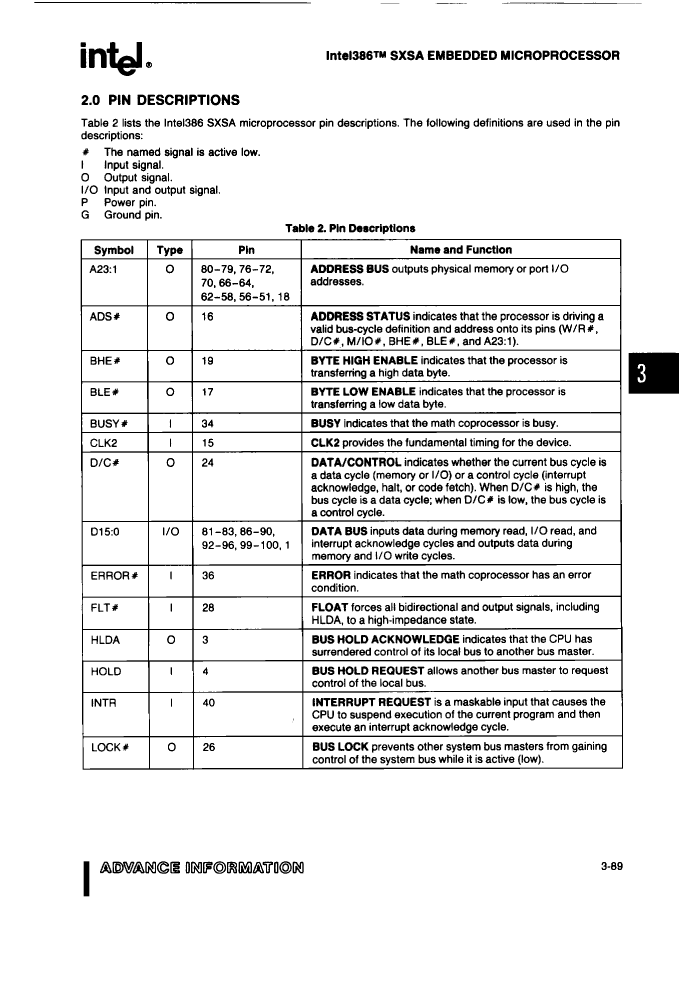

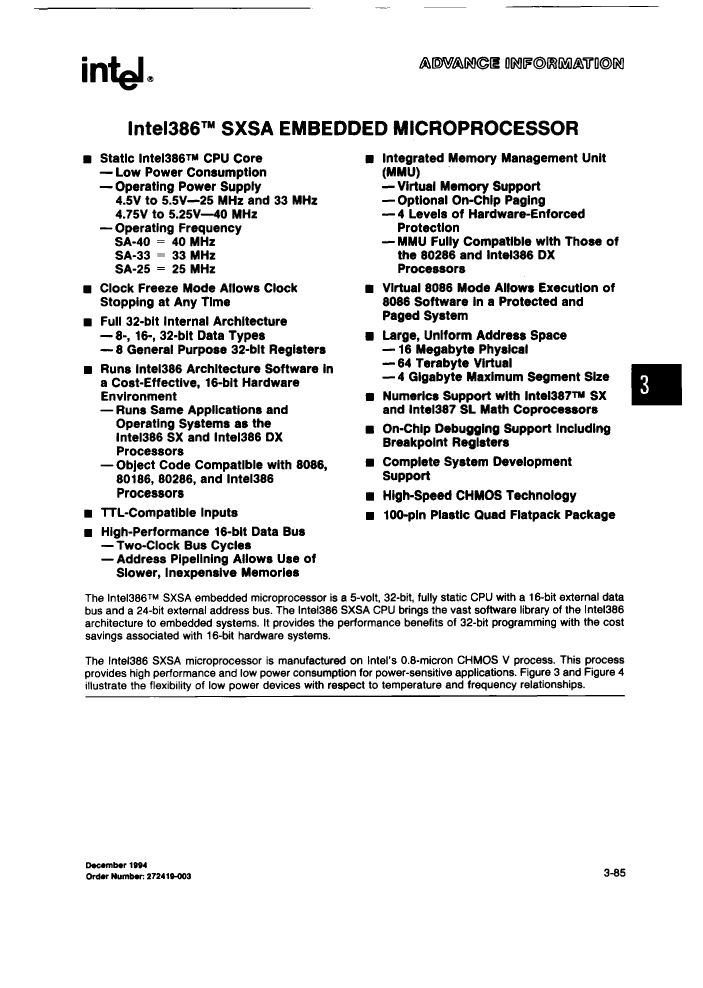

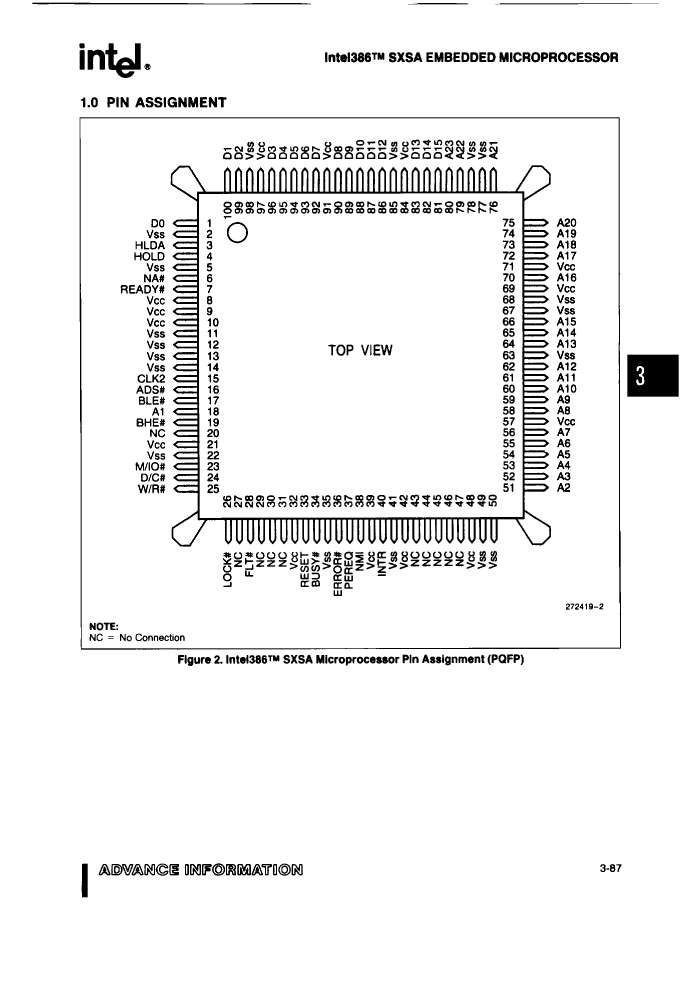

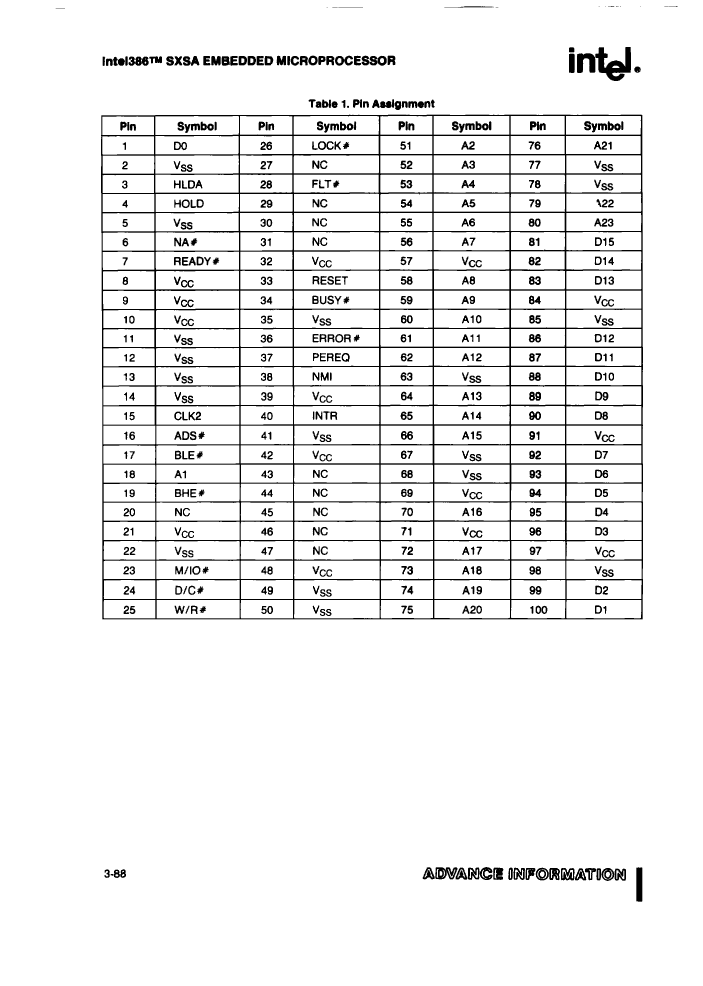

Preview

Download Datasheet

View All

KUINTEL386SXSA40 Related Products

	KUINTEL386SXSA40	KDINTEL386SXSA33	KUINTEL386SXSA25	KUINTEL386SXSA33	KDINTEL386SXSA25	KDINTEL386SXSA40
Description	Microprocessor, 32-Bit, 40MHz, CMOS, PQFP100, PLASTIC, QFP-100	Microprocessor, 32-Bit, 33MHz, CMOS, PQFP100, PLASTIC, QFP-100	Microprocessor, 32-Bit, 25MHz, CMOS, PQFP100, PLASTIC, QFP-100	Microprocessor, 32-Bit, 33MHz, CMOS, PQFP100, PLASTIC, QFP-100	Microprocessor, 32-Bit, 25MHz, CMOS, PQFP100, PLASTIC, QFP-100	Microprocessor, 32-Bit, 40MHz, CMOS, PQFP100, PLASTIC, QFP-100
Maker	Intel	Intel	Intel	Intel	Intel	Intel
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	BQFP,	BQFP,	BQFP,	BQFP,	BQFP,	BQFP,
Contacts	100	100	100	100	100	100
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3
Other features	NUMERIC COPROCESSOR INTERFACE	NUMERIC COPROCESSOR INTERFACE	NUMERIC COPROCESSOR INTERFACE	NUMERIC COPROCESSOR INTERFACE	NUMERIC COPROCESSOR INTERFACE	NUMERIC COPROCESSOR INTERFACE
Address bus width	24	24	24	24	24	24
bit size	32	32	32	32	32	32
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	80 MHz	66 MHz	50 MHz	66 MHz	50 MHz	80 MHz
External data bus width	16	16	16	16	16	16
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100
length	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm
low power mode	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	2	2	2	2	2	2
Number of terminals	100	100	100	100	100	100
Maximum operating temperature	45 °C	58 °C	70 °C	58 °C	70 °C	45 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BQFP	BQFP	BQFP	BQFP	BQFP	BQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm
speed	40 MHz	33 MHz	25 MHz	33 MHz	25 MHz	40 MHz
Maximum slew rate	275 mA	225 mA	175 mA	225 mA	175 mA	275 mA
Maximum supply voltage	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
