0.6 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 6-PIN SDIP PHOTOCOUPLER
Oct. 12, 2011
DESCRIPTION
The PS9307L and PS9307L2 are optical coupled isolators containing a GaAlAs LED on the input side and a photo
diode, a signal processing circuit and a power output transistor on the output side on one chip.
The PS9307L and PS9307L2 are in 6-pin plastic SDIP (Shrink Dual In-line Package). The PS9307L2 has 8 mm
creepage distance. The mount area of 6-pin plastic SDIP is half size of 8-pin DIP.
The PS9307L and PS9307L2 are designed specifically for high common mode transient immunity (CMR) and high
switching speed. It is suitable for driving IGBTs and MOS FETs.
The PS9307L is lead bending type (Gull-wing) for surface mounting.
The PS9307L2 is lead bending type for long creepage distance (Gull-wing) for surface mount.
FEATURES
•
•
•
•
•
•
•
•
Long creepage distance (8 mm MIN.: PS9307L2)
Half size of 8-pin DIP
Peak output current (0.6 A MAX., 0.4 A MIN.)
High speed switching (t
PLH
,
t
PHL
= 0.25 s MAX.)
High common mode transient immunity (CM
H
, CM
L
=
±50
kV/ s MIN.)
Embossed tape product : PS9307L-E3 : 2 000 pcs/reel
: PS9307L2-E3: 2 000 pcs/reel
Pb-Free product
Safety standards
•
UL approved: No. E72422
•
CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
•
SEMKO approved: No. 1115598
•
DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40024069 (Option)
APPLICATIONS
•
•
•
IGBT, Power MOS FET Gate Driver
Industrial inverter
AC Servo
Oct. 12, 2011
Page 1 of 6
Preliminary document
Specifications in this document are tentative and subject to change.
A Business Partner of Renesas Electronics Corporation.
PS9307L,PS9307L2
Chapter Title

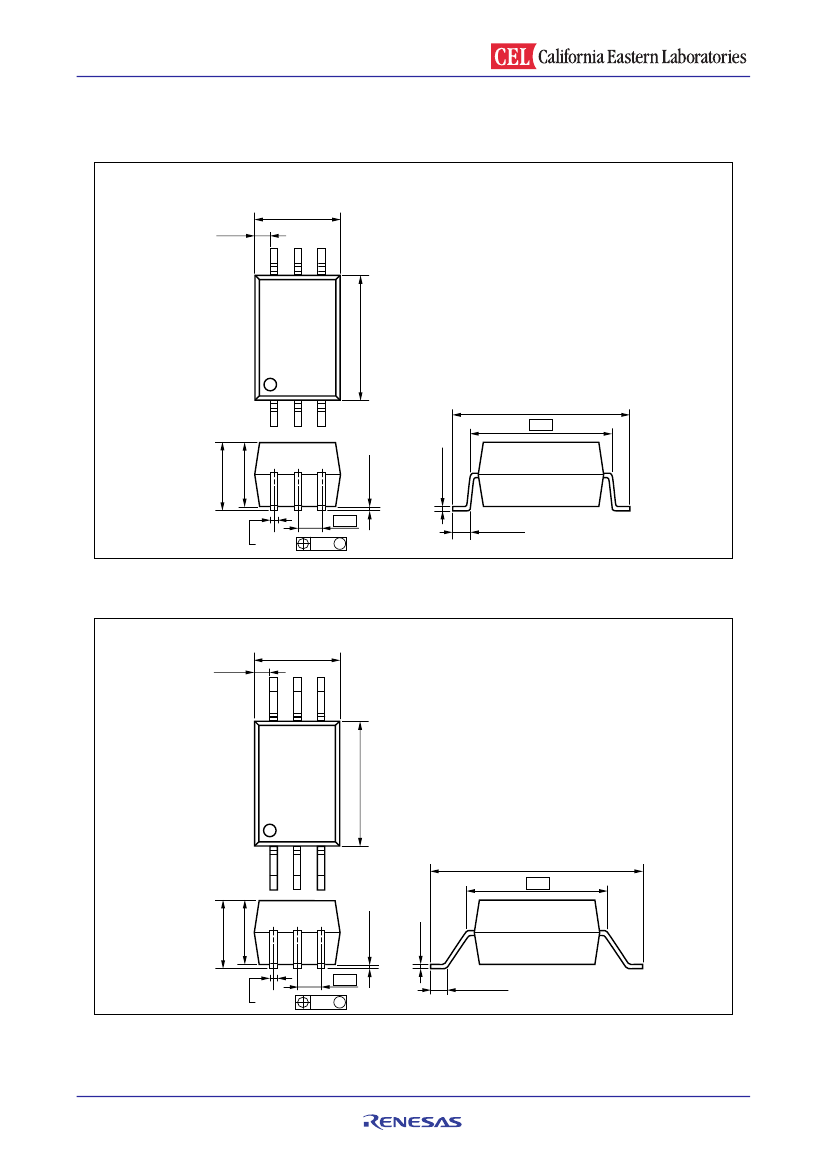

PACKAGE DIMENSIONS (UNIT: mm)
Lead Bending Type (Gull-wing) For Surface Mount
PS9307L
(0.82)
4.58±0.3
6.8±0.25
9.7±0.3
7.62
1.27
0.4±0.1
0.25 M
0.2±0.15
0.25±0.15
3.7±0.25
3.5±0.2
0.8±0.25
Lead Bending Type (Gull-wing) For Long Creepage Distance (Surface Mount)
PS9307L2
(0.82)
4.58±0.3
6.8±0.25
11.5±0.3
7.62
0.25±0.15
3.7±0.25
1.27
0.4±0.1
0.25 M
0.2±0.15
3.5±0.2
0.75±0.25
Oct. 12 2011
Page 2 of 6
Preliminary document
Specifications in this document are tentative and subject to change.
A Business Partner of Renesas Electronics Corporation.
PS9307L,PS9307L2
Chapter Title
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance (MIN.)
Outer Creepage Distance (MIN.)
Isolation Distance (MIN.)
PS9307L
7 mm
7 mm
0.4 mm
PS9307L2
8 mm
8 mm
0.4 mm
MARKING EXAMPLE
R
9307
N131
No. 1 pin Mark
N
1 31
Type Number
Assembly Lot
An initial of "Renesas"
Week Assembled
Year Assembled
(Last 1 Digit)
Rank Code
Oct. 12 2011
Page 3 of 6
Preliminary document
Specifications in this document are tentative and subject to change.
A Business Partner of Renesas Electronics Corporation.
PS9307L,PS9307L2
Chapter Title
Ratings
25
1.0
Unit
mA
A
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Diode
Parameter
Forward Current
Peak Transient
Forward Current
(Pulse Width < 1 s)
Reverse Voltage
Power Dissipation
*1
Symbol
I
F
I
F (TRAN)
Detector
Low Level Peak
*2
Output Current
Supply Voltage
Output Voltage
Power Dissipation
*3
Isolation Voltage
*4
Operating Frequency
Operating Ambient Temperature
Storage Temperature
Notes: *1.
*2.
*3.
*4.
High Level Peak
*2
Output Current
I
OH (PEAK)
I
OL (PEAK)
(V
CC
−V
EE
)
V
O
P
C
BV
f
T
A
T
stg
V
R
P
D
5
45
0.6
0.6
0 to 35
0 to V
CC
250
5 000
250
−40
to +125
V
mW
A
A
V
V
mW
Vr.m.s.
kHz
°C
°C
Reduced to 1.2 mW/°C at T
A
= 110°C or more.
Maximum pulse width = 10 s, Maximum duty cycle = 0.5%
Reduced to 3.9 mW/°C at T
A
= 85°C or more.
AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output.
Pins 1-3 shorted together, 4-6 shorted together.
−55
to +150
RECOMMENDED OPERATING CONDITIONS
Parameter
Supply Voltage
Forward Current (ON)
Forward Voltage (OFF)
Operating Ambient Temperature
Symbol
(V
CC
−V
EE
)
I
F (ON)
V
F (OFF)
T
A
MIN.
10
8
−2
−40
TYP.
MAX.
30
12
0.8
125
Unit
V
mA
V
°C
Oct. 12 2011
Page 4 of 6
Preliminary document
Specifications in this document are tentative and subject to change.
A Business Partner of Renesas Electronics Corporation.
PS9307L,PS9307L2
Chapter Title
ELECTRICAL CHARACTERISTICS (T
A
=
−40
to +125°C, V
CC
= 10 to 30 V, I
F (ON)
= 8 to
12 mA, V
F (OFF)
=
−2
to 0.8 V, V
EE
= GND, unless otherwise specified)
Diode
Parameter
Forward Voltage
Reverse Current
Input Capacitance
High Level Output Current
Low Level Output Current
High Level Output Voltage
Low Level Output Voltage
High Level Supply Current
Low Level Supply Current
Symbol
V
F
I
R
C
IN
I
OH
I
OL
V
OH
V
OL
I
CCH
I
CCL
I
FLH
Conditions
I
F
= 10 mA, T
A
= 25°C
V
R
= 3 V, T
A
= 25°C
f = 1 MHz, V
F
= 0 V
V
O
= (V
CC
−4
V)
*2
V
O
= (V
CC
−10
V)
*3
*2
MIN.
1.3
TYP.
*1
1.56
30
0.7
MAX.
1.8
10
Detector
Coupled
Threshold Input Current
(L
H)
V
O
= (V
EE
+2.5 V)
V
O
= (V
EE
+10 V)
*3
I
F
= 10 mA, I
O
= 100 mA
*4
I
F
= 0 mA, I
O
= 100 mA
I
F
= 10 mA, I
O
= 0 mA
I
F
= 0 mA, I
O
= 0 mA
I
O
= 0 mA, V
O
> 5 V
I
O
= 0 mA, V
O
< 5 V
0.2
0.4
0.7
V
CC
−3.0
V
CC
−1.7
0.4
1.2
1.3
2.1
0.8
0.2
0.4
Unit
V
A
pF
A
A
V
V
mA
mA
mA
V
1.0
2.0
2.0
5.0
Notes: *1.
*2.
*3.
*4.
Typical values at T
A
= 25°C, V
CC
−V
EE
= 30 V.
Maximum pulse width = 50 s, Maximum duty cycle = 0.2%.
Maximum pulse width = 10 s, Maximum duty cycle = 0.5%.
V
OH
is measured with the DC load current in this testing.
Threshold Input Voltage
(H
L)
V
FHL
SWITCHING CHARACTERISTICS (T
A
=
−40
to +125°C, V
CC
= 10 to 30 V, I
F (ON)
= 8 to
12 mA, V
F (OFF)
=
−2
to 0.8 V, V
EE
= GND, unless otherwise specified)
Parameter
Symbol
Propagation Delay Time (L
H)
t
PLH
Propagation Delay Time (H
L)
t
PHL
Pulse Width Distortion (PWD)
|t
PHL
−t
PLH
|
t
PHL
−t
PLH
Propagation Delay Time
(Difference Between Any Two
Products)
Rise Time
Fall Time
t
r
t
f
Conditions
R
g
= 47 , C
g
= 3 nF,
f = 50 kHz,
Duty Cycle = 50%
*2
,
I
F
= 10 mA,
V
CC
= 30 V
MIN.
0.040
0.040
−0.120
TYP.
*1
0.075
0.090
MAX.
0.175
0.175
0.090
0.120
Unit
s
s
s
s
Common Mode Transient
Immunity at High Level Output
Common Mode Transient
Immunity at Low Level Output
|CM
H
|
|CM
L
|
T
A
= 25°C, I
F
= 10 mA,
V
CC
= 30 V, V
CM
= 1.5 kV
50
50
30
30
kV/ s
kV/ s
ns
ns
Notes: *1. Typical values at T
A
= 25°C, V
CC
−V
EE
= 30 V.
*2. This load condition is equivalent to the IGBT load at 1 200 V/25 A.
T
A
= 25°C, V
F
= 0 mA,
V
CC
= 30 V, V
CM
= 1.5 kV
Oct. 12 2011
Page 5 of 6
