PS-250-2A-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PS-250-2A-15

PS-250-2A-15: DescriptionCombination Line Connector, 2 Contact(s), Female, Crimp Terminal; CategoryThe connector The connector; File Size195KB，6 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

PS-250-2A-15 Overview

Combination Line Connector, 2 Contact(s), Female, Crimp Terminal

PS-250-2A-15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	COMPATIBLE CONTACTS: SPS-21T-250; SPS-61T-250; SPS-91T-250
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	250
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYAMIDE66
Termination type	CRIMP
Total number of contacts	2
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

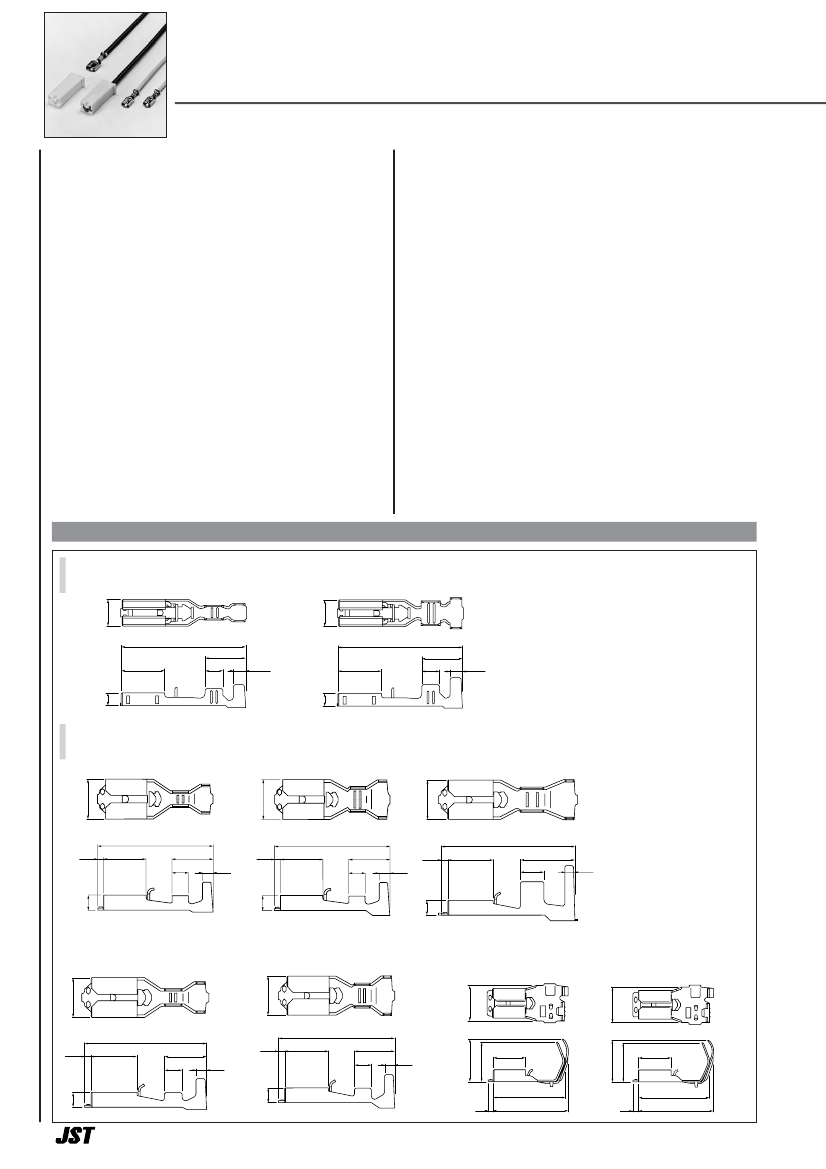

CONNECTOR

Connectors for tabs

• Secure locking, easy insertion

• Stable contact performance

• Mis-insertion prevention mechanism and

housing lance

Specifications –––––––––––––––––––

• Current rating: 25A AC, DC(#250/AWG #10)

• Voltage rating: 250V AC, DC

• Temperature range:

40˚C to

105˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/ 3m

Ω

max.

After environmental testing/ 6m

Ω

max.

• Insulation resistance: 1,000M

Ω

min.

• Withstanding voltage: 2,000V AC/ minute

• Applicable wire: #110...AWG #24 to #16

#187...AWG #26 to #14

#205...AWG #22 to #14

#250...AWG #22 to #10

• Applicable Tab: #110 Tab 0.5mm thick

#187 Tab 0.5mm/0.8mm thick

#205 Tab 0.5mm/0.8mm thick

#250 Tab 0.8mm thick

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––

Certified LR20812

R9850196

Recognized E60389

Contact

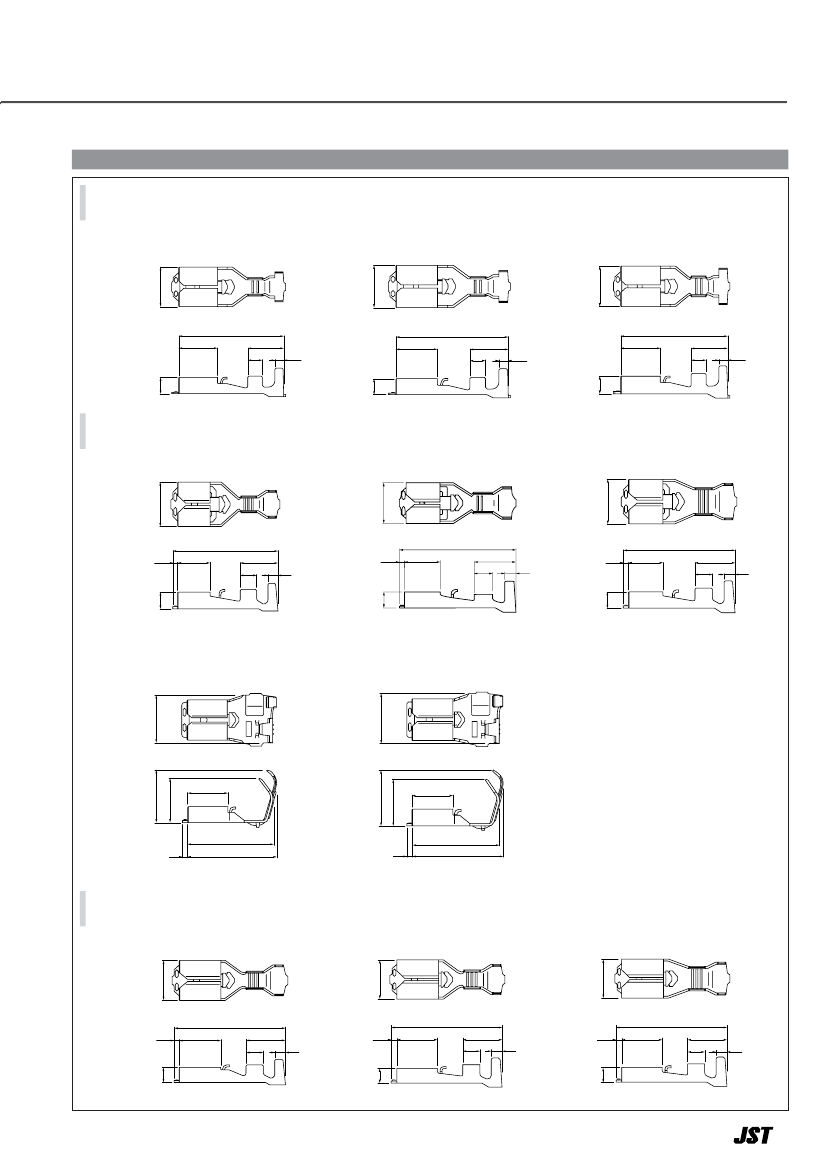

#110 Series

SPS-01T-110

3.7

SPS-41T-110

3.7

17.2

5.7

17.2

5.7

1.75

2.5

1.75

2.5

1.8

#187 Series

SPS-01T-187

(for 0.5mm thick tabs)

SPS-51T-187

(for 0.5mm thick tabs)

1.8

SPS-82T-187

(for 0.5mm thick tabs)

5.6

17.2

0.9

6.4

2.5

1.5

0.9

6.4

5.6

17.2

6.1

2.5

1.6

0.8

6.4

5.6

18.8

7.7

3.2

1.7

2.2

SPS-01T-187-8

(for 0.8mm thick tabs)

SPS-51T-187-8

(for 0.8mm thick tabs)

SFPS-41T-187

(for 0.5mm thick tabs)

6.8

SFPS-41T-187-8

(for 0.8mm thick tabs)

5.6

17.2

0.9

6.4

2.5

6.2

1.5

0.9

6.4

17.2

6.1

7.6

2.5

1.6

6.3

2.2

13.9

14.7

7.6

6.8

13.9

14.7
