HS0-26CLV32RH-Q Overview

QUAD LINE RECEIVER, UUC16, DIE-16

HS0-26CLV32RH-Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renesas Electronics Corporation
Parts packaging code	DIE
package instruction	DIE,
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-422
JESD-30 code	R-XUUC-N16
JESD-609 code	e4
Number of functions	4
Number of terminals	16
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Number of receiver bits	4
Filter level	MIL-PRF-38535 Class V
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Terminal surface	Gold (Au)
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	300k Rad(Si) V

Preview

Download Datasheet

View All

DATASHEET

HS-26CLV32RH, HS-26CLV32EH

Radiation Hardened 3.3V Quad Differential Line Receivers

The Intersil

HS-26CLV32RH, HS-26CLV32EH

are radiation

hardened 3.3V quad differential line receivers designed for

digital data transmission over balanced lines, in low voltage,

RS-422 protocol applications. Radiation hardened CMOS

processing assures low power consumption, high speed, and

reliable operation in the most severe radiation environments.

The HS-26CLV32RH, HS-26CLV32EH have an input sensitivity

of 200mV (typical) over a common-mode input voltage range

of -4V to +7V. The receivers are also equipped with input

fail-safe circuitry, which causes the outputs to go to a logic “1”

when the inputs are open. The device has unique inputs that

remain high impedance when the receiver is disabled or

powered-down, maintaining signal integrity in multi-receiver

applications.

Specifications for Rad Hard QML devices are controlled by the

Defense Logistics Agency Land and Maritime (DLA). The SMD

numbers listed must be used when ordering.

FN4907

Rev 6.00

February 6, 2017

Features

• Electrically screened to SMD #

5962-95689

• QML qualified per MIL-PRF-38535 requirements

• 1.2 micron radiation hardened CMOS

- Total dose . . . . . . . . . . . . . . . . . . . . . . . . . 300krad(Si) (max)

- Single event upset LET . . . . . . . . . . . . . 100MeV/mg/cm

)

- Single event latch-up immune

• Low stand-by current . . . . . . . . . . . . . . . . . . . . . . . 13mA (max)

• Operating supply range . . . . . . . . . . . . . . . . . . . . . 3.0V to 3.6V

• Enable input levels. . . . . . . . .V

> 0.7 x V

; V

< 0.3 x V

• CMOS output levels . . . . . . . . . . . . . .V

> 2.55V; V

< 0.4V

• Input fail-safe circuitry

• High impedance inputs when disabled or powered-down

• Full -55°C to +125°C military temperature range

• Pb-free (RoHS compliant)

Related Literature

• For a full list of related documents, visit our website

HS-26CLV32RH

and

HS-26CLV32EH

product pages

Applications

• Line receiver for MIL-STD-1553 serial data bus

ENABLE

ENABLE DIN DIN

CIN CIN

BIN BIN

AIN AIN

DOUT

COUT

BOUT

AOUT

FIGURE 1. LOGIC DIAGRAM

FN4907 Rev 6.00

February 6, 2017

Page 1 of 6

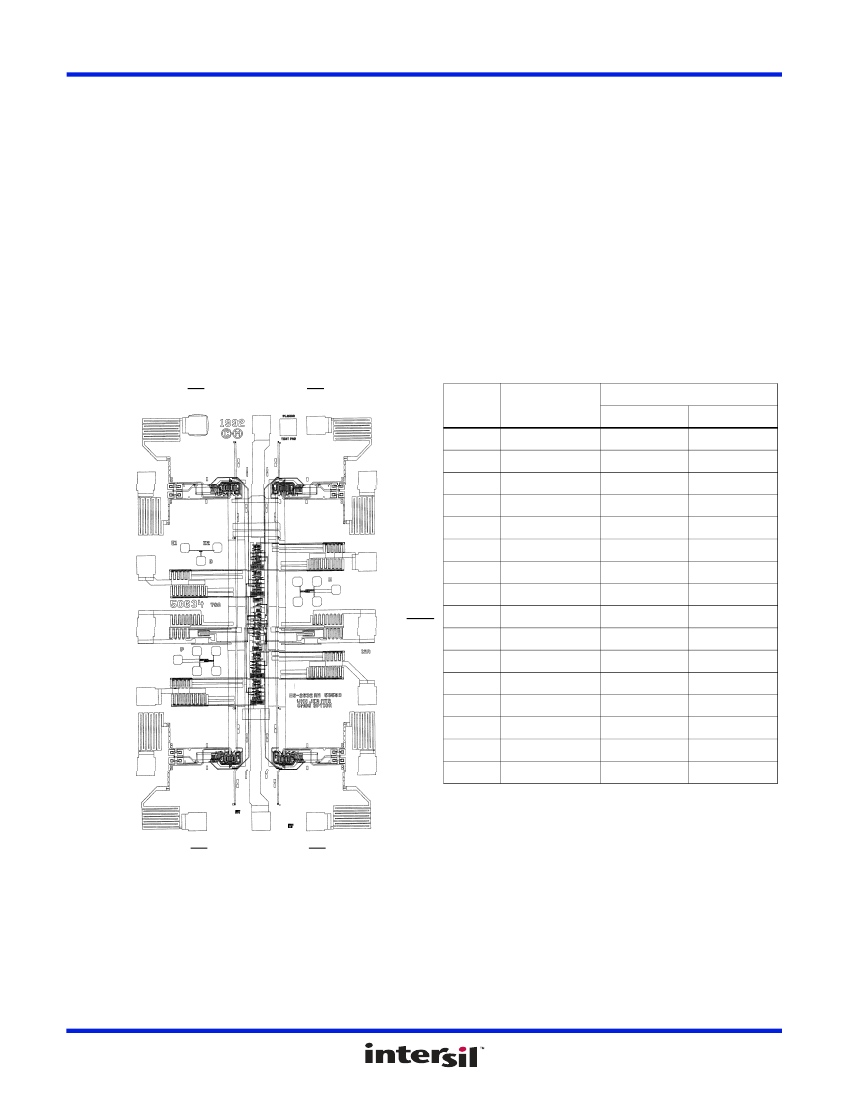

HS-26CLV32RH, HS-26CLV32EH

The revision history provided is for informational purposes only and is believed to be accurate, but not warranted.

Please visit our website to make sure you have the latest revision.

DATE

February 6, 2017

REVISION

FN4907.6

CHANGE

Added Related Literature section.

Updated Ordering Information table on page 2.

Added Note 2 on page 2.

Added Revision History and About Intersil sections.

Added POD drawings.

Revision History

About Intersil

Intersil Corporation is a leading provider of innovative power management and precision analog solutions. The company's products

address some of the largest markets within the industrial and infrastructure, mobile computing, and high-end consumer markets.

For the most updated datasheet, application notes, related documentation, and related parts, see the respective product information

page found at

www.intersil.com.

For a listing of definitions and abbreviations of common terms used in our documents, visit:

www.intersil.com/glossary.

You may report errors or suggestions for improving this datasheet by visiting

www.intersil.com/ask.

Reliability reports are also available from our website at

www.intersil.com/support.

All trademarks and registered trademarks are the property of their respective owners.

For additional products, see

www.intersil.com/en/products.html

Intersil products are manufactured, assembled and tested utilizing ISO9001 quality systems as noted

in the quality certifications found at

www.intersil.com/en/support/qualandreliability.html

Intersil products are sold by description only. Intersil may modify the circuit design and/or specifications of products at any time without notice, provided that such

modification does not, in Intersil's sole judgment, affect the form, fit or function of the product. Accordingly, the reader is cautioned to verify that datasheets are

current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its

subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or

otherwise under any patent or patent rights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see

www.intersil.com

FN4907 Rev 6.00

February 6, 2017

Page 4 of 6

HS0-26CLV32RH-Q Related Products

	HS0-26CLV32RH-Q	HS1-26CLV32RH/PROTO	HS9-26CLV32RH/PROTO	HS1-26CLV32EH-Q	HS1-26CLV32RH-8	HS9-26CLV32RH-Q	HS1-26CLV32RH-Q
Description	QUAD LINE RECEIVER, UUC16, DIE-16	QUAD LINE RECEIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	QUAD LINE RECEIVER, CDFP16, CERAMIC, DFP-16	IC,LINE RECEIVER,QUAD,CMOS, RAD HARD,DIFFERENTIAL,DIP,16PIN,CERAMIC	QUAD LINE RECEIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	QUAD LINE RECEIVER, CDFP16, CERAMIC, DFP-16	QUAD LINE RECEIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16
Is it Rohs certified?	conform to	incompatible	conform to	conform to	conform to	conform to	conform to
package instruction	DIE,	DIP,	DFP,	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	EIA-422	EIA-422	EIA-422	EIA-422	EIA-422	EIA-422	EIA-422
JESD-30 code	R-XUUC-N16	R-CDIP-T16	R-CDFP-F16	R-CDIP-T16	R-CDIP-T16	R-CDFP-F16	R-CDIP-T16
Number of functions	4	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16	16
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIE	DIP	DFP	DIP	DIP	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE	FLATPACK	IN-LINE	IN-LINE	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Number of receiver bits	4	4	4	4	4	4	4
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	NO	YES	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal location	UPPER	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
Is it lead-free?	Lead free	Contains lead	Contains lead	-	Lead free	Lead free	Lead free
Maker	Renesas Electronics Corporation	-	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIE	DIP	DFP	-	DIP	DFP	DIP
Contacts	16	16	16	-	16	16	16
ECCN code	EAR99	EAR99	USML XV(E)	-	EAR99	USML XV(E)	EAR99
JESD-609 code	e4	e0	e4	-	e4	e4	e4
Filter level	MIL-PRF-38535 Class V	-	-	-	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V
Terminal surface	Gold (Au)	TIN LEAD	Gold (Au)	-	Gold (Au)	Gold (Au)	Gold (Au)
Maximum operating temperature	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum seat height	-	5.08 mm	2.92 mm	5.08 mm	5.08 mm	2.92 mm	5.08 mm
Temperature level	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal pitch	-	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
width	-	7.62 mm	6.73 mm	7.62 mm	7.62 mm	6.73 mm	7.62 mm
Maximum output low current	-	-	-	0.006 A	0.006 A	0.006 A	0.006 A
Encapsulate equivalent code	-	-	-	DIP16,.3	DIP16,.3	FL16,.3	DIP16,.3
power supply	-	-	-	3.3 V	3.3 V	3.3 V	3.3 V
