87680-8001 datasheet, PDF - EEWORLD Datasheet

87680-8001: DescriptionRectangular Power Connector, 2 Contact(s), Female, Press Fit Terminal, Receptacle,; CategoryThe connector The connector; File Size137KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

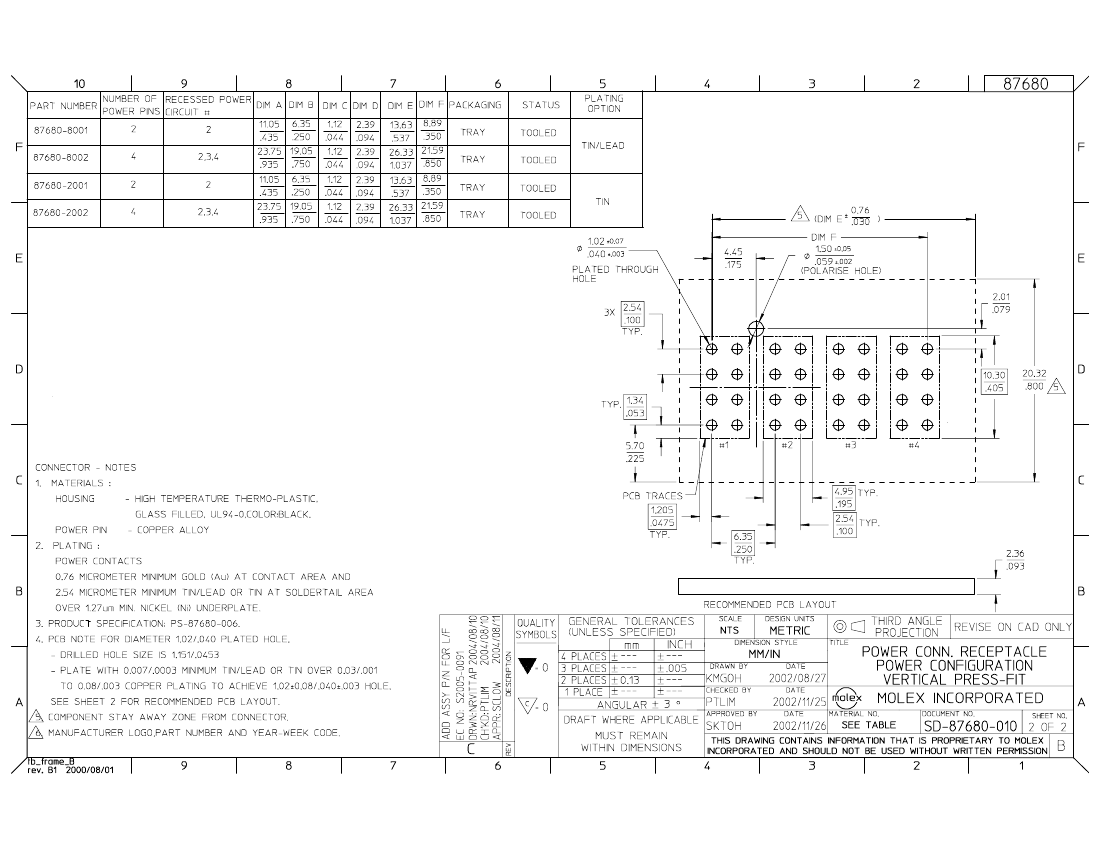

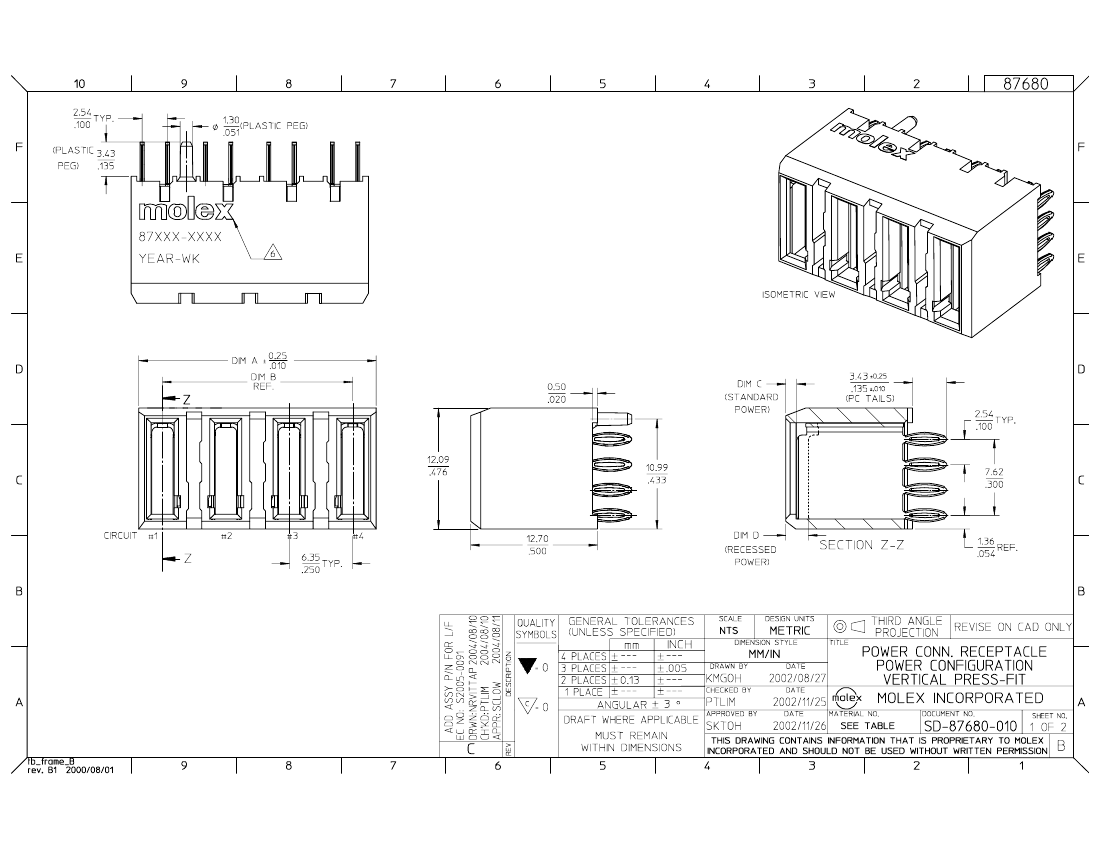

87680-8001 Overview

Rectangular Power Connector, 2 Contact(s), Female, Press Fit Terminal, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TRAY PACKAGING
Board mount options	PEG
body width	0.476 inch
subject depth	0.5 inch
body length	0.435 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	0.5 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2500VAC V
Durability	100 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	20000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYETHYLENE
Terminal length	0.135 inch
Termination type	PRESS FIT
Total number of contacts	2
UL Flammability Code	94V-0
Evacuation force-minimum value	2.224 N

	87680-8001	87680-8002
Description	Rectangular Power Connector, 2 Contact(s), Female, Press Fit Terminal, Receptacle,	Rectangular Power Connector, 4 Contact(s), Female, Press Fit Terminal, Receptacle
Maker	Molex	Molex
Reach Compliance Code	compliant	unknown
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (30) OVER NICKEL
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	2	4
UL Flammability Code	94V-0	94V-0
