LP2987AIMM-2.5

Description
2.5V FIXED POSITIVE LDO REGULATOR, 0.35V DROPOUT, PDSO8, MINI, SOIC-8
CategoryPower/power management    The power supply circuit
File Size2MB，40 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric Compare View All

LP2987AIMM-2.5 Overview

2.5V FIXED POSITIVE LDO REGULATOR, 0.35V DROPOUT, PDSO8, MINI, SOIC-8

LP2987AIMM-2.5 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerRochester Electronics
Parts packaging codeSOIC
package instructionTSSOP,
Contacts8
Reach Compliance Codeunknown
Maximum drop-back voltage 10.35 V
Maximum input voltage16 V
Minimum input voltage3.5 V
JESD-30 codeS-PDSO-G8
JESD-609 codee0
length3 mm
Humidity sensitivity level1
Number of functions1
Number of terminals8
Working temperatureTJ-Max125 °C
Working temperature TJ-Min-40 °C
Maximum output current 10.2 A
Maximum output voltage 12.545 V
Minimum output voltage 12.455 V
Nominal output voltage 12.5 V
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeSQUARE
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)260
Regulator typeFIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height1.09 mm
surface mountYES
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width3 mm

LP2987AIMM-2.5 Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
LP2987/LP2988 Micropower, 200 mA Ultra Low-Dropout Voltage Regulator with Programmable
Power-On Reset Delay
February 2002
LP2987/LP2988
Micropower, 200 mA Ultra Low-Dropout Voltage
Regulator with Programmable Power-On Reset Delay;
Low Noise Version Available (LP2988)
General Description
The LP2987/8 are fixed-output 200 mA precision LDO volt-
age regulators with power-ON reset delay which can be
implemented using a single external capacitor.
The LP2988 is specifically designed for noise-critical appli-
cations. A single external capacitor connected to the Bypass
pin reduces regulator output noise.
Using an optimized VIP
™
(Vertically Integrated PNP) pro-
cess, these regulators deliver superior performance:
Dropout Voltage:
180 mV
@
200 mA load, and 1 mV
@
1 mA
load (typical).
Ground Pin Current:
1 mA
@
200 mA load, and 200 µA
@
10 mA load (typical).
Sleep Mode:
The LP2987/8 draws less than 2 µA quiescent
current when shutdown pin is held low.
Error Flag/Reset:
The error flag goes low when the output
drops approximately 5% below nominal. This pin also pro-
vides a power-ON reset signal if a capacitor is connected to
the DELAY pin.
Precision Output:
Standard product versions of the LP2987
and LP2988 are available with output voltages of 5.0V, 3.8V,
3.3V, 3.2V, 3.0V, or 2.8V, with guaranteed accuracy of 0.5%
(“A” grade) and 1% (standard grade) at room temperature.
Features
n
n
n
n
n
n
n
n
n
n
n
n
Ultra low dropout voltage
Power-ON reset delay requires only one component
Bypass pin for reduced output noise (LP2988)
Guaranteed continuous output current 200 mA
Guaranteed peak output current
>
250 mA
SO-8 and mini SO-8 surface mount packages
<
2 µA quiescent current when shutdown
Low ground pin current at all loads
0.5% output voltage accuracy (“A” grade)
Wide supply voltage range (16V max)
Overtemperature/overcurrent protection
−40˚C to +125˚C junction temperature range
Applications
n
Cellular Phone
n
Palmtop/Laptop Computer
n
Camcorder, Personal Stereo, Camera

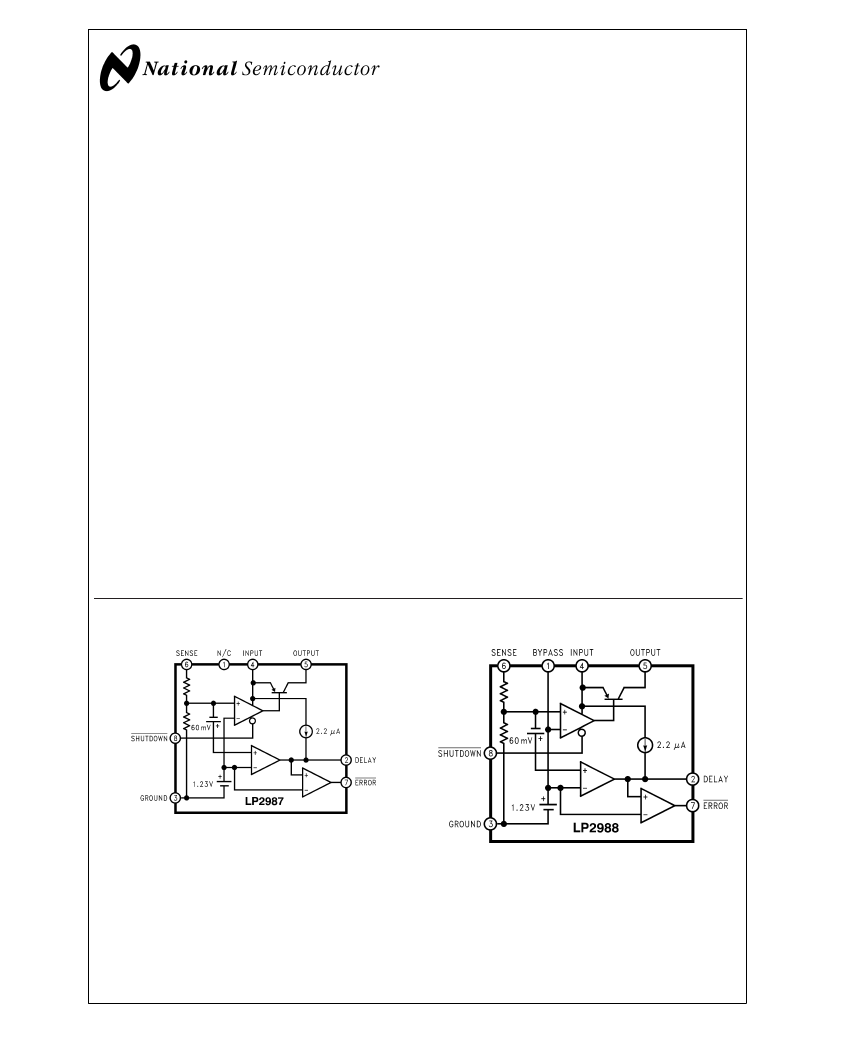

Block Diagrams
10001701
10001702
VIP
™
is a trademark of National Semiconductor Corporation.
© 2002 National Semiconductor Corporation
DS100017
www.national.com
