AR3PK, AR3PM
www.vishay.com
Vishay General Semiconductor
Fast Switching Avalanche Surface Mount Rectifiers
FEATURES
• Very low profile - typical height of 1.1 mm
Available
eSMP
®
Series
K
• Ideal for automated placement
• Glass passivated pellet chip junction
• Fast reverse recovery time
• Controlled avalanche characteristics
• Low leakage current
1
2
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TO-277A (SMPC)
K
Cathode
Anode 1
Anode 2
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
E
AS
V
F
at I
F
= 3.0 A
T
J
max.
Package
Diode variation
3.0 A
800 V, 1000 V
50 A
120 ns
20 mJ
1.26 V
175 °C
TO-277A (SMPC)
Single die
For use in lighting, fast switching rectification of power
supplies, inverters, converters, and freewheeling diodes for
consumer, automotive, and telecommunication.
MECHANICAL DATA
Case:
TO-277A (SMPC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant and
AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,.....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum DC forward current (fig. 1)
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Non-repetitive avalanche energy at T
J
= 25 °C
I
AS
= 2.5 A max.
I
AS
= 1.0 A typ.
V
RRM
I
F (1)
I
F (2)
I
FSM
E
AS
T
J
, T
STG
SYMBOL
AR3PK
AR3K
800
3.0
1.6
50
20
30
-55 to +175
AR3PM
AR3M
1000
V
A
A
mJ
°C
UNIT
Operating junction and storage temperature range
Notes
(1)
Mounted on 20 mm x 20 mm pad areas, 1 oz. FR4 PCB
(2)
Free air, mounted on recommended pad area
Revision: 23-Feb-16
Document Number: 89333
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AR3PK, AR3PM
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Instantaneous forward voltage
TEST CONDITIONS
I
F
= 3.0 A
Rated V
R
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
SYMBOL
V
F (1)
I
R (2)
t
rr
C
J
TYP.
1.55
1.26
0.34
110
95
34
MAX.
1.9
1.6
10
500
120
-
UNIT
V
Reverse current
Maximum reverse recovery time
Typical junction capacitance per diode
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
μA
ns
pF
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
Rated V
R
= 4.0 V, 1 MHz
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JM
(2)
AR3PK
85
5
AR3PM
UNIT
°C/W
Notes
(1)
Free air, mounted on recommended PCB 1 oz. pad are; thermal resistance R
JA
- junction to ambient
(2)
Units mounted on PCB with 20 mm x 20 mm copper pad areas; R
JM
- junction to mount
ORDERING INFORMATION
(Example)
PREFERRED P/N
AR3PM-M3/86A
AR3PM-M3/87A
AR3PMHM3/86A
(1)
AR3PMHM3/86A
(1)
AR3PMHM3_A/H
(1)
AR3PMHM3_A/I
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.10
0.10
0.10
0.10
0.10
0.10
PREFERRED PACKAGE CODE
86A
87A
86A
87A
H
I
BASE QUANTITY
1500
6500
1500
6500
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Revision: 23-Feb-16
Document Number: 89333
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AR3PK, AR3PM
www.vishay.com
Vishay General Semiconductor

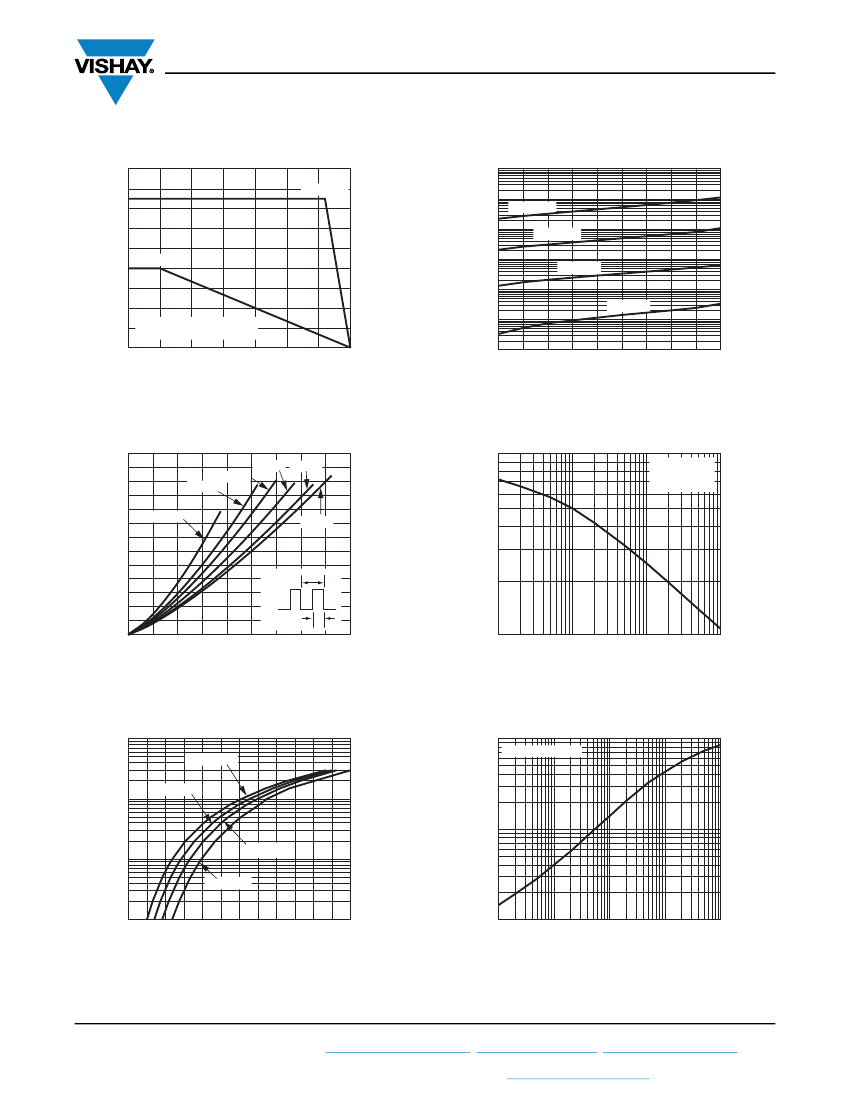

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
3.6
3.2
T
M
= 155 °C
10 000
Instantaneous Reverse Current (μA)
1000
DC Forward Current (A)
2.8
2.4
2.0
1.6
1.2
0.8
0.4
0
0
25
50
75
100
125
150
175
T
M
Measured
at the Cathode Band Terminal
T
A
= 25 °C
T
A
= 175 °C
T
A
= 125 °C
100
10
T
A
= 75 °C
1
T
A
= 25 °C
0.1
0.01
10
20
30
40
50
60
70
80
90
100
T
M
- Mount Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Characteristics
5.2
4.8
4.4
D = 0.3
D = 0.5 D = 0.8
100
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
4.0
3.6
3.2
2.8
2.4
2.0
1.6
1.2
0.8
0.4
0
0
0.4
0.8
1.2
1.6
2.0
2.4
2.8
3.2
3.6
D = t
p
/T
t
p
T
D = 0.1
D = 1.0
Junction Capacitance (pF)
10
0.1
1
10
Average Power Loss (W)
D = 0.2
100
Average Forward Current (A)
Reverse Voltage (V)
Fig. 2 - Average Power Loss Characteristics
Fig. 5 - Typical Junction Capacitance
100
T
A
= 175 °C
T
A
= 125 °C
100
10
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
Junction-to-Ambient
10
T
A
= 75 °C
1
T
A
= 25 °C
0.1
0.2
0.7
1.2
1.7
2.2
2.7
3.2
1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Transient Thermal Impedance
Revision: 23-Feb-16
Document Number: 89333
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AR3PK, AR3PM
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-277A (SMPC)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC
®
TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 23-Feb-16
Document Number: 89333
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
