SMCJ20R7G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMCJ20R7G

SMCJ20R7G: DescriptionTrans Voltage Suppressor Diode, 1500W, 20V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size314KB，7 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

SMCJ20R7G Overview

Trans Voltage Suppressor Diode, 1500W, 20V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN

SMCJ20R7G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	R-PDSO-C2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage	27.1 V
Minimum breakdown voltage	22.2 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	20 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30

Preview

Download Datasheet

View All

CREAT BY ART

SMCJ SERIES

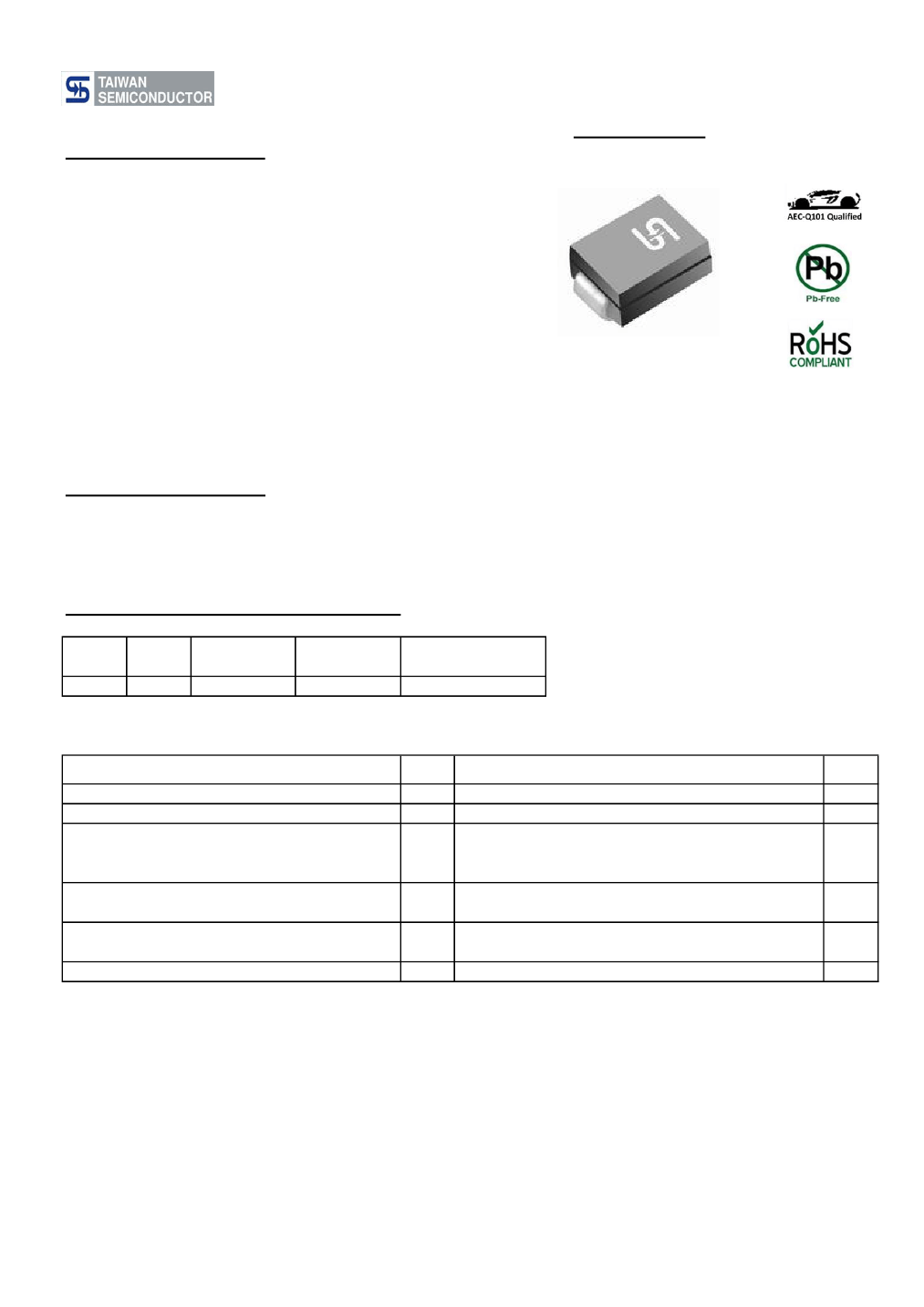

1500 Watts Suface Mount Transient Voltage Suppressor

SMC/DO-214AB

Features

For surface mounted application

Low profile package

Built-in strain relief

Glass passivated junction

Excellent clamping capability

Fast response time: Typically less than 1.0ps from

0 volt to BV min

Typical I

less than 1uA above 10V

High temperature soldering guaranteed:

260℃ / 10 seconds at terminals

Plastic material used carried Underwriters

Laboratory Flammability Classification 94V-0

1500 watts peak pulse power capability with a

10/1000 us waveform

Green compound with suffix "G" on packing

code & prefix "G" on datecode

Mechanical Data

Case: Molded plastic

Terminals: Matte tin plated, lead free

Polarity: Indicated by cathode band

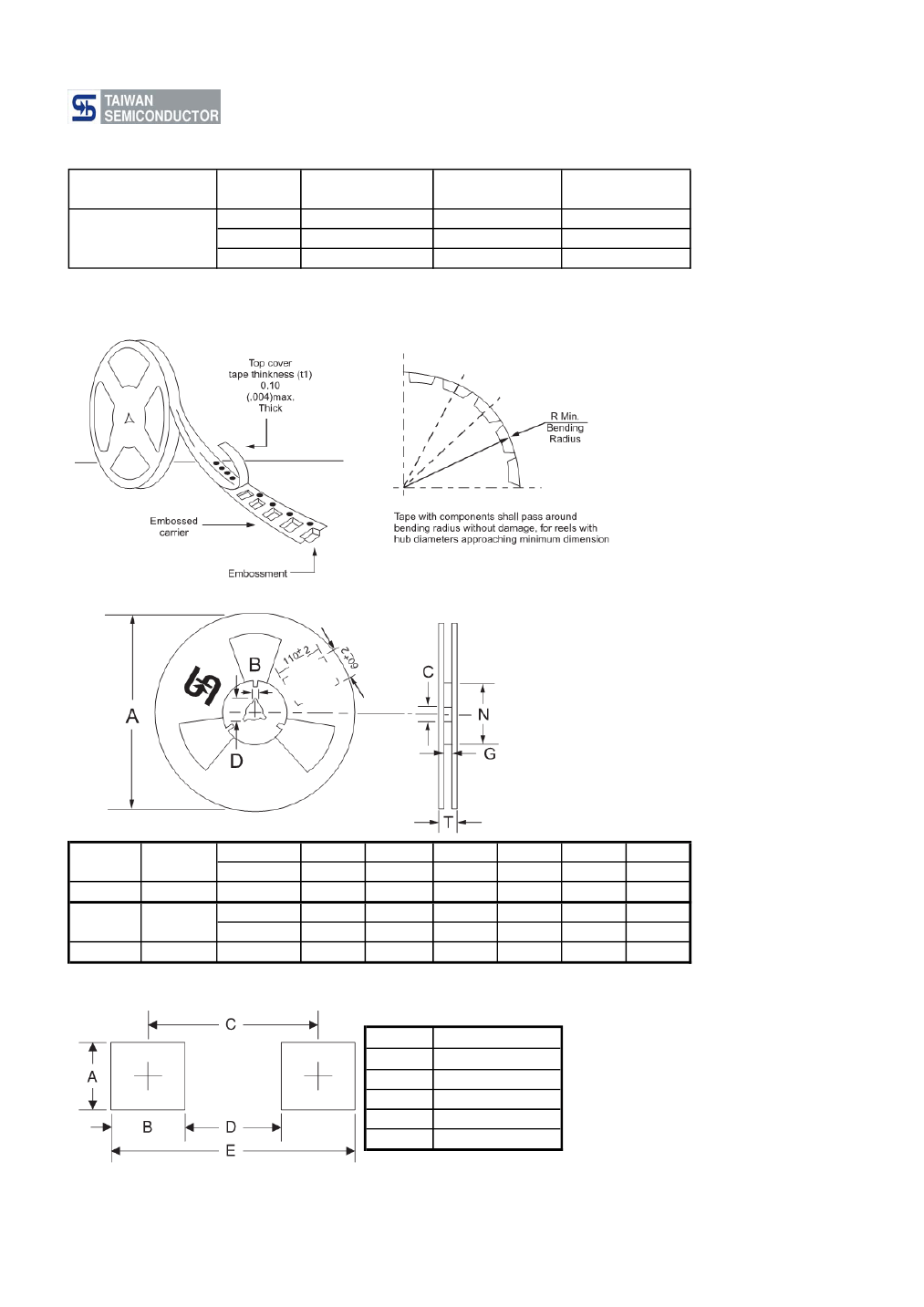

Standard packaging: 16mm tape per EIA Std RS-481

Weight: 0.26 gram

Ordering Information (example)

Part No.

SMCJ5.0

Package

SMC

Packing

850 / 7" REEL

Packing code

(Green)

R7G

Maximum Ratings and Electrical Characteristics

Rating at 25

℃

ambient temperature unless otherwise specified.

Parameter

Peak Power Dissipation at T

=25℃, Tp=1ms(Note 1)

Steady State Power Dissipation

Peak Forward Surge Current, 8.3ms Single Half

Sine-wave Superimposed on Rated Load

(JEDEC method)(Note 2) - Unidirectional Only

Maximum Instantaneous Forward Voltage at 100 A for

Unidirectional Only (Note 3)

Typical Thermal Resistance

Operating and Storage Temperature Range

Symbol

FSM

Value

1500

200

Unit

Watts

Amps

θJC

θJA

, T

STG

3.5 / 5.0

-55 to +150

Volts

℃/W

℃

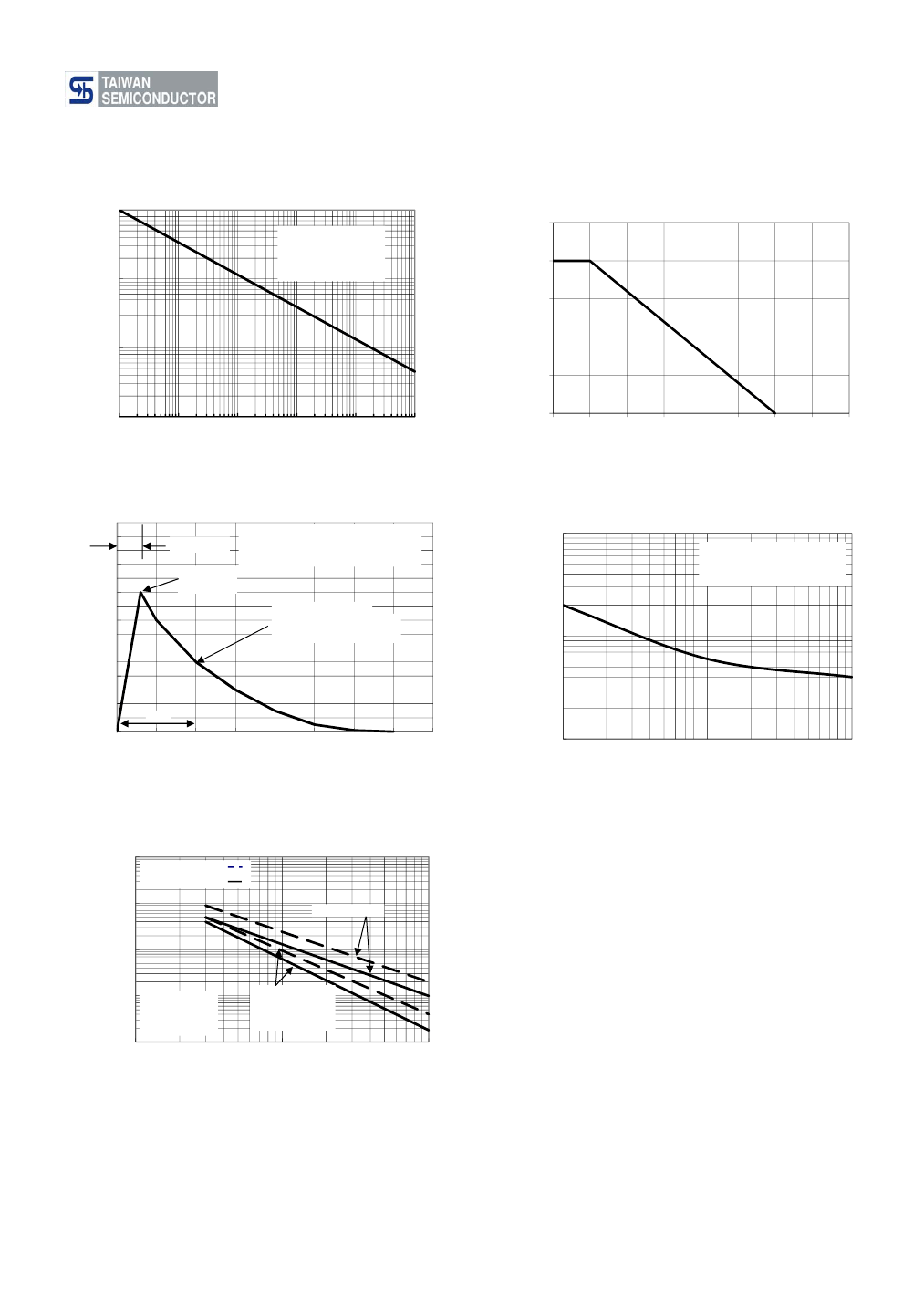

Note 1: Non-repetitive Current Pulse Per Fig. 3 and Derated above T

=25℃ Per Fig. 2

Note 2: Mounted on 16mm x 16mm Copper Pads to Each Terminal

Note 3: V

=3.5V on SMCJ5.0 thru SMCJ90 Devices and V

=5.0V on SMCJ100 thru SMCJ170 Devices

Devices for Bipolar Applications

1. For Bidrectional Use C or CA Suffix for Types SMCJ5.0 through Types SMCJ170

2. Electrical Characterstics Apply in Both Directions

Version:K13
