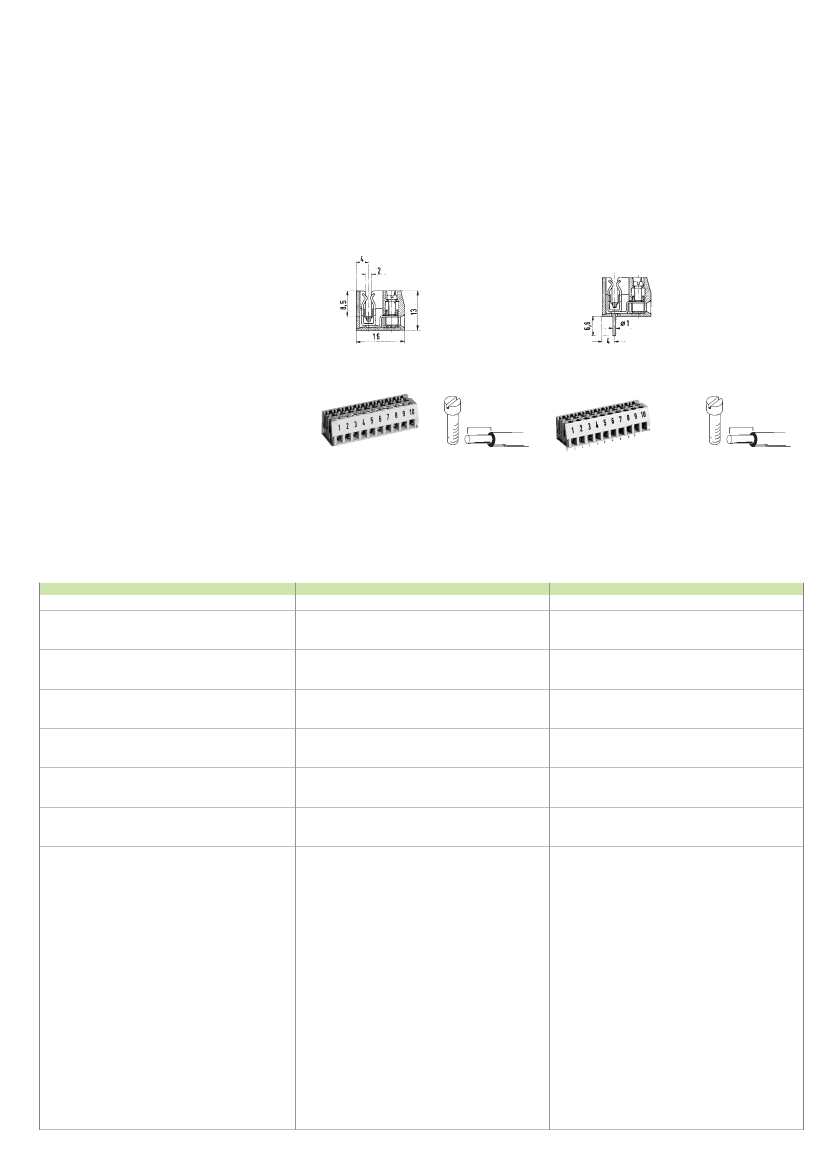

PC board connector
card edge design, spacing: 5.00 mm
PCB
Rated cross section:
2.5 mm
2
Rated current:
5A
Connection range:
0.14 – 4.0 mm
2
solid/
0.14 – 2.5 mm
2
fine stranded
200 V/4 kV/3 – Overvoltage category III
320 V/4 kV/2 – Overvoltage category II
1000 V/4 kV/1 – Overvoltage category I
M 2.5
6
M 2.5
6
without solder connection
for PC boards
with solder connection
for PC boards
Type LPST 1
plug-in 90° to wire entry
Rated voltages VDE 0110
UL ratings
CSA ratings
Approvals
Std. pack
U
G
T
Poles
Type LPSTL 1
plug-in 90° to wire entry
300 V
300 V
Part no.
No. 22 – 14 AWG
No. 22 – 14 AWG
5A
5A
No. 22 – 14 AWG
No. 22 – 14 AWG
300 V
300 V
5A
5A
igqw
Part no.
igqw
Part no.
Spacing: 5.00 mm
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
14
19
24
29
34
39
44
49
54
59
64
69
74
79
84
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
marked
25.000.0256.0
25.000.0356.0
25.000.0456.0
25.000.0556.0
25.000.0656.0
25.000.0756.0
25.000.0856.0
25.000.0956.0
25.000.1056.0
25.000.1156.0
25.000.1256.0
25.000.1356.0
25.000.1456.0
25.000.1556.0
25.000.1656.0
unmarked
25.010.0256.0
25.010.0356.0
25.010.0456.0
25.010.0556.0
25.010.0656.0
25.010.0756.0
25.010.0856.0
25.010.0956.0
25.010.1056.0
25.010.1156.0
25.010.1256.0
25.010.1356.0
25.010.1456.0
25.010.1556.0
25.010.1656.0
marked
25.001.0256.0
25.001.0356.0
25.001.0456.0
25.001.0556.0
25.001.0656.0
25.001.0756.0
25.001.0856.0
25.001.0956.0
25.001.1056.0
25.001.1156.0
25.001.1256.0
25.001.1356.0
25.001.1456.0
25.001.1556.0
25.001.1656.0
17 to 20pole upon request
Thickness of PC board: 1.4 mm – 1.8 mm
Material:
PC board connectors
Insulating housing: PBT, glass-fibre
reinforced
gray, UL 94-V-2
Clamping body: nickel-plated brass
Clamping screw: zinc-plated steel
Contact spring: tin bronze
– LPST 1: silver-plated
– LPSTL 1: tin-plated
