AZ23C5V6-TP: DescriptionZener Diode, 5.6V V(Z), 7.142%, 0.3W, Silicon, Unidirectional, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size230KB，4 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

AZ23C5V6-TP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AZ23C5V6-TP	-	-	View	Buy Now

AZ23C5V6-TP Overview

Zener Diode, 5.6V V(Z), 7.142%, 0.3W, Silicon, Unidirectional, PLASTIC PACKAGE-3

AZ23C5V6-TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	40 Ω
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.3 W
Certification status	Not Qualified
Nominal reference voltage	5.6 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	7.142%
Working test current	5 mA

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

AZ23C2V7

THRU

AZ23C51

300

Zener Diode

2.7 to

Volts

Features

Dual zeners in common anode configuration.

300mW power dissipation rating.

Ideally suited for automatic insertion.

vz for both diodes in one case is

•

5%.

SOT-23

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

Halogen

free available upon request by adding suffix "-HF"

Absolute Maximum Ratings

Symbol

Parameter

Power dissipation

Thermal Resistance, Junction to Ambient Air

Rating

300

Unit

DIMENSIONS

INCHES

MIN

.110

.083

.047

.035

.070

.018

.0005

.035

.003

.015

.007

MIN

2.80

2.10

1.20

.89

1.78

.45

.013

.89

.085

.37

.20

thJA

STG

417

-65 to +175

C/W

Storage Temperature Range

*Pin Configuration - Top View

DIM

MAX

.120

.104

.055

.041

.081

.024

.0039

.044

.007

.020

MAX

3.04

2.64

1.40

1.03

2.05

.60

.100

1.12

.180

.51

.50

NOTE

Revision:

www.mccsemi.com

1 of 4

2013/01/01

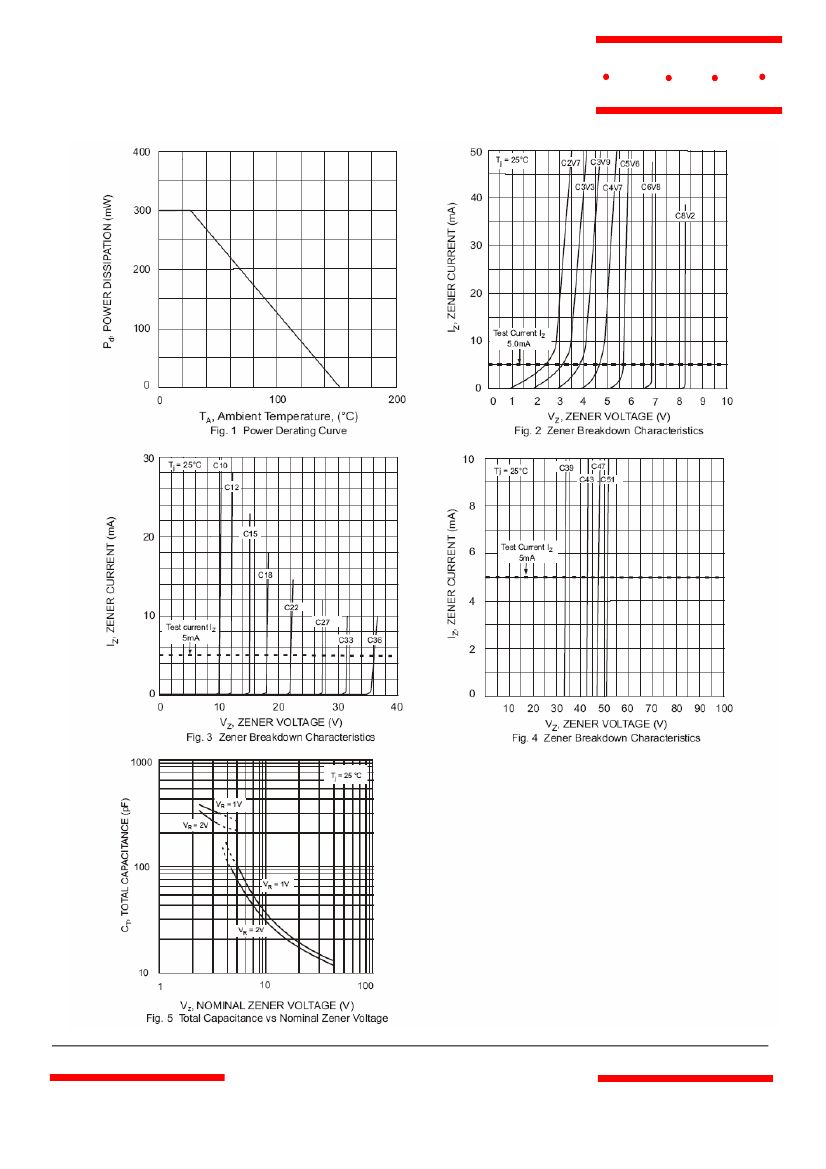

AZ23C5V6-TP Related Products

	AZ23C5V6-TP	AZ23C12-TP	AZ23C7V5-TP	AZ23C6V8-TP	AZ23C3V9-TP
Description	Zener Diode, 5.6V V(Z), 7.142%, 0.3W, Silicon, Unidirectional, PLASTIC PACKAGE-3	Zener Diode, 12V V(Z), 5.39%, 0.3W, Silicon, Unidirectional, PLASTIC PACKAGE-3	Zener Diode, 7.5V V(Z), 6.04%, 0.3W, Silicon, Unidirectional, PLASTIC PACKAGE-3	Zener Diode, 6.8V V(Z), 5.88%, 0.3W, Silicon, Unidirectional, PLASTIC PACKAGE-3	Zener Diode, 3.9V V(Z), 5.12%, 0.3W, Silicon, Unidirectional, PLASTIC PACKAGE-3
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)
package instruction	PLASTIC PACKAGE-3	R-PDSO-G3	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3
Contacts	3	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	40 Ω	20 Ω	7 Ω	8 Ω	95 Ω
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1	1
Number of components	2	2	2	2	2
Number of terminals	3	3	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	5.6 V	12 V	7.5 V	6.8 V	3.9 V
surface mount	YES	YES	YES	YES	YES
technology	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10	10
Maximum voltage tolerance	7.142%	5.39%	6.04%	5.88%	5.12%
Working test current	5 mA	5 mA	5 mA	5 mA	5 mA
