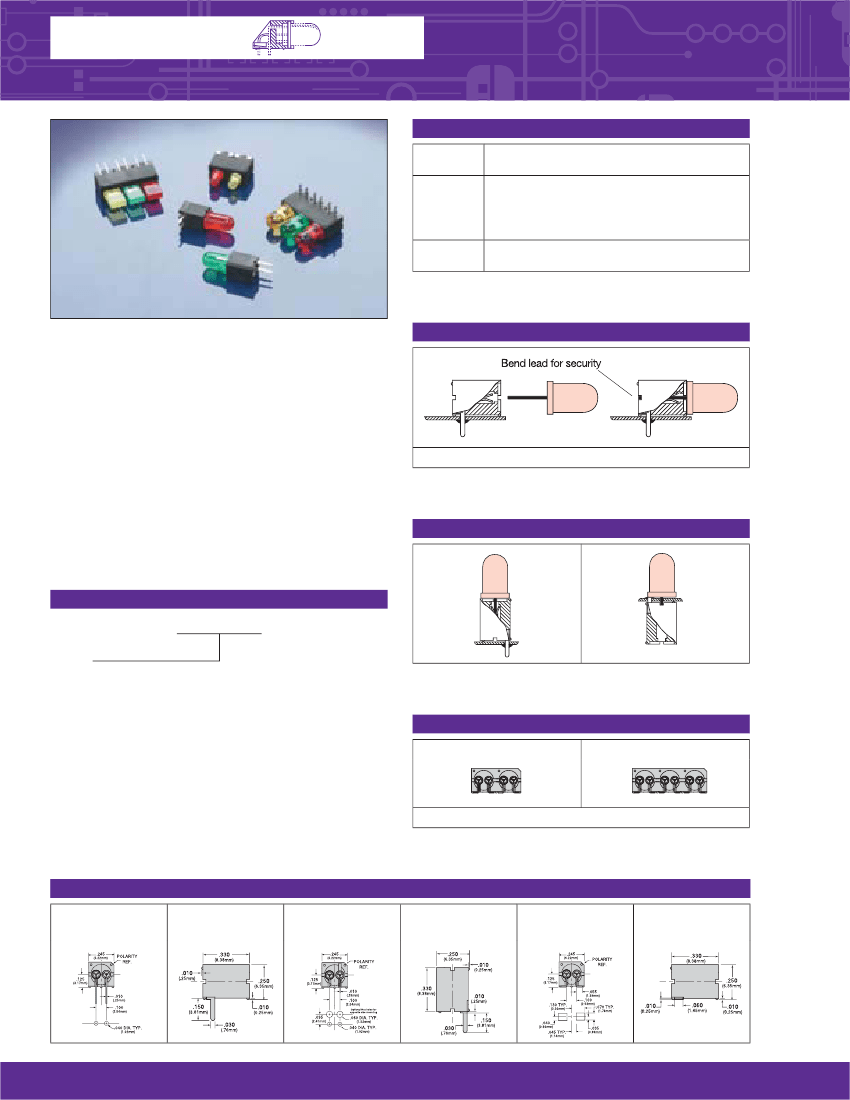

Housing - Thermoplastic, (black), U.L. 94 V0
Contacts - Phosphor bronze, tin plated
PCH Series - Through-hole horizontal mounting sockets, .035 ˝ (.89mm)
holes on .100 ˝ centers. PCV Series - Through-hole vertical mounting
sockets, .035 ˝ (.89mm) holes on .100˝ centers. SMD Series - Surface
mount, horizontal mount-ing sockets, .060 ˝ (1.52mm) X .060 ˝ (1.52mm)
component pad.
Standard 3mm and 5mm devices.
Leads - Min. .017 ˝ (.43mm) round or square.
U.S. & Foreign Patents Issued and Pending
P-C-LITE sockets are soldered directly to the PCB which permits easy insertion or removal of the
LED. PCH and SMD series mount horizontally, PCV series mounts vertically. STD series standoff can
be used to make fine adjustments in the extended length of the LED.
®
®
P-C-LITE LED sockets are manufactured from U.L. listed thermoplastics. Unique three finger
contact design permits automatic adjustment to the various sizes and shapes of LED leads.
®
Insert LED - trim LED or bend LED leads for security.
P-C-LITE mounts are relampable sockets for circuit board mounting of LEDs. They are used to
display circuit condition for status, logic and fault detection. The sockets are also used for mounting
photodetection type devices as well as incandescent bi-pin lamps.
®
P-C-LITE sockets (PCH/PCV) are affixed to PCB by wave soldering. IR reflow is used for the SMD.
Molded standoffs permit easy board cleaning. LED leads can be bent after insertion for added security.
PCH 330
MODEL
PCH 330 Horizontal Mount (Single Unit)
* PCH 660 Horizontal Mount (Dual Unit)
* PCH 990 Horizontal Mount (Triple Unit)
PCV 220 Vertical Mount (Single Unit)
* PCV 440 Vertical Mount (Dual Unit)
* PCV 880 Vertical Mount (Triple Unit)
SMD 330 Horizontal Surface Mount (Single Unit)
* SMD 660 Horizontal Surface Mount (Dual Unit)
* SMD 990 Horizontal Surface Mount (Triple Unit)
* View outline drawings on the web
direct url address
www.vcclite.com/pch_pcv
dual sockets
triple sockets
For specifications and dimensional information visit
www.vcclite.com
PCH HOLE PATTERN
PCH 330
HORIZONTAL
Through HOLE
PCH HOLE PATTERN
PCV 220
VERTICAL
Through HOLE
SMD PAD PATTERN
SMD 330
HORIZONTAL
SURFACE MOUNT
