23.69 in
602 mm
3
1
17.00 in
432 mm
.70 in
18 mm
2
5
4
38.00 in
965 mm
44.28 in
1125 mm
Item Number
1
2
3
Title
MODIFIED PLEXI/VENTED DOOR
WING KNOB LOCK W/ LOC13390 CAM
PLEXI WINDOW - 18.00 X 39.00
DOOR HINGE BODY
BUMPER FEET-RUBBER STICK ON
Quantity
1
1
1
2
2
WINDOW
AREA
A
4
5
PART NUMBERS
RCSC19042WDBK1 PAINTED BLACK TEXTURED

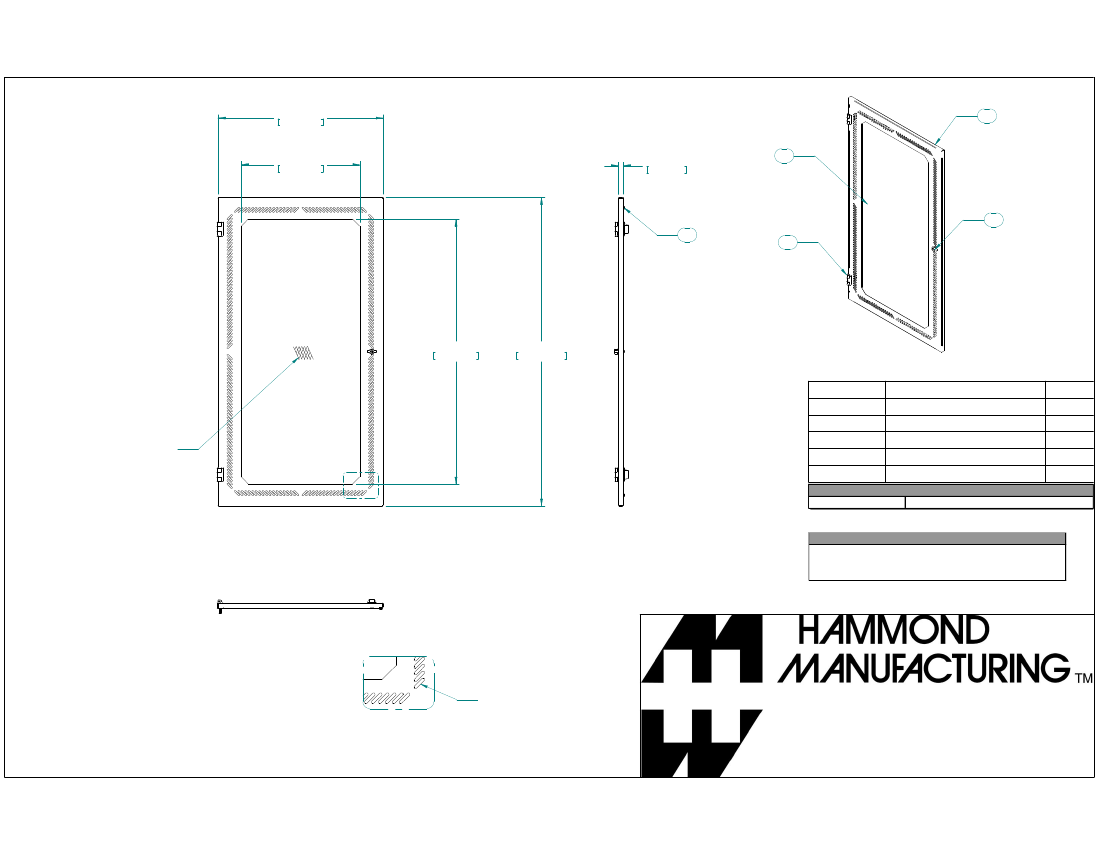

FRONT VIEW
R.S. VIEW
NOTES
Data subject to change without notice. Isometric drawing not to scale.
BOTTOM VIEW
DETAIL A
0.28 X 1.00
VENTILATION SLOTS
TYP AS SHOWN
www.hammondmfg.com
PART NO.
RCSC19042WD
