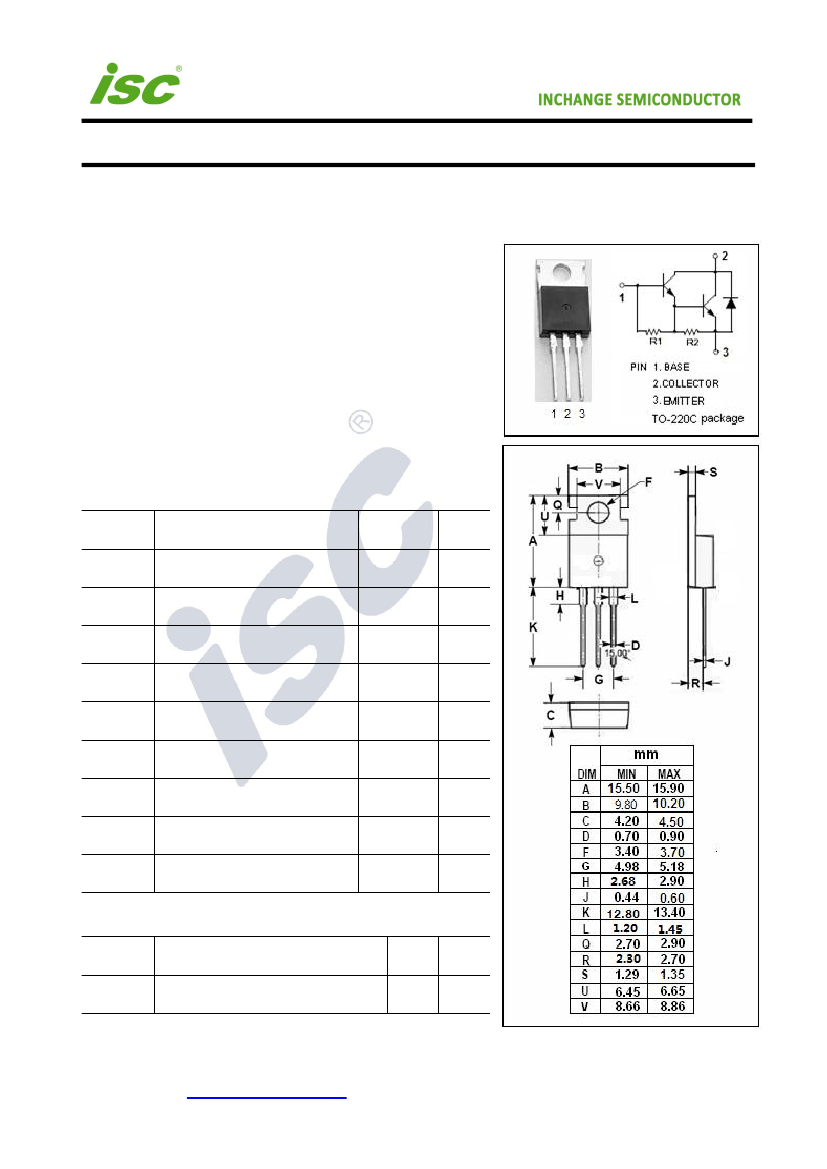

Silicon NPN Darlington Power Transistor
BU922T
DESCRIPTION
·High
Voltage
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed
for automotive ignition applications and inverter
circuits for motor control.
ABSOLUTE MAXIMUM RATINGS (T
a
=25
℃
)
SYMBOL
V
CES
V
CEO
V
EBO
I
C
I
CM
I
B
P
C
T
j
T
stg
PARAMETER
Collector-Emitter Voltage V
BE
= 0
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Collector Current-peak
Base Current
Collector Power Dissipation
@T
C
=25℃
Junction Temperature
Storage Temperature Range
VALUE
500
450
5
10
15
5
105
150
-65~150
UNIT
V
V
V
A
A
A
W
℃
℃
THERMAL CHARACTERISTICS
SYMBOL
R
th j-c
PARAMETER
Thermal Resistance, Junction to Case
MAX
1.2
UNIT
℃/W
isc website
：
www.iscsemi.com
1
isc & iscsemi
is registered trademark
isc
Silicon NPN Darlington Power Transistor
ELECTRICAL CHARACTERISTICS
T
C
=25℃ unless otherwise specified
SYMBOL
V
CEO(SUS)
V
CE
(sat)-1
V
CE
(sat)-2
V
BE
(sat)-1
V
BE
(sat)-2
I
CES
I
CEO
I
EBO
V
ECF
PARAMETER
Collector-Emitter Sustaining Voltage
Collector-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Collector Cutoff Current
Collector Cutoff Current
Emitter Cutoff Current
C-E Diode Forward Voltage
CONDITIONS
I
C
= 50mA; I
B
= 0
I
C
= 5A; I
B
= 50mA
I
C
= 7A; I
B
= 140mA
I
C
= 5A; I
B
= 50mA
I
C
= 7A; I
B
= 140mA
V
CE
= 500V;V
BE
= 0
V
CE
= 500V;V
BE
= 0;T
j
= 125℃
V
CE
= 450V; I
B
= 0
V
EB
= 5V; I
C
= 0
I
F
= 7A
MIN
450
TYP.
BU922T
MAX
UNIT
V
1.8
1.8
2.2
2.5
0.25
0.5
0.25
50
2.5
V
V
V
V
mA
mA
mA
V
